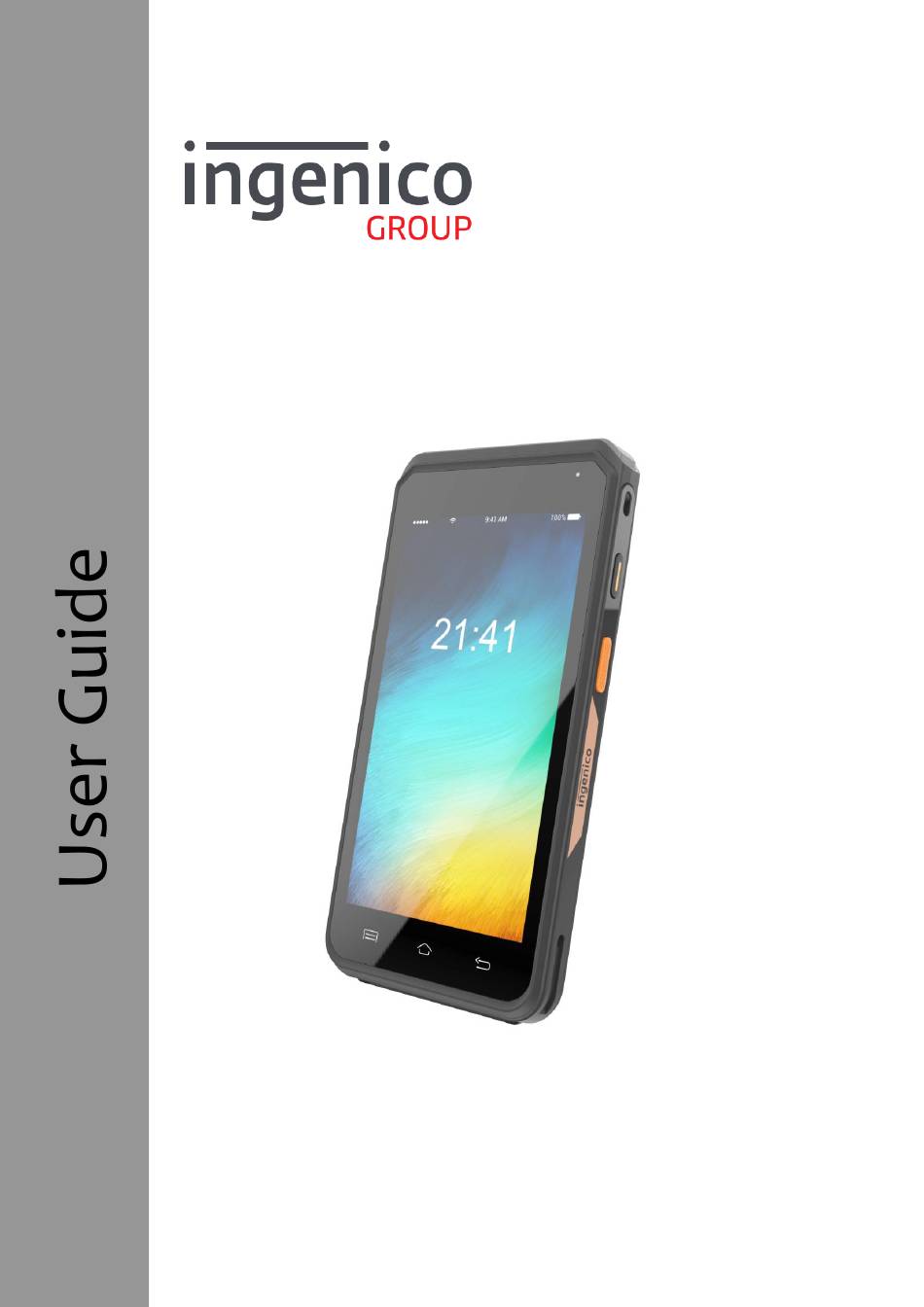

- Page 1 Model：AXIUM EX6000 WWW.ingenico.com 28-32,Boulevard de Grenelle, 75015 PARIS - FRANCE/ (T)+33(0)1 58 01 80 00 / (F)+33 (0)1 58 01 91 35 Ingenico-SA au capital de 47 656 332 / 317 218 758 RCS Nanterre...
-
Page 2: Table Of Contents
Contents Introduction ........................3 Presentation ........................4 Content of the box ....................4 Overview of AXIUM EX6000..................5 Keypad Functions ...................... 6 Touch Panel ....................... 7 Use of the terminal ......................7 Power on/Power off the terminal ................7 Reading cards ......................8 Usage of Front scanner ..................... -
Page 3: Introduction
1. Introduction We hope that you will be fully satisfied with your new AXIUM EX6000 terminal. Read thisguide to understand and make the best use of your terminal. It presents you the necessary information about use,installation,maintenance,safety security recommendations. WARRANTY/SECURITY /GARANTIE/SÉCURITÉ... -
Page 4: Presentation
Le bloc d’alimentation fournit avec votre équipement est spécialement conçu pour les terminaux de paiment Ingenico. Ne pas utiliser d’autres sources d’alimentation. L’utilisation d’une alimentation électrique ayant des tensions et courant similaires peut endommager votre équipement. -
Page 5: Overview Of Axium Ex6000

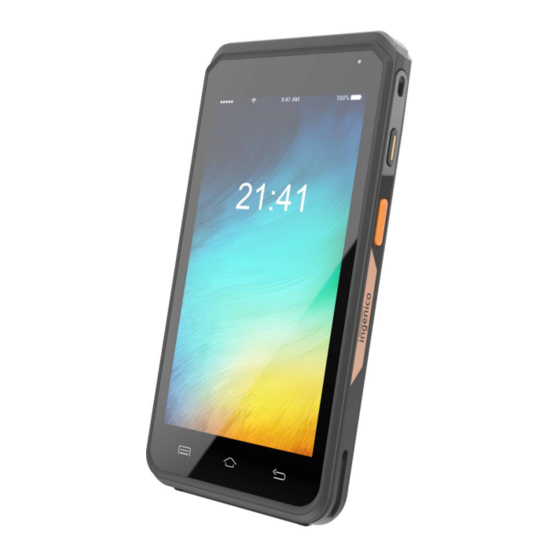

2.2 Overview of AXIUM EX6000 1. Volume Keys 2. Scan Key 3. LCD and touch screen 4.USB Type-C connector 5.Smart card reader 6. Indicate LED of front scanner 7. Front scanner 8. Illuminate lamp of front scanner 9.Magnetic card reader 10.Contactless landing zone... -
Page 6: Keypad Functions
13. LEDs for Contactless Card 14. Speaker 15. SAM card slot16. Micro SD slot 17. Battery socket18. Base Charging interface- 19. Flash20. Rear camera 21. SIM 1 card slot22.SIM 2 card slot 23.Battery compartment24.Lanyard hole 25. Base Charging interface+ Weight 261g (including battery) Dimension (L x W x H) 152.2 X 77.1 X 17.5mm... -
Page 7: Touch Panel
The terminal has a 5.0 inchscreen,there are three capacitive keys at the bottom of the screen,Menu,Homeand Back keys. 2.4 Touch Panel The AXIUM EX6000 is equipped with touch panel that allows you capture functions and menus by your finger or use a stylus. 3. Use of the terminal 3.1 Power on/Power off the terminal... -
Page 8: Reading Cards
button for about 1s until the display is turned up. To power off: Press <Power> button for more than 2s until the display show the following figure, then press <Power off>. If the battery is empty, the terminal automatically shuts off. Abnormal power off: When the device works abnormally, for example, it is crashed and no actions menu popped out while pressing the power button, pleaselong-press the power button for 8s,... -
Page 9: Usage Of Front Scanner
The card can be read bi-directionally, with the stripe facing the terminal. Use a regular movement in order to ensure a reliable card reading. Contactless card Bring the card firmly up to the active zone. Keep the card close to the reader during the transaction. -
Page 10: Usb Type-C
scanning. After starting the barcode scanning, a red laser beam will be emitted from the window in front of the terminal. Align the red light beam with the bar code you want to scan When the scan is successful, the terminal will automatically turn off the beam and sound a beep. -
Page 11: Recommendations
4.1 Recommendations Operating conditions Ambient temperature* From -10℃ to +50℃ Max relative humidity From 10%to 90%, Non-condensing (*)Excluding battery charging Battery charging conditions Ambient temperature From 0℃ to +40℃ Storage conditions Ambient temperature From -20℃to +70℃ Max relative humidity From 5% to 90%, Non-condensing 4.2 Installing modules 4.2.1 SAM/SIM1/SIM2 WARNING/ATTENTION... - Page 12 When introducing a SAM/SIM in its slot, be sure to put the cut corner as indicated on the picture. Close the trapdoor. ADVICE SIM and SAM cards share the same form factor , please do be careful to the SIM card socket position.
-
Page 13: Battery
Switch off the terminal before opening the trapdoor. Mettre hors tension le terminal avant d’ouvrir la trappe. MicroSD connector is located inside the terminal, in a closed compartment. Turn the terminal and remove the trapdoor. MicroSD are identified by the engraved marks on the lower housing. -
Page 14: Visual Impaired Accessory
Place the battery pack in its compartment. Close the battery trapdoor. 4.4 Visual Impaired Accessory Install the VI accessory on the screen. Take out the VI accessory. 14 / 25... -
Page 15: Recommendations
Powering down the AXIUM EX6000 Disconnect the AXIUM EX6000 power supply block adapter from the electrical mainsnetwork. Lithium cell The AXIUM EX6000 is fitted with an internal lithium cell which should only be accessed by a qualified technician. Battery ... - Page 16 RISK OF EXPLOSION BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS. RISQUE D'EXPLOSION LA BATTERIE EST REMPLACÉE PAR UN TYPE INCORRECT. ÉLIMINEZ LES PILES UTILISÉES CONFORMÉMENT AUX INSTRUCTIONS. Electrical power supply network The electrical outlet must meet the following criteria: ...
- Page 17 BSMI(Taiwan) PSE Mark(Japan) Recycle in accordance with the waste electronic & electrical equipment directive Underwriters Laboratories Inc (US Compliance) Made from recyclable material Low density version of Polyethylene (LDPE) Chlorinated Polyethylene ( CPE) Risk of explosion if the battery is incorrectly replaced or is placed in a fire Dispose of batteries at a hazardous waste collection site or recycling facility...
-
Page 18: Security Of Your Terminal
Direct Current SAM/SIM1/SIM2Readers compartment The trapdoor for battery, SAM/SIM1/SIM2, readers located underneath the terminal, must be in place during the normal operation of the terminal.See sections “Installing modules” and “Installing the battery”. On airplanes Your terminal must be switched off by removing the battery pack. Remove the battery from the terminal when on an airplane. -
Page 19: Fixed Installation
Detected” and further use of the terminal will not be possible. If you observe the “Warning Detected” message, you should contact the terminal helpdesk immediately. You are strongly advised to ensure that privileged access to your terminal is only granted to staff that have been independently verified as being trustworthy.The terminal must never be put in or left at a location where it could be stolen or replaced by another device. -
Page 20: Cleaning The Terminal
5.4 Cleaning the terminal Unplug all the wires from terminal. Good rules for proper cleaning of the terminal are: Use a soft cloth that is very slightly soaked with soapy water to clean the outside of terminal. Do not clean the electricalconnections. ... -
Page 21: Standard
6. Standard FCC Warning This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. - Page 22 approved for the transmitter by Innovation, Science and Economic Development Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that, the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication. Conformément à...
-
Page 23: Troubleshooting
Packaging waste must also be collected separately to assure a proper disposal and recycling. In this way you can participate in the re-use and upgrading of Electrical and Electronic Equipment Waste, which can have an effect on the environment and human health. 7. - Page 24 If such permission is granted, it will be subject to the condition that the recipient ensures that any other recipient of this document, or information contained therein, is held responsible to ingenico for the confidentiality of that information.
- Page 25 WWW.ingenico.com 28-32,Boulevard de Grenelle, 75015 PARIS - FRANCE/ (T)+33(0)1 58 01 80 00 / (F)+33 (0)1 58 01 91 35 Ingenico-SA au capital de 47 656 332 / 317 218 758 RCS Nanterre. 25 / 25...
