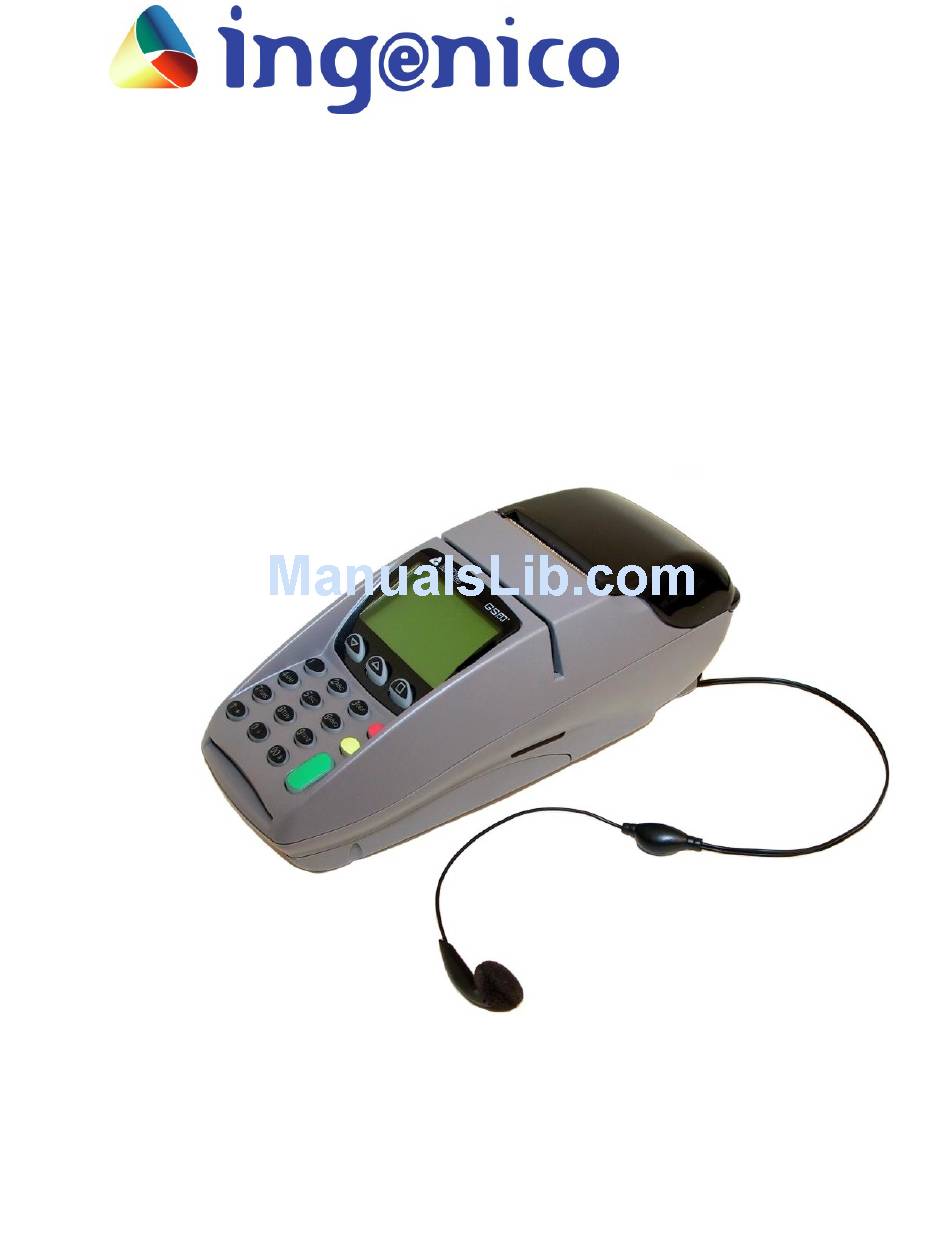

- Page 1 The Global Provider of Secured Transactions Systems ser’s Manual February 2004 ELITE 790 CDMA...
- Page 2 ELITE 790 Terminal Table of Contents TERMINAL DESCRIPTION ............... 3 Introduction ......................3 The Terminal......................4 The Terminal Connections ..................4 The Base Connections .................... 4 The Keyboard (Example only – yours may differ) ..........5 The Card Readers ....................6 Wireless functionality ....................
-
Page 3: I- Terminal Description
December 2003 Terminal Description 1- Introduction The ELITE 790 is a mobile payment terminal using the 1XRTT standard for radio communications and a dial modem for PSTN communications. This terminal was created to process credit or debit payments using magnetic stripe or smart cards. The ELITE 790 has an integrated thermal printer which operates at 6 LPS. -
Page 4: The Terminal
ELITE 790 Terminal The Terminal The terminal case contains the following elements: • The portable terminal and base. • A cable that connects the terminal to a telephone line. • A power pack that connects the terminal to a 115 or 230 volt supply (depending on the country) 3- The Terminal Connections There are two connectors on the back of the terminal. -
Page 5: The Keyboard (Example Only – Yours May Differ)
October 2001 5- The Keyboard (Example only – yours may differ) key gives the user access to the different options available at the time the key is pressed. These could include the application or the “system” menu which manages the standard functions of the Elite 790, such as: modification of the date and the time and modification of the download and line parameters. -
Page 6: The Card Readers
ELITE 790 Terminal The Card Readers Magnetic Stripe Card Magnetic stripe cards can be read when swiped either from right to left, or left to right. The magnetic stripe on the card should face the printer and the card should be swiped through the reader horizontally and without hesitation. - Page 7 December 2003 When off the base, the ELITE 790 terminal switches off after a programmable timeout if there is no inactivity. When the terminal is switched on, the following messages could appear on the terminal display: A problem has been encountered with the CDMA INACTIVE CDMA modem.
-
Page 8: Terminal Features
ELITE 790 Terminal ELITE 790 TECHNICAL OVERVIEW Terminal features The ELITE 790 has the following features: • 2Mbytes battery backed RAM with advanced memory protection • 1024 bytes EEPROM • INTEL™ compatible 80251 CPU • Battery backed calendar • Buzzer •... -
Page 9: Rs232 Interface (Base)
December 2003 RS232 Interface (base) Standard interface : • rate: 300 to 19200 bauds • format: 7 to 8 bits • parity: odd, even, none • interface: RS232 Connection : TxCOM1 RxCOM1 Ground Dial Modem The dial modem is used when the RF network is not available. The speed of the modem can be set to 1200 or 2400 bits per second. -
Page 10: Serial Connector
ELITE 790 Terminal 7- Serial Connector Connector, 4 pins Binder series 719, ref. 09-9767-00-04. Pin 1 = Tx, 2 = RX, 3 = Vcc (5V / 150mA), 4 = Gnd Serial connector Hands free kit connector 8- Hands free kit Connector This is a 4-contacts jack designed to support a hands free kit (microphone + earpiece). -
Page 11: Power Supply
December 2003 9,5 mm 9- Power Supply 5,5 mm • Power Input Voltage 100 / 240Vac 2,5 mm 2,5 mm • Power Input Frequency 50 / 60Hz • Power Output 11V -1.5A 10- Operating Range Terminal • Operating Temperature +5°C to +40°C •... -
Page 12: Iii- Installation Procedures
ELITE 790 Terminal III- INSTALLATION PROCEDURES The ability to enter the system menu is dependent on the way the application is written. Check with your program provider on how to enter the system menu. Once you are in “System Menu” scroll using the up/down keys to select the feature you want to access. -
Page 13: Telephone Network Parameters
October 2001 2- Telephone Network Parameters If the value already present in the terminal is correct, it does not need to be re-entered. N° DISPLAY ACTION SYSTEM MENU Press the key. TELECOM SWBOARD = If the Elite 790 is connected to a PBX or key system it may be necessary to enter a code to (up to 4 char) access an outside line. -
Page 14: Options Menu
ELITE 790 Terminal Options menu The first option is for hospitality environments and is application dependent. Your distributor can provide you with information on its usage. N° DISPLAY ACTION SYSTEM MENU Press the key. OPTIONS If the current value is 1, a table number will be ENTER TABLE # : 0 requested for each payment transaction and this number will be printed on each transaction... -
Page 15: Application Software Downloading Procedure
October 2001 Application Software Downloading Procedure The downloading procedure allows local or remote modification of the terminal memory. This would be used in the following cases • alteration of a part or all the terminal memory • application version upgrading •... -
Page 16: Configuration Receipt
ELITE 790 Terminal 5- Configuration Receipt This receipt prints the hardware and the software status of the terminal. N° DISPLAY ACTION SYSTEM MENU Press the key. (wait few seconds) CONFIGURATION terminal prints configuration ticket... -
Page 17: Charging The Battery Pack
October 2001 Practical Information 1- Charging the battery pack A base station provided with the terminal recharges a spare battery pack or the battery pack attached to the terminal. The green indicator at front at the base indicates that a current is flowing into the battery pack. -
Page 18: Changing The Paper Roll
ELITE 790 Terminal 2- Cleaning Procedures The plastic used in the construction of this terminal may be damaged if cleaned with strong solvents. The following is a list of recommendations for cleaning the terminal and its base. • Clean the outside of the terminal with a soft cloth moistened with a mild detergent solution. -
Page 19: V- Recommendations
October 2001 V- Recommendations 1- Battery handling Nickel Metallic Hydride (Ni-MH) batteries: • keep out of reach of children • Do not heat or throw in a fire, • Do not short-circuit the batteries, • Do not close the security valves (situated under the positive poles), •... -
Page 20: Rf Safety
ELITE 790 Terminal RF Safety In-car safety The use of the terminal in a vehicle may cause malfunctions of electronic systems (e.g. ABS anti-lock systems, fuel injection systems) particularly in insufficiently shielded systems. General Your terminal uses the 1XRTT standard for RF technology. The Elite 790 sends out and receives radio frequency energy. -
Page 21: General Safety
October 2001 3- General safety Electronic Device Most electronic equipment, for example in hospitals and motor vehicles, are shielded from RF energy. However, RF energy may affect some damaged or improperly shielded electronic equipment. Vehicle Electronic Equipment Check with your vehicle manufacturer's representative to determine if on board electronic equipment is adequately shielded from RF energy. - Page 22 INGENICO 79 Torbarrie Road Toronto, Ontario M3L 1G5 Canada...
