Contents 1 Safety instructions ........................... 2 2 Description ............................3 Purpose ........................... 3 Operating elements ......................... 3 3 Before starting the cleaner ......................3 Setting up the cleaner ......................3 Connecting the high pressure hose (single user) ..............4 Connecting the water supply ....................4 Electrical connection .......................
Symbols used to mark Safety instructions This indi- cates tips in these operat- instructions and instruc- ing instructions tions to simplify which must be work and to ensure observed to safe operation. prevent risks to persons are marked with this danger symbol.

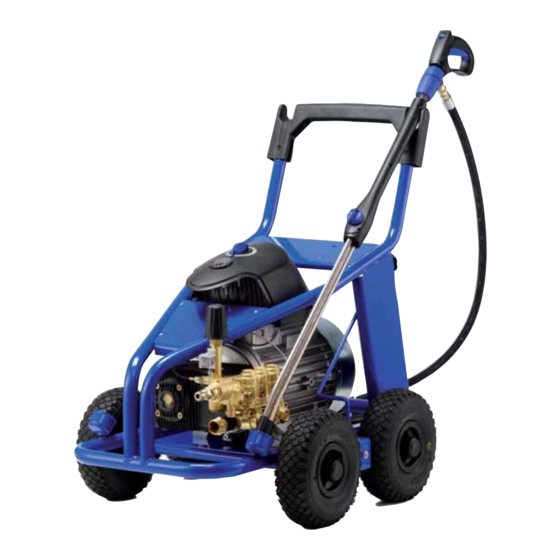

2 Description This high-pressure cleaner has Chapter 5 describes the use of Purpose been designed for professional the high-pressure cleaner for various cleaning jobs. use in Always use the cleaner as de- – Agriculture scribed in these operating in- – industry structions.
4. Check whether the oil level is between the minimum and maximum marks. If neces- sary, add oil (see chapter 9.4 for type of oil). 1. Put the quick connector of Connecting the high pressure hose (single the high pressure hose onto user) the nipple on the cleaner.
Electrical connection When using a cord reel: 1. Observe safety instructions 1. Release brake of the cord in chapter 1. The cleaner may reel. 2. Put the plug into the electri- only be connected 2. Unwind the cord completely. cal socket. to a correctly in- stalled electrical in- stallation.
Pressure regulation 1. Turn the twist grip on the spray unit: (Tornado Lance) – High pressure = clockwise (+) – Low pressure = anticlockwise (–) Pressure regulation on 1. Set pressure and water vol- the machine ume by twisting the pres- sure/volume regulation knob on the machine.
In order to break down tough layers of dirt, additional mechanical 5.1.4 Mechanical Effect effect may be required. Special lances and rotary or wash brushes offer this supplementary effect that cuts through dirt. High pressure is not always the best solution and high pressure may 5.1.5 High Water Flow or damage surfaces.
5.2.3 Buildings and Equipment Task Accessories Method General surfaces Foam injectors 1. Apply thick foam over the surfaces to be cleaned. Standard lance Apply on dry surfaces. Apply from top to bottom Curved lances Metallic equipment on vertical surfaces. Let the foam act for up to 30 Tank cleaning minutes for the optimal effect.
Rolling up the electrical Risk of tripping! To prevent accidents, always lead and storing accessories carefully roll up the electrical lead. 1. Wind up the high pressure hose. 2. Place the spray lance into the spray lance storage. 1. Store the cleaner in a dry and place it in a tank contain- Storing the cleaner (below 0°C)
7 Maintenance Maintenance plan Every six months After the first 50 Weekly or 500 operating operating hours required hours 7.2.1 Cleaning water inlet filter 7.2.2 Checking pump oil level 7.2.3 Changing pump oil Maintenance work A water filter is fitted on the wa- 7.2.1 Cleaning water inlet ter inlet to prevent large parti-...
8 Troubleshooting Fault Cause Remedy Pressure drop > Air in the system • Vent the system by operating the spray gun several times at short intervals. If necessary, operate the cleaner for a short time without the high- pressure hose connected. >...
Kornmarksvej 1 DK-2605 Broendby DENMARK Hereby solely declare, that the product: HPW - Professional - Mobile Description 230/1/50, 400/3/50, IPX5 Type MC 8P-*/* Are in compliance with the following standards: EN 60335-1:2012+A11:2014 EN 60335-2-79:2012 EN 55014-1:2006+A1:2009+A2:2011 EN 55014-2:1997+A1:2001+A2:2008 EN 61000-3-2:2014...
Technical Data 8P-160/2500 8P-180/2100 8P-160/2500 ST Voltage 400 V / 3~ / 50 Hz Fuse (slow) 24.9 Power rating 14.5 Working pressure bar (Mpa) 180 (18) 160 (16) Volume ß ow Qmax 2100 2500 Water volume Q 2050 2450 Max. water inlet temperature °C/°F 60/86 60/86...
