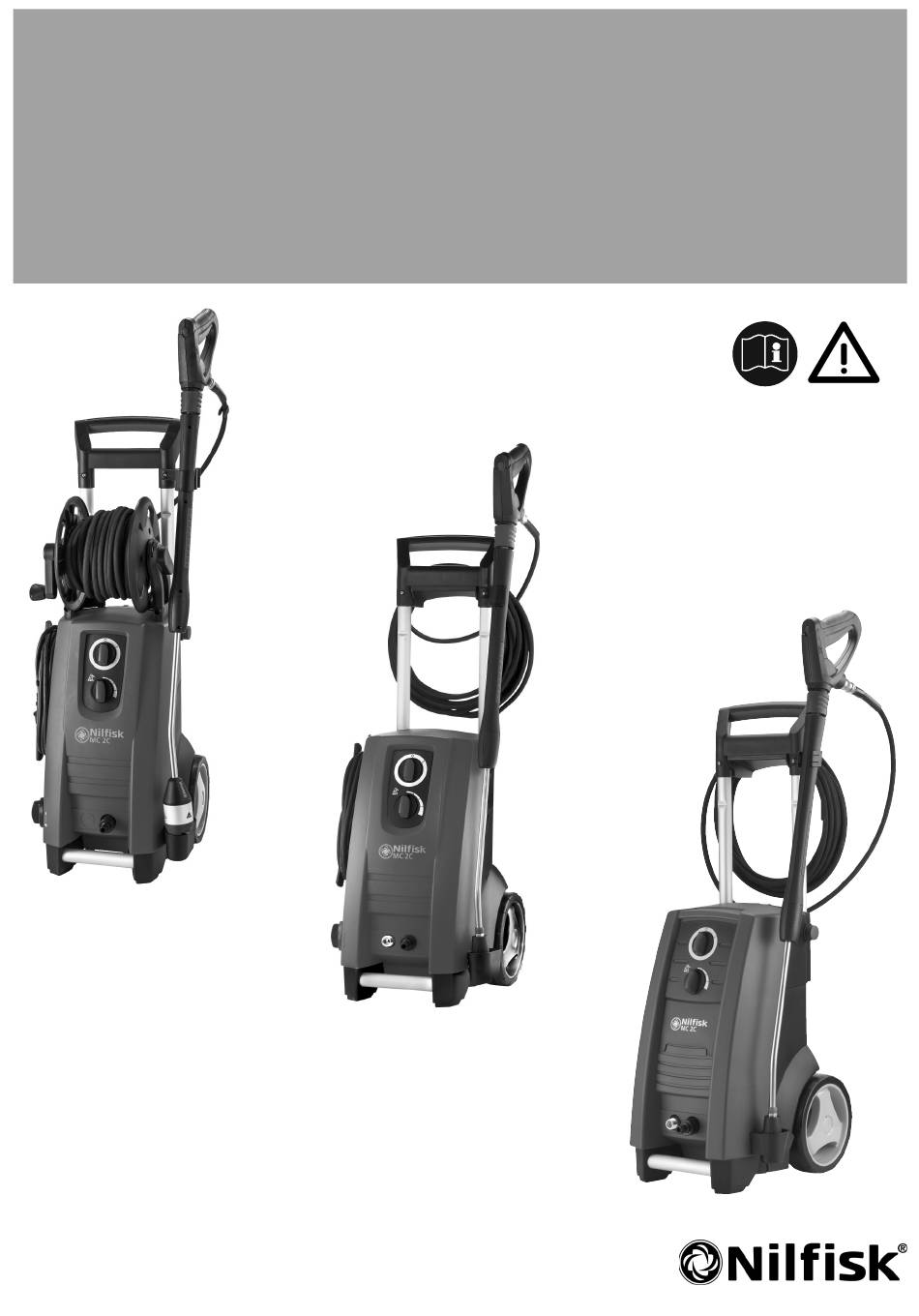

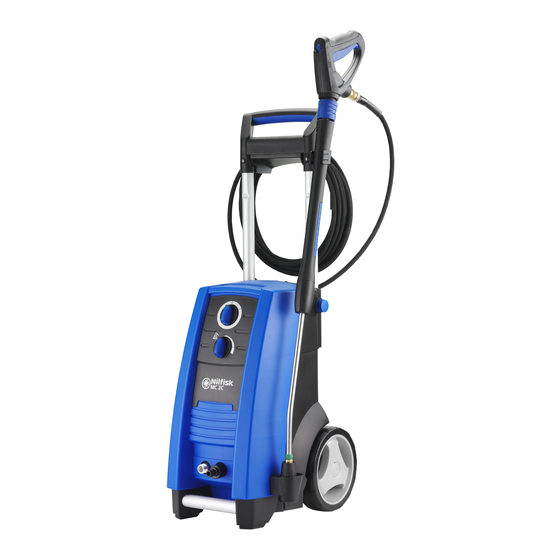

- Page 1 MC 2C - Instructions for use 128700711 a (10.2017) EN-DA-NO-SV-FI-DE-FR-NL-IT-ES-PT-EL-TR-CS-HU-PL...
- Page 2 Instruction manual ............3 - 21 Instruktionsbog ............22 - 40 Instruksjonsbok ............41 - 60 Instruktionsbok ............61 - 80 Käyttöohje ..............81 - 99 Betriebsanleitung ............. 100 - 120 Manuel d'Instructions ..........121 - 142 Gebruikershandleiding ..........143 - 163 Manuale di istruzioni ..........164 - 184 Manual de Instrucciones ..........
-
Page 3: Table Of Contents
Contents Introduction ....................4 1.1 Symbols used to mark instruction ...............4 Safety precautions and working techniques ..........4 Description ....................10 3.1 Application ......................10 3.2 Operation elements and model survey .............10 Before you start using your pressure washer ........11 4.1 Mounting of holders for spray lance ..............11 4.2 Mounting of hose hook (only models without hose reel) ......11 4.3 Mounting of hose reel handle (only models with hose reel) ......11 4.4 Mounting of quick coupling ................12... -
Page 4: Introduction
1 Introduction 1.1 Symbols used to mark instruction All pictograms attached to the high pressure washer and its components are shown and ex- plained in this manual. Safety instructions marked with this symbol must be observed to prevent personal injury or serious damage to property. - Page 5 the machine to another function. • Observe the national safety regulations issued, for example, by the employers liability insurance associa- tion, social security institutions, occupational safety and health authorities or other organizations. Accessories and spare parts • To ensure the machine safety only use original spare parts from Nilfi...
- Page 6 • Wear shoes with non-slip soles. • Wear goggles, ear protection and protective clothes during operation. Transporting the high pressure washer • When transporting the machine in or on a vehicle, it must be secured, e.g. with straps, so that it cannot slip or tip over.
- Page 7 60364-1. • It is recommended that the electrical supply to the machine should include a residual current device that will interrupt the supply if the leakage current to earth exceeds 30 mA for 30 ms. • Due to the high power of the machine - use motor start / delayed fuses with characteristic D according to IEC947-2 or corresponding standards outside IEC.
- Page 8 Safety devices Locking device on spray handle: • The spray handle features a locking device. When the pawl is activated, the spray handle cannot be ope- rated. Thermal sensor: • A thermal sensor protects the motor against overload- ing. The machine will restart after a few minutes when the thermal sensor has cooled.
- Page 9 After fi nishing the work WARNING! • Always switch off the machine and unplug the power plug from the socket after work and when leaving the machine unattended. • Disconnect water inlet hose between machine and water supply. • Always empty pump, hose and accessories of water after use of the machine and prior to storing.
-
Page 10: Description
3 Description 3.1 Application This high-pressure washer has Only use the high-pressure been developed for semiprofes- washer for purposes described sional routine cleaning: in this manual. - Professional craftsman jobs, The safety precautions must be cleaning of vehicles, boat, observed to prevent damage caravan and minor cleaning to the machine, the surface to jobs within building and con-... -
Page 11: Before You Start Using Your Pressure Washer
4 Before you start using your pressure washer 4.1 Mounting of holders for spray lance Mount the holders for spray lance on the machine. 4.2 Mounting of hose hook Mount the hose hook (14) on (only models without the handle (2 screws). hose reel) Note: the hose hook can be mounted on the front as well as... -
Page 12: Mounting Of Quick Coupling
4.4 Mounting of quick 1. Screw the quick coupling coupling tight on to the water inlet (2). Note: The inlet fi lter must al- ways be fi tted in the water inlet pipe to fi lter out major impuri- ties as these will damage the pump valves. -
Page 13: Mounting Of Spray Lance
5.2 Mounting of spray lance 1. Pull the blue quick-release grip (A) of the spray gun backwards. 2. Insert the nipple of the spray lance (B) into the quick-re- lease connection and release 3. Pull the spray lance (or other accessory) forwards to check that it is securely attached to the spray gun. -
Page 14: Start And Stop Of The Machine (When Connected To A Water Supply)
5.5 Start and stop of the ma- The spray lance is affected to the surface, which is to be chine (when connected by a thrust during opera- cleaned. to a water supply) tion - therefore always hold it fi rmly with both hands. IMPOR- Do not cover the TANT: Point the nozzle at the machine during... -
Page 15: Operation With Detergents
T and XT models: 4-in-1 spray lance The pressure can be regulated on the 4-in-1 spray lance. Low Pressure / detergent Tornado / high pressure Wide angle / high pressure Turbohammer / high pressure 5.8 Operation with Application of detergents is 4. -
Page 16: Regulation Of Pressure / Water Volume
5.9 Regulation of pressure / water volume (only models with button for regulation of pressure and water volume) Working pressure and water volume can be regulated on the machine by turning the button for regulation of pressure / wa- ter volume (6). 6 Fields of application and working methods 6.1 General... -
Page 17: After Using Your Pressure Washer
7 After using your pressure washer 7.1 Storing the washer The machine should be sto- 5. Machines without hose reel: red in a frost-free room! Detach high pres sure hose, coil it up and place it on the Pump, hose and accessories hose storage. -
Page 18: Maintenance
8 Maintenance Clean the connectors of dust WARNING! Always disconnect the electrical plug from the and sand. Clean the nozzles. socket prior to maintenance or cleaning. To ensure a long and problem Any repair should always be free working life, please take made in an authorized work- the following advice: shop with original spare parts. -
Page 19: Trouble-Shooting
9 Trouble-shooting Please ensure that you check the following before contacting the Nilfi sk service organization: Symptom Cause Recommended action Machine refuses to start Machine not plugged in Plug in machine. Defective socket Try another socket. Fuse has blown Replace fuse. Switch off other machines. Defective extension cable Try without the extension cable. -
Page 20: Further Information
10 Further information 10.1 Service and Mainte- In case of need for service and nance maintenance, please contact your dealer. 11 Main Technical Data MC 2C- MC 2C- MC 2C- MC 2C- MC 2C- MC 2C- MC 2C- MC 2C- MC 2C- Type 60/380... -
Page 21: Eu Declaration Of Conformity
12 EU Declaration of Conformity Nilfi sk A/S Kornmarksvej 1 DK-2605 Broendby DENMARK Hereby solely declare, that the Product: HPW - Consumer Description: 220-240V, 50 Hz, IPX5 Type: MC 2C Is in compliance with the following standards: EN 60335-1:2012+A11:2014 EN 60335-2-79:2012 EN 55014-1:2006+A1:2009+A2:2011 EN 55014-2: 2015 Compliance to harmonic current emissions is documented in TCF_42331_01... - Page 23 HEAD QUARTER HOLLAND SLOVAKIA Nilfi sk B.V. Nilfi sk s.r.o. Versterkerstraat 5 Bancíkovej 1/A DENMARK 1322 AN Almere SK-821 03 Bratislava Nilfi sk A/S Tel.: (+31) 36 5460760 Tel.: (+421) 910 222 928 Kornmarksvej 1 Website: www.consumer.nilfi sk.nl Website: www.consumer.nilfi sk.sk DK-2605 Broendby Tel.: (+45) 4323 8100 HUNGARY...
