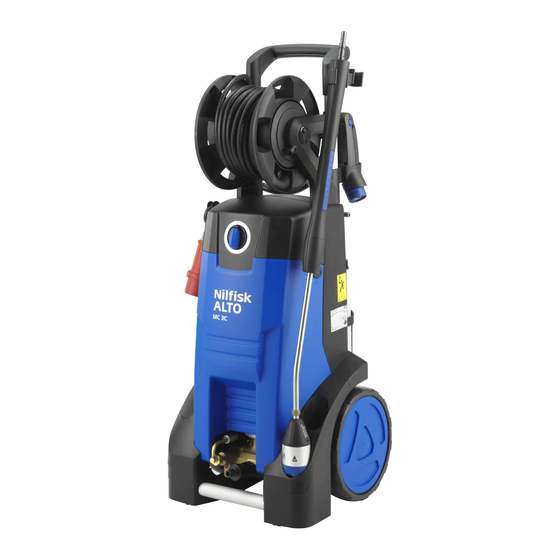

- Page 1 MC 3C - MC 4M - Instructions for use 107145558 E (04-2016)
- Page 2 Operating instructions ....................9 Bedienungsanweisungen ..................... 12 Instructions de fonctionnement ................... 15 Gebruiksaanwijzingen ....................18 Istruzioni per l’uso ......................21 Bruksanvisning ......................24 Bruksanvisning ......................27 Betjeningsvejledning ....................30 Käyttöohje ........................33 Instruccciones de funcionamiento ................36 Instruções de Funcionamento ..................39 Οδηγίες...
- Page 3 MC 3C-XT/MC 4M-XT MC 3C/MC 4M MC 3C-XT/MC 4M-XT MC 3C/MC 4M...
- Page 4 A - MC 3C-XT/MC 4M-XT A - MC 3C/MC 4M...
- Page 5 B - MC 3C-XT/MC 4M-XT B - MC 3C/MC 4M BA Valve BA Valve C - MC 3C-XT/MC 4M-XT C - MC 3C/MC 4M CHEM...
- Page 6 C - MC 3C-XT/MC 4M-XT C - MC 3C/MC 4M MC 3C-XT/MC 4M-XT MC 3C/MC 4M...
- Page 7 D - MC 3C-XT/MC 4M-XT D - MC 3C/MC 4M...
- Page 8 E - MC 3C (NA3) E - MC 4M (NA4) 10.2...
- Page 9 Remove cabinet 25. Hose hook *) Check / top up with oil to max (SAE 80W-90) Assembling the unit: Oil max v.s. pump type MC 3C (NA3) or MC Mount handle on hose reel 4M (NA4) Mount filter and Gardena coupling Mount the seal and 3/8”...
-
Page 10: Maintenance Plan
Operating instructions Troubleshooting MC 3C-MC 4M Fault Cause Remedy Air in suction hose. Fill hose with water and connect again Pressure Not enough water supply Stop! Until appropriate water mains or hose reflect fl uctuations pump Qmax Water filter is clogged up... - Page 11 DENMARK Hereby solely declare, that the products: Product Description Type HPW - Professional - Mobile 230/1/50, 400/3/50, IPX5 MC 4M*, MC 3C* Are in compliance with the following standards: EN 60335-1:2012 EN 60335-2-79:2012 EN 55014-1:2006+A1:2009+A2:2011 EN 55014-2:1997+A1:2001+A2:2008 EN 61000-3-2:2006+A1:2009+A2:2009 EN 61000-3-11:2000...
-
Page 12: Specifications
Specifications MC 3C- MC 3C- MC 3C- MC 3C- MC 3C- MC 3C- 150/570 XT 140/570 140/660 150/660 130/660 150/660 XT 230/1/50/13 230/1/50/13 230/1/50/16 230/1/50/16 220/1/60/15 230/1/50/16 英国 英国 欧盟 欧盟 其他 欧盟 V/ph/Hz 230/1/50 230/1/50 230/1/50 230/1/50 220/1/60 230/1/50 кВт... - Page 13 Specifications MC 3C- MC 3C- MC 3C- MC 3C- MC 3C- 160/770 170/820 170/820 170/820 XT 170/820 XT 400/3/50 400/3/50 220-440/3/60 400/3/50 230-400/3/50 NO, BE 欧盟 欧盟 其他 欧盟 挪威、比利时 V/ph/Hz 400/3/50 400/3/50 400/3/50 230/400/3/50 220/440/3/60 кВт bar (MPa) Бар (МПа)
- Page 14 Specifications MC 4M- MC 4M- MC 4M- MC 4M- MC 4M- MC 4M- 140/620 140/620 100/770 140/620 XT 160/620 160/620 230/1/50/13 230/1/50/13 230/1/50/13 230/1/50/13 230/1/50/16 230/1/50/16 欧盟 英国 英国 英国 欧盟 V/ph/Hz 230/1/50 230/1/50 230/1/50 230/1/50 230/1/50 230/1/50 кВт bar (MPa) Бар...
- Page 15 Specifications MC 4M- MC 4M- MC 4M- MC 4M- MC 4M- 150/620 160/620 XT 160/720 180/740 180/740 220/1/60/15 230/1/50/16 400/3/50 400/3/50 220-440/3/60 NO, BE 挪威、比 其他 欧盟 欧盟 其他 利时 V/ph/Hz 220/1/60 400/3/50 400/3/50 220/440/3/60 230/1/50 кВт bar (MPa) Бар (МПа) (15) (16) (16)
- Page 16 Specifications MC 4M- MC 4M- "MC 4M- MC 4M- MC 4M- 160/720 160/720 180/740 XT 180/740 XT 150/620 XT 200/3/50 200/3/60 400/3/50 230-400/3/50 220/1/60/15 NO, BE 日本 日本 欧盟 挪威、比利时 其他 V/ph/Hz 200/3/50 400/3/50 230/400/3/50 220/1/60 200/3/60 кВт bar (MPa) Бар...
- Page 17 EN: Country variant. DE: Ländervarianten. FR: Selon le pays. NL: Na- tionale variant. IT: Variante per il Paese. NO: Variant i ulike land. SV: Landsvariant. DA: Landespecifik variant. FI: Maakohtainen vaihtelu. ES: Depende del país. PT: Variante do país. EL: Έκδοση χώρας. TR: Ülke- deki model.
- Page 18 EN: Max. water pressure. DE: Max Wasserdruck. FR: Pression d‘eau maximale. NL: Max. waterdruk. IT: Max. pressione dell‘acqua. NO: Maks. vanntrykk. SV: Max vattentryck. DA: Max. vandtryk. FI: Suurin (MPa) vedenpaine. ES: Presión máxima de entrada del agua. PT: Pressão máxima de água.
- Page 19 EN: Max dry suction height. DE: Max. Trockensaughöhe. FR: Hauteur d‘aspiration à sec max. NL: Max. droge aanzuighoogte. IT: Altezza massima di aspirazione secco. NO: Maks. sugehøyde tørr. SV: Max torr- sugningshöjd. DA: Maks. sugehøjde, tør. FI: Suurin kuivaimukorkeus. ES: Altura máxima de succión en seco. PT: Altura de aspiração a seco máx.
- Page 20 EN: Vibration. DE: Vibrationen FR: Vibration NL: Vibratie IT: Vibrazioni NO: Vibrasjoner SV: Vibration DA: Vibration FI: Tärinäarvot ES: Vibra- (ISO 5349 a ción PT: Vibrações EL: Δόνηση TR: Titreşimi SL: Vibracije. HR: Vibracije. 米/秒² SK: Vibrácie. CS: Vibrace PL: Drgania HU: Vibráció RO: Vibraţii BG: 20°...
- Page 21 EN: Specifications and details are subject to change without prior notice. DE: Technische Daten und Details des Geräts können sich ohne vorherige Ankündigung ändern. FR: Ces spécifications et détails sont susceptibles d’être modifiés sans préavis. NL: Specificaties en details kunnen zonder voorafgaande waarschuwing worden gewijzigd.
