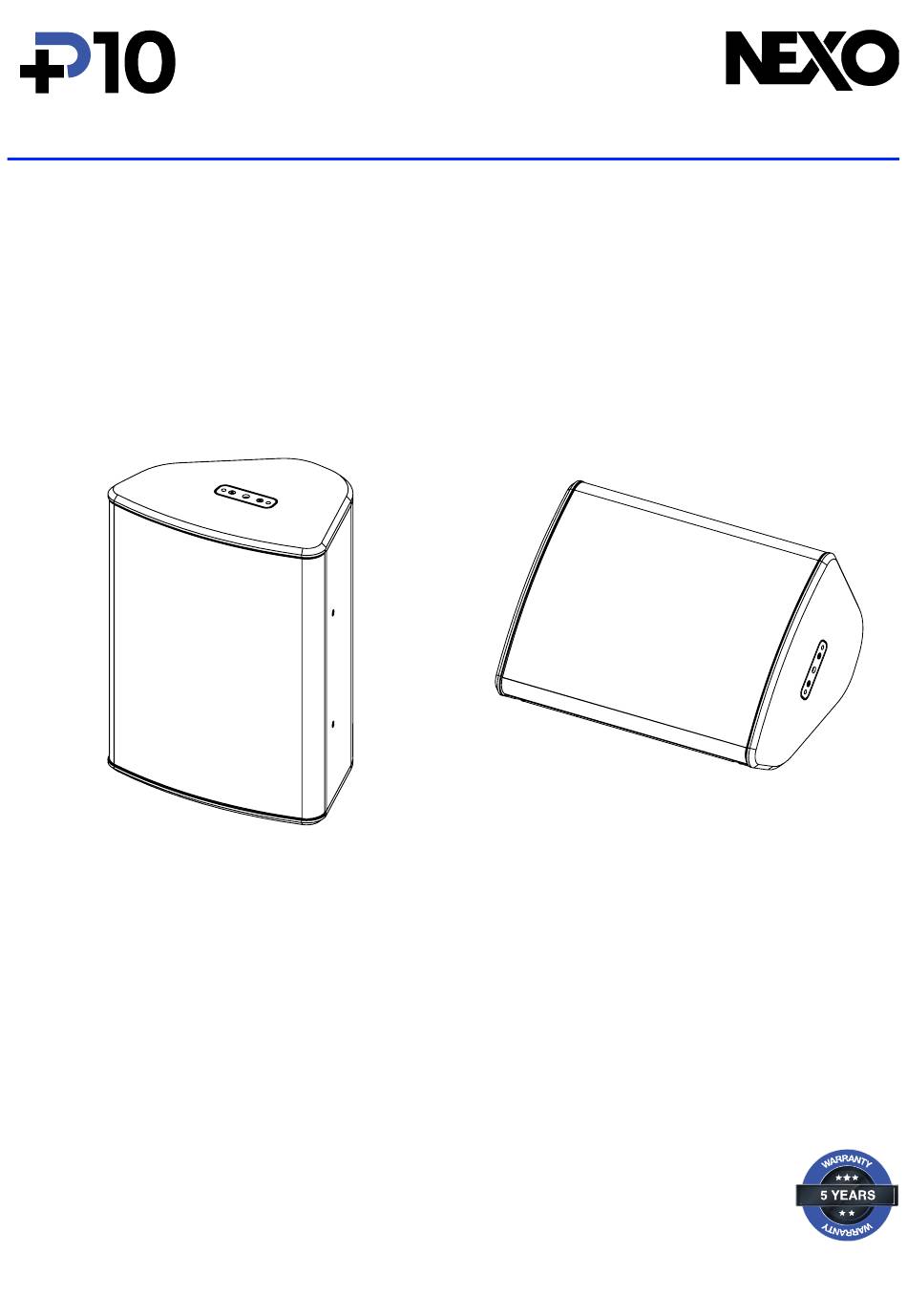

- Page 1 DP5399-01a-DI P10-I User manual...
-
Page 2: Table Of Contents
ARRAY EQ ____________________________________________________________________________ 11 MAINTENANCE ________________________________________________________________________ 12 TECHNICAL SPECIFICATIONS ___________________________________________________________ 14 USER NOTES _________________________________________________________________________ 15 EU Conformity declaration NEXO SA ZA DU PRE DE LA DAME JEANNE 60128 PLAILLY – France Declare under our sole responsibility that the product Loudspeaker... -
Page 3: Warnings
If the system seems to be malfunctioning or damaged, stop using it at once and have it repaired by a NEXO qualified technician. Do not expose the system directly to the sun or to the rain, do not immerse it into fluids, do not place objects filled with liquid on the system. -
Page 4: Equipment
WARNING: The depth of the M10 thread is 13mm (0.5 inch). Assembly on distance rod or speaker stand Place distance rod on the connector plate (M20) of the Sub. Place PLADAPT on P10-I. Put the assembly on the distance rod / monitor stand (diameter of 35mm), IMPORTANT Speaker stand must be rated for P10 weight. -
Page 5: Description
→ Amplification • The P10 speakers must be used with a NEXO processor to handle EQ, phase alignment, crossover and excursion/thermal protection for the system loudspeaker. There are two NEXO processor series supporting the P12 speakers: NXAMP (4 channels) amplified processors and DTD processors (stereo + sub). DTD processors ensure optimal performances when used with DTDAMP power amplifiers. -
Page 6: Preset
PRESET PRESET Please consult nexo-sa.com for NEXO TD Controllers firmware information. For the P10, the following setups are available: → MAIN is the recommended setup for most FOH application, similar to previous firmware setup. → MONITOR is recommended for monitor applications. Warning: this setup is a low latency setup and therefore its phase is not compatible with other NEXO cabinets, including subs. - Page 7 PRESET P10 + Sub Stage monitor applications with Subs (OMNI or CARDIO modes) Front of house applications with Subs (OMNI or CARDIO modes) Page 7 / 16 P10-I...
-
Page 8: Hf Directivity
CROSSOVER FREQUENCY → 63 Hz: Full range application. → 85 Hz: Use as « front fill » on stage, complementing a main system. Use with a NEXO subwoofer, e.g. L15. → 120 Hz: Long throw application. Page 8 / 16... -
Page 9: Accessories
All P10 accessories are specifically rated in agreement with structural computations. Never use other accessories – including push-pins – when assembling P10 cabinets than the ones provided by NEXO: NEXO will decline responsibility over the entire P10 accessory range if any component is purchased from different supplier. - Page 10 ACCESSORIES PNT-WMADAPT With PNT-BUMP With PNI-WMxxx & PNT-BUMP PNI-CLADAPT Ceiling Adapter, use with HBRK10, VBRK10. PNI-WM280 Wallmount for P10, with WMADAPT PNT-P10FLG11060 Horn dispersion 110° - 60° Page 10 / 16 P10-I...
-
Page 11: Array Eq
ARRAY EQ ARRAY EQ The ArrayEQ allows to adjust the system frequency response in its lower range (see curves below, with different ArrayEq values): Page 11 / 16 P10-I... -
Page 12: Maintenance
MAINTENANCE MAINTENANCE NOTE: Speakers and Grills can be sent back to NEXO for recycling Driver access Remove 4 screws. Loosen the 2 screws, Remove the grille. Tightening torque: 3.5 Nm (Thread Locker: Loctite 242) To access to the HF diaphragm, remove 4 screws. - Page 13 Recone Kit 10” (with screws) 05PAV10-100-100 HORN 100°-100° 04PNT-P1011060 HORN 110°-60° 05NHP10R/K HF diaphragm (with screws) 05RUBGRD01 Plastic Pad Black 05RUBGRD01-PW Plastic Pad White 05P10UA-I Complete grille Instal Black (with fasteners) 05P10UA-IPW Complete grille Instal White (with fasteners) Page 13 / 16 P10-I...
-
Page 14: Technical Specifications
TECHNICAL SPECIFICATIONS TECHNICAL SPECIFICATIONS P10-I WITH NEXO ELECTRONICS Model P10-I 63 Hz – 20 kHz Frequency range (±6dB) Peak SPL Level (1m) 136dB Peak Operating voltage 50Vrms (180Vpeak) HF dispersion 100°x100° (Default) - 110°x60° (Optional) (according to horns) 63Hz – 85Hz – 120Hz Crossover Frequency 8Ω... -
Page 15: User Notes
