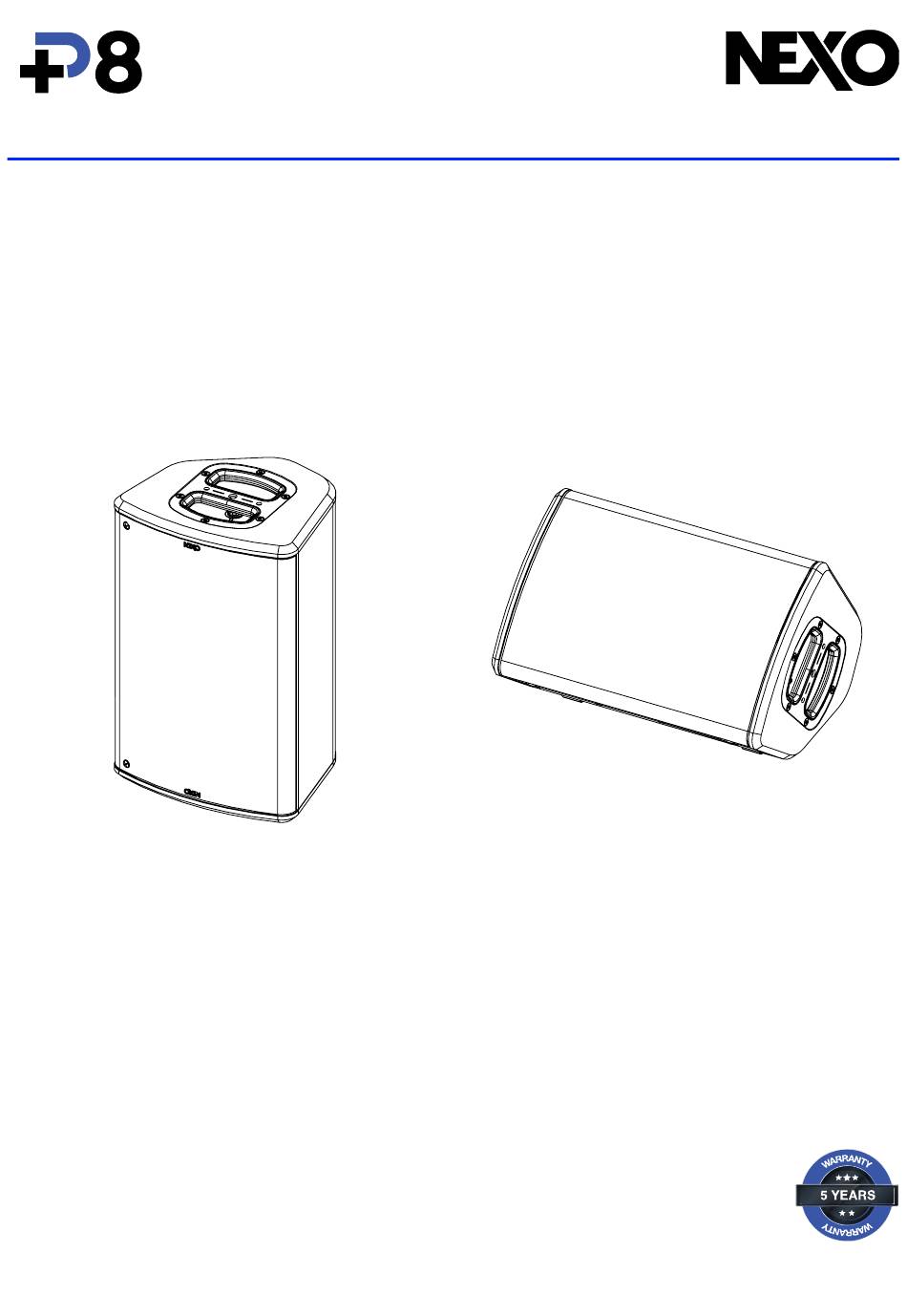

  • Page 1 DP4331-01c-DI P8 / P8-TIS User manual...

  • Page 2: Table Of Contents

    ARRAY EQ ____________________________________________________________________________ 12 MAINTENANCE ________________________________________________________________________ 13 TECHNICAL SPECIFICATIONS ___________________________________________________________ 15 USER NOTES _________________________________________________________________________ 16 EU Conformity declaration NEXO SA ZA DU PRE DE LA DAME JEANNE 60128 PLAILLY – France Declare under our sole responsibility that the product Loudspeaker...

  • Page 3: Warnings

    If the system seems to be malfunctioning or damaged, stop using it at once and have it repaired by a NEXO qualified technician. Do not expose the system directly to the sun or to the rain, do not immerse it into fluids, do not place objects filled with liquid on the system.

  • Page 4: Equipment

    EQUIPMENT EQUIPMENT 3 locations for rigging accessories, one at the back and one per side. WARNING: The depth of the M10 thread is 13mm (0.5 inch). On both sides, you’ll find a print for speaker stand. 3 locations for connecting, one at the back and one per side. Page 4 / 18...
  • Page 5 Pole stand assembly with pole stand or speaker stand Fix the pole stand on the connector plate (M20) of the Sub. Mount P8 on the pole stand/speaker stand (diameter of 35mm), IMPORTANT Speaker stand must be rated for P8 weight.

  • Page 6: Description

    → P8 can be used alone or with L15 subwoofer → The speaker is equipped with four Speakon NL4 connectors with parallel-wired pins, one on each side and two at the back. P8 use 2+/2-. The 1+/1- pins are used by the sub.

  • Page 7: Preset

    → MONITOR is recommended for monitor applications. Warning: this setup is a low latency setup and therefore its phase is not compatible with other NEXO cabinets, including subs. Preset • P8 MON PA 100100, with high-pass at 66, 85 or 120 Hz. • P8 MON PA 11060, with high-pass at 66, 85 or 120 Hz. •...
  • Page 8 PRESET P8 + Sub Stage monitor applications with Subs (OMNI or CARDIO modes) Front of house applications with Subs (OMNI or CARDIO modes) Page 8 / 18...

  • Page 9: Hf Directivity

    CROSSOVER FREQUENCY → 66 Hz: Full range application. → 85 Hz: Use as « front fill » on stage, complementing a main system. Use with a NEXO subwoofer, e.g. L15. → 120 Hz: Long throw application. Page 9 / 18...

  • Page 10: Accessories

    All P8 accessories are specifically rated in agreement with structural computations. Never use other accessories – including push-pins – when assembling P8 cabinets than the ones provided by NEXO: NEXO will decline responsibility over the entire P8 accessory range if any component is purchased from different supplier.
  • Page 11 PNI-CLADAPT Ceiling Adapter, use with HBRK8, VBRK8. PNI-WM200 Wallmount for P8, with WMADAPT PNT-P8FLG11060 HF Dispersion Horn 110° - 60° PNT-4CASE8: FLIGHT CASE FOR 4X P8 PNT-ACC8: FLIGHT CASE FOR P8 ACCESSORIES PNT-COV8: COVER FOR P8 Page 11 / 18...

  • Page 12: Array Eq

    ARRAY EQ ARRAY EQ The ArrayEQ allows to adjust the system frequency response in its lower range (see curves below, with different ArrayEq values): Page 12 / 18...

  • Page 13: Maintenance

    MAINTENANCE MAINTENANCE NOTE: Speakers and Grills can be sent back to NEXO for recycling Driver access P8 Unlock the 2 quarter-turn screws, Remove the grille. Remove 8 screws. (P8-TIS See above) Tightening torque: 3.5Nm (Thread Locker: Loctite 242) To access to the HF diaphragm, remove 2 screws.
  • Page 14 Spare parts MARK QUANTITY REFERENCE DESIGNATION 05PAV8-100-100 HORN 100°-100° 04PNT-P811060 HORN 110°-60° 05HPC8 P8 driver complete (with screws) 05HPC8R/K Recone Kit 8” (with screws) 05NHP8R/K HF diaphragm P8 (with screws) 05RUBGRD01 Plastic Pad Black 05RUBGRD01-PW Plastic Pad White 05SPK01 Speakon NL4 complete (with screws)

  • Page 15: Technical Specifications

    Black or white structural paint P8: Magnelis® steel front grille + Back mesh Front finish P8-TIS: Black or white acoustic fabric fitted front Magnelis® steel grille Handle on both sides Threated inserts on the back and on both sides for connection of mounting...

  • Page 16: User Notes

    USER NOTES USER NOTES Page 16 / 18...
  • Page 17 USER NOTES Page 17 / 18...
  • Page 18 Tel: +33 3 44 99 00 70 NEXO S.A. Fax: +33 3 44 99 00 30 E-mail: info@nexo.fr Parc d’activité de la Dame Jeanne nexo-sa.com F-60128 PLAILLY Page 18 / 18...

This manual is also suitable for:

P8-tis
