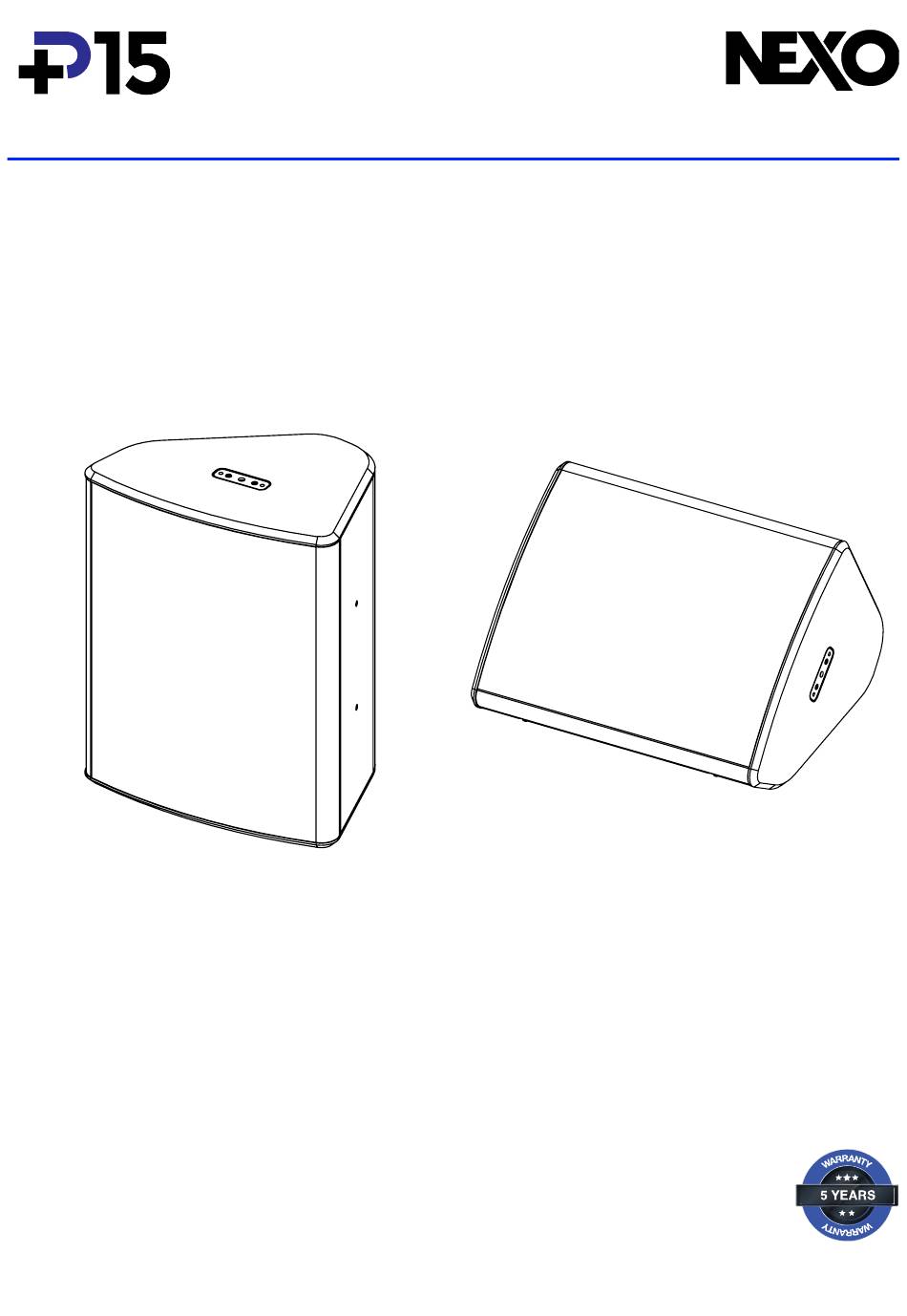

- Page 1 DP5548-01-DI P15-I User manual...
-
Page 2: Table Of Contents
ARRAY EQ ____________________________________________________________________________ 11 MAINTENANCE ________________________________________________________________________ 12 TECHNICAL SPECIFICATIONS ___________________________________________________________ 14 USER NOTES _________________________________________________________________________ 15 EU Conformity declaration NEXO SA ZA DU PRE DE LA DAME JEANNE 60128 PLAILLY – France Declare under our sole responsibility that the product Loudspeaker... -
Page 3: Warnings
If the system seems to be malfunctioning or damaged, stop using it at once and have it repaired by a NEXO qualified technician. Do not expose the system directly to the sun or to the rain, do not immerse it into fluids, do not place objects filled with liquid on the system. -
Page 4: Equipment
WARNING: The depth of the M10 thread is 14mm (0.55 inch). Assembly on distance rod or speaker stand Place distance rod on the connector plate (M20) of the Sub. Place PLADAPT on P15-I. Put the assembly on the distance rod / monitor stand (diameter of 35mm), IMPORTANT Speaker stand must be rated for P15 weight. -
Page 5: Description
→ Amplification • The P15 speakers must be used with a NEXO processor to handle EQ, phase alignment, crossover and excursion/thermal protection for the system loudspeaker. There are two NEXO processor series supporting the P15 speakers: NXAMP (4 channels) amplified processors and DTD processors (stereo + sub). DTD processors ensure optimal performances when used with DTDAMP power amplifiers. -
Page 6: Preset
PRESET PRESET Please consult nexo-sa.com for NEXO TD Controllers firmware information. For the P15, the following setups are available: → MAIN is the recommended setup for most FOH application, similar to previous firmware setup. → MONITOR is recommended for monitor applications. Warning: this setup is a low latency setup and therefore its phase is not compatible with other NEXO cabinets, including subs. - Page 7 PRESET P15 + Sub Stage monitor applications with Subs (OMNI or CARDIO modes) Front of house applications with Subs (OMNI or CARDIO modes) Page 7 / 16 P15-I...
-
Page 8: Hf Directivity
CROSSOVER FREQUENCY → 57 Hz: Full range application. → 85 Hz: Use as « front fill » on stage, complementing a main system. Use with a NEXO subwoofer, e.g. L18. → 120 Hz: For long throw applications. Page 8 / 16... -
Page 9: Accessories
All P15 accessories are specifically rated in agreement with structural computations. Never use other accessories – including push-pins – when assembling P15 cabinets than the ones provided by NEXO: NEXO will decline responsibility over the entire P15 accessory range if any component is purchased from different supplier. - Page 10 ACCESSORIES PNT-WMADAPT With PNI-WMxxx & PNT-BUMP PNI-CLADAPT Ceiling Adapter, use with HBRK8, VBRK8. PNI-P15TOL18 / PNI-P15TO2L18 P15 Under 1xL18 P15 Under 2xL18 (Omni or Cardio) PNI-WM380 Wallmount for P15, with WMADAPT Page 10 / 16 P15-I...
-
Page 11: Array Eq
The ArrayEQ allows to adjust the system frequency response in its lower range (see curves below, with different ArrayEq values): 15 60 60 rray ad usting re uency 15 60 60 rray ad usting re uency Page 11 / 16 P15-I... -
Page 12: Maintenance
Tightening torque: 3.5 Nm (Thread Locker: Loctite 242) Remove the 2 screws. Remove the stickers. Tightening torque: 2.5 Nm (Thread Locker: Loctite 222) To access to the HF diaphragm, remove 4 screws. Remove the horn. Tightening torque: 2 Nm Page 12 / 16 P15-I... - Page 13 P15 driver complete (with screws) 05HPC15R/K Recone Kit 15” (with screws) 05NHP15R/K HF diaphragm (with screws) 05CAPB01 HF cap black 05CAPB01-PW HF cap White NOTE: Speakers and Grills can be sent back to NEXO for recycling Page 13 / 16 P15-I...
-
Page 14: Technical Specifications
TECHNICAL SPECIFICATIONS TECHNICAL SPECIFICATIONS P15-I WITH NEXO ELECTRONICS Model P15-I 57 Hz – 20 kHz Frequency range (±6dB) Peak SPL Level (1m) 139dB Peak Operating voltage 55Vrms (180Vpeak) HF dispersion 60°x60° - 90°x40° - Asymmetrical Dispersion 60° to 100°x40° (according to horns) 57Hz –... -
Page 15: User Notes
