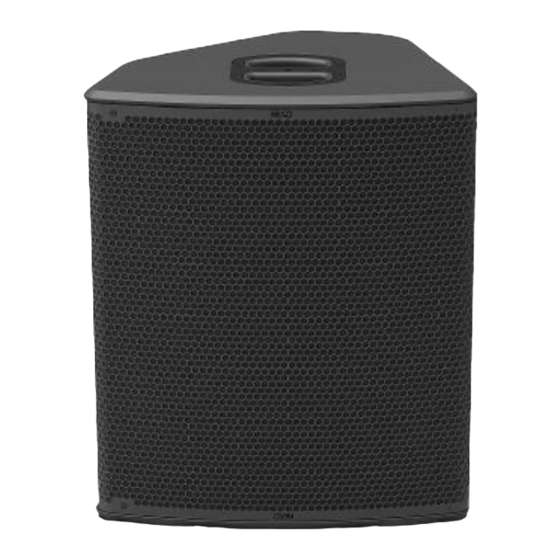

Nexo P18 Under 2x L20 Rigging System Quick Start Manual

Hide thumbs Also See for P18 Under 2x L20 Rigging System:

PNI-P18TO2L20

DP6751 – 01a - DI

P18 Under 2x L20 Rigging System

Contents:

M10x30 (a)

X12

M10x18 (a)

M10x25 (a)

(a): The type of the screws may differ from the representation

Weight: 29.5 kg / 65 lb

Ceiling Plate

- Read t his docum ent before using.

- Keep t his docum ent .

- Observe all warnings and caut ions.

M6x25 (a)

Left Plate

Right Plate

X2 L20

Plate

Main Plate

PAGE 1 OF 4

Table of Contents

Need help?

Do you have a question about the P18 Under 2x L20 Rigging System and is the answer not in the manual?

Page 1 PNI-P18TO2L20 DP6751 – 01a - DI P18 Under 2x L20 Rigging System Contents: Ceiling Plate Left Plate Main Plate Right Plate X2 L20 Plate M6x25 (a) M10x30 (a) M10x18 (a) M10x25 (a) (a): The type of the screws may differ from the representation Weight: 29.5 kg / 65 lb...
Page 2 Dimensions: For fixation, you have the choice between M8 and M10 WARNINGS Ensure that the mounting location and fasteners can support at least 4 times the weight of all the installed cabinets, auxiliary equipment and cables. Use only the provided screws (thread lock coated) and accessories. Implementation of L20 Prepare the Main plates by screwing the M10x30 screws on the holes (see picture below), do not tighten completely and leave at least 6mm.
Page 3 Assembly on the ceiling plate Place the assembly below the ceiling plate. Tighten the screws. Secure with the 4 provided M10x30 screws. Implementation of P18 Place P18 between the plates, position at the chosen angle, fasten with M10x25 screws and secure with M6x25 screws.
Page 4 -30° -40° -50° • NEXO cannot accept responsibility for accidents caused by any factor other than defects in this product itself. • Please check the web site nexo-sa.com for the latest update. - Read t his docum ent before using.
