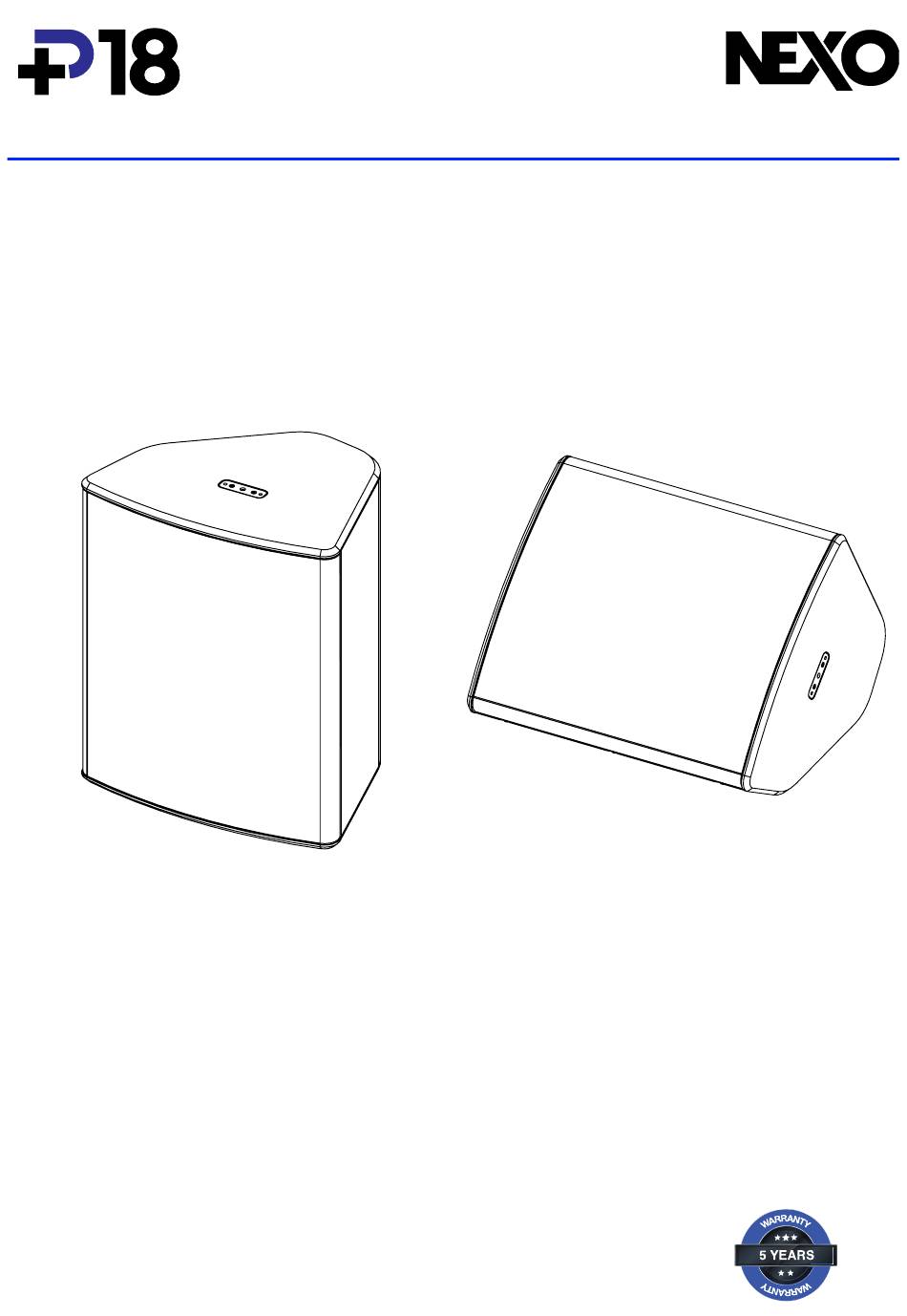

- Page 1 DP6424-01-DI P18-I User manual IP54...
-
Page 2: Table Of Contents
ARRAY EQ ____________________________________________________________________________ 15 MAINTENANCE ________________________________________________________________________ 16 TECHNICAL SPECIFICATIONS ___________________________________________________________ 18 USER NOTES _________________________________________________________________________ 19 EU Conformity declaration NEXO SA ZA DU PRE DE LA DAME JEANNE 60128 PLAILLY – France Declare under our sole responsibility that the product Loudspeaker... -
Page 3: Warnings
Do not open the speaker, do not try to disassemble it neither to modify it in any way. The system doesn’t include any user-repairable part. If the system seems to be malfunctioning or damaged, stop using it at once and have it repaired by a NEXO qualified technician. -
Page 4: Equipment
WARNING: The depth of the M10 thread is 14mm (0.55 inch). Assembly on distance rod or speaker stand Place distance rod on the connector plate (M20) of the Sub. Place PLADAPT on P18-I. Put the assembly on the distance rod / monitor stand (diameter of 35mm). -
Page 5: Description
→ Amplification • The P18 speakers must be used with a NEXO processor to handle EQ, phase alignment, crossover and excursion/thermal protection for the system loudspeaker. There are two NEXO processor series supporting the P18 speakers: NXAMP (4 channels) amplified processors and DTD processors (stereo + sub). DTD processors ensure optimal performances when used with DTDAMP power amplifiers. -
Page 6: Preset
PRESET PRESET Please consult nexo-sa.com for NEXO TD Controllers firmware information. For the P18, the following setups are available: → MAIN is the recommended setup for most FOH application, similar to previous firmware setup. → MONITOR is recommended for monitor applications. Warning: this setup is a low latency setup and therefore its phase is not compatible with other NEXO cabinets, including subs. - Page 7 PRESET P18 + Sub Stage monitor applications with Subs (OMNI or CARDIO modes) Front of house applications with Subs (OMNI or CARDIO modes) Page 7 / 20 P18-I...
-
Page 8: Hf Directivity
CROSSOVER FREQUENCY → 50 Hz: Full range application. → 85 Hz: Use as « front fill » on stage, complementing a main system. Use with a NEXO subwoofer, e.g. L20. → 120 Hz: For long throw applications. Page 8 / 20... -
Page 9: Accessories
All P18 accessories are specifically rated in agreement with structural computations. Never use other accessories – including push-pins – when assembling P18 cabinets than the ones provided by NEXO: NEXO will decline responsibility over the entire P18 accessory range if any component is purchased from different supplier. - Page 10 Place HBRK680 on P18, use only fasteners provided. Tight properly. Refer to the Product Data Sheet. VNU-PLADAPT (PNT-PLADAPT) Pole adapter, use with P18, HBRK680, VBRK18. Place VNU-PLADAPT, use only fasteners provided. Tight properly. Refer to the Product Data Sheet. Page 10 / 20 P18-I...
- Page 11 Vertical Cradle, use with CLADAPT, PLADAPT. Place VBRK18 on P18, use only fasteners provided. Tight properly. Refer to the Product Data Sheet. VNI-WMADAPT (PNT-WMADAPT) Adapter, use with VNU-BUMP, VNI-WM450. Refer to the Product Data Sheet. Page 11 / 20 P18-I...
- Page 12 Place the assembly on CLADAPT, use the 2 guides. Tight with the fasteners provided with CLADAPT. Refer to the Product Data Sheet. PNI-P18TOL18 PNI-P18TOL2L18 P18 Under 1xL18 P18 Under 2xL18 (Omni or Cardio) Refer to the Product Data Sheet. Page 12 / 20 P18-I...
- Page 13 Refer to the Product Data Sheet. VNI-WM450 Wallmount for P18, use with WMADAPT. Mount the wall plate. Place the arm in the wall plate. Lock with the provided screw. Refer to the Product Data Sheet. Page 13 / 20 P18-I...
- Page 14 Refer to the Product Data Sheet. PNU-P18FLG9040 HF Dispersion Horn 90° - 40° Remove the grille, remove the flange to place the PNU-P18FLG9040. If it necessary, rotate it. Magnets keep the horn in place. Refer to the Product Data Sheet. Page 14 / 20 P18-I...
-
Page 15: Array Eq
The ArrayEQ allows to adjust the system frequency response in its lower range (see curves below, with different ArrayEq values): P1 60x60 rray ad usting Fre uency H P1 60x60 rray ad usting Fre uency H Page 15 / 20 P18-I... -
Page 16: Maintenance
Tightening torque: 3.5 Nm (Thread Locker: Loctite 242) Remove the 2 screws. Remove the stickers. Tightening torque: 2.5 Nm (Thread Locker: Loctite 222) To access to the HF diaphragm, remove 4 screws. Remove the horn. Tightening torque: 2 Nm Page 16 / 20 P18-I... - Page 17 HP18" COAXIAL NEODYNIUM 8 - 8 Ohms 05HPC18R/K HPC18 RECONE KIT 05NHP18R/K HF DIAPHRAGM 4" - 8 Ohms with screws 05CAPB01 HF cap black 05CAPB01-PW HF cap White NOTE: Speakers and Grills can be sent back to NEXO for recycling Page 17 / 20 P18-I...
-
Page 18: Technical Specifications
TECHNICAL SPECIFICATIONS TECHNICAL SPECIFICATIONS P18-I WITH NEXO ELECTRONICS Model P18-I 50 Hz – 20 kHz Frequency range (±6dB) Peak SPL Level (1m) 140dB Peak (Passive mode) / 142dB Peak (Active mode) Operating voltage 55 Vrms (180 Vpeak) HF dispersion 60°x60° - 90°x40° - Asymmetrical Dispersion 60° to 100°x40°... -
Page 19: User Notes
USER NOTES USER NOTES Page 19 / 20 P18-I... - Page 20 Tel: +33 3 44 99 00 70 NEXO S.A. Fax: +33 3 44 99 00 30 E-mail: info@nexo.fr Parc d’activité de la Dame Jeanne nexo-sa.com F-60128 PLAILLY Page 20 / 20 P18-I...
