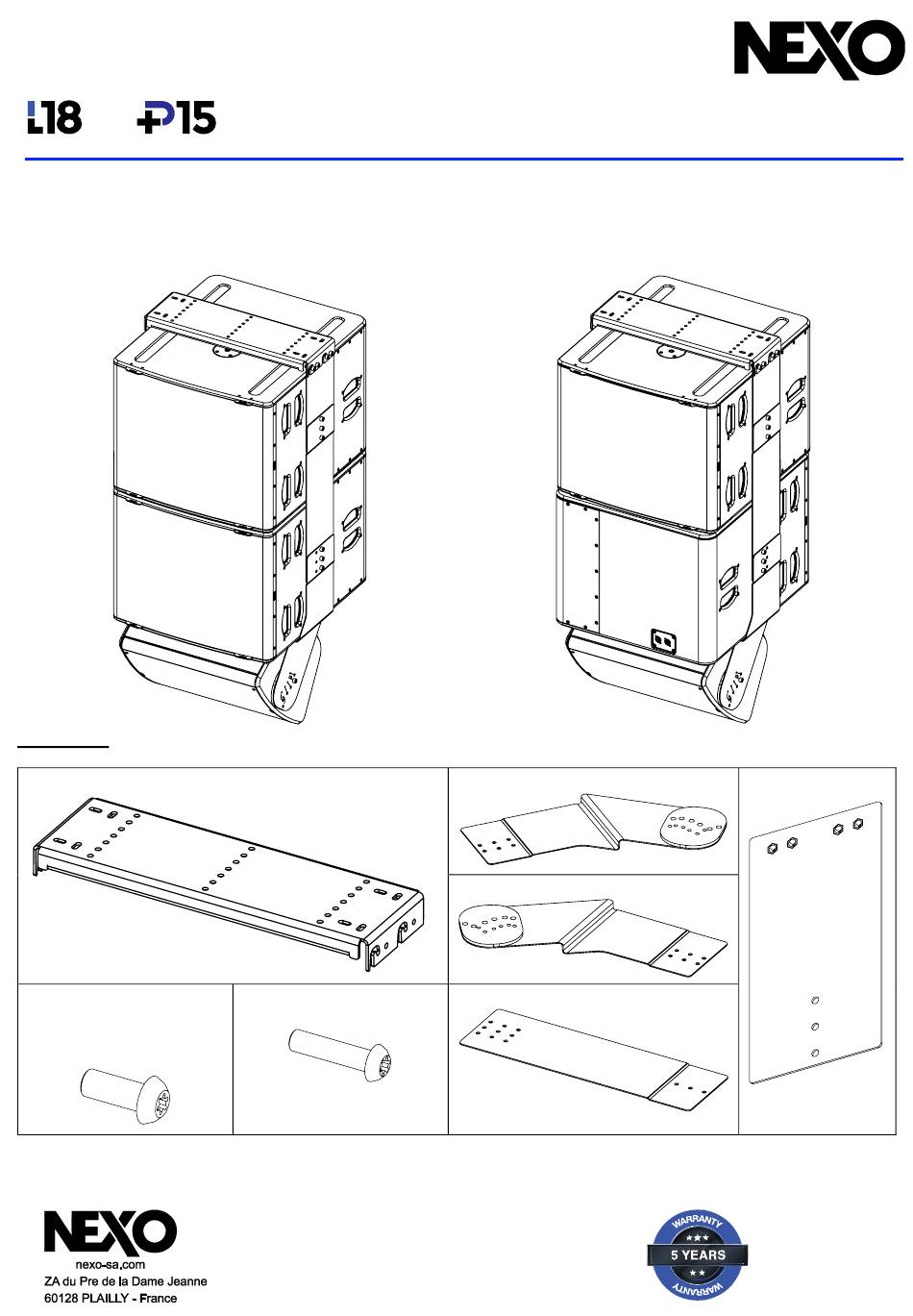

PNI-P15TO2L18
DP5656 – 01d - DI

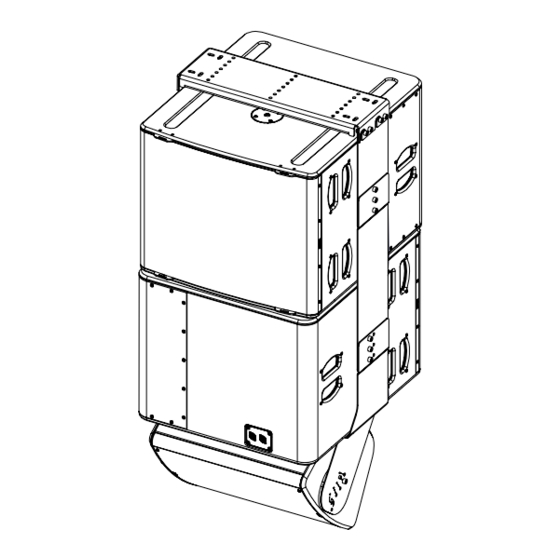

P15 Under 2xL18 Rigging System
Contents:
X1
X8
M10x30 (a)
X2
M10x25 (a)
X12
M10x18 (a)
(a) : The type of the screws may differ from the representation
Weight: 27.3 kg / 60 lb
Ceiling Plate
X2
M6x25 (a)
- Read t his docum ent before using.
- Keep t his docum ent .
- Observe all warnings and caut ions.
X1
Left Plate
X1
Right Plate
X2 L18
Plate
X2
Main Plate
PAGE 1 OF 4
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Nexo P15 Under 2xL18 Rigging System
Summary of Contents for Nexo P15 Under 2xL18 Rigging System
- Page 1 PNI-P15TO2L18 DP5656 – 01d - DI P15 Under 2xL18 Rigging System Contents: Ceiling Plate Left Plate Main Plate Right Plate X2 L18 M10x30 (a) M6x25 (a) Plate M10x25 (a) M10x18 (a) (a) : The type of the screws may differ from the representation Weight: 27.3 kg / 60 lb...
- Page 2 Dimensions: For fixation, you have the choice between M8 and M10 WARNINGS Ensure that the mounting location and fasteners can support at least 4 times the weight of all the installed cabinets, auxiliary equipment and cables. Use only the provided screws (thread lock coated) and accessories. Implementation of L18 Prepare the Main plates by screwing the M10x30 screws on the holes (see picture below), do not tighten completely and leave at least 6mm.
- Page 3 Assembly on the ceiling plate Place the assembly below the ceiling plate. Tighten the screws. Secure with the 4 provided M10x30 screws. Implementation of P15 Place P15 between the plates, position at the chosen angle, fasten with M10x25 screws and secure with M6x25 screws.
- Page 4 -35° -45° -55° • NEXO cannot accept responsibility for accidents caused by any factor other than defects in this product itself. • Please check the web site nexo-sa.com for the latest update. - Read t his docum ent before using.
