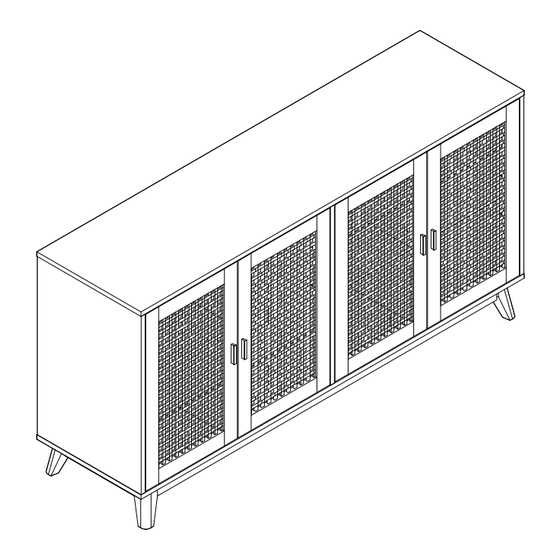

- Page 1 HULALA ITEM NO.SBLS1165 NOTE: This brochure contains IMPORTANT safty info. Please read and keep for future reference. 01/32...
- Page 2 MAINTAINANCE AND WARNING 1.Keep furniture away from heat sources. 2.Do not clean furniture with harsh cleaner or polishes.Do not use detergents,solvents,abrasives,spray packs or leather cleaner. Use non-color mild soap with warm water to clean spills(Mix 1:10 soap to water). 3.Do not place furniture under direct sunlight,material will possibly fade over time.
- Page 3 EXPLOSIVE VIEW 2PERSONEN 03/32...
- Page 4 PARTS LIST 04/32...
- Page 5 PARTS LIST 05/32...
- Page 6 HARDWARE LIST Ø8x30mm Ø1/4x1" M6*50 M8*50 Ø8 Ø8*1-1/4'' M6*20 M6*30 M3*14 Ø6*12*1.5 TOOL LIST 06/32...
- Page 7 HARDWARE SPARE LIST Ø8x30mm Ø1/4x1" M6*50 M8*50 Ø8*1-1/4'' Ø8 M6*20 M6*30 M3*14 Ø6 07/32...
- Page 8 ASSEMBLY INSTRUCTIONS STEP-1 Prepare for part A. Align the holes in part A, insert wooden dowel #3 by hand, tighten with screwdriver #23 tighten #4 。 08/32...
- Page 9 ASSEMBLY INSTRUCTIONS STEP-2 Use bolt #2 to attach Magnetic device #2 to top panel (A) ， tighten bolts with screwdriver #23. 09/32...
- Page 10 ASSEMBLY INSTRUCTIONS STEP-3 Connect the part A with part C&D&E&F&G. align the hole in the part C&D&E&F&G ,insert the bolt #4 and wooden dowel #3 in part A into part C&D&E&F&G. insert cam bolt #5 into the corresponding hole of side panel C&D&E&F&G,and tighten the nuts #5 with a screwdriver #23.
- Page 11 ASSEMBLY INSTRUCTIONS STEP-4 Insert gasket #20 into screw #15 ， Align the I/J holes with the side plate, and use wrench #22 to fix screw #15 on the side plate respectively. J&L M6x30mm Ø6*12*1.5 11/32...
- Page 12 ASSEMBLY INSTRUCTIONS STEP-5 Insert gasket #20 into screw #14 ， Align the K hole position with the A plate, and use the wrench #22 to fix the screw #14 on the A plate respectively M6x20mm Ø6*12*1.5 12/32...
- Page 13 ASSEMBLY INSTRUCTIONS STEP-6 Align the #16 hole with the A board, and use a #23 screwdriver to fix the #17 screw on the A board. 13/32...
- Page 14 ASSEMBLY INSTRUCTIONS STEP-7 Manually insert #3 wooden dowels (C&D&E&F&G), slide in the part H into the groove in part D,G and G,F and F,E and E,C . make sure they are also in groove in part A. 14/32...
- Page 15 ASSEMBLY INSTRUCTIONS STEP-8 Use bolt #2 to attach Magnetic device #2 to bottom panel (B) ， tighten bolts with screwdriver #23. 15/32...
- Page 16 ASSEMBLY INSTRUCTIONS STEP-9 Connect the part B the pre-assembled unit in step 7. Then align the holes in part B,Insert screw #8 and push it down so that it connects to parts C&D&E&F&G. . Next,and tighten the screw #8 with an Allen key #22. D&G&F&E&C 16/32...
- Page 17 ASSEMBLY INSTRUCTIONS STEP-10 1.Insert gasket #10 and #11 in sequence into screw #9, install leg (T) on of bottom panel (B), ensure the corresponding holes are aligned and fix with screw #9, then tighten the screw with an Allen key #21. #11x4 #9x4 #10x4...
- Page 18 ASSEMBLY INSTRUCTIONS STEP-11 Insert hardware #19 into part (H) as shown, screw in screw #19 using screwdriver #23 and tighten fully. 18/32...
- Page 19 ASSEMBLY INSTRUCTIONS STEP-12 Attention: After installation, adjust the adjustable leveler to keep the cabinet balanced . 19/32...
- Page 20 ASSEMBLY INSTRUCTIONS STEP-13 1.Insert wooden dowel#3 into the corresponding hole of drawer back(N),and then use screw#13 to attach drawer side(O)&(P) to drawer back(N),tighten screw#13 with screwdriver#23. 2. Carefully align and slide panel (Q) into the groove along rear edge of pre-assemble unit at step 1 Ø8*1-1/4'' 20/32...
- Page 21 ASSEMBLY INSTRUCTIONS STEP-14 1.Insert bolt #4 into the corresponding hole of panel (M) ， tighten bolt #1 with screwdriver #23. 2 . Insert preassemble panel(M) into preassemble unit step1 ， make sure all holes aligned ， and then insert cam bolt #5 into the corresponding hole of part(O)&(P) as image, tighten cam bolt #5 with screwdriver #23.
- Page 22 ASSEMBLY INSTRUCTIONS STEP-15 Use screw #2 to attach metal plate #2 to door(S)&(R),tighten screw #2 with screwdriver #23 . Use screw #17 to attach hinge #7 to door(S)&(R),tighten screw #17 with screwdriver #23 . 22/32...
- Page 23 ASSEMBLY INSTRUCTIONS STEP-16 1.Insert shelf holder #12 into the corresponding hole of panel (C)&(D)&(E)&(F)&(G)and then attach panel (L)to it. Shelf holder can be adjusted up or down 23/32...
- Page 24 ASSEMBLY INSTRUCTIONS STEP-17 Use screw 17# to attach door (S) to the corresponding hole of side panel (D)&(F) ， tighten screw with screwdriver #23 . 24/32...
- Page 25 ASSEMBLY INSTRUCTIONS STEP-18 Use screw 17# to attach door (R) to the corresponding hole of side panel (C)&(F) ， tighten screw with screwdriver #23 . 25/32...
- Page 26 ASSEMBLY INSTRUCTIONS STEP-19 Use screw to attach handle to the corresponding hole of ， door(R) tighten screw with screwdriver 26/32...
- Page 27 ASSEMBLY INSTRUCTIONS STEP-20 Use screw to attach handle to the corresponding hole of ， door(S) tighten screw with screwdriver 27/32...
- Page 28 ASSEMBLY INSTRUCTIONS STEP-21 Female slider Male slider 28/32...
- Page 29 ASSEMBLY INSTRUCTIONS STEP-22 1.Use nylon packaging #18 Inside screw to attach bracket to the corresponding hole of top panel(A) ， tighten screw with screwdriver #23. 29/32...
- Page 30 ASSEMBLY INSTRUCTIONS ② ③ ① STEP-23 1.Mark the position on the wall, that corresponds to the location of bracket ① on the back of top panel A; Drill and insert the expandable screw ② by hammer. 2.Assemble the bracket ① to the wall. Align the hole in the bracket ① with the expandable screw ②...
- Page 31 ASSEMBLY INSTRUCTIONS ④ #18 x2 STEP-24 3.Let the plastic belt ④ pass through bracket ① and pull tightly. 31/32...
- Page 32 WARRANTY 1.We strive to offer high-quality products,and we also try our best to satisfy each and every customer that orders from us with product or service as needed. 2.We provide 30 days warranty starting from the time you receive the item.Each customer must provide a record of their order such as the order number,or item receipt for any items that are out of the warranty period you may also still receive.
