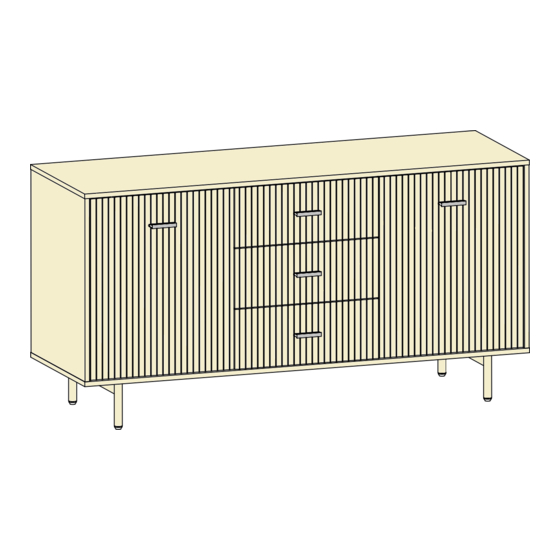

- Page 1 ITEM NO. SBBSD0388 NOTE: This brochure contains IMPORTANT safty info. Please read and keep for future reference. 1/16...
- Page 2 MAINTAINANCE AND WARNING Keep furniture away from heat. Do not clean furniture with harsh cleansers or polish. Do not use detergents, Solvents, abrasives, spray packs or leather cleaner. Use non-color mild soap with warm water clean spills(Mix 1:10 soap to water) Do not place furniture under direct sunlight, material will possibly fade over time.
- Page 3 PARTS LIST 3/16...
-
Page 4: Explosive View
Explosive View 4/16... - Page 5 HARDWARE LIST SPARE Be sure to check all packing material carefully for small parts, which may have come loose inside the carton during shipment. 5/16...
- Page 6 ASSEMBLY INSTRUCTIONS Preparing the panel 1. 1.Align the hole in the panel 1, screw in and tighten the cam bolt A by screwdriver. 2.Insert the wooden dowel D into the predrilled hole in panel by hand. Attach the metal drawer slider. 1.
- Page 7 Attach the panel 3,4,5,6 to the panel 1. Align the holes in panel 3,4,5,6, insert the cam bolt A and wooden dowel D, put in nut B and tighten by screwdriver. At last covered by part O. Insert the panel 8 and 9 to the finished frame in step 3. 1.Slider the panel 8 into the grooves in panel 3,5 and 4,6.
- Page 8 Connect the panel 2 to the finished part in step 4. Align the holes in panel 3,4,5,6, insert and tighten the screw C by Allenkey P as the picture show. Preparing the leg frame. Align the holes in part 18 and the holes in part 17, insert and tighten the screw N by Allenkey P.
- Page 9 Attach the leg frame to the cabinet. Align the holes in the leg frame to the holes in panel 2, insert the screw N and tighten by Allenkey P as the picture show. Insert the part F into the panel 8 and panel 9, screw in and tighten the screw E by screwdriver.
- Page 10 Preparing the drawer frame. 1.Align the holes in the panel 12, screw in and tighten the cam bolt A by screwdriver. 2.Align the hole in the part L to the holes in panel 12, insert the screw M and tighten by screwdriver. 3.Align the hole in the panel 15 to the holes in panel 13 and 14, insert and tighten the screw H by screwdriver.
- Page 11 Attach the male metal slider J on the panel 13 and 14. Align the hole in the slider to the hole in the panel 13 and 14, screw in and tighten the screw E by screwdriver. Connect the drawer to the cabinet. Align the female slider I to the male slider J, push into the drawer.
- Page 12 Insert the part G into the predrilled holes in panel 3,4,5,6 as the picture show. put panel 7 on the part G as the picture show. 12/16...
- Page 13 Install the anti-collapse device. 1. Mark the position on the wall, this should be same as the position of R where are on the back of panel 1; Drilled and insert the expandable screw T by hammer; 2.Assemble the part R on the wall. Align the hole in the part R to the expandable screw T, screw in and tighten by screwdriver;...
- Page 14 Install the doors. 1.Attach the part K on the panel 10 and 11 as the picture show. Align the hole in the part K to the predrilled hole in the panel 10 and 11, screw in and tighten the screw E by screwdriver. 2.Attach the part K on the panel 3 and 4.
- Page 15 Use the adjustable nail Q to keep the cabinet level in case the cabinet is wabbling. Now your cabinet is ready to use. Assembly completed 15/16...
-
Page 16: Warranty
WARRANTY We strive to offer high-quality products, and we also try our best to satisfy each and every customer that orders from us with product or service as needed. We provide 30 days warranty starting from the time you receive the item. Each customer must provide a record of their order such as the order number, or item receipt for any items that are out of the warranty period you may also still receive replacement...
