Söll parallel switch

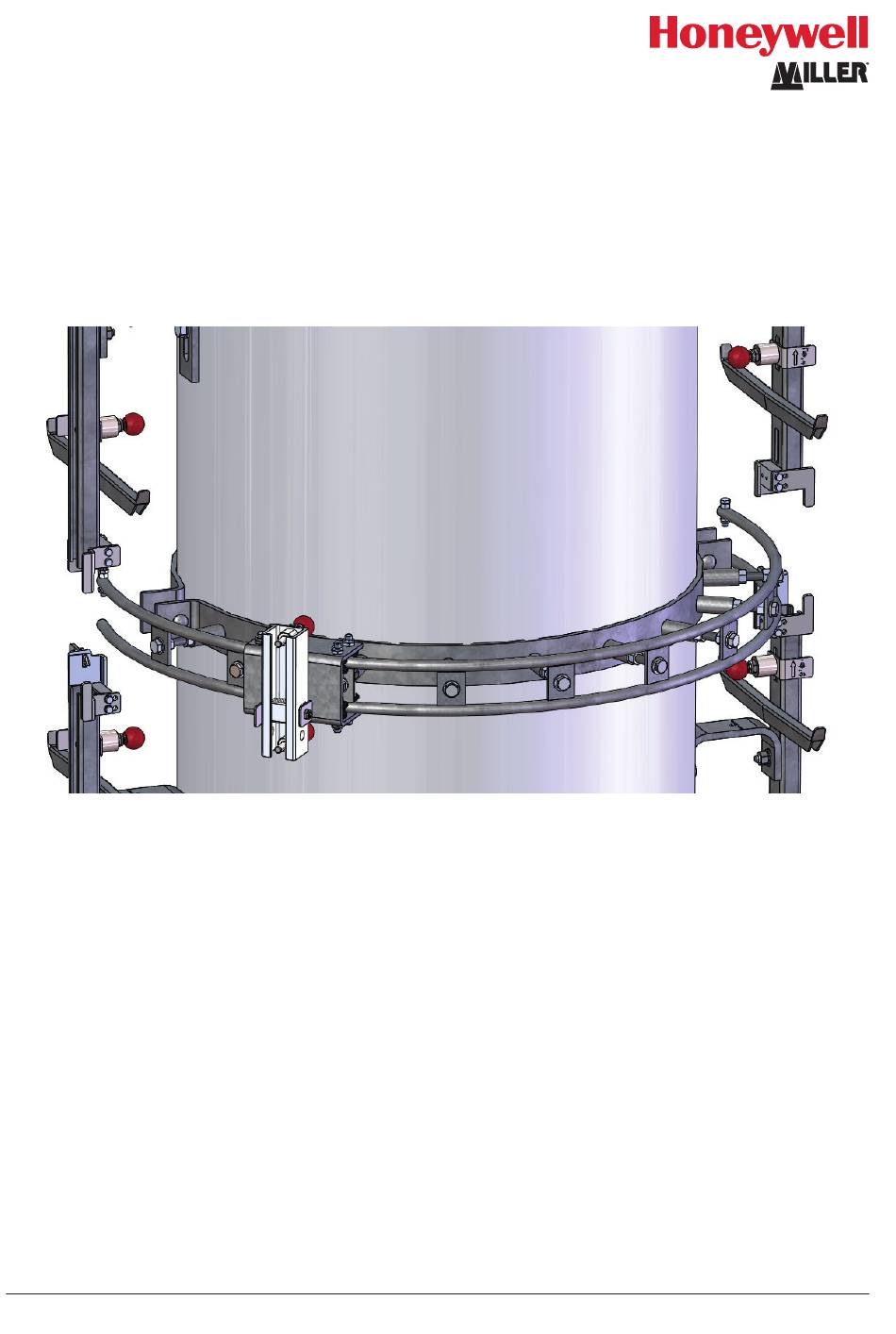

Söll GlideLoc® climbing protection system
EN 353-1:2014+A1:2017
in conjunction with Y-spar and twin ladder aluminum
Mast diameter 200 - 350mm
Mast diameter 351 - 500mm
Mast diameter 501 - 700mm
Mast diameter 701 - 1000mm
in conjunction with Y-spar steel
Mast diameter 200 - 350mm
Mast diameter 351 - 500mm
Mast diameter 501 - 700mm
Mast diameter 701 - 1000mm
clockwise (see Fig. B 17 for counterclockwise)
Installation, maintenance
& operating instructions
Order no.
16612
18697
18698
18699
Order no.
16352
18700
18701
18702
www.honeywellsafety.com
Advertisement
Related Manuals for Honeywell Miller Soll GlideLoc
Summary of Contents for Honeywell Miller Soll GlideLoc
- Page 1 Installation, maintenance & operating instructions Söll parallel switch Söll GlideLoc® climbing protection system EN 353-1:2014+A1:2017 in conjunction with Y-spar and twin ladder aluminum Order no. Mast diameter 200 - 350mm 16612 Mast diameter 351 - 500mm 18697 Mast diameter 501 - 700mm 18698 Mast diameter 701 - 1000mm 18699...
-
Page 2: Table Of Contents
Inhalt A General B Installation C Review and acceptance D Screw connections, screw locks E Using the parallel switch F Maintenance G Checklist for acceptance www.honeywellsafety.com... -
Page 3: A General
These instructions must be provided by the operator of the system on request to the manufac- turer of the fall arrest system (Honeywell Fall Protection Deutschland GmbH & Co. KG or one of its authorized dealers). - Page 4 Important: Climbing locks A11. For new assemblies, only the following types of climbing locks may be used in accordance with the requirements of EN353-1: 2014 + A1: 2017: Climbing locks with locking Climbing locks with locking bolts for steel/stainless steel bolts for aluminum ladders ladders Mount from behind...
-
Page 5: B Installation
B Installation The assembly kit consists of: 1 parallel switch (reversing ring with integrated carriage) 1 stop each on left and right 1 end stop each left and right 4 climbing locks 1 lock each on the right top and bottom 1 lock each on left top and bottom Functional items for easy installation: 1 - ring spanner SW 19 mm... - Page 6 Attention: Installation can be conducted directly from the ladder without scaffolding. For this purpose, the installer shall use safety harness and fall arrester. In order to be protected against fal- ling during a possible retraction of the fall arrester, the installer must always secure himself with a safety rope according to EN 354/355 as shown in Fig. 1. Only place the karabiner hook of the safety rope around the guide rail with a positive fit underneath the last bracket firmly connected to the structure and the ladder. Never secure on the side rail of the ladder!
- Page 7 Attention: The climbing locks and the mounting brackets must first be mounted directly above and below the parallel switch installation location before the recess for the parallel switch is sawn into the existing ladder. If this is not possible, the installer must additionally attach himself to the mast with a holding rope according to Fig. 2 in order to prevent any bending back of the ladder after sawing and thus secure against falling.
- Page 8 B10. Mounting brackets (2.3) must first be placed directly above and below the installation location of the parallel switch. Attention: If this is not possible, mount the mounting bracket (2.3) immediately after sawing out the recess (see also point B 9. - Attention). Furthermore, the „lower“ (2.1)* and „upper“ (2.2)* climbing locks must be mounted. Important: Above the parallel switch, the „lower“...
- Page 9 B11. Saw out the central rails (2.0) of the Y-spars (in the case of twin ladders also the side rails) between 2 rungs for the installation of the parallel switch. For this purpose, the cutting lines 30mm and 217mm from the lower rung are marked and sawn out of the ladder section applying straight cuts.
- Page 10 Hex bolt M6x20 – DIN 933 Self-locking nut M6 – DIN 985 www.honeywellsafety.com...
- Page 11 For Y-spar steel Fig. 5b Drill holes for the spacers (4.0) - with the pre-assembled stops, end stops and the locks - on the central rail (2.0) using the Ø 6.5mm drill. Note: The spacers (4.0) can be used as „drilling jig“. Fig.
- Page 12 B13. For Y-spar and twin ladder aluminum Fig. 6a Mount the end stops left (4.1) and right (4.3) to the central rails. Fig. 6a Hex bolt M6x20 – DIN 933 Self-locking nut M6 – DIN 985 www.honeywellsafety.com...
- Page 13 For Y-spar steel Fig. 6b Mount the spacers (4.0) with the end stops (4.1/4.3) and the locks (4.5/4.7) pre-as- sembled in the factory to the central rails (2.0) Fig. 6b Hex bolt M6x20 – DIN 933 www.honeywellsafety.com...
- Page 14 B14. Mount the parallel switch (1.0) to the mast with the fixing clamps. The spar mount- ing bracket (1.3) in the guide rail profile (1.2) of the carriage (1.1) must be below the center line and the safety lock (1.4) on the left side.. Attention: Between the central rails (2.0) and the guide rail profile (1.2) of the carriage (1.1), a clear- ance of 2.5mm must be kept.
- Page 15 B15. It is important to ensure that the guide rail profile (1.2) of the carriage (1.1) are aligned with the central rails (2.0) of the ladder. If the guide rail profile (1.2) of the carriage (1.1) lies in front of or behind the profile of the guide rail (2.0/3.0), then the adjusting screws (1.5) must be turned inwards or outwards as necessary until alignment is reached. Maximum adjustment based on the diameter 5mm. Start with the screw (1.5) closest to the ladder and adjust it until the profile (1.2) of the car- riage (1.1) aligns with the ladder. Thereafter, the other screws (1.5) of the parallel switch bracket are readjusted so that the carriage (1.1) can move easily.
- Page 16 For Y-spar and twin ladder aluminum B16. Fig. 9a Mount the stops (4.2/4.4) and the locks (4.5/4.6/4.7/4.8) using hexagon bolts M6x20 / M6x40 and self-locking nuts M6. Fig 9a Hex bolt M6x20 – DIN 933 Self-locking nut M6 – DIN 985 Hex bolt M6x20 –...
- Page 17 For Y-spar steel Fig. 9b Mount the spacers (4.0) with the previously pre-assembled stops (4.2/4.4) and the locks (4.6/4.8) using hexagon bolts M6x20. Fig. 9b Hex bolt M6x20 – DIN 933 For Y-spar and twin ladder aluminum B17. Note: For counterclockwise switches, the two upper and lower end stops or locks are mounted reversed against each other.
-
Page 18: C Review And Acceptance
C Review and acceptance When accepting, attention must be paid to the perpendicular positioning of the ladder/par- allel switch. All screw connections, brackets to the structure, brackets to ladder spar are to be checked. They must be tight and secured against releasing (see section D). Immediate- ly above and below the parallel switch, an additional mounting bracket must be mounted and the „upper“... -
Page 19: E Using The Parallel Switch
Coming from the bottom: Fig. 10 Carriage is in one of the two end positions, i.e. in the receiving position for the arrester de- vice. E1.a Using the fall arrester, move up to the „upper“ climbing lock (2.2)*. E1.b. Check that the carriage (1.1) is correctly locked in the final position. E1.c Guide over the „upper“... - Page 20 E2.d Secure with the safety rope around the spar until the carriage (1.1) of the parallel switch is accessible. E2.e Guide the carriage (1.1) far enough so that the fall arrester can be inserted into the guide rail profile (1.2) of the carriage (1.1). E2.f E 1.7.d Pull the lower stop bolt (1.2) in the guide rail profile (1.1) of the carriage (1.1) back- wards.
-
Page 21: F Maintenance
Maintenance The Söll GlideLoc climbing protection system must be checked regularly, but at least every 12 months. Extreme environmental conditions (dirt, dust, chemical influences, temperature, UV radiation) may require more frequent maintenance intervals. Please consult your local technical support representative for advice. Always make sure that inspection complies with manufacturer‘s instructions and the regulatory requirements. -
Page 22: G Checklist For Acceptance
G Checklist for acceptance of Söll fall protection systems „Söll parallel switch“ The inspections must be carried out on a regular basis as required (e.g. when the last use is more than one year ago or under special/extreme environmental conditions), but at least every 12 months, taking into account legal requirements, the type of use and operational requirements. - Page 23 Söll fall arrester has been handed over to the operator. On-site test inspection was carried out. There are no deficiencies. This manual has been given to the operator. Only components of the Honeywell Fall Protection Deutschland GmbH & Co. KG, fall protection technology were used. www.honeywellsafety.com...
- Page 24 Object: _________________________________ Operator: ______________ Montagefirma: ________________ Street: ______________ Street: ________________ City: ______________ City: ________________ Phone: ______________ Phone: _________________ Fax: ______________ Fax: _________________ Handed to: _____________________________ (Operator or his deputy) Name Unterschrift Construction site manager of the installation company: _____________________________ Name Unterschrift City: ________________ Date:________________ Defects, irregularities, deviations from the checklist must be entered...
- Page 25 www.honeywellsafety.com...
- Page 28 Honeywell Fall Protection Deutschland GmbH & Co. KG Seligenweg 10 D-95028 Hof SEN 17 Phone +49 (0) 9281 83 02 0 03/2019 Fax +49 (0) 9281 36 26 Technical modifications reserved! E-mail: scs-hof@honeywell.com © 2019 Honeywell International Inc.
