3 Product Description

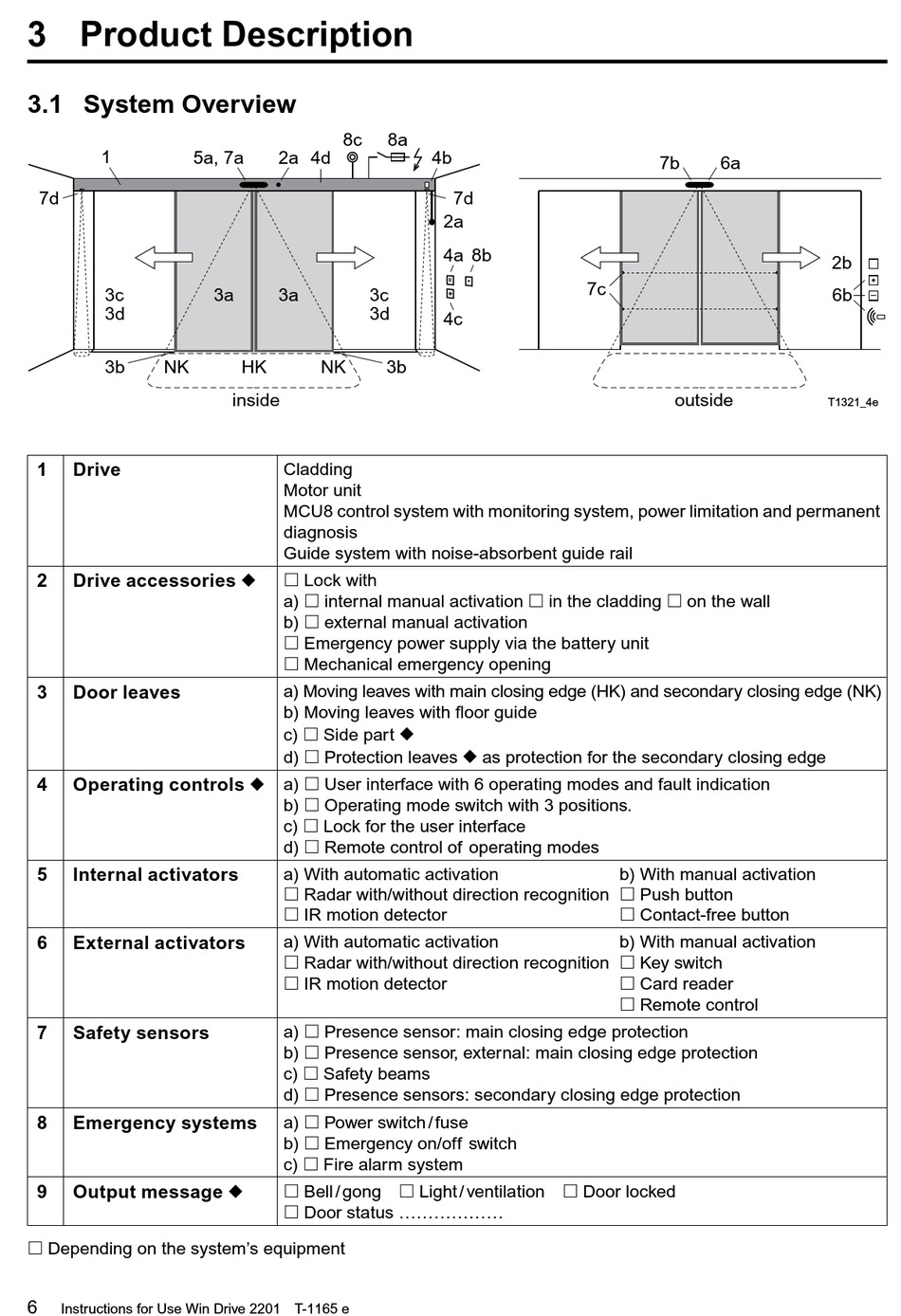

3.1 System Overview

1
5a, 7a
7d
3c
3d
3b NK
1 Drive
2 Drive accessories u
3 Door leaves
4 Operating controls u
5 Internal activators
6 External activators
7 Safety sensors
8 Emergency systems
9 Output message u
£ Depending on the system's equipment
6
Instructions for Use Win Drive 2201 T-1165 e
8c
2a 4d
3a 3a 3c
3d
HK NK
inside
Cladding
Motor unit
MCU8 control system with monitoring system, power limitation and permanent
diagnosis
Guide system with noise-absorbent guide rail
£ Lock with
a) £ internal manual activation £ in the cladding £ on the wall
b) £ external manual activation
£ Emergency power supply via the battery unit
£ Mechanical emergency opening
a) Moving leaves with main closing edge (HK) and secondary closing edge (NK)
b) Moving leaves with floor guide
c) £ Side part
d) £ Protection leaves
a) £ User interface with 6 operating modes and fault indication
b) £ Operating mode switch with 3 positions.
c) £ Lock for the user interface
d) £ Remote control of operating modes
a) With automatic activation
£ Radar with/without direction recognition £ Push button
£ IR motion detector
a) With automatic activation
£ Radar with/without direction recognition £ Key switch
£ IR motion detector
a) £ Presence sensor: main closing edge protection
b) £ Presence sensor, external: main closing edge protection
c) £ Safety beams
d) £ Presence sensors: secondary closing edge protection
a) £ Power switch / fuse
b) £ Emergency on/off switch
c) £ Fire alarm system
£ Bell / gong £ Light / ventilation £ Door locked
£ Door status ..................
8a
4b
7d
2a
4a 8b
4c
3b
u
as protection for the secondary closing edge
u
7b 6a
7c
outside
b) With manual activation
£ Contact-free button
b) With manual activation
£ Card reader
£ Remote control
2b
6b
T1321_4e
