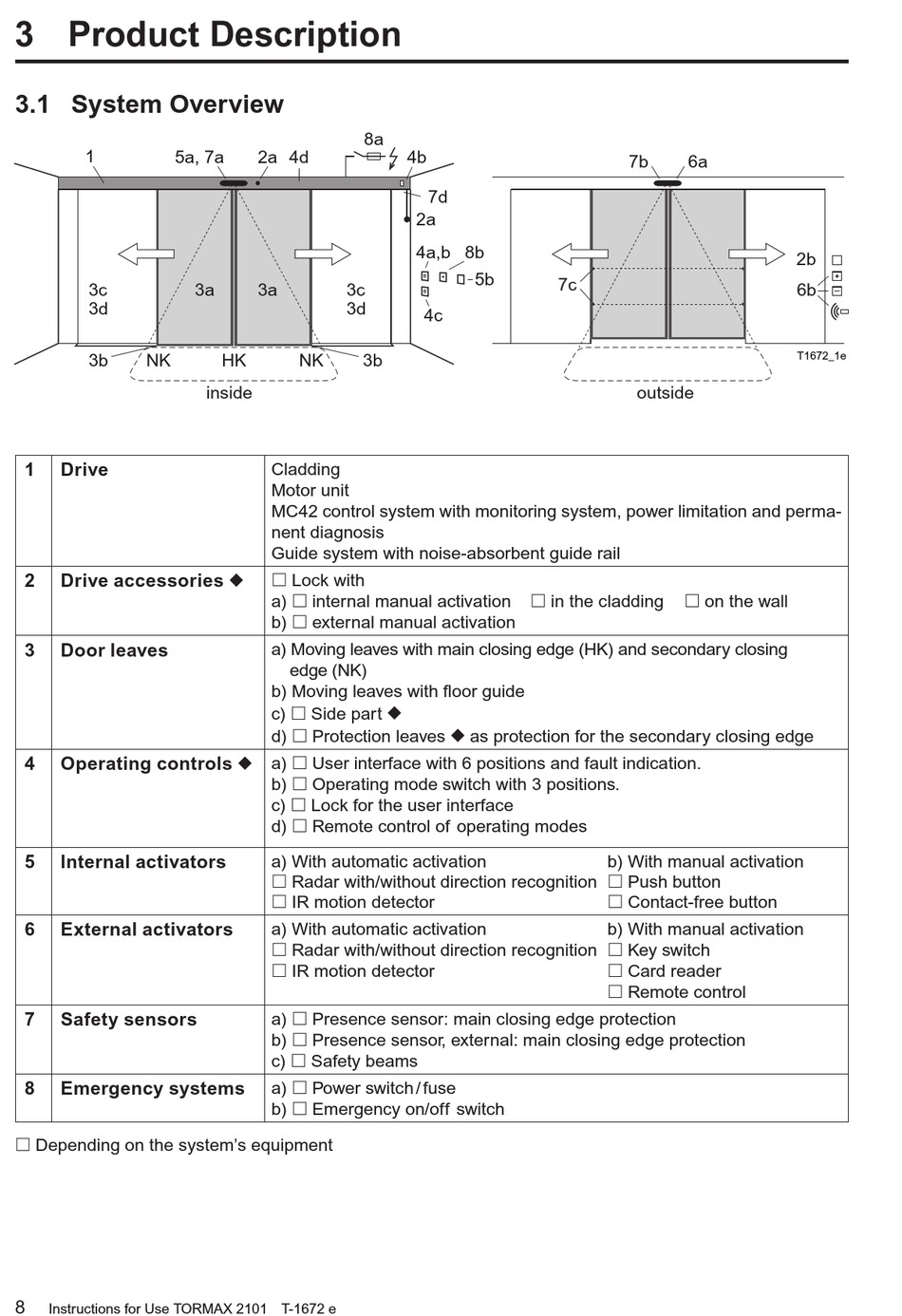

3 Product Description

3.1 System Overview

1
5a, 7a
3c
3d
3b NK
1 Drive
2 Drive accessories u
3 Door leaves
4 Operating controls u
5 Internal activators
6 External activators
7 Safety sensors
8 Emergency systems
£ Depending on the system's equipment
8
Instructions for Use TORMAX 2101 T-1672 e
8a
2a 4d
3a 3a 3c
3d
HK NK 3b
inside
Cladding
Motor unit
MC42 control system with monitoring system, power limitation and perma-
nent diagnosis
Guide system with noise-absorbent guide rail
£ Lock with
a) £ internal manual activation
b) £ external manual activation
a) Moving leaves with main closing edge (HK) and secondary closing
edge (NK)
b) Moving leaves with floor guide
c) £ Side part
d) £ Protection leaves
a) £ User interface with 6 positions and fault indication.
b) £ Operating mode switch with 3 positions.
c) £ Lock for the user interface
d) £ Remote control of operating modes
a) With automatic activation
£ Radar with/without direction recognition £ Push button
£ IR motion detector
a) With automatic activation
£ Radar with/without direction recognition £ Key switch
£ IR motion detector
a) £ Presence sensor: main closing edge protection
b) £ Presence sensor, external: main closing edge protection
c) £ Safety beams
a) £ Power switch / fuse
b) £ Emergency on/off switch
4b
7d
2a
4a,b 8b
5b
4c
£ in the cladding
u
as protection for the secondary closing edge
u
7b 6a
7c
outside
£ on the wall
b) With manual activation
£ Contact-free button
b) With manual activation
£ Card reader
£ Remote control
2b
6b
T1672_1e
