– Continued operation of the system by means of a battery unit u for a specific time with the doors open-
ing before the battery switches off. The door remains locked in operating mode OFF .
– Unlocking and opening of the door from outside by means of a key switch and the battery unit u.

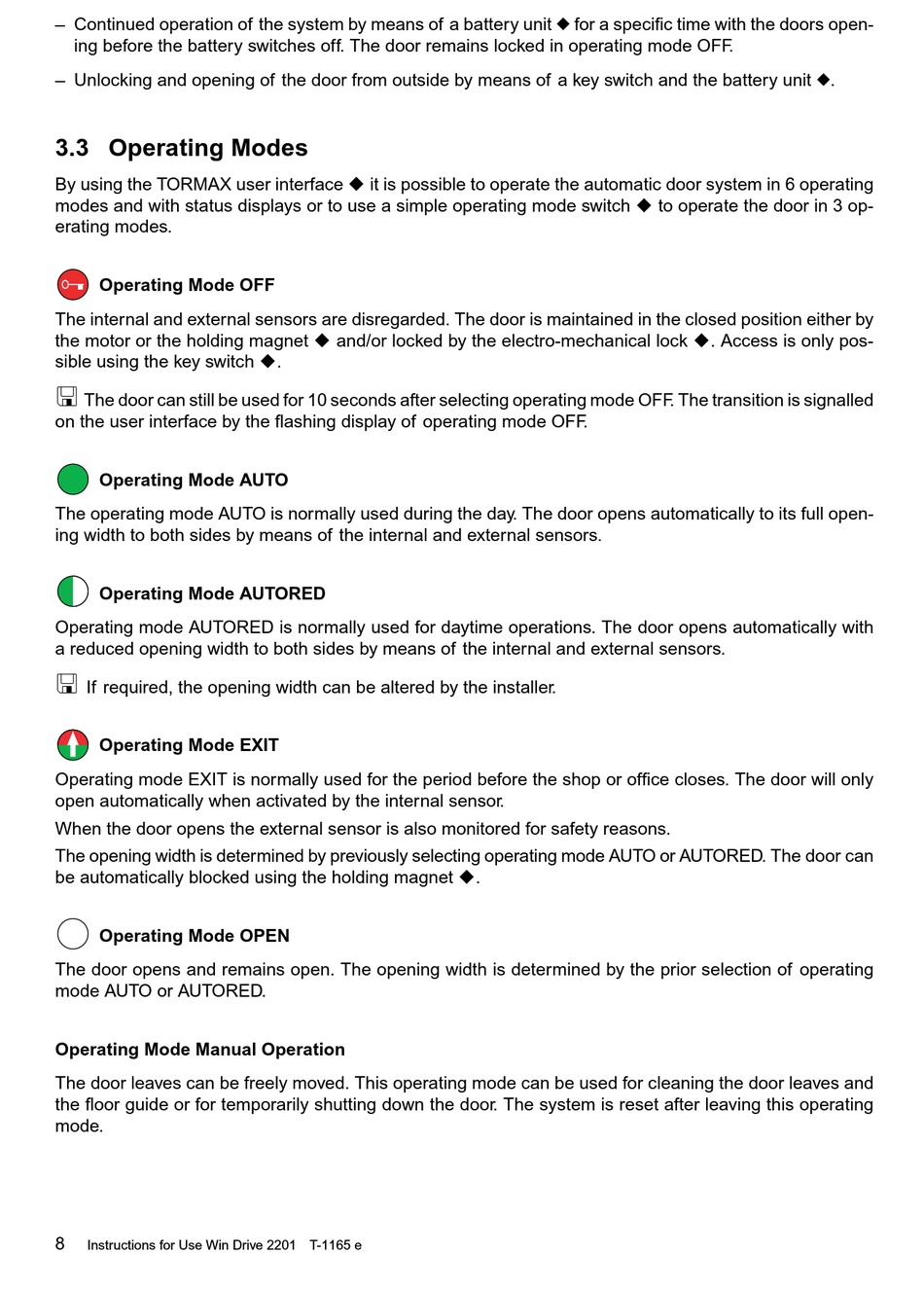

3.3 Operating Modes

By using the TORMAX user interface u it is possible to operate the automatic door system in 6 operating
modes and with status displays or to use a simple operating mode switch u to operate the door in 3 op-
erating modes.
Operating Mode OFF
The internal and external sensors are disregarded. The door is maintained in the closed position either by
the motor or the holding magnet u and/or locked by the electro-mechanical lock u. Access is only pos-
sible using the key switch u.
<
The door can still be used for 10 seconds after selecting operating mode OFF . The transition is signalled
on the user interface by the flashing display of operating mode OFF .
Operating Mode AUTO
The operating mode AUTO is normally used during the day. The door opens automatically to its full open-
ing width to both sides by means of the internal and external sensors.
Operating Mode AUTORED
Operating mode AUTORED is normally used for daytime operations. The door opens automatically with
a reduced opening width to both sides by means of the internal and external sensors.
<
If required, the opening width can be altered by the installer.
Operating Mode EXIT
Operating mode EXIT is normally used for the period before the shop or office closes. The door will only
open automatically when activated by the internal sensor.
When the door opens the external sensor is also monitored for safety reasons.
The opening width is determined by previously selecting operating mode AUTO or AUTORED. The door can
be automatically blocked using the holding magnet u.
Operating Mode OPEN
The door opens and remains open. The opening width is determined by the prior selection of operating
mode AUTO or AUTORED.
Operating Mode Manual Operation
The door leaves can be freely moved. This operating mode can be used for cleaning the door leaves and
the floor guide or for temporarily shutting down the door. The system is reset after leaving this operating
mode.
8
Instructions for Use Win Drive 2201 T-1165 e
