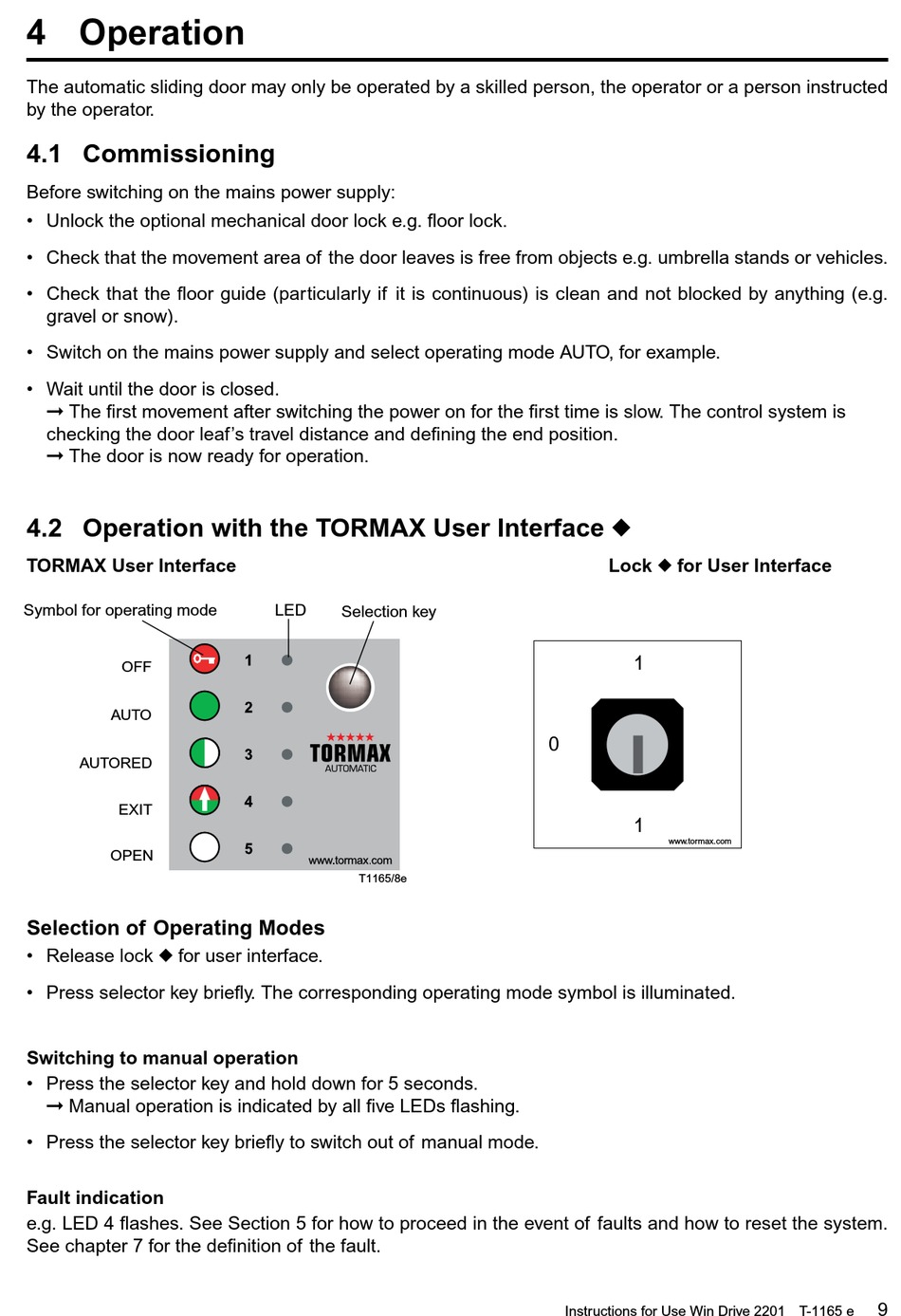

4 Operation

The automatic sliding door may only be operated by a skilled person, the operator or a person instructed
by the operator.

4.1 Commissioning

Before switching on the mains power supply:
• Unlock the optional mechanical door lock e.g. floor lock.
• Check that the movement area of the door leaves is free from objects e.g. umbrella stands or vehicles.
• Check that the floor guide (particularly if it is continuous) is clean and not blocked by anything (e.g.
gravel or snow).
• Switch on the mains power supply and select operating mode AUTO, for example.
• Wait until the door is closed.
 The first movement after switching the power on for the first time is slow. The control system is
checking the door leaf's travel distance and defining the end position.
 The door is now ready for operation.
4.2 Operation with the TORMAX User Interface u
TORMAX User Interface
Symbol for operating mode
OFF
AUTO
AUTORED
EXIT
OPEN
Selection of Operating Modes
• Release lock u for user interface.
• Press selector key briefly. The corresponding operating mode symbol is illuminated.
Switching to manual operation
• Press the selector key and hold down for 5 seconds.
 Manual operation is indicated by all five LEDs flashing.
• Press the selector key briefly to switch out of manual mode.
Fault indication
e.g. LED 4 flashes. See Section 5 for how to proceed in the event of faults and how to reset the system.
See chapter 7 for the definition of the fault.
LED
Selection key
1
2
3
4
T1427_4
T1165/8e
Lock u for User Interface
1
0
1
www.tormax.com
Instructions for Use Win Drive 2201 T-1165 e
9
