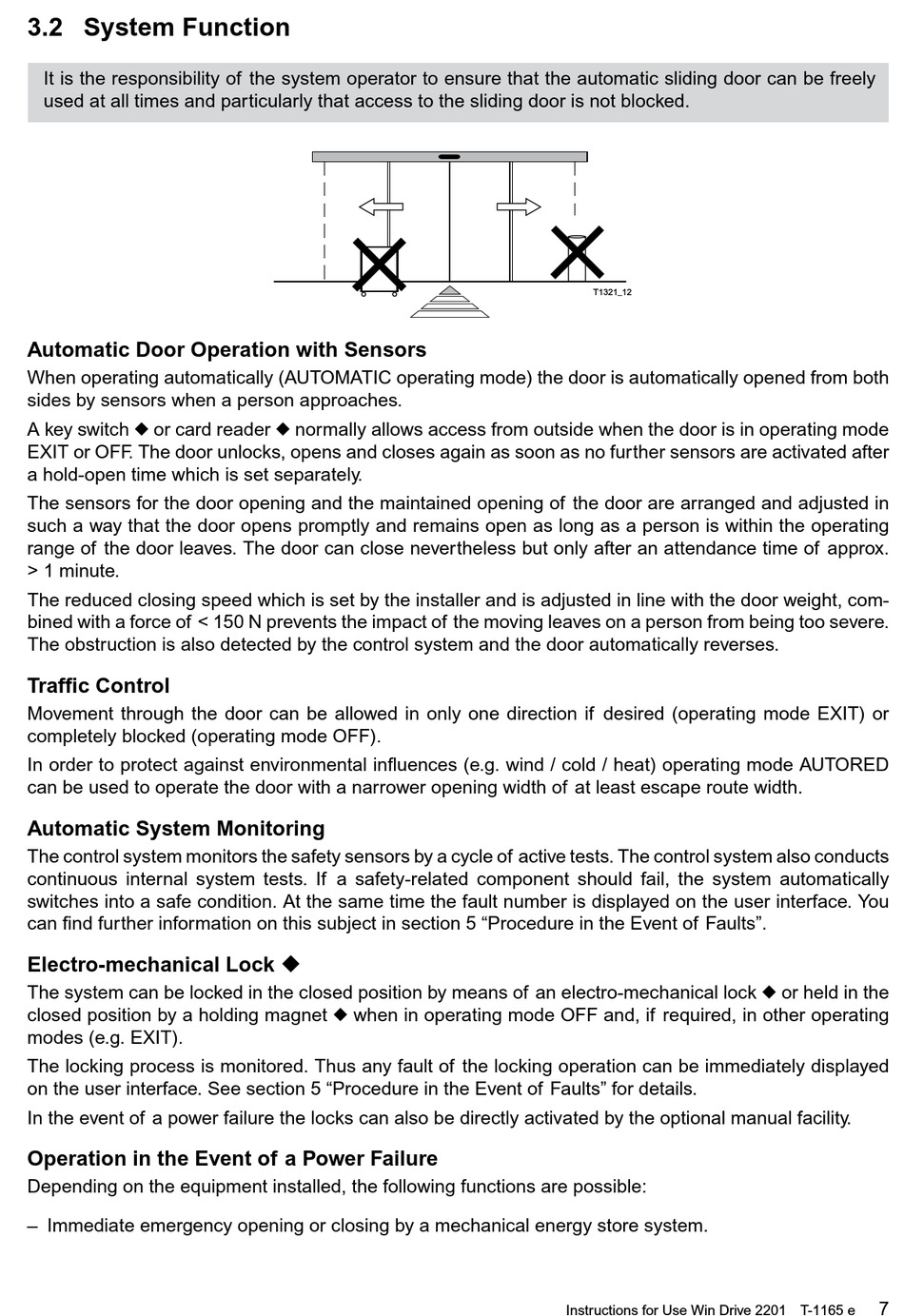

3.2 System Function

It is the responsibility of the system operator to ensure that the automatic sliding door can be freely
used at all times and particularly that access to the sliding door is not blocked.
Automatic Door Operation with Sensors
When operating automatically (AUTOMATIC operating mode) the door is automatically opened from both
sides by sensors when a person approaches.
A key switch u or card reader u normally allows access from outside when the door is in operating mode
EXIT or OFF . The door unlocks, opens and closes again as soon as no further sensors are activated after
a hold-open time which is set separately.
The sensors for the door opening and the maintained opening of the door are arranged and adjusted in
such a way that the door opens promptly and remains open as long as a person is within the operating
range of the door leaves. The door can close nevertheless but only after an attendance time of approx.
> 1 minute.
The reduced closing speed which is set by the installer and is adjusted in line with the door weight, com-
bined with a force of < 150 N prevents the impact of the moving leaves on a person from being too severe.
The obstruction is also detected by the control system and the door automatically reverses.
Traffic Control
Movement through the door can be allowed in only one direction if desired (operating mode EXIT) or
completely blocked (operating mode OFF).
In order to protect against environmental influences (e.g. wind / cold / heat) operating mode AUTORED
can be used to operate the door with a narrower opening width of at least escape route width.
Automatic System Monitoring
The control system monitors the safety sensors by a cycle of active tests. The control system also conducts
continuous internal system tests. If a safety-related component should fail, the system automatically
switches into a safe condition. At the same time the fault number is displayed on the user interface. You
can find further information on this subject in section 5 "Procedure in the Event of Faults".
Electro-mechanical Lock u
The system can be locked in the closed position by means of an electro-mechanical lock u or held in the
closed position by a holding magnet u when in operating mode OFF and, if required, in other operating
modes (e.g. EXIT).
The locking process is monitored. Thus any fault of the locking operation can be immediately displayed
on the user interface. See section 5 "Procedure in the Event of Faults" for details.
In the event of a power failure the locks can also be directly activated by the optional manual facility.
Operation in the Event of a Power Failure
Depending on the equipment installed, the following functions are possible:
– Immediate emergency opening or closing by a mechanical energy store system.
T1321_12
