Summary of Contents for Austin Hughes RP-H117

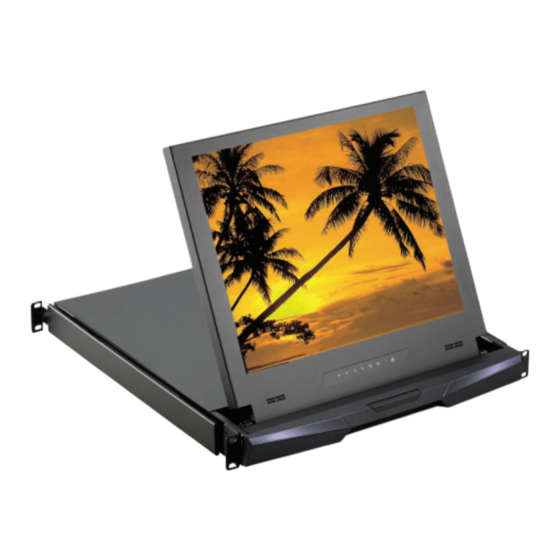

- Page 1 User Manual 17” / 19” High Brightness LCD 1000 cd/m² RP-H117 / RP-H119 1U LCD Drawer Options : - AV / DVI-D / Audio - BNC - SDI - Touchscreen / DC power Designed and manufactured by Austin Hughes UM-CV-751-RP-H117-Q323V1 www.austin-hughes.com...
- Page 2 ■ Re-position or relocate the receiving antenna. ■ Increase the separation between the equipment and receiver. ■ Connect the equipment into an outlet on a circuit diff erent from that to which the receiver is connected. UM-CV-751-RP-H117-Q323V1 www.austin-hughes.com...
-
Page 3: Table Of Contents
Contents < Part. 1 > RP-H117 / RP-H119 Package Content Structure Diagram & Dimension Installation < Part. 2 > Specifi cations / OSD Product Specifi cations On-screen Display Operation ( OSD ) < Part. 3 > Options 3G / HD / SD-SDI Broadcast-grade input P.10... - Page 4 fi rst, not directly on the parts you are cleaning. Gently wipe the surface. Use as little pressure as possible. Wait until your monitor is completely dry before plugging it in and powering it up. UM-CV-751-RP-H117-Q323V1 www.austin-hughes.com...
-
Page 5: Rp-H117 / Rp-H119
< Part 1 > RP-H117 / RP-H119 < 1.1 > Package Content RP-H117 / H119 RP-H117 or RP-H119 unit X 1 - 6ft VGA cable X 1 - Power cord X 1 - M6 screw, cage nut & cup washer X 8 The above package content is only for the pure model ( VGA and HDMI only ). - Page 6 Weight 441.6 x 500 x 44 mm 588 x 758 x 120 mm 10.5 kg 16.5 kg RP-H117 series 17.4 x 18.9 x 1.73 inch 23.1 x 29.8 x 4.7 inch 23.1 lb 36.3 lb 441.6 x 500 x 44 mm 588 x 758 x 120 mm 12.5 kg...
-
Page 7: Installation
RP-H117 / H119 < 1.3 > Installation - How to install Installation Slides Step ■ Insert the left and right rear mounting brackets into the display drawer. Step ■ Measure the depth of the front and rear mounting rails. ■... -
Page 8: Specifi Cations / Osd
* When the audio output is connected, speaker output is OFF Power Power Supply Range Auto-sensing 100 to 240VAC, 50 / 60Hz Power Consumption Screen ON ( RP-H117) Max. 30W ( RP-H119) Max. 39W Power saving mode Max. 2W Power button OFF Max. 1W Compliance FCC &... - Page 9 RP-H117 / H119 Environmental Operating Temperature 0 to 55°C degree Conditions Humidity 10~90%, non-condensing Altitude 16,000 ft Storage / Non-operating Temperature -20 to 60°C degree Humidity 5~90%, non-condensing Altitude 40,000 ft Shock 10G acceleration (11ms duration) Vibration 10~300Hz 0.5G RMS random...
- Page 10 Intentionally Left Blank UM-CV-751-RP-H117-Q323V1 www.austin-hughes.com...
-
Page 11: On-Screen Display Operation ( Osd )
< 2.2 > On-screen Display Operation ( OSD ) RP-H117 / H119 Membrane Switch Function Turn the monitor on or off Display the OSD menu Act as an Enter key to select screen setting options Scroll through menu options and adjust... - Page 12 OSD time out : Adjust the screen timeout OSD transparency : Adjust the screen transparency OSD size : Adjust the screen size - Normal / Small OSD rotation : Rotate the screen - 90° / 180° / 270° UM-CV-751-RP-H117-Q323V1 www.austin-hughes.com...
- Page 13 < 2.2 > On-screen Display Operation ( OSD ) RP-H117 / H119 Reset Reset : Return the adjustment back to factory setting PIP ( Not Applicable to F17 / MF17 ) PIP mode : Enter into PIP / PBP setting - PIP MODE /...
-
Page 14: Options
< Part 3 > Options < 3.1 > Options : 3G / HD / SD-SDI input Austin Hughes’ SDI input is an ideal solution for the broadcast- grade video and high resolution CCTV market. Designed for use with CyberView displays, a SDI input... -
Page 15: Speaker, Dvi-D, Bnc
< 3.2 > Options : Speaker, DVI-D, BNC RP-H117 / H119 Speaker Option speaker speaker DVI-D Option - DVI-D ( DVI-D, TMDS single link ) - Audio input & output - Speaker DVI-D HDMI DVI-D Power Audio Audio Chassis extension in depth to 570mm ( 22.4” ) - Page 16 < 3.3 > Options : Touchscreen & driver Projected Capacitive 10-pt Touch screen Specifi cation RP-H117 Model TPC-10 Multi-touch Technology Projected Capacitive Touch Point Input Type Finger or Capacitive Stylus Resolution 4096 x 4096 Touch Point Accuracy ± 2 mm Response Speed <...
- Page 17 < 3.3 > Options : Touchscreen & driver RP-H117 / H119 USB Touchscreen HDMI Power Chassis extension in depth to 570mm ( 22.4” ) TPC-10 Driver Connect the USB cable from the USB port on the LCD to a computer. The touch screen supports easy Plug-and-Play operations.
- Page 18 For DC power option : ( 1 ) If the unit with LCD, earthing may be required ( 2 ) DC option excludes AC power adapter and power cord. ( 3 ) Chassis extension in depth to 570mm ( 22.4” ) P.14 UM-CV-751-RP-H117-Q323V1 www.austin-hughes.com...
- Page 19 Intentionally Left Blank UM-CV-751-RP-H117-Q323V1 www.austin-hughes.com...
- Page 20 The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2023 Austin Hughes Electronics Ltd. All rights reserved. P.16 UM-CV-751-RP-H117-Q323V1...
