dedicated KVM switch and rackmount screen technology
User Manual

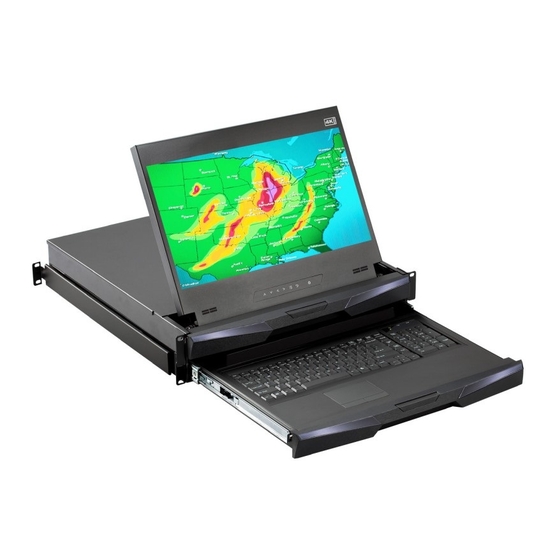

2U 17" 4K Dual Slide LCD Console Drawer
RKP2417K
3840 x 2160@60Hz native resolution
751
Designed and manufactured by Austin Hughes
UM-CV-751-RKP2417K-Q222V1
www.austin-hughes.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CyberView RKP2417K and is the answer not in the manual?

Questions and answers

Summary of Contents for Austin Hughes CyberView RKP2417K

  • Page 1 KVM switch and rackmount screen technology User Manual 2U 17″ 4K Dual Slide LCD Console Drawer RKP2417K 3840 x 2160@60Hz native resolution Designed and manufactured by Austin Hughes UM-CV-751-RKP2417K-Q222V1 www.austin-hughes.com...
  • Page 2 Legal Information First English printing, April 2022 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
  • Page 3: Table Of Contents

    Contents < Part. 1 > RKP2417K Package Content Structure Diagram & Dimension Installation Connection < Part. 2 > Specifi cations / OSD Product Specifi cations Keyboard / Mouse Specifi cations On-screen Display Operation ( OSD ) P.12 < Part. 3 > Options 3G / HD / SD-SDI Broadcast-grade input P.15...
  • Page 4 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.
  • Page 5: Rkp2417K

    < Part 1 > RKP2417K RKP2417K < 1.1 > Package Content RKP2417K unit X 1 USB cable X 2 - Power cord X 1 - M6 screw, cage nut & cup washer X 8 The above package content is only for the single console models. It varies with options such as SDI, HDMI &...
  • Page 6 < 1.2 > Dimension Front View Rear View AC Input Keyboard Mouse 100~240V Power attached 6ft DP cable UNIT : mm Side View 1mm = 0.03937 inch Top View Product Dimension Packing Dimension Gross Model Net Weight (W x D x H) (W x D x H) Weight 442 x 480 x 88 mm...
  • Page 7: Installation

    < 1.3 > Installation - How to install Installation Slides RKP2417K Step ■ Insert the left and right rear mounting brackets into the LCD console drawer. Step ■ Measure the depth of the front and rear mounting rails. ■ Align each rear mounting bracket to a suitable length. Step Complete the installation ■...
  • Page 8 < 1.3 > Installation - How to Use the Dual Slides Figure 1. ■ A black arrow release button is located on the front of each slide. (shown in Figure 1). ■ Pull and hold the black arrow button on either side Figure 2.
  • Page 9: Connection

    < 1.4 > Connection to DP Server RKP2417K LCD Console Drawer Keyboard Mouse Power attached 6ft DP cable DP server Connection to external KVM LCD Console Drawer Keyboard Mouse Power attached 6ft DP cable DP console KVM Caution : The LCD console drawer is hot-pluggable, but components of connected devices, such as the servers and KVM switch, may not be hot-pluggable.
  • Page 10: Specifi Cations / Osd

    < Part 2 > Specifi cations / OSD < 2.1 > Product Specifi cations Panel Size ( diagonal ) 17.3-inch Widescreen TFT color LCD Panel Display pixel ( dots x lines ) 3840 x 2160@60Hz Brightness ( typ. ) Contrast Ratio ( typ. ) 1000:1 Color 16.7 M, 8-bit...
  • Page 11 RKP2417K Physical Product ( W x D x H ) 442 x 480 x 88 mm Specifi cation 17.4 x 18.9 x 3.5 inch Packing ( W x D x H ) 442 x 480 x 88 mm 17.4 x 18.9 x 3.5 inch Net Weight 20.4 kg / 44.9 lb Gross Weight...
  • Page 12: Keyboard / Mouse Specifi Cations

    < 2.2 > Standard Keyboard / Mouse Specifi cations G keyboard integrated with touchpad G keyboard integrated with trackball Key force 55 ± 5g Travelling distance 3 ± 0.3mm Switch life > 10 million life cycle time OS support Windows / Linux / Unix / Mac OS Supporting layouts America United States...
  • Page 13 MAC Keyboard / Mouse Options RKP2417K MAC keyboard integrated with touchpad MAC keyboard integrated with trackball Supporting layouts America United States How to Use "MAC" Keyboard Keyboard Features Decrease display brightness Fast-forward Increase display brightness Mute sound Mission control * Only works with OS X Lion Decrease volume default Keyboard Shortcuts.
  • Page 14 < 2.2 > SUN Keyboard / Mouse Options S keyboard integrated with touchpad S keyboard integrated with trackball Ca ps Scro ll Comp ose Ca ps Scro ll Comp ose S keyboard integrated with touchpad / trackball ■ Incorporates SUN keys, including Stop, Cut, Paste, Compose, Copy and Help ■...
  • Page 15: On-Screen Display Operation ( Osd )

    < 2.3 > On-screen Display Operation ( OSD ) RKP2417K Membrane Switch Function Turn the monitor on or off Display the OSD menu Act as an Enter key to select screen setting options Scroll through menu options and adjust the displayed control Exit the OSD screen Go back to the previous on-screen sub-menu or main menu...
  • Page 16 < 2.3 > On-screen Display Operation ( OSD ) Picture Brightness : Adjust the screen brightness Contrast : Adjust the diff erence between the image background ( black level ) and the foreground ( white level ) Black level : Adjust background black level of the screen : Screen in power saving mode Position Picture size : Adjust the image size...
  • Page 17 On-screen Display Operation ( OSD ) RKP2417K Reset Reset : Return the adjustment back to factory setting PIP mode : Enter into PIP / PBP setting - PIP MODE / PBP 2WIN ( Main screen + 1 sub screen ) / PBP 3WIN ( Main screen + 2 sub screen ) / PBP 4WIN ( Main screen + 3 sub screen ) Select the signal input of each sub screen...
  • Page 18: Options

    < Part 3 > Options < 3.1 > 3G / HD / SD-SDI input Austin Hughes’ SDI input is an ideal solution for the broadcast- grade video and high resolution CCTV market. Designed for use with CyberView displays, a SDI input...
  • Page 19 < 3.2 > HDMI RKP2417K - HDMI 2.0 ( HDCP 2.2 ) HDMI Power Keyboard Mouse attached 6ft attached 6ft HDMI cable DP cable UM-CV-751-RKP2417K-Q222V1 P.15 www.austin-hughes.com...
  • Page 20 < 3.3 > Options : Touchscreen & driver Capacitive Touch screen Specifi cation Model TPC-10 Multi-touch Technology Projected Capacitive Touch Point Input Type Finger or Capacitive Stylus Resolution 4096 x 4096 Touch Point Accuracy ± 2 mm Response Speed < 5 ms Activation Force <...
  • Page 21 < 3.3 > Options : Touchscreen & driver RKP2417K USB Touchscreen Keyboard Mouse Power attached 6ft DP cable TPC-10 Driver Connect the USB cable from the USB port on the LCD to a computer. The touch screen supports easy Plug-and-Play operations. There is no need to install additional drivers on the computer. TRB Driver Please follow the below steps to setup the touch screen:- Step 1.
  • Page 22 < 3.4 > Options : DC Power Model 125V 250V Input rating Input voltage: 12-Volt 24-Volt 48-Volt 110-Volt 300-Volt Input range: 9 ~ 18V 18 ~ 36V 36 ~ 75V 66 ~ 160V 180 ~ 425V Input current - No load 50 mA 50 mA 50 mA...
  • Page 23: Rkp2417K

    < Part 4 > RKP2417K RKP2417K < 4.1 > KVM Integration www.austin-hughes.com/support/usermanual/cyberview/UM-CV-4KKVM-KIT.pdf 60Hz Remote 8-port - 801K Product Dimension Packing Dimension Gross Model Net Weight (W x D x H) (W x D x H) Weight 442 x 480 x 88 mm 585 x 620 x 190 mm 21.1 kg 27 kg...
  • Page 24 The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2022 Austin Hughes Electronics Ltd. All rights reserved. UM-CV-751-RKP2417K-Q222V1 www.austin-hughes.com...
