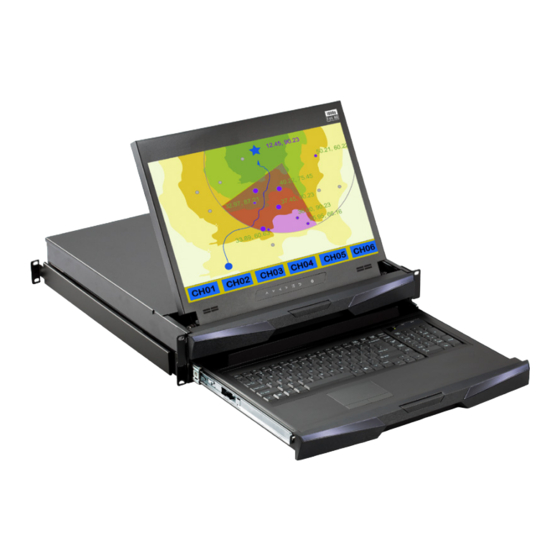

2U Dual Slide Short Depth LCD Console Drawer
RKP2417F
17" FHD 1920 x 1080 LCD
Options :
- HDMI
- SDI
- HDMI / DP
- Touchscreen
- DC power
RKP2417 / RKP2419
17" / 19" 1280 x 1024 LCD
Options :
- AV / DVI-D / HDMI
- Touchscreen
- DC power
751
Designed and manufactured by Austin Hughes
UM-CV-751-RKP2417-Q221V1
www.austin-hughes.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Austin Hughes CyberView 751 Series
Summary of Contents for Austin Hughes CyberView 751 Series
- Page 1 - HDMI / DP - Touchscreen - DC power RKP2417 / RKP2419 17" / 19" 1280 x 1024 LCD Options : - AV / DVI-D / HDMI - Touchscreen - DC power Designed and manufactured by Austin Hughes UM-CV-751-RKP2417-Q221V1 www.austin-hughes.com...
- Page 2 Intentionally Left Blank UM-CV-751-RKP2417-Q221V1 www.austin-hughes.com...
- Page 3 Legal Information First English printing, November 2020 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
-
Page 4: Table Of Contents
Contents < Part. 1 > RKP2417 / RKP2419 / RKP2417F Package Content Structure Diagram & Dimension Installation Connection < Part. 2 > Specifications / OSD Product Specifications Keyboard / Mouse Specifications P.11 On-screen Display Operation ( OSD ) P.14 < Part. 3 > Options RKP2417F - 3G / HD / SD-SDI Broadcast-grade input... - Page 5 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.
-
Page 6: Rkp2417 / Rkp2419 / Rkp2417F
< Part 1 > RKP2417 / RKP2419 / RKP2417F < 1.1 > Package Content RKP2417 or RKP2419 unit X 1 - CB-6A 6ft VGA console cable X 1 - Power cord X 1 - M6 screw, cage nut & cup washer X 8 RKP2417F unit X 1 - CX-6A 6ft DVI-D console cable X 1 ( Alternative : CB-6A 6ft VGA console cable ) - Page 7 < 1.2 > Dimension Front View Rear View RKP2417 / RKP2419 RKP2417F DVI-D AC Input AC Input 100~240V 100~240V Power Power Side View UNIT : mm 1mm = 0.03937 inch Top View Product Dimension Packing Dimension Gross Model Net Weight (W x D x H) (W x D x H) Weight...
-
Page 8: Installation
< 1.3 > Installation - How to install Installation Slides Step ■ Insert the left and right rear mounting brackets into the LCD console drawer. Step ■ Measure the depth of the front and rear mounting rails. ■ Align each rear mounting bracket to a suitable length. Step Complete the installation ■... - Page 9 Figure 1. ■ A black arrow release button is located on the front of each slide. (shown in Figure 1). ■ Pull and hold the black arrow button on either side Figure 2. of the LCD console drawer to unlock. (shown in Figure 2).
-
Page 10: Connection
< 1.4 > Connection to USB Server via CX-6A cable LCD Console Drawer DVI-D AC Input 100~240V POWER CX-6A DVI-D console cable USB server DVI-D < 1.4 > Connection to external KVM via CX-6A cable LCD Console Drawer DVI-D AC Input 100~240V POWER CX-6A DVI-D... - Page 11 < 1.4 > Connection to USB Server via CB-6A cable LCD Console Drawer POWER AC Input 100~240V CB-6A VGA console cable USB server < 1.4 > Connection to external KVM via CB-6A cable LCD Console Drawer POWER AC Input 100~240V CB-6A VGA console cable VGA console KVM...
-
Page 12: Specifications / Osd
< Part 2 > Specifications / OSD < 2.1 > Product Specifications - RKP2417 / 2419 RKP2417 RKP2419 Panel Manufacturer Panel Size ( diagonal ) 17-inch TFT color LCD 19-inch TFT color LCD Display pixel ( dots x lines ) 1280 x 1024 1280 x 1024 Brightness ( typ. - Page 13 Environmental Operating Temperature 0 to 55°C degree Humidity 20~90%, non-condensing Conditions Altitude 16,000 ft Storage / Non-operating Temperature -20 to 60°C degree Humidity 5~90%, non-condensing Altitude 40,000 ft Shock 10G acceleration (11ms duration) Vibration 10~300Hz 0.5G RMS random Physical RKP2417 RKP2419 Specification Product ( W x D x H )
- Page 14 < 2.1 > Product Specifications - RKP2417F RKP2417F Panel 17.3-inch Widescreen TFT Panel Size ( diagonal ) color LCD Display pixel ( dots x lines ) 1920 x 1080 Brightness ( typ. ) Contrast Ratio ( typ. ) 1000:1 Color 16.7 M, 8-bit Viewing Angle ( L/R/U/D ) 80/80/60/80...
- Page 15 Physical RKP2417F Specification Product ( W x D x H ) 441.6 x 480 x 88 mm 17.4 x 18.9 x 3.5 inch Packing ( W x D x H ) 585 x 620 x 190 mm 23 x 24.4 x 7.5 inch Net Weight 20.4 kg / 44.9 lb Gross Weight...
-
Page 16: Keyboard / Mouse Specifications
< 2.2 > Standard Keyboard / Mouse Specifications G keyboard integrated with touchpad G keyboard integrated with trackball Key force 55 ± 5g Travelling distance 3 ± 0.3mm Switch life > 10 million life cycle time OS support Windows / Linux / Unix / Mac OS Supporting layouts America United States... - Page 17 < 2.2 > MAC Keyboard / Mouse Options MAC keyboard integrated with touchpad MAC keyboard integrated with trackball Supporting layouts America United States How to Use "MAC" Keyboard Keyboard Features Decrease display brightness Fast-forward Increase display brightness Mute sound Mission control * Only works with OS X Lion Decrease volume default Keyboard Shortcuts.
- Page 18 < 2.2 > SUN Keyboard / Mouse Options S keyboard integrated with touchpad S keyboard integrated with trackball Ca ps Scro ll Comp ose Ca ps Scro ll Comp ose S keyboard integrated with touchpad / trackball ■ Incorporates SUN keys, including Stop, Cut, Paste, Compose, Copy and Help ■...
-
Page 19: On-Screen Display Operation ( Osd )
< 2.3 > On-screen Display Operation ( OSD ) Membrane Switch Function Turn the monitor on or off Display the OSD menu Act as an Enter key to select screen setting options Scroll through menu options and adjust the displayed control Exit the OSD screen Go back to the previous on-screen sub-menu or main menu... - Page 20 < 2.3 > On-screen Display Operation ( OSD ) OSD Configuration Page Image: for the brightness, contrast, color temp, red, green, and blue Geometry: for the auto adjust, H position, V position, phase and clock Video: for the colour, tint, sharpness, noise reduction, DCDi and TV Setup Audio: for volume, bass, treble, balance, AVL and mute Misc:...
- Page 21 On-screen Display Operation ( OSD ) Picture Brightness : Adjust the screen brightness Contrast : Adjust the difference between the image background ( black level ) and the foreground ( white level ) Black level : Adjust background black level of the screen : Screen in power saving mode Position H-Position...
-
Page 22: Options
Options < 3.1 > RKP2417F Options : 3G / HD / SD-SDI input Austin Hughes’ SDI input is an ideal solution for the broadcast- grade video and high resolution CCTV market. Designed for use with CyberView displays, a SDI input... -
Page 23: Hdmi
< 3.2 > RKP2417F Options : DP Option - Display Port ( DP 1.0, HDCP 1.3 ) AC Input 100~240V HDMI Option - HDMI ( HDMI 1.4, HDCP 1.4 ) HDMI AC Input 100~240V BNC Option - Composite ( BNC ) AC Input 100~240V AV4.4 Option... - Page 24 < 3.1 > RKP2417F Options : Touchscreen & driver F17" USB Touchscreen Specification Model e-Resistive Technology 5-Wire Resistive Touch Point Single Method Stylus or Finger Activation Force ≤ 50g / Stylus=R0.8 Durability 10 million touches Response Time 15 ms Optical Transmittance 80% ±...
- Page 25 < 3.1 > RKP2417F Options : DC Power Model 125V Input rating Input voltage: 12-Volt 24-Volt 48-Volt 110-Volt Input range: 9 ~ 18V 18 ~ 36V 36 ~ 75V 66 ~ 160V Input current - No load 50 mA 50 mA 50 mA 35 mA - Full load...
-
Page 26: Rkp2417 / 2419
< 3.2 > RKP2417 / 2419 Options : HDMI / DVI-D / S-Video + BNC - HDMI ( HDMI 1.2, CEA-861-B - DVI-D ( DVI-D TMDS single link - AV ( S-Video + Composite, BNC ) ( 1 ) In some circumstances, if the user connects the LCD to PC via HDMI port for video and audio signals, the LCD may display incorrectly on a full screen. - Page 27 < 3.2 > RKP2417 / 2419 Options : Touchscreen & driver 17” / 19" USB Touchscreen Specification 17’ 19” 17” 19” Model e-Resistive e-Capacitive Technology 5-Wire Resistive Capacitive Touch Point Single Single Method Stylus or Finger Finger Activation Force ≤ 50g / Stylus=R0.8 ≤...
- Page 28 < 3.2 > RKP2417 / 2419 Options : DC Power Model 125V Input rating Input voltage: 12-Volt 24-Volt 48-Volt 110-Volt Input range: 9 ~ 18V 18 ~ 36V 36 ~ 75V 66 ~ 160V Input current - No load 50 mA 50 mA 50 mA 35 mA...
-
Page 29: Kvm Integration
< Part 4 > KVM Integration < 4.1 > RKP2417 / RKP2419 / RKP2417F www.austin-hughes.com/support/usermanual/cyberview/UM-CV-2KKVM-KIT.pdf Local Remote 8-port -801D www.austin-hughes.com/support/usermanual/cyberview/UM-CV-DVIKVM-KIT.pdf DVI-D Local Remote 12-port -1201D www.austin-hughes.com/support/usermanual/cyberview/UM-CV-MUKVM-KIT.pdf Cat6 Local Remote 8-port 16-port 32-port Matrix -MUIP1613 -MUIP3213 -MUIP1624 -MUIP3224 -MU1602 -MU3202 -MU1603 -MU3203 -MU1604 -MU3204... - Page 30 Intentionally Left Blank UM-CV-751-RKP2417-Q221V1 www.austin-hughes.com...
- Page 31 Intentionally Left Blank UM-CV-751-RKP2417-Q221V1 www.austin-hughes.com...
- Page 32 The company reserves the right to modify product specifications without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2021 Austin Hughes Electronics Ltd. All rights reserved. UM-CV-751-RKP2417-Q221V1 www.austin-hughes.com...
