User Manual
Designed and manufactured by Austin Hughes
UM-CV-751-RP-HF117-Q322V1
dedicated KVM switch and rackmount screen technology

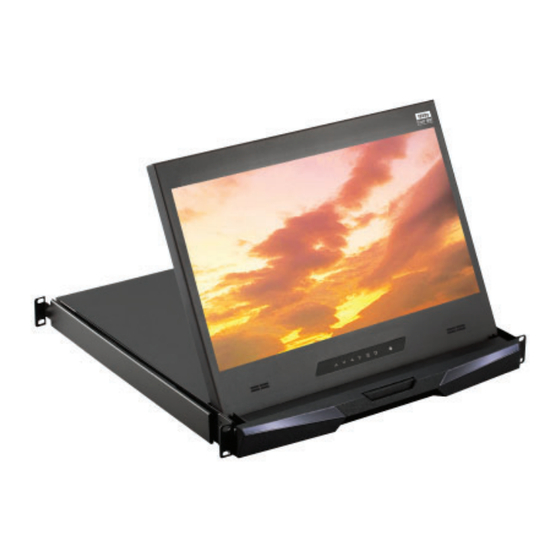

17" High Brightness FHD 1080p LCD 1000 cd/m²
RP-HF117
1U LCD Drawer
Options :
- SDI
- HDMI / Audio
- Touchscreen / DC power
www.austin-hughes.com
751
Advertisement
Related Manuals for Austin Hughes RP-HF117
Summary of Contents for Austin Hughes RP-HF117
- Page 1 KVM switch and rackmount screen technology User Manual 17” High Brightness FHD 1080p LCD 1000 cd/m² RP-HF117 1U LCD Drawer Options : - SDI - HDMI / Audio - Touchscreen / DC power Designed and manufactured by Austin Hughes UM-CV-751-RP-HF117-Q322V1 www.austin-hughes.com...
- Page 2 ■ Re-position or relocate the receiving antenna. ■ Increase the separation between the equipment and receiver. ■ Connect the equipment into an outlet on a circuit diff erent from that to which the receiver is connected. UM-CV-751-RP-HF117-Q322V1 www.austin-hughes.com...
- Page 3 Contents < Part. 1 > RP-HF117 Package Content Structure Diagram & Dimension Installation < Part. 2 > Specifi cations / OSD / Remote Controller Product Specifi cations On-screen Display Operation ( OSD ) < Part. 3 > Options 3G / HD / SD-SDI Broadcast-grade input HDMI &...
- Page 4 fi rst, not directly on the parts you are cleaning. Gently wipe the surface. Use as little pressure as possible. Wait until your monitor is completely dry before plugging it in and powering it up. UM-CV-751-RP-HF117-Q322V1 www.austin-hughes.com...
- Page 5 < Part 1 > < 1.1 > Package Content RP-HF117 RP-HF117 unit X 1 - 6ft VGA cable X 1 - Power cord X 1 - M6 screw, cage nut & cup washer X 8 The above package content is only for the pure model ( VGA and DVI-D only ).
- Page 6 Weight 441.6 x 480 x 44 mm 588 x 758 x 120 mm 11 kg 15 kg RP-HF117 17.4 x 18.1 x 1.73" 23.1 x 29.8 x 4.7” 24.2 lb 33 lb The weight is only for the pure models. It varies with accessories & options such as SDI, HDMI, audio, touchscreen &...
- Page 7 RP-HF117 < 1.3 > Installation - How to install Installation Slides Step ■ Insert the left and right rear mounting brackets into the display drawer. Step ■ Measure the depth of the front and rear mounting rails. ■ Align each rear mounting bracket to a suitable length.
- Page 8 Auto-sensing 100 to 240VAC, 50 / 60Hz Power Consumption Screen ON Max. 39W Power saving mode Max. 2W Power button OFF Max. 1W Compliance FCC & CE Safety CE / LVD & UKCA Environmental RoHS3 & REACH / WEEE UM-CV-751-RP-HF117-Q322V1 www.austin-hughes.com...
- Page 9 RP-HF117 Environmental Operating Temperature 0 to 55°C degree Conditions Humidity 10~90%, non-condensing Altitude 16,000 ft Storage / Non-operating Temperature -20 to 60°C degree Humidity 5~90%, non-condensing Altitude 40,000 ft Shock 10G acceleration (11ms duration) Vibration 10~300Hz 0.5G RMS random Physical Product ( W x D x H ) 441.6 x 480 x 44 mm...
- Page 10 Adjust the saturation of the image color Picture size : Adjust the image size Color temp : Standard / Cool / Warm / User to choose Noise reduce : Reduce the noise of the image Sharpness : Adjust the image from weak to sharp UM-CV-751-RP-HF117-Q322V1 www.austin-hughes.com...
- Page 11 < 2.2 > On-screen Display Operation ( OSD ) RP-HF117 Auto adjust : Automatically adjust sizes, centers and fi ne tunes the video signal to eliminate waviness and distortion. Clock : Adjust the clock value Phase : Adjust the phase value H.
- Page 12 < Part 3 > < 3.1 > Options : 3G / HD / SD-SDI input Austin Hughes’ SDI input is an ideal solution for the broadcast- grade video and high resolution CCTV market. Designed for use with CyberView displays, a SDI input...
- Page 13 < 3.2 > Options : RP-HF117 - HDMI ( HDMI 1.3, HDCP 1.1 - Audio ( Built-in Dual Stereo Speakers, 2W x 2 ) ( 3.5mm audio jacks for audio in & out ) For the above options, casing depth will be extended from 480mm ( 18.9" ) to 530mm ( 20.9" )
- Page 14 USB touchscreen package includes 1 x 6ft USB cable, quick reference guideline and CD disc ■ For detailed information, please refer to the attached CD disc ■ As the touchscreen unit is not made of toughened glass, please handle it carefully UM-CV-751-RP-HF117-Q322V1 P.10 www.austin-hughes.com...
- Page 15 < 3.3 > Options : Touchscreen & driver RP-HF117 USB Touchscreen RP-HF117 DVI-D Power TPC-10 Driver Connect the USB cable from the USB port on the LCD to a computer. The touch screen supports easy Plug-and-Play operations. There is no need to install additional drivers on the computer.
- Page 16 The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2022 Austin Hughes Electronics Ltd. All rights reserved. UM-CV-751-RP-HF117-Q322V1 P.12...
