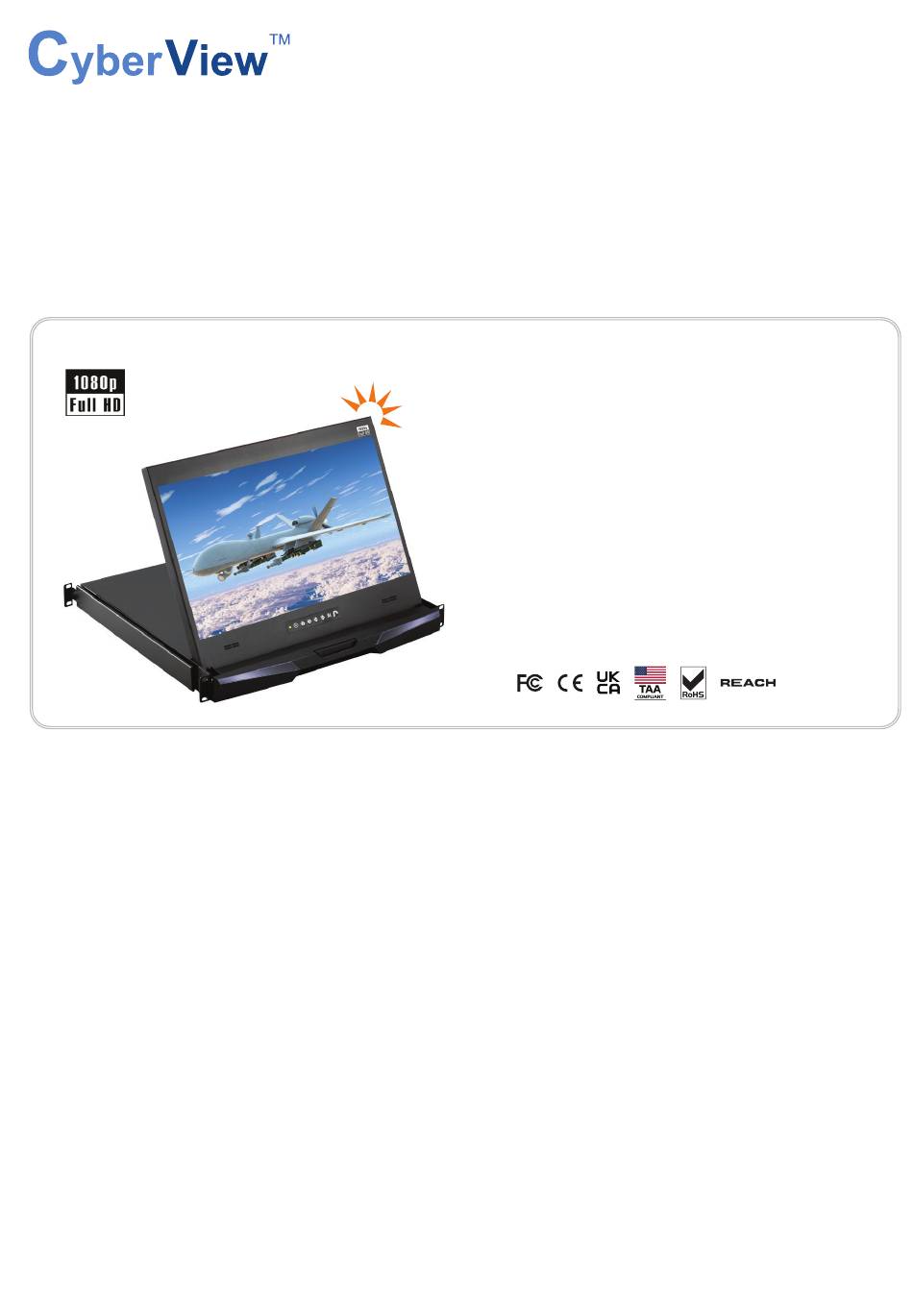

- Page 1 19” Sunlight Readable FHD 1080p LED-backlit LCD 1000 cd/m² 1920 x 1080 native resolution RP-HF119 1U LED-backlit LCD Drawer Options : - AV / DVI-D / Audio - SDI - DC power Designed and manufactured by Austin Hughes UM-CV-751-RP-HF119-Q125V1 www.austin-hughes.com...
-
Page 2: Legal Information
Legal Information First English printing, January 2025 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment. -
Page 3: Table Of Contents
Contents < Part. 1 > RP-HF119 Package Content Structure Diagram Dimension Installation < Part. 2 > Specifi cations / OSD Product Specifi cation On-screen Display Operation ( OSD ) < Part. 3 > Options 3G / HD / SD-SDI Broadcast-grade input Speaker, Display port, DVI-D, BNC P.10 DC Power : 12V / 24V / 48V / 125V / 250V... -
Page 4: Before Installation
Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content. -
Page 5: Rp-Hf119
< Part 1 > RP-HF119 < 1.1 > Package Content RP-HF119 unit X 1 - 6ft VGA cable X 1 - Power cord X 1 - M6 screw, cage nut & cup washer X 8 The above package content is only for the pure model ( VGA and HDMI only ). It varies with options such as DVI-D, AV, audio, touchscreen &... -
Page 6: Dimension
< 1.3 > Dimension Front View Rear View Power HDMI UNIT : mm Side View 1mm = 0.03937 inch Top View Product Dimension Packing Dimension Gross Model Net Weight (W x D x H) (W x D x H) Weight 441.6 x 440 x 44 mm 588 x 758 x 120 mm 11 kg... -
Page 7: Installation
< 1.4 > Installation - How to install Installation Slides Step ■ Insert the left and right rear mounting brackets into the display drawer. Step ■ Measure the depth of the front and rear mounting rails. ■ Align each rear mounting bracket to a suitable length. Step Complete the installation ■... -
Page 8: Specifi Cations / Osd
< Part 2 > Specifi cations / OSD < 2.1 > Product Specifi cations LED-backlit LCD Panel Panel Size ( diagonal ) 18.5-inch Widescreen TFT color LED-backlit LCD Display pixel ( dots x lines ) 1920 x 1080 Brightness ( typ. ) 1000 Contrast Ratio ( typ. - Page 9 RP-HF119 Physical Specifi cation 441.6 x 440 x 44 mm Product ( W x D x H ) 17.4 x 17.3 x 1.73 inch 588 x 758 x 120 mm Packing ( W x D x H ) 23.1 x 29.8 x 4.7 inch Net Weight 11 kg / 24.2 lb Gross Weight...
-
Page 10: On-Screen Display Operation ( Osd )
< 2.2 > On-screen Display Operation ( OSD ) Power light Green = On Orange = Power saving Membrane Switch Function Power on / off LCD Display the OSD menu Scrolls through menu options and adjusts the displayed control (To auto adjustment by pressing the button for 5 seconds) Exit the OSD screen Toggle analog, digital &... - Page 11 < 2.2 > On-screen Display Operation ( OSD ) Picture Brightness : Adjust the screen brightness Contrast : Adjust the diff erence between the image background ( black level ) and the foreground ( white level ) Black level : Adjust background black level of the screen : Screen in power saving mode Position H-Position...
- Page 12 < 2.2 > On-screen Display Operation ( OSD ) OSD Set Language : Select the language in which the OSD menu is displayed - English OSD H-Position : Align the screen image left or right OSD V-Position : Align the screen image up or down OSD time out : Adjust the screen timeout OSD transparency : Adjust the screen transparency...
- Page 13 < Part 3 > Options < 3.1 > Options : 3G / HD / SD-SDI input Austin Hughes’ SDI input is an ideal solution for the broadcast- grade video and high resolution CCTV market. Designed for use with CyberView displays, a SDI input...
-
Page 14: Speaker Option
< 3.2 > Options : Speaker, DP, DVI-D, BNC Speaker Option speaker speaker DP Option - Display Port ( DP 1.0, HDCP 1.3 ) - Speaker AC Input 100~240V DVI-D Option - DVI-D ( DVI-D, TMDS single link ) - Audio input & output - Speaker Audio Audio... - Page 15 < 3.3 > Options : DC Power Model 125V 250V Input rating Input voltage: 12-Volt 24-Volt 48-Volt 110-Volt 300-Volt Input range: 9 ~ 18V 18 ~ 36V 36 ~ 75V 66 ~ 160V 180 ~ 425V Input current - No load 50 mA 50 mA 50 mA...
- Page 16 The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2025 Austin Hughes Electronics Ltd. All rights reserved. UM-CV-751-RP-HF119-Q125V1 www.austin-hughes.com...
