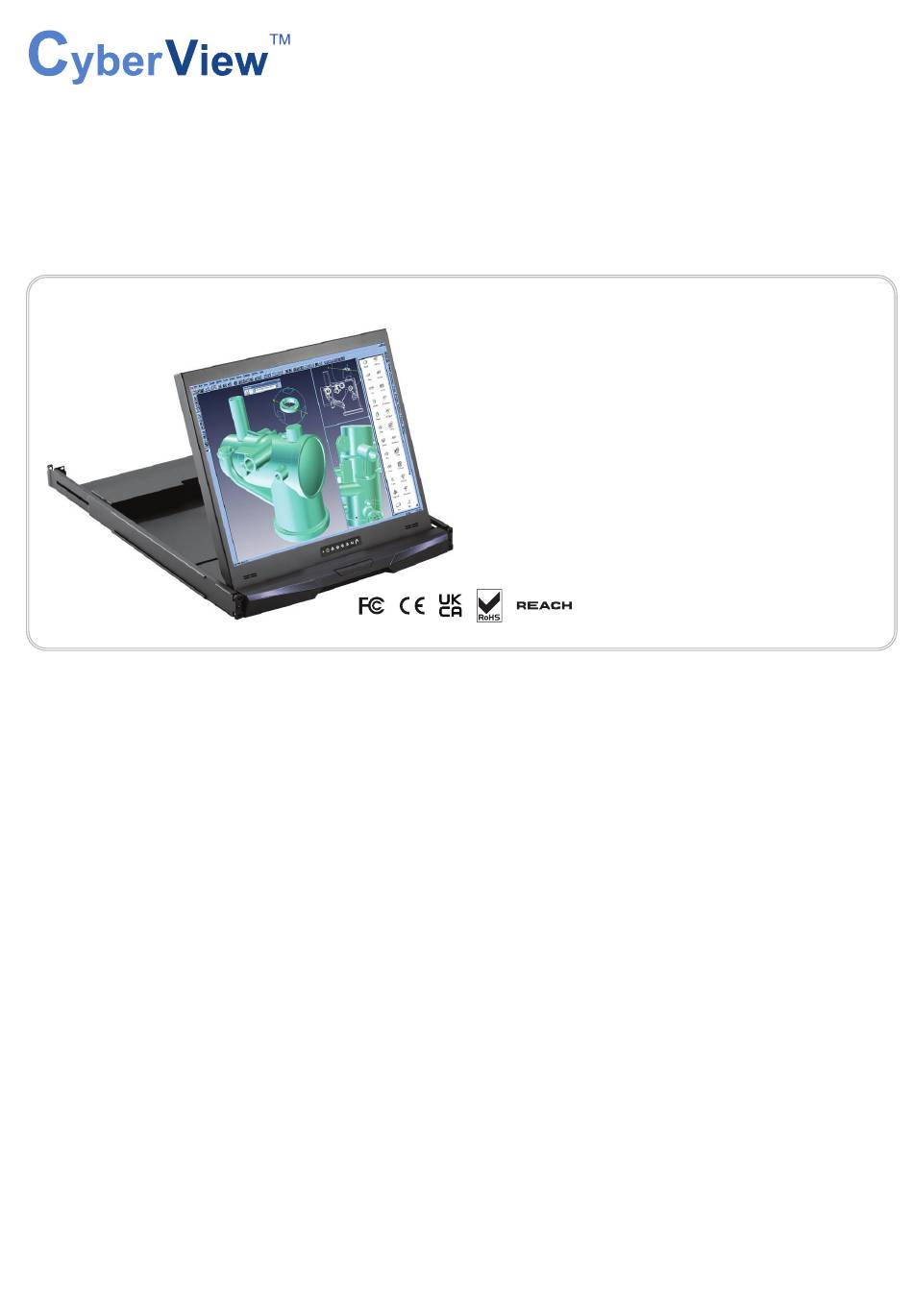

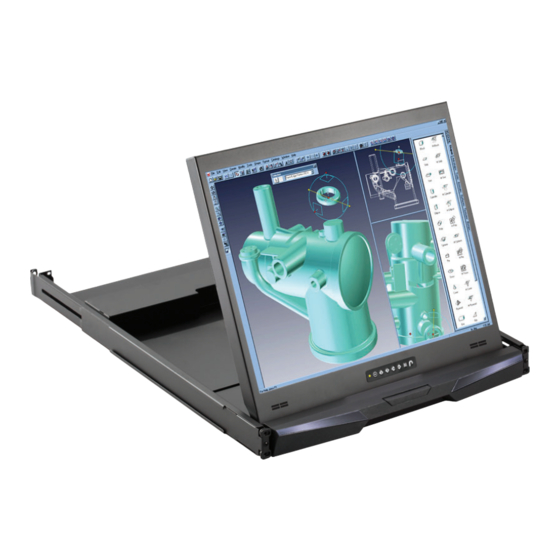

- Page 1 KVM switch and rackmount screen technology User Manual 20” LCD 1600 x 1200 RP-120 1U LCD Drawer Options : - AV / HDMI / Audio - DC power Designed and manufactured by Austin Hughes UM-CV-751-RP-120-Q322V1 www.austin-hughes.com...
- Page 2 ■ Re-position or relocate the receiving antenna. ■ Increase the separation between the equipment and receiver. ■ Connect the equipment into an outlet on a circuit diff erent from that to which the receiver is connected. UM-CV-751-RP-120-Q322V1 www.austin-hughes.com...
-
Page 3: Table Of Contents
Contents < Part. 1 > RP-120 Package Content Structure Diagram & Dimension Installation < Part. 2 > Specifi cations / OSD Product Specifi cations On-screen Display Operation ( OSD ) < Part. 3 > Options 3G / HD / SD-SDI Broadcast-grade input AV2.2H - HDMI 1.3 + Audio input &... - Page 4 fi rst, not directly on the parts you are cleaning. Gently wipe the surface. Use as little pressure as possible. Wait until your monitor is completely dry before plugging it in and powering it up. UM-CV-751-RP-120-Q322V1 www.austin-hughes.com...
-
Page 5: < 1.1 > Package Content
< Part 1 > RP-120 < 1.1 > Package Content RP-120 RP-120 unit X 1 - 6ft VGA cable X 1 - Power cord X 1 - M6 screw, cage nut & cup washer X 8 The above package content is only for the pure model ( VGA and DVI-D only ). - Page 6 Weight 439.6 x 650 x 44 mm 595 x 815 x 140 mm 13.5 kg 17.5 kg RP-120 17.3 x 25.6 x 1.73 inch 23.4 x 32.1 x 5.5 inch 29.7 lb 38.5 lb The weight is only for the pure models. It varies with accessories & options such as HDMI, AV, audio &...
-
Page 7: Installation
< 1.3 > Installation - How to install 1U 20" LCD Tray RP-120 Step ■ Attach the left and right mounting bracket to Rear side Right bracket rack 19" mounting rails. ■ Adjust the mounting bracket to fi t your rack. -
Page 8: Specifi Cations / Osd
Auto-sensing 100 to 240VAC, 50 / 60Hz Power Consumption Screen ON Max. 45W Power saving mode Max. 2W Power button OFF Max. 1W Compliance FCC & CE Safety CE / LVD & UKCA Environmental RoHS3 & REACH / WEEE UM-CV-751-RP-120-Q322V1 www.austin-hughes.com... - Page 9 RP-120 Environmental Operating Temperature 0 to 55°C degree Conditions Humidity 10~90%, non-condensing Altitude 16,000 ft Storage / Non-operating Temperature -20 to 60°C degree Humidity 5~90%, non-condensing Altitude 40,000 ft Shock 10G acceleration (11ms duration) Vibration 10~300Hz 0.5G RMS random Physical Product ( W x D x H ) 439.6 x 650 x 44 mm...
-
Page 10: On-Screen Display Operation ( Osd )
( a ) Press the button to call up the on-screen video mode on top right corner. ( b ) Use up/down arrow to the select the video input ( c ) Press the button to confi rm the selection UM-CV-751-RP-120-Q322V1 www.austin-hughes.com... - Page 11 < 2.2 > On-screen Display Operation ( OSD ) RP-120 OSD Confi guration Page Image: for the brightness, contrast, color temp, red, green, and blue Geometry: for the auto adjust, H position, V position, phase and clock Video: for the colour, tint, sharpness, noise reduction, DCDi and TV Setup...
-
Page 12: Options
< Part 3 > Options < 3.1 > Options : 3G / HD / SD-SDI input Austin Hughes’ SDI input is an ideal solution for the broadcast- grade video and high resolution CCTV market. Designed for use with CyberView displays, a SDI input... -
Page 13: Av2.2H - Hdmi 1.3 + Audio Input & Output
< 3.2 > Options : AV2.2H - HDMI 1.3 + Audio input & output RP-120 - HDMI ( HDMI 1.3, CEA-861-D - Audio ( Built-in Dual Stereo Speakers, 2W x 2 ) ( 3.5mm audio jacks for audio in & out ) - Page 14 < 3.5 > Options : Touchscreen & driver Resistive 1-pt Touch screen Specifi cation Model RP-120 e-Resistive Technology 5-Wire Resistive Touch Point Single Method Stylus or Finger Activation Force ≤ 50g Durability 10 million touches Response Time 15 ms Optical Transmittance 80% ±...
- Page 15 < 3.6 > Options : DC Power RP-120 Model 125V 250V Input rating Input voltage: 12-Volt 24-Volt 48-Volt 110-Volt 300-Volt Input range: 9 ~ 18V 18 ~ 36V 36 ~ 75V 66 ~ 160V 180 ~ 425V Input current - No load...
- Page 16 The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2022 Austin Hughes Electronics Ltd. All rights reserved. UM-CV-751-RP-120-Q322V1 www.austin-hughes.com...
