Sumake ST-55599 User Manual

Air ratchet wrench

Advertisement

Quick Links

SUMAKE
Specification:
Free Speed
Bolt Size Capacity
Max. Torque
Air Consumption
Overall Length
Air Inlet (PT)
Air Hose (I.D.)
Air Pressure
Net Weight
SUMAKE INDUSTRIAL CO., LTD
4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91
PNEUMATIC TOOLS
Air Ratchet Wrench
ST-55599
150 r/min
10mm, 11mm, 12mm, 13mm,
14mm, 15mm, 16mm, 17mm,
18mm, 19mm, 7/16", 1/2",
9/16", 5/8", 11/16", 3/4"
66.6 ft-lb (90 N-m)
17 CFM (480 L/min)
15.35" (390mm)
1/4" (6.35 mm)
3/8" (10 mm)
90 psi (6.3 bar)
5.33 lbs (2.42 kg)
Noise and Vibration:
Vibration
EN ISO 28927-2
Sound Pressure Level
No load: 87 dB(A)
Load:
2.5 m/s²
Sound power level
No load: 98 dB(A)
Uncertainty
K= 1.5 m/s
²
Noise
Remark
EN ISO 15744
Please always
wear ear
protector at
environment
noise level > 80
dB(A) due to
risk of impaired
Uncertainty
hearing!
K= 3dB
ST-55599-S-2305D-OPF

Advertisement

loading
Need help?

Need help?

Do you have a question about the ST-55599 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Sumake ST-55599

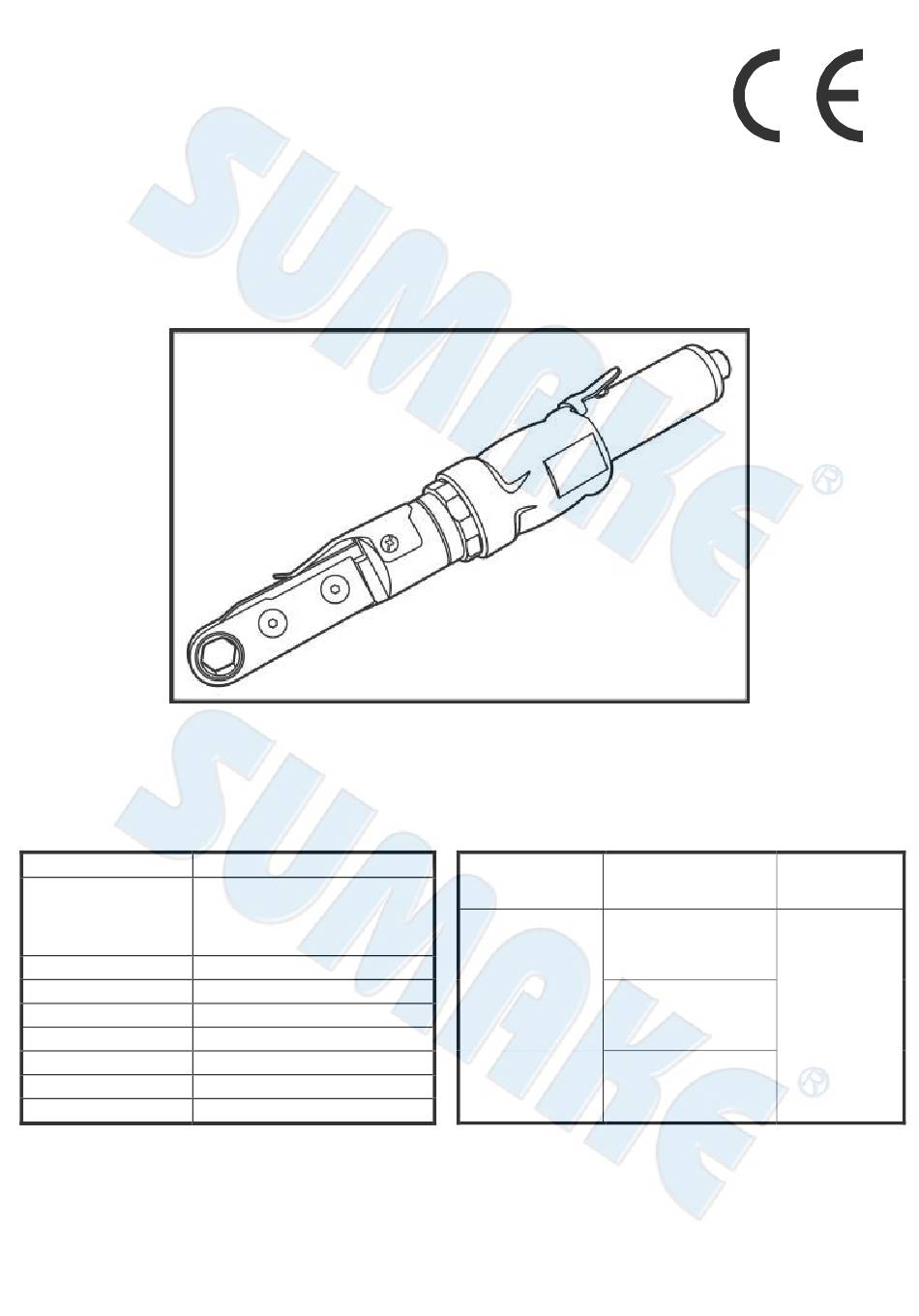

  • Page 1 Air Hose (I.D.) 3/8” (10 mm) risk of impaired Uncertainty Uncertainty hearing! Air Pressure 90 psi (6.3 bar) K= 1.5 m/s K= 3dB ² Net Weight 5.33 lbs (2.42 kg) SUMAKE INDUSTRIAL CO., LTD 4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91 ST-55599-S-2305D-OPF...
  • Page 2 DECLARATION OF CONFORMITY SUMAKE INDUSTRIAL CO., LTD. 4F, No. 351, Yangguang St., Neihu District, Taipei City, Taiwan declare in sole responsibility that the equipment Equipment: AIR RATCHET WRENCH Model/ Serial No.:ST-55599 to which this declaration applies, complies with these normative documents: ...
  • Page 3 A ir smallest torque output and “ 6 " indicats the Warning s u pp l y Sumake is a manufacturer and exporter of air h o s e s e pa ra ti o n largest torque output. tools since established. We have devote all our 1.
  • Page 4 ST-55599 AIR RATCHET WRENCH PARTS LIST Parts No. Description Q'ty Parts No. Description Q'ty 55599-01 Screw 55599-41 Switch Lever 55599-02 Rear Cap 55599-42 Muffler 55599-03 55599-43A Air Inlet (18NPT) 55599-04 Cam Seat 55599-43B Air Inlet (19PT) 55599-05 Operating Rod 55599-44A Pin (Φ3x24)
  • Page 5 RATCHET WRENCH Original instructions SUMAKE Industrial Co. Ltd.
  • Page 6 The tool has been manufactured in conformity with the instruction of EU machine directive. The EU mark will be considered void in the event of inexpert repairs, the use of non-original parts and in case of non-observance of the safety instructions in the user’s manual. Possible direct or indirect consequential damages are not the responsibility of SUMAKE Industrial co., Ltd. General safety rules: Watch the tool at all times when in use.
  • Page 7 stiffness, these warning signs should not be ignored. The operator should tell the employer and consult a qualified health professional. Safety precautions for accessory hazards Disconnect the assembly power tool for threaded fasteners from the energy supply before changing the inserted tool or accessory. Do not touch sockets or accessories during impacting, as this increases the risk of cuts, burns or vibration injuries.
  • Page 8 shall indicate the nature of the hazard, the risk of injury and the avoidance action to take. General preparation and connection: Before connecting the air hose, apply 4 to 5 drops of SAE#10-20 spindle oil at the air inlet. Also, every 3 to 4 hours of operation, oiling is necessary. Twist Teflon thread tape to ensure a proper seal air inlet.
