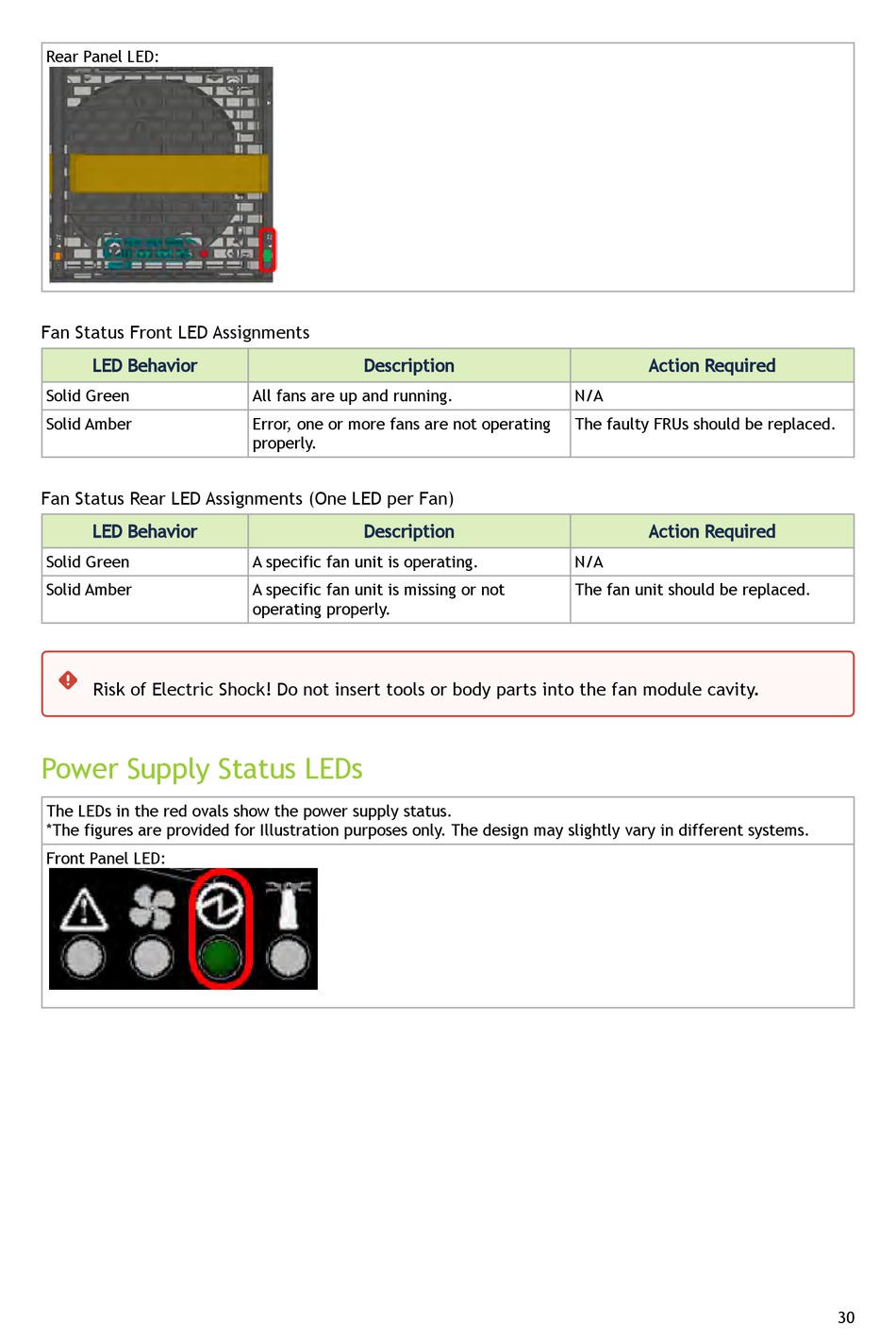

Rear Panel LED:
Fan Status Front LED Assignments
LED Behavior
Solid Green
Solid Amber
Fan Status Rear LED Assignments (One LED per Fan)
LED Behavior
Solid Green
Solid Amber

Risk of Electric Shock! Do not insert tools or body parts into the fan module cavity.

Power Supply Status LEDs

The LEDs in the red ovals show the power supply status.
*The figures are provided for Illustration purposes only. The design may slightly vary in different systems.
Front Panel LED:
Description
All fans are up and running.
Error, one or more fans are not operating
properly.
Description
A specific fan unit is operating.
A specific fan unit is missing or not
operating properly.
Action Required
N/A
The faulty FRUs should be replaced.
Action Required
N/A
The fan unit should be replaced.
