Prerequisites:
Before mounting the system to the rack, select the way you wish to place the system. Pay attention
to the airflow within the rack cooling, connector and cabling options.
While planning how to place the system, review the two installation options shown in the table
below, and consider the following points:
• Make sure the system air flow is compatible with your installation selection. It is important to
keep the airflow within the rack in the same direction.
• Note that the part of the system to which you choose to attach the rails (the front panel
direction, as demonstrated in Option 1 or the FRUs direction, as demonstrated in Option 2)
will determine the system's adjustable side. The system's part to which the brackets are
attached will be adjacent to the cabinet.
• The FRUs, as well as high-speed and MNG cables, must be extracted for replacement as part
of the switch service. Consider this when planning the switch installation.

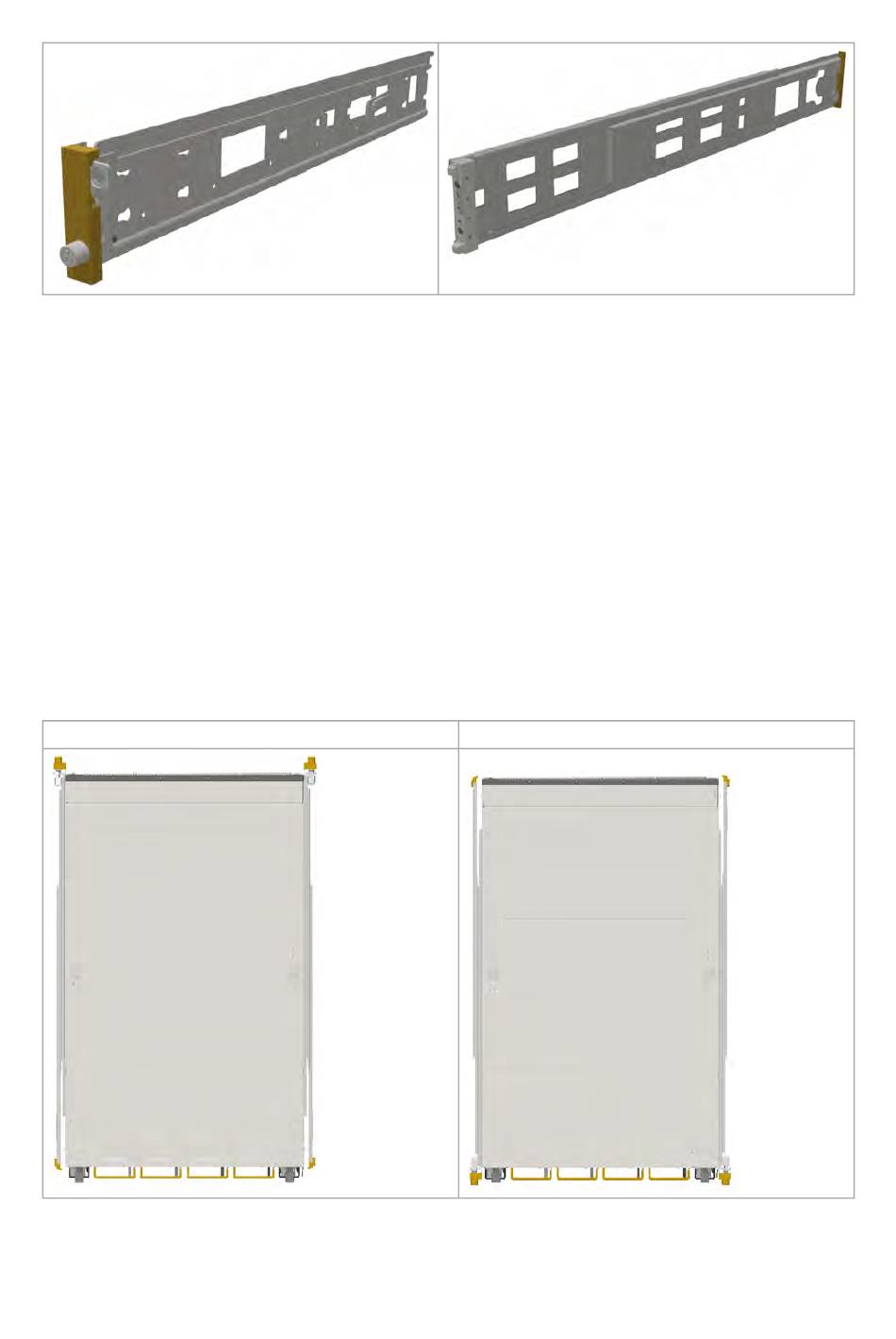

Switch Rails Installation - Top View
Front Side (Ports) Rear Side (FRUs)
