Nvidia Spectrum-4 SN5000 2U Hardware User Manual page 13


The following steps include illustrations that show front side (ports) installation, yet all
instructions apply to all installation options.
1. Attach the left and right system rails (A) to the switch.
2. Secure the assembly by gently pushing the system chassis' pins through the slider key holes,
until locking occurs

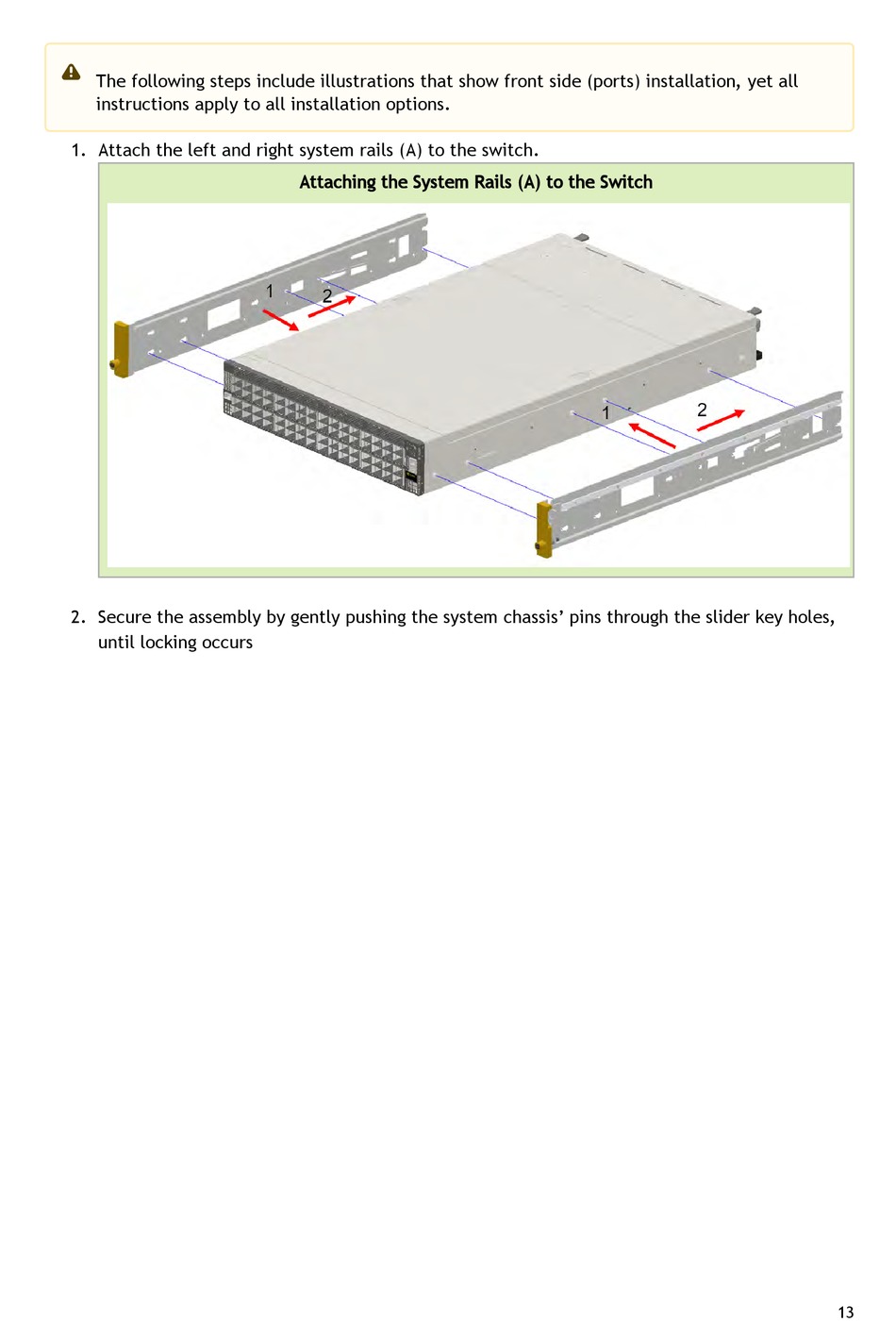

Attaching the System Rails (A) to the Switch
13
