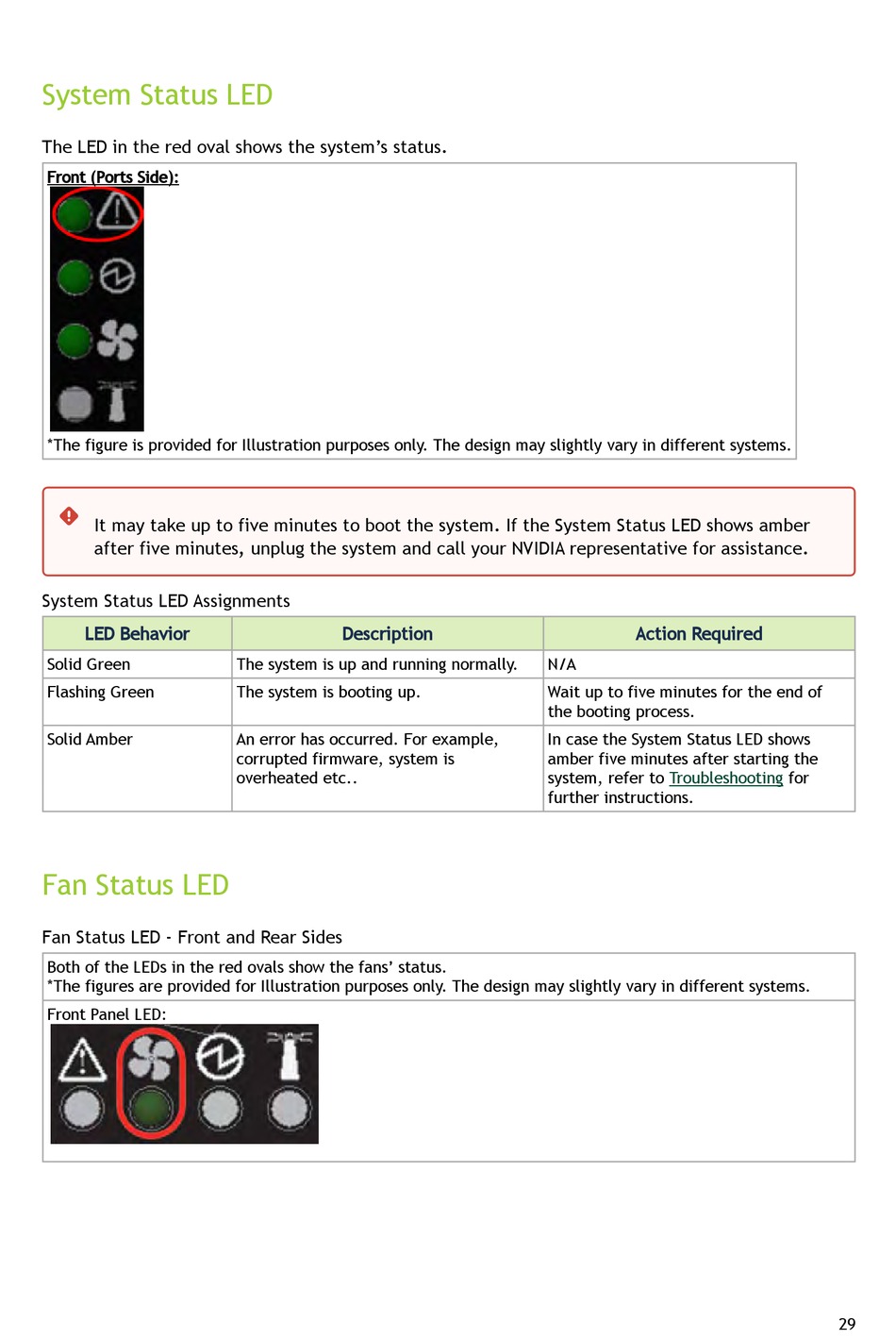

System Status LED

The LED in the red oval shows the system's status.
Front (Ports Side):
*The figure is provided for Illustration purposes only. The design may slightly vary in different systems.

It may take up to five minutes to boot the system. If the System Status LED shows amber
after five minutes, unplug the system and call your NVIDIA representative for assistance.
System Status LED Assignments
LED Behavior
Solid Green
Flashing Green
Solid Amber

Fan Status LED

Fan Status LED - Front and Rear Sides
Both of the LEDs in the red ovals show the fans' status.
*The figures are provided for Illustration purposes only. The design may slightly vary in different systems.
Front Panel LED:
Description
The system is up and running normally.
The system is booting up.
An error has occurred. For example,
corrupted firmware, system is
overheated etc..
Action Required
N/A
Wait up to five minutes for the end of
the booting process.
In case the System Status LED shows
amber five minutes after starting the
system, refer to Troubleshooting
further instructions.
for
