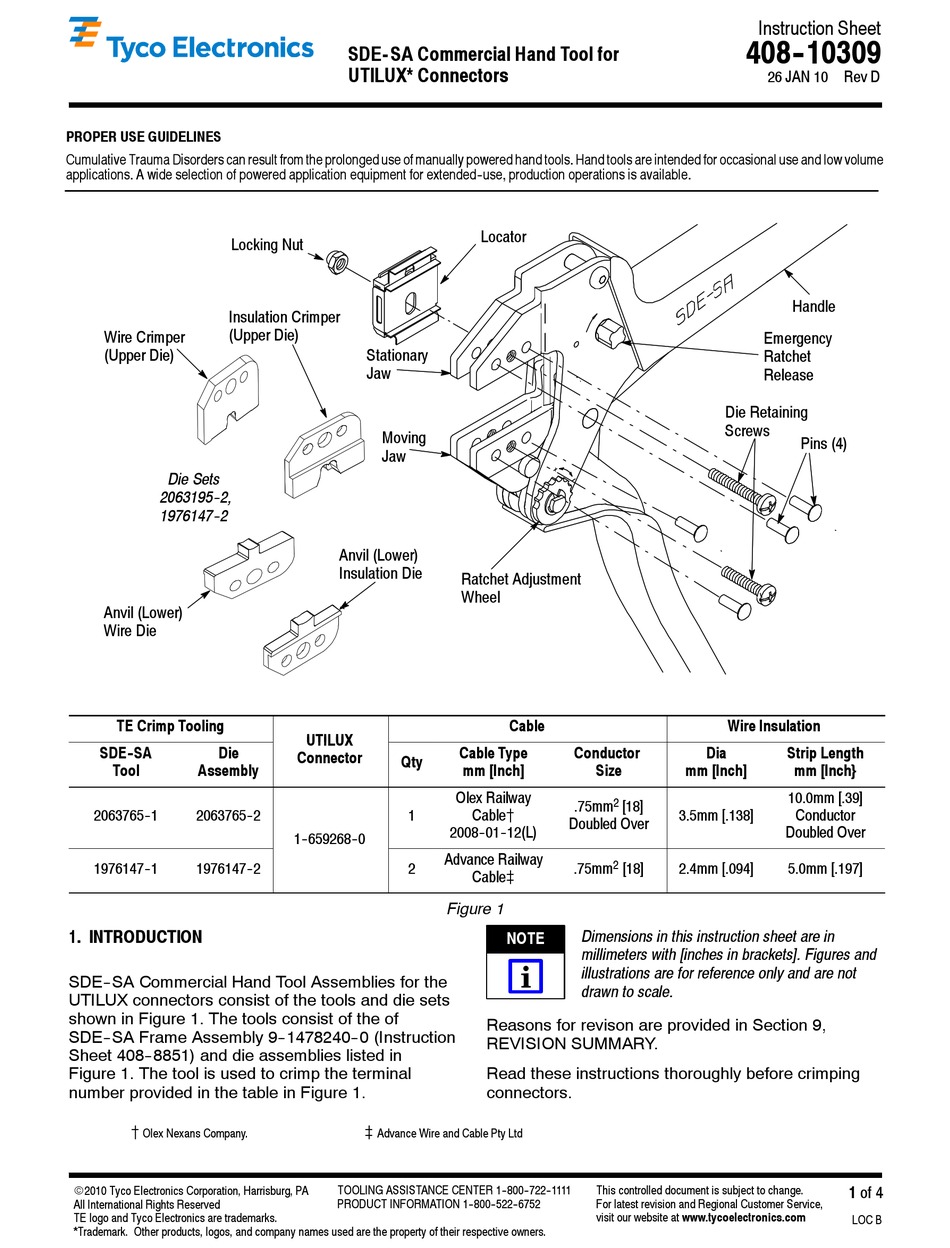

Tyco Electronics SDE- SA Instruction Sheet

PROPER USE GUIDELINES
Cumulative Trauma Disorders can result from the prolonged use of manually powered hand tools. Hand tools are intended for occasional use and low volume
applications. A wide selection of powered application equipment for extended- - use, production operations is available.
Locking Nut
Insulation Crimper
(Upper Die)
Wire Crimper
(Upper Die)
Die Sets
2063195- - 2,
1976147- - 2
Anvil (Lower)
Wire Die
TE Crimp Tooling
SDE- - SA Die
Tool Assembly
2063765--1 2063765--2
1976147--1 1976147--2

1. INTRODUCTION

SDE--SA Commercial Hand Tool Assemblies for the
UTILUX connectors consist of the tools and die sets
shown in Figure 1. The tools consist of the of
SDE--SA Frame Assembly 9--1478240--0 (Instruction
Sheet 408--8851) and die assemblies listed in
Figure 1. The tool is used to crimp the terminal
number provided in the table in Figure 1.
Olex Nexans Company.
{
E2010 Tyco Electronics Corporation, Harrisburg, PA
All International Rights Reserved
TE logo and Tyco Electronics are trademarks.
*Trademark. Other products, logos, and company names used are the property of their respective owners.
SDE- SA Commercial Hand Tool for
UTILUX* Connectors
Stationary
Jaw
Moving
Jaw
Anvil (Lower)
Insulation Die
Ratchet Adjustment
Wheel
UTILUX UTILUX
Cable Type
Connector
Qty
mm [Inch]
Olex Railway
1 Cable{
2008--01--12(L)
1 659268 0 1--659268--0
Advance Railway
2
Cable}
Figure 1
Advance Wire and Cable Pty Ltd
}
TOOLING ASSISTANCE CENTER 1- - 800- - 722- - 1111
PRODUCT INFORMATION 1- - 800- - 522- - 6752
Locator
Cable
Conductor
Size
2
.75mm [18]
Doubled Over
2
.75mm [18]
Dimensions in this instruction sheet are in
NOTE
millimeters with [inches in brackets]. Figures and
i
illustrations are for reference only and are not
drawn to scale.
Reasons for revison are provided in Section 9,
REVISION SUMMARY.
Read these instructions thoroughly before crimping
connectors.
This controlled document is subject to change.
For latest revision and Regional Customer Service,
visit our website at www.tycoelectronics.com
Instruction Sheet
408- - 10309
26 JAN 10 Rev D
Handle
Emergency
Ratchet
Release
Die Retaining
Screws
Pins (4)
Wire Insulation
Dia Strip Length
mm [Inch] mm [Inch}
10.0mm [.39]
3.5mm [.138] Conductor
Doubled Over
2.4mm [.094] 5.0mm [.197]
1 of 4
LOC B
