Tyco Electronics 525690 Instruction Sheet

PROPER USE GUIDELINES
Cumulative Trauma Disorders can result from the prolonged use of manually powered hand tools. Hand tools are intended for occasional use and low volume
applications. A wide selection of powered application equipment for extended- - use, production operations is available.
Insulation Crimp Adjustment Pins
(Shown in Position 3)
Fixed Jaw
(Crimper)
Locator/Insulation
Stop
Part Number
525690
525691
1. INTRODUCTION

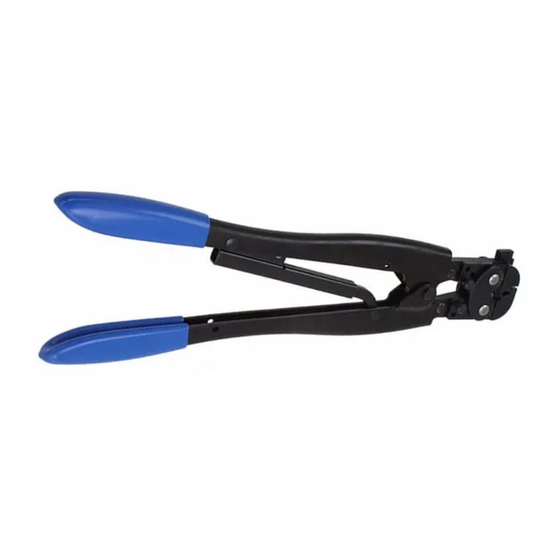

Double Action Hand Crimping Tools 525690 and
525691 crimp a wide variety of PIDG* terminals and
splices and PLASTI--GRIP* terminals and splices
onto stranded copper wire sizes 20 through 14 AWG.
See Figure 1. Read these instructions thoroughly
before using the tools.
Dimensions in this instruction sheet are in
NOTE
millimeters [with inches in brackets]. Figures are
i
not drawn to scale.
Reasons for reissue of this instruction sheet are
provided in Section 7, REVISION SUMMARY.
2. DESCRIPTION
Each tool features a fixed jaw (crimper), a movable
jaw (anvil), a locator/insulation stop, and a ratchet
attached to a handle.
E2010 Tyco Electronics Corporation, Berwyn, PA
All Rights Reserved
TE logo and Tyco Electronics are trademarks.
*Trademark. Other product names, logos, or company names might be trademarks of their respective owners.
Double Action Hand Crimping Tools
525690 and 525691
Movable Jaw
(Anvil)
TE Tool
Color Code
Red
Blue

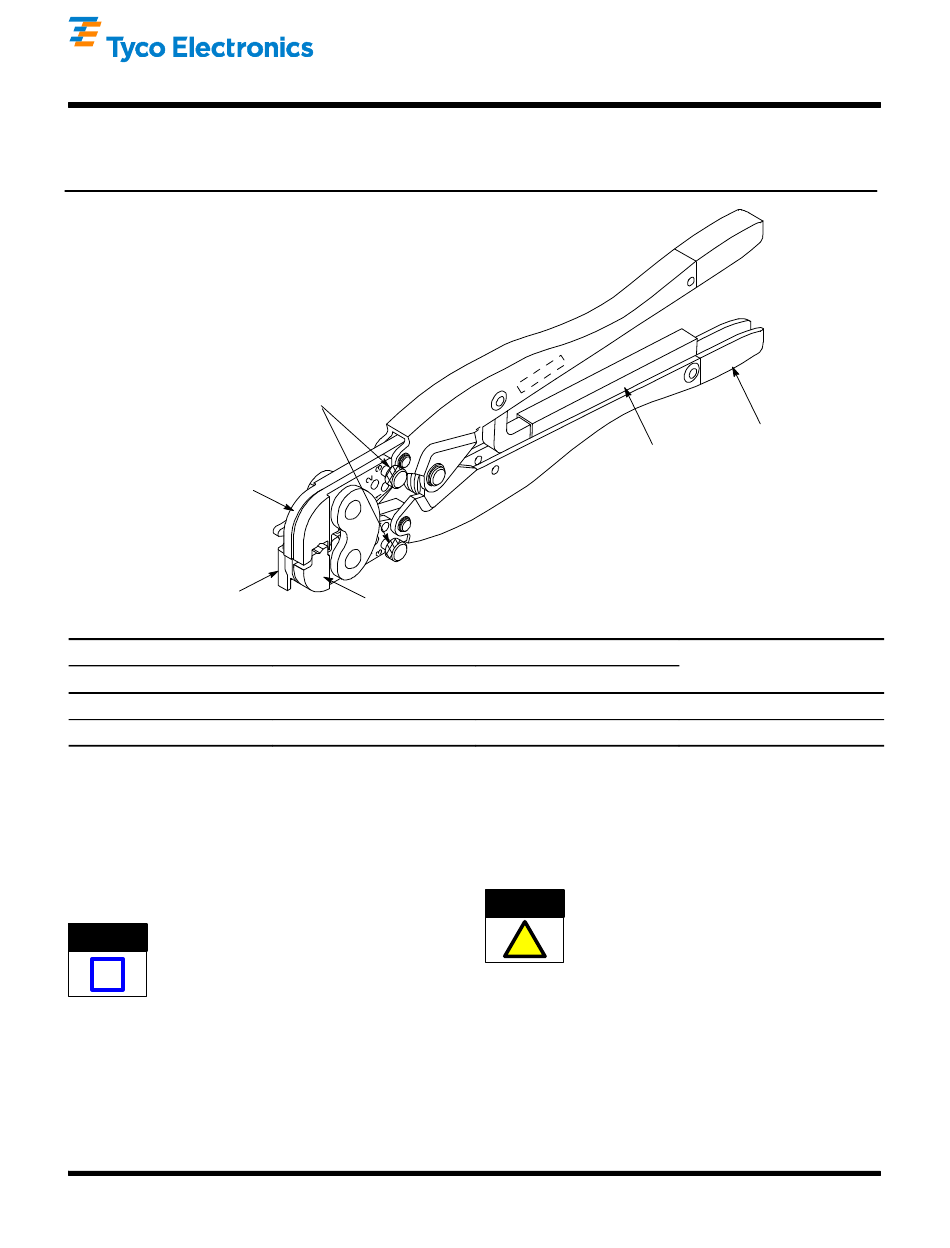

Figure 1
These tools are members of the CERTI--CRIMP*
hand crimping tool family. The ratchet on these tools
ensures full crimping of the product. Once engaged,
the ratchet will not release until the handles have
been FULLY closed.
CAUTION
The locator/insulation stop positions the product
between the jaws and aids in locating the wire in the
product. When closed, the jaws form a crimping
chamber with two sections: an insulation barrel
section and a wire barrel section. The insulation barrel
section crimps the insulation barrel of the product
onto the wire insulation and, simultaneously, the wire
barrel section crimps the wire barrel of the product
onto the wire conductors.
TOOLING ASSISTANCE CENTER 1- - 800- - 722- - 1111
PRODUCT INFORMATION 1- - 800- - 522- - 6752
Ratchet
Dot Code
1
2
The jaws bottom before the ratchet releases. This
design ensures maximum electrical and tensile
!
performance of the crimp. DO NOT re- - adjust the
ratchet.
This controlled document is subject to change.
For latest revision and Regional Customer Service,
visit our website at www.tycoelectronics.com
Instruction Sheet
411- - 1097
27 MAY 10 Rev D
Color- - Coded
Handle
Wire Size Range Wire Size Range
(AWG)
20--18
16--14
1 of 7
LOC B
