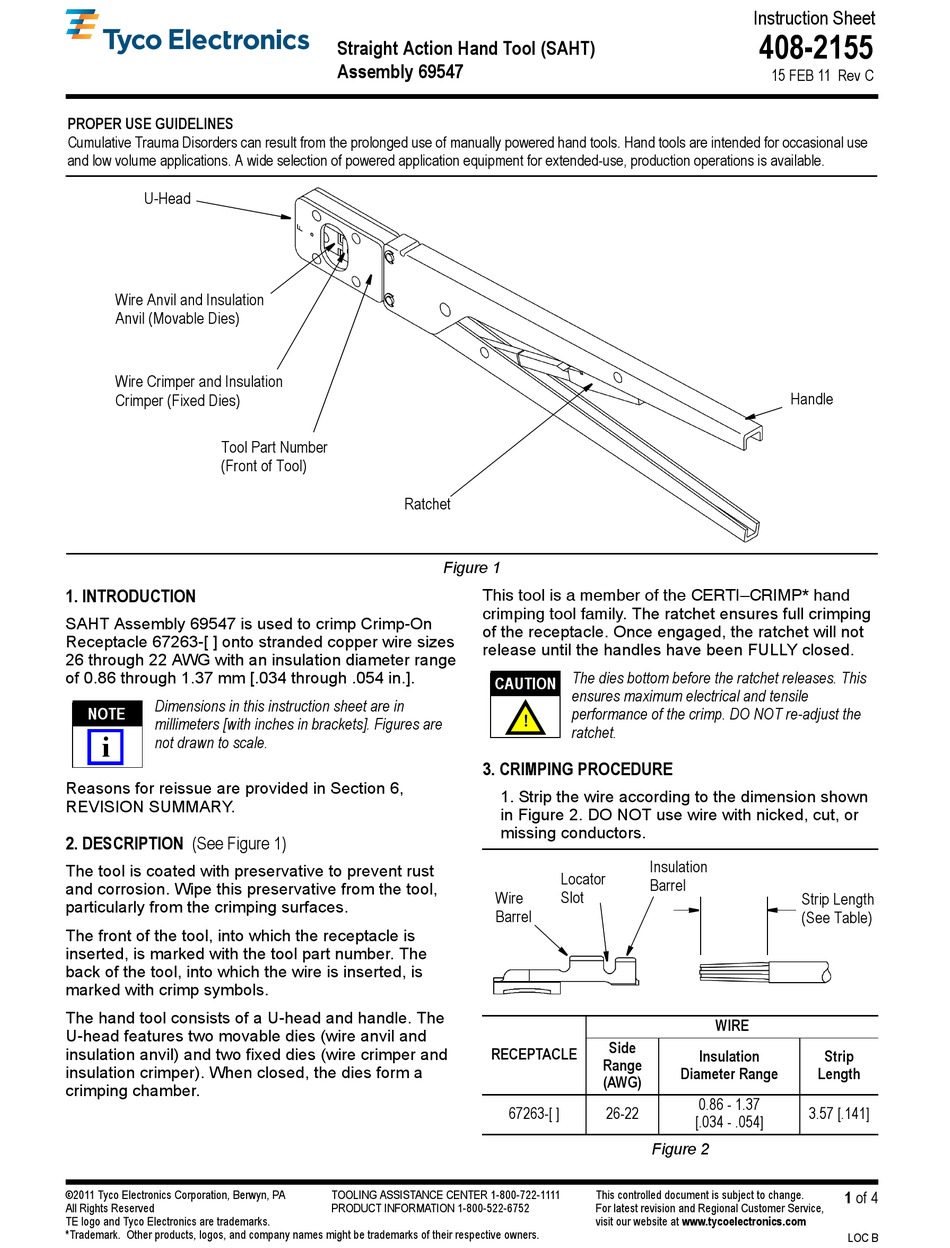

Tyco Electronics 69547 Instruction Sheet

PROPER USE GUIDELINES
Cumulative Trauma Disorders can result from the prolonged use of manually powered hand tools. Hand tools are intended for occasional use
and low volume applications. A wide selection of powered application equipment for extended-use, production operations is available.
U-Head
Wire Anvil and Insulation
Anvil (Movable Dies)
Wire Crimper and Insulation
Crimper (Fixed Dies)
Tool Part Number
(Front of Tool)

1. INTRODUCTION

SAHT Assembly 69547 is used to crimp Crimp-On
Receptacle 67263-[ ] onto stranded copper wire sizes
26 through 22 AWG with an insulation diameter range
of 0.86 through 1.37 mm [.034 through .054 in.].
Dimensions in this instruction sheet are in
NOTE
millimeters [with inches in brackets]. Figures are
i
not drawn to scale.
Reasons for reissue are provided in Section 6,
REVISION SUMMARY.
2. DESCRIPTION (See Figure 1)
The tool is coated with preservative to prevent rust
and corrosion. Wipe this preservative from the tool,
particularly from the crimping surfaces.
The front of the tool, into which the receptacle is
inserted, is marked with the tool part number. The
back of the tool, into which the wire is inserted, is
marked with crimp symbols.
The hand tool consists of a U-head and handle. The
U-head features two movable dies (wire anvil and
insulation anvil) and two fixed dies (wire crimper and
insulation crimper). When closed, the dies form a
crimping chamber.
©2011 Tyco Electronics Corporation, Berwyn, PA
All Rights Reserved
TE logo and Tyco Electronics are trademarks.
*Trademark. Other products, logos, and company names might be trademarks of their respective owners.

Straight Action Hand Tool (SAHT)
Assembly 69547
Ratchet
Figure 1

TOOLING ASSISTANCE CENTER 1-800-722-1111
PRODUCT INFORMATION 1-800-522-6752
This tool is a member of the CERTI–CRIMP* hand
crimping tool family. The ratchet ensures full crimping
of the receptacle. Once engaged, the ratchet will not
release until the handles have been FULLY closed.
The dies bottom before the ratchet releases. This
CAUTION
ensures maximum electrical and tensile
performance of the crimp. DO NOT re-adjust the
!
ratchet.

3. CRIMPING PROCEDURE

1. Strip the wire according to the dimension shown
in Figure 2. DO NOT use wire with nicked, cut, or
missing conductors.
Insulation
Locator
Barrel
Wire Slot
Barrel
Side
RECEPTACLE
Range
(AWG)
67263-[ ] 26-22
Figure 2
This controlled document is subject to change.
For latest revision and Regional Customer Service,
visit our website at www.tycoelectronics.com
Instruction Sheet
408-2155
15 FEB 11 Rev C
Handle
Strip Length
(See Table)
WIRE
Insulation Strip
Diameter Range Length
0.86 - 1.37
3.57 [.141]
[.034 - .054]
1 of 4
LOC B
