Tyco Electronics CERTI-CRIMP Original Instructions

Cam
Applicable Crimp Head Adapters:
Straight Action Crimper 217200- - 1
Heavy- - Head Pneumatic Adapter 318453- - 1
Modular Plug Adapter 318510- - 1
Straight Action Crimp Head Adapter 217201- - 1
"T"- - HEAD* Pneumatic Adapter 217202- - 1
C- - Head Pneumatic Adapter 318161- - 1
1. INTRODUCTION
Pneumatic CERTI--CRIMP Tool Holder 356304--1 is
used in conjunction with 626 Pneumatic Tooling
Assemblies 189721--1 or 189722--1 to crimp various
types of connectors. The tool holder is designed to
accept interchangeable crimp head adapters (listed in
Figure 1) which hold various crimping die assemblies.
For questions concerning the setup and operation of
the pneumatic tools, refer to Customer Manual
409--5862.
Read these instructions thoroughly before installing
the crimp head adapters and using the tool holder.
Dimensions are in millimeters [with inch
NOTE
equivalents in brackets]. Figures and illustrations
i
are for identification only and are not drawn to
scale.
Reasons for reissue of this sheet are provided in
Section 7, REVISION SUMMARY.
2. DESCRIPTION
(Figure 1)
The tool holder consists of a tool holder body, cam,
cam setscrew, adjustable eccentric, pivot pins, and
ratchet pawl with emergency release. The ratchet
ensures that the tool completes the crimp cycle.
3. INSTALLATION PROCEDURE
3.1. Tool Holder Installation
Previously installed cams and tool holders must
NOTE
be removed before installing different ones.
i
Removal is the reverse of installation.
E2010 Tyco Electronics Corporation, Berwyn, PA
All Rights Reserved
TE logo and Tyco Electronics are trademarks.
*Trademark. Other product names, logos, or company names might be trademarks of their respective owners.
Pneumatic CERTI- CRIMP* Tool
Holder 356304- 1 (For Use with 626
Pneumatic Tooling Assemblies)
Ratchet
Cam
Pawl
Setscrew
Securing Screw (3 Places)

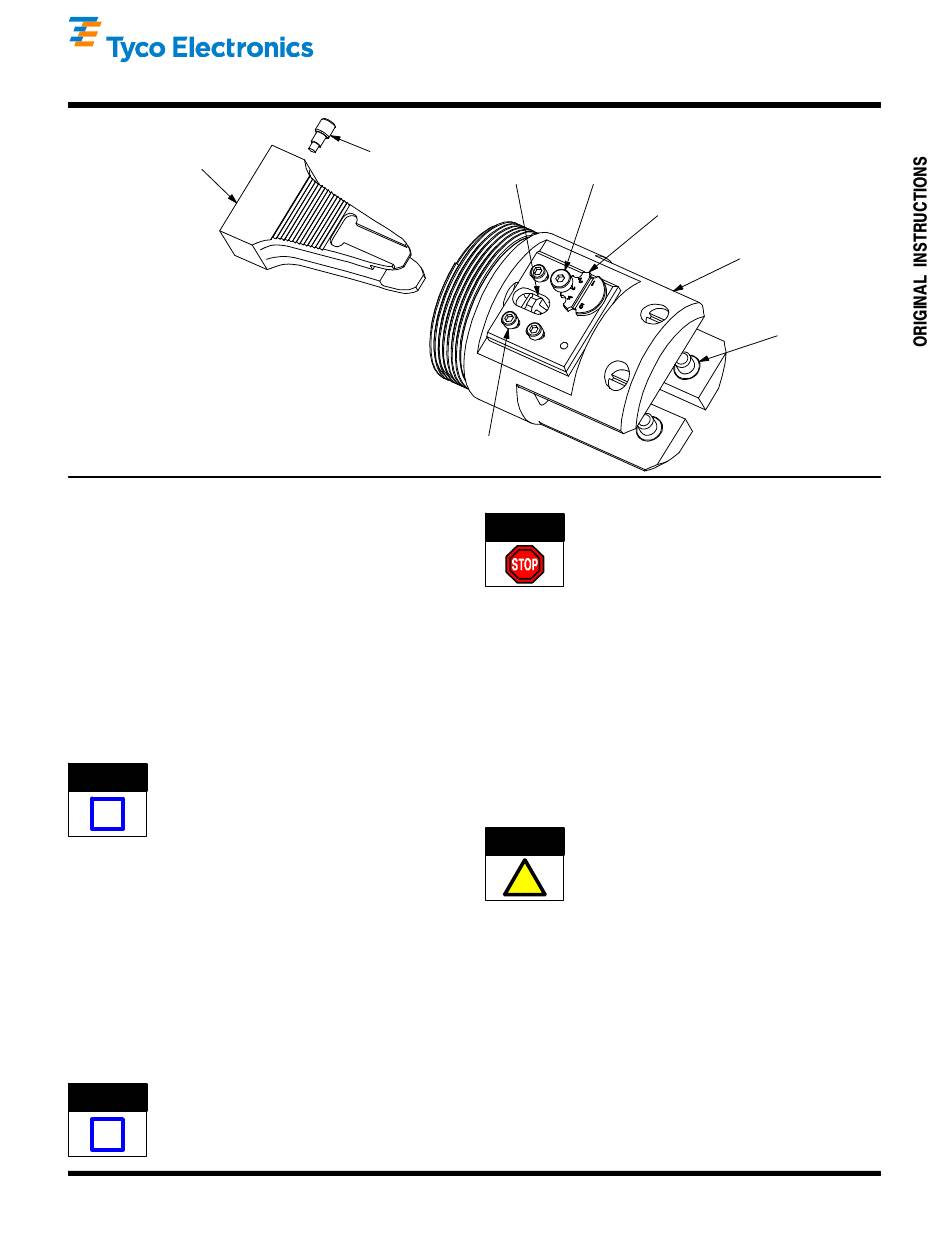

Figure 1
DANGER
If the piston is not extended, it must first be extended
to allow installation of the cam. To extend the piston,
firmly grasp the piston with piston pliers and pull away
from the body of the tool. Piston pliers are provided
with the power unit.
A strip of adhesive--backed safety labels, printed in
various languages, is packaged with the tool holder.
Remove the appropriate language label from the strip
and attach it to the tool holder body.
CAUTION
Proceed as follows:
1. If cam setscrew is not installed in cam, thread
setscrew into cam two to three turns. See Figure 2.
2. Place cam (with setscrew) onto piston rod. The
cam should butt against the piston rod face. If not,
turn cam setscrew counterclockwise until cam fits
on piston rod properly.
3. Tighten cam setscrew, then pull on cam to
ensure that it is firmly attached.
TOOLING ASSISTANCE CENTER 1- - 800- - 722- - 1111
PRODUCT INFORMATION 1- - 800- - 522- - 6752
Eccentric
Adjustment
Screw
Adjustable
Eccentric
Air pressure must be removed from the tool while
head or tool holder is detached.
Be sure to use the correct combination of cam
and tool holder. If incorrect combination is used,
!
system will not operate properly.
This controlled document is subject to change.
For latest revision and Regional Customer Service,
visit our website at www.tycoelectronics.com
Instruction Sheet
408- - 4321
11 MAR 10 Rev C
Tool Holder
Body
Pivot Pin
(4 Places)
1 of 4
LOC B
