Tyco Electronics 231652 Series Manual

PROPER USE GUIDELINES

Cumulative Trauma Disorders can result from the prolonged use of manually powered hand tools. Hand tools are intended for occasional use and low volume
applications. A wide selection of powered application equipment for extended–use, production operations is available.

1. INTRODUCTION

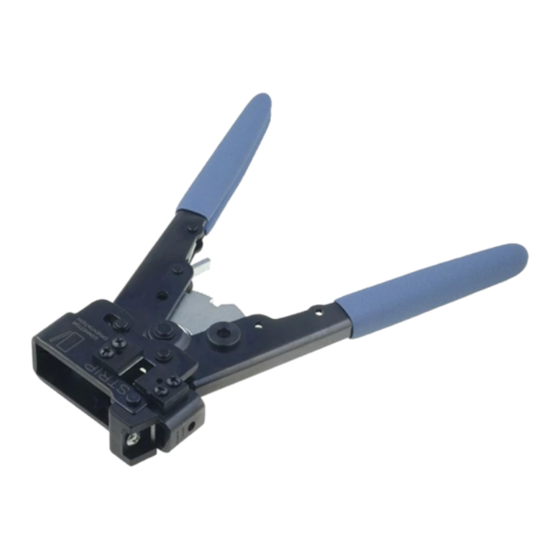

Modular Plug Hand Tool (Premium Grade) 231652–[ ]
(shown in Figure 1) is designed to terminate modular
plug connectors onto stranded or solid, shielded or
unshielded flat oval cable or round cable. The tool
also cuts and strips unshielded flat oval cable; other
cable must be prepared by separate tools.
Each tool includes Die Set 853400–[ ] (see Figure 2),
except Tool 2–231652–0 which is available without a
die set. The die sets are also available separately.
Dimensions in this instruction sheet are in
NOTE
millimeters [with inches in brackets].
Indenter (Die)
Color Code Dot
Cable
Cutter
Flat Oval
Cable
Stripper
E
2002 Tyco Electronics Corporation, Harrisburg, PA.
All International Rights Reserved.
AMP and Tyco are trademarks.
*Trademark
Arrow.com.
Downloaded from
Modular Plug Hand Tool
(Premium Grade) 231652–[ ]
Die Holding
Screw
Nest (Die)
Color Code Dot
Ratchet
Release
(Pawl)
Handle
DO NOT cycle the tool without a
CAUTION
die in place; otherwise, damage
to the stripping blades may occur.

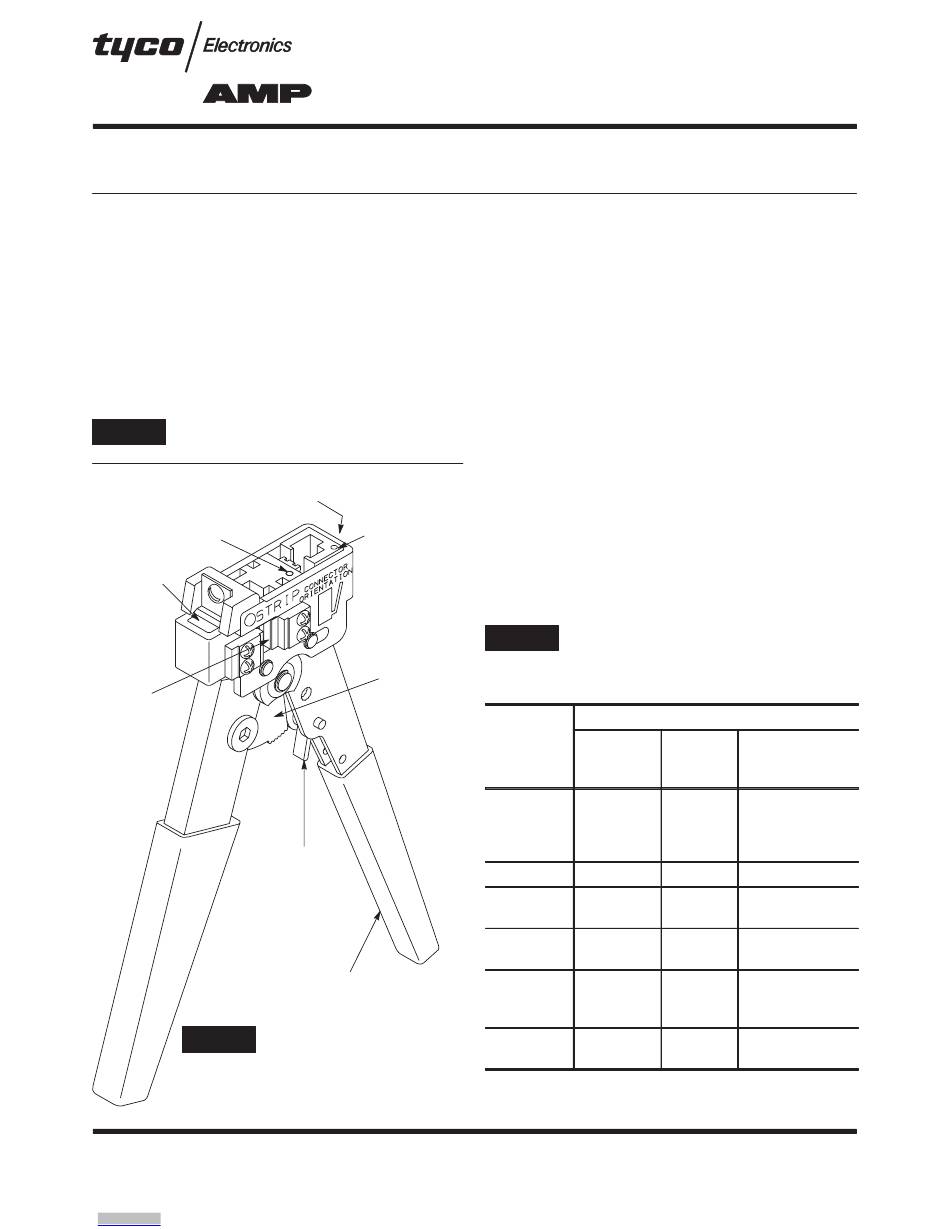

Figure 1
This controlled document is subject to change.
For latest revision call the AMP FAX* number.
Read and understand this instruction sheet before
using the tool. For information on the modular
interconnection system, see Catalog 82066.
Reasons for reissue of this instruction sheet are
provided in Section 8, REVISION SUMMARY.

2. DESCRIPTION

The die set consists of a nest and an indenter, each
marked with a color code dot. The die set is held in
the tool by a single die holding screw. Each die set
is unique to its purpose, but die sets can be
interchanged to accommodate any modular plug.
Refer to Figure 2.
The tool features a wire cutter and flat oval cable
stripper to prepare unshielded flat oval cable. The tool
handle ensures full crimping. Once engaged, the
ratchet will not release until the handles have been
FULLY closed, unless the ratchet release (pawl) is
depressed to manually release the ratchet. When
depressed, the pawl prevents crimping of an
improperly positioned modular plug.
CAUTION
Ratchet
TOOL OO
2–231652–1
G
2–231652–2
2–231652–3
2–231652–6
2–231652–7
2–231652–8
G
2–231652–4
3–231652–0
G
3–231652–1
G
Same as preceding tool except packaged in "clamshell" for retail display.
Instruction Sheet
408–9767
07 JUN 02 Rev H
(Figure 1)
The dies bottom before the ratchet releases.
This feature ensures maximum electrical and
tensile performance of the crimp. DO NOT
re–adjust the ratchet.
CORRESPONDING DIE SET
COLOR
PART
CODE
NUMBER
DOT
Line, Blue (Small
853400–1 Black
Conductor), Keyed,
853400–3 Green 4–Position Handset
853400–6 Orange
853400–7 Violet
2–, 4–, 6–Position
853400–8 Blue Line, Blue (Small
1–853400–0 White
High Performance
Figure 2
TOOLING ASSISTANCE CENTER 1–800–722–1111
AMP FAX/PRODUCT INFO 1–800–522–6752
For Regional Customer Service, visit our website at
www.tycoelectronics.com
DESCRIPTION
(Modular Plug
Type)
8–Position
Shielded
6–Position
Offset Latch
6–Position
Long Body
Conductor)
8–Position
