*E-type*
ELSC-B50H(V), ELSC-B60H(V)
ITEM NO.:
ELSC-B50H(V)A, ELSC-B60H(V)A

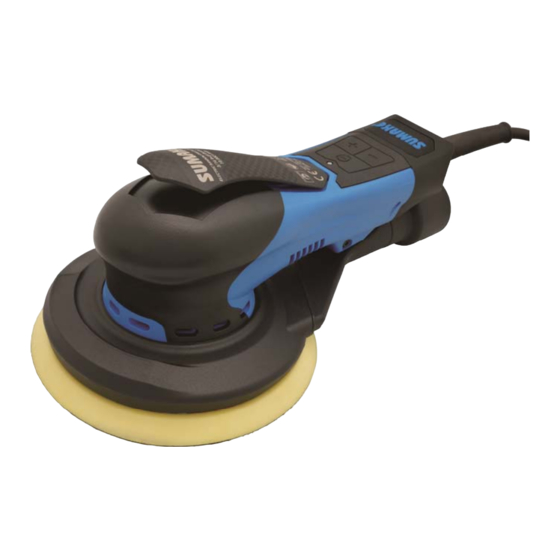

ELECTRIC CENTRAL-VACUUM SANDER
ELSC-B50HM, ELSC-B60HM
ITEM NO.:
ELSC-B50HMA, ELSC-B60HMA
ELECTRIC CENTRAL-VACUUM SANDER
W/5"(6") MULTIHOLE HOOK (VINYL) PAD
ELSN-B50H(V), ELSN-B60H(V)
ITEM NO.:
ELSN-B50H(V)A, ELSN-B60H(V)A
INSTRUCTION MANUAL
W/5"(6") HOOK (VINYL) PAD
ELECTRIC NON-VACUUM SANDER
W/5"(6") HOOK (VINYL) PAD
ELSC(N)-B50(60)-I-1901K-X2
Advertisement
Table of Contents
Related Manuals for Sumake ELSC-B50H
Summary of Contents for Sumake ELSC-B50H

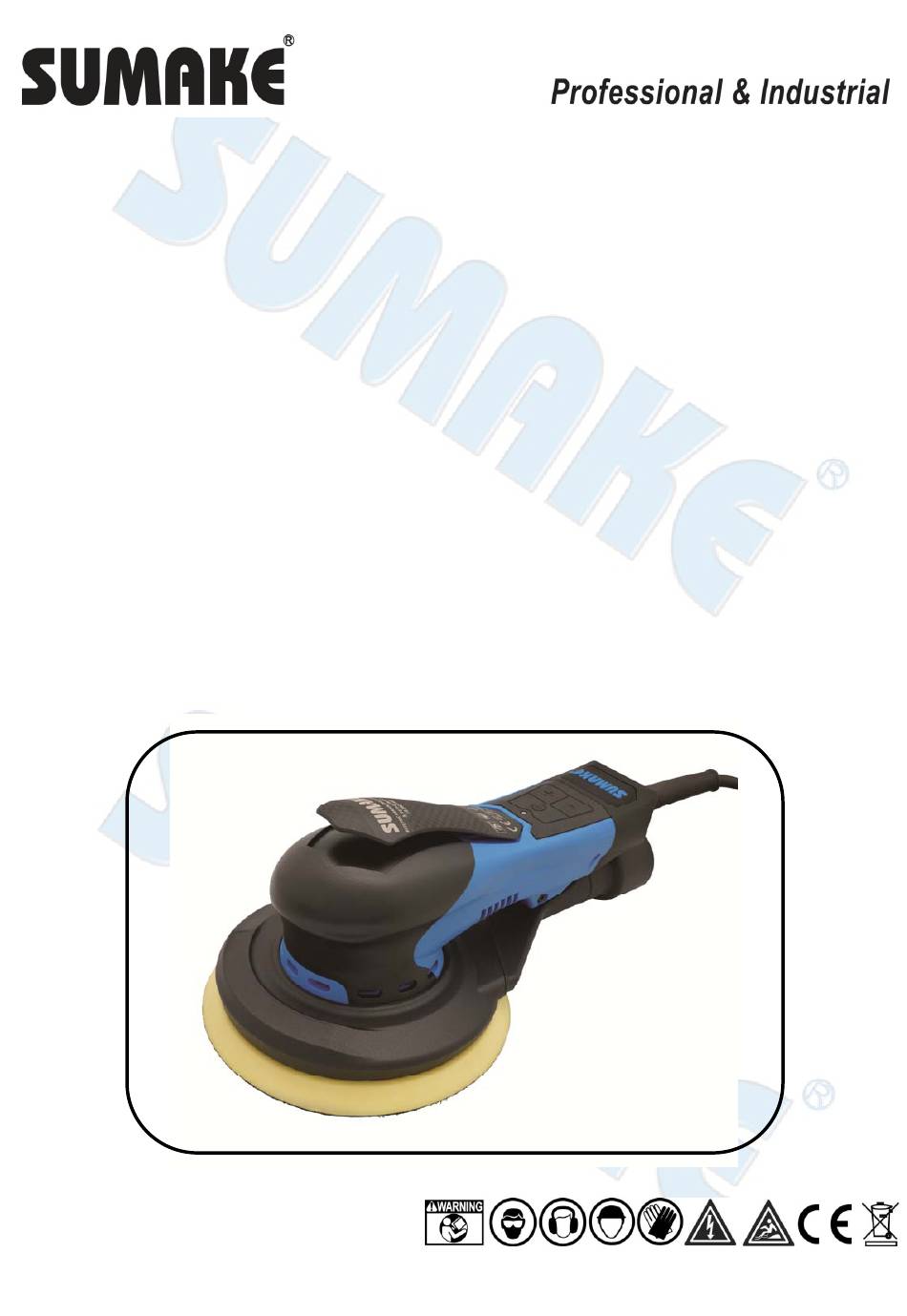

- Page 1 INSTRUCTION MANUAL ELSC-B50H(V), ELSC-B60H(V) ITEM NO.: ELSC-B50H(V)A, ELSC-B60H(V)A ELECTRIC CENTRAL-VACUUM SANDER W/5”(6”) HOOK (VINYL) PAD ELSC-B50HM, ELSC-B60HM ITEM NO.: ELSC-B50HMA, ELSC-B60HMA ELECTRIC CENTRAL-VACUUM SANDER W/5”(6”) MULTIHOLE HOOK (VINYL) PAD ELSN-B50H(V), ELSN-B60H(V) ITEM NO.: ELSN-B50H(V)A, ELSN-B60H(V)A ELECTRIC NON-VACUUM SANDER W/5”(6”) HOOK (VINYL) PAD...
-
Page 2: Important Safeguards
It should only be used for such sanding applications and within marked capacity and ratings. Only accessories specitfically recommended by SUMAKE should be used with this tool. Use in any other manner or with other accessories could lead to unsafe operating conditions. - Page 3 b. Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. c. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
- Page 4 and inspect for worn or damaged components. Correct or replace the suspect component. If abnormal noise or vibration still exists, return the tool to SUMAKE for repair or replacement. Refer to warranty instructions. Prior to use, inspect abrasive product and accessories for possible damage. If damaged, replace with ...
- Page 5 Contact with or inhalation of these dusts can endanger the health of operator and bystanders. Use appropriate personal protective equipment. Use appropriate respiratory and skin protection, or local exhaust as stated in the MSDS of the material being worked on. CAUTION To reduce the risk associated with environmental contamination: Do not throw electric power tools into the household waste! In accordance with the European...
-
Page 6: Specification
10.9 1.08 ELSN-B50H(V)A 3/16 10.9 1.08 Vacuum ELSN-B60H(V)A-2.5 3/32 11.9 1.21 4,000 ELSN-B60H(V)A 3/16 11.9 1.21 7,000 110-120VAC 9,000 50HZ~60HZ ELSC-B50H(V)(HM)A-2.5 3/32 10.9 1.08 10,000 ELSC-B50H(V)(HM)A 3/16 10.9 1.08 Central Vacuum ELSC-B60H(V)(HM)A-2.5 3/32 11.9 1.21 ELSC-B60H(V)(HM)A 3/16 11.9 1.21 ELSN-B50H(V)-2.5 3/32 10.9... - Page 7 OPERATING INSTRUCTIONS PRIOR TO THE OPERATION The tool is intended to be operated as a hand held tool. It is always recommended that while using the tool, operators stand on a solid floor, in a secure position with a firm grip and footing. Be aware that the sander can develop a torque reaction.
- Page 8 MAXIMUM SPEED AND INTERMEDIATE SPEED CONTROL 1. Maximum Speed is adjusted by pressing the “+” or “-” buttons on the buttons plate of the Sander. Each touch will raise or lower the speed to the next setting. 2. Intermediate speeds between Zero (0)/min (RPM) and the set Maximum Speed can be used with intermediate Lever positions.- see figure 4.
-
Page 9: Health And Safety Information
ATTACHING DISC PADS 1. Secure the Spindle with the flat wrench provided with the tool, and screw the Disc pad on. Tighten to firm hand-tightness. Do not over tighten. 2. To remove the Disc Pad, insert the flat wrench between the Disc Pad and shroud. Secure the Spindle with the flat wrench and unscrew the Disc pad. - Page 10 This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.
- Page 11 NOTE www.SUMAKE.com www.AIRCOMPRESSOR.com.tw...
-
Page 12: Eu Declaration Of Conformity (Doc)
EU Declaration of Conformity (DOC) SUMAKE INDUSTRIAL CO., LTD. 4F, No. 351, Yangguang St., Neihu District, Taipei City, Taiwan declare in sole responsibility that the equipment Equipment： ELECTRIC ORBITAL SANDER Model/ Serial No.： ELSC-B50H, ELSC-B50V, ELSC-B50HM ELSC-B50H-2.5, ELSC-B50V-2.5, ELSC-B50HM-2.5 ELSC-B50H-V, ELSC-B50V-V, ELSC-B50HM-V ELSC-B50H-2.5-V, ELSC-B50V-2.5-V, ELSC-B50HM-2.5-V... - Page 13 EU Declaration of Conformity (DOC) SUMAKE INDUSTRIAL CO., LTD. 4F, No. 351, Yangguang St., Neihu District, Taipei City, Taiwan declare in sole responsibility that the equipment Equipment： ELECTRIC ORBITAL SANDER Model/ Serial No.： ELSC-B60H, ELSC-B60V, ELSC-B60HM ELSC-B60H-2.5, ELSC-B60V-2.5, ELSC-B60HM-2.5 ELSC-B60H-V, ELSC-B60V-V, ELSC-B60HM-V ELSC-B60H-2.5-V, ELSC-B60V-2.5-V, ELSC-B60HM-2.5-V...
- Page 14 EU Declaration of Conformity (DOC) SUMAKE INDUSTRIAL CO., LTD. 4F, No. 351, Yangguang St., Neihu District, Taipei City, Taiwan declare in sole responsibility that the equipment Equipment： ELECTRIC ORBITAL SANDER Model/ Serial No.： ELSN-B50H, ELSN-B50V ELSN-B50H-2.5, ELSN-B50V-2.5 ELSN-B50H-V, ELSN-B50V-V ELSN-B50H-2.5-V, ELSN-B50V-2.5-V...
- Page 15 EU Declaration of Conformity (DOC) SUMAKE INDUSTRIAL CO., LTD. 4F, No. 351, Yangguang St., Neihu District, Taipei City, Taiwan declare in sole responsibility that the equipment Equipment： ELECTRIC ORBITAL SANDER Model/ Serial No.： ELSN-B60H, ELSN-B60V ELSN-B60H-2.5, ELSN-B60V-2.5 ELSN-B60H-V, ELSN-B60V-V ELSN-B60H-2.5-V, ELSN-B60V-2.5-V...
- Page 16 ELSC-B50(60)H(V) ELECTRIC CENTRAL-VACUUM SANDER W/5"(6") HOOK(VINYL) PAD ELSC-B50(60)HM ELECTRIC CENTRAL-VACUUM SANDER W/5"(6") MULTIHOLE HOOK(VINYL) PAD ELSN-B50(60)H(V) ELECTRIC NON-VACUUM SANDER W/5"(6") HOOK(VINYL) PAD ELSC(N)-B50(60)-P-2010N-X2...
- Page 17 Socket Button Head Cap Screw (M2.5x5) EOS52165 Machined Housing Cover (Blue) SW2-025A Spring Washer EOS50183-2 Lever for SUMAKE 10,000 RPM e-ROS 2.5mm/3/32" Orbit (220-240V) S4-3012B Button Head Screw (M3x12) EOS50184-2 S7-2006A Button Head Screw (M2x6) Lever for SUMAKE 10,000 RPM e-ROS 5.0mm/3/16" Orbit (220-240V)
-
Page 18: Troubleshooting Guide
Troubleshooting Guide Symptom Solution The sander has started automatically and cannot be Re-programing the tool stopped after plugged in Re-programing the tool The sander doesn’t work after Replace PCB Check PCB controller plugged in lights Replace the Motor The sander work with abnormal Replace Motor sound from motor The sander work with abnormal... - Page 19 Electric sander quality issue check SOP Please provide warranty principle and check list to customer. Please try to re-set and check if sander problem could be eliminated. Please refer SUMAKE service center media category. http://www.sumake-service-center.com/media.php?cid=13&page=2 If problem could not be eliminated after re-set, please ask customer to provide information per check list.
- Page 20 Electric Sander Check List 1. Serial number of sander or sander model or motor serial number: 2. Material of work-piece or application, with picture if possible: 3. Number of sanding paper (#), with picture if possible: 4. Use sander with vacuum cleaner: □ Yes □ No 5.
