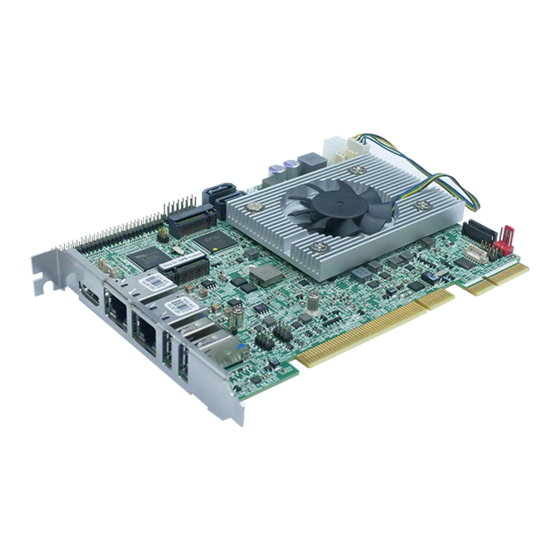

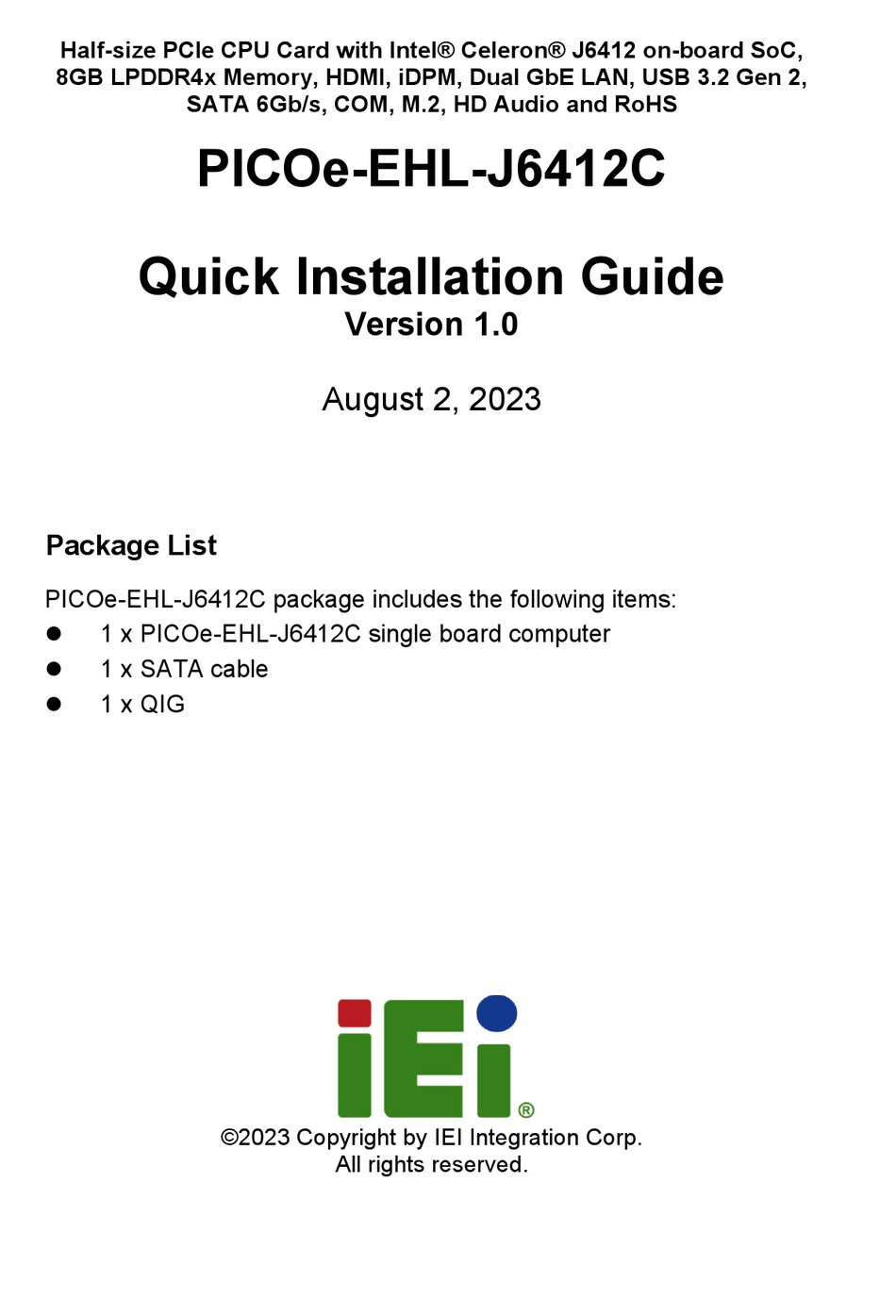

Half-size PCIe CPU Card with Intel® Celeron® J6412 on-board SoC,
8GB LPDDR4x Memory, HDMI, iDPM, Dual GbE LAN, USB 3.2 Gen 2,
SATA 6Gb/s, COM, M.2, HD Audio and RoHS
PICOe-EHL-J6412C
Quick Installation Guide
Package List
PICOe-EHL-J6412C package includes the following items:
1 x PICOe-EHL-J6412C single board computer
1 x SATA cable
1 x QIG
Version 1.0
August 2, 2023
©2023 Copyright by IEI Integration Corp.
All rights reserved.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for IEI Technology PICOe-EHL-J6412C
Summary of Contents for IEI Technology PICOe-EHL-J6412C
- Page 1 SATA 6Gb/s, COM, M.2, HD Audio and RoHS PICOe-EHL-J6412C Quick Installation Guide Version 1.0 August 2, 2023 Package List PICOe-EHL-J6412C package includes the following items: 1 x PICOe-EHL-J6412C single board computer 1 x SATA cable 1 x QIG ...
-
Page 2: Specifications
Specifications CPU: Intel® Celeron® J6412 on-board SoC (up to 2.6GHz, quad-core, 1.5M cache, TDP=10W) Memory: On-board 8GB 3200 MHz LPDDR4x (system max. 16GB) BIOS: AMI UEFI BIOS Graphics Engine: Intel® X Graphics architecture with SRIOV, Genlock ... - Page 3 Digital I/O: 1 x 12-bit digital I/O (2x7 pin, p=2.0) C/SMBus: 1 x SMBus (1x4 pin, p=1.25) 1 x I C (1x4 pin, p=1.25) Support TPM 2.0 (TPM-IN03 module) & Intel PTT Fan connector 1 x CPU fan connector (1x4 pin) 1 x System fan connector (1x4 pin) ...
-
Page 4: Ordering Information
VGA converter board (for IEI iDPM slot) IEI Resource Download Center All the drivers and utility for the https://download.ieiworld.com PICOe-EHL-J6412C are available on IEI Resource Download Center. Type PICOe-EHL-J6412C and press Enter to find all the relevant software, utilities, and documentation. -
Page 5: Jumpers Setting And Connectors
Jumpers Setting and Connectors LABEL FUNCTION J_CMOS1 Clear CMOS button J_ATX_AT2 AT/ATX power mode setting switch SW_BIOS1_1 BIOS1/BIOS2 select switch J_FLASH1 Flash descriptor override setting jumper RST1 Reset button IAUDIO1 Audio connector for IEI AC-KIT-888S kit CPU12V1 ATX power connector BAT1 Battery connector Buzzer connector... - Page 6 J_CMOS1: Clear CMOS Button PIN NO. DESCRIPTION Keep CMOS Setup NC (default) (Normal Operation) Press button Clear CMOS Setup J_ATX_AT2: AT/ATX Power Mode Setting Switch PIN NO. DESCRIPTION Short A - B ATX Power Mode (default) Short B - C AT Power Mode SW_BIOS1_1: BIOS1/BIOS2 Select Switch PIN NO.
- Page 7 BZ1: Buzzer Connector DESCRIPTION DESCRIPTION PC_BEEP CPU12V1: ATX Power Connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION +12V +12V CHASSIS1: Chassis Intrusion Connector DESCRIPTION DESCRIPTION -CASEOPEN DIO1: Digital Input/Output Connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION DOUT5 DOUT4 DOUT3 DOUT2 DOUT1 DOUT0 DIN5 DIN4...
- Page 8 F_PANEL1: Front Panel Connector DESCRIPTION DESCRIPTION PWR_LED+ SPKR+ SPKR PWR_LED- PWR_BTN+ SPKR- PWR_BTN- HDD_LED+ Reset+ RESET HDD_LED- Reset- COM1, COM2: RS-232 Serial Port Connectors PIN NO. DESCRIPTION PIN NO. DESCRIPTION COM3, COM4: RS-232/422/485 Serial Port Connectors PIN NO. DESCRIPTION PIN NO. DESCRIPTION...
- Page 9 SATA1, SATA2: SATA 6Gb/s Connectors PIN NO. DESCRIPTION PIN NO. DESCRIPTION SATA_RX‐ SATA_TX+ SATA RX+ SATA_TX‐ SATA_PWR1, SATA_PWR2: SATA Power Connectors PIN NO. DESCRIPTION PIN NO. DESCRIPTION I2C1: I C Connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION I2C_CLK I2C_DATA SMB1: SMBus Connector PIN NO.
- Page 10 EC_DEBUG1: EC Debug Connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION EDICLK EDICS EDIDI EDIDO TPM1: TPM Module Connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION TPM_SPI_CS0_N DEDI_PROG_RST_N TPM_SPI_CS1_N +V3P3A SPI_CLK_TPM SPI_TPM_DQ2 TPM_SPI_DQ3 TPM_SPI_MISO SPI_TPM_HOLD_R_N TPM_SPI_MOSI SPI_TPM_CS2_R TPM_WP# SPI_TPM_INT_N +V3.3A_1.8A_SPI_CON PLT_RST_N +V3.3A_1.8A_SPI_CON JUSB3, JUSB4: Internal USB 2.0 Connectors PIN NO.
- Page 11 +V3.3 +V3.3 +V3.3 PCIE_1_RX_DN PCIE_1_RX_DP PCIE_1_TX_DN PCIE_1_TX_DP MKEY_SSD_SLP M2_I2C_CLK2 PCIE_0_RX_DN M2_I2C_DAT2 PCIE_0_RX_DP PCIE_0_TX_DN PCIE_0_TX_DP SLOT_RST PCIE_CLK_DN PCIE_CLK_DP Module Key Module Key Module Key Module Key Module Key Module Key Module Key Module Key M2_IFDET2_N +V3.3 +V3.3 +V3.3...
- Page 12 Board Layout: Jumper and Connector Locations (Unit: mm)
