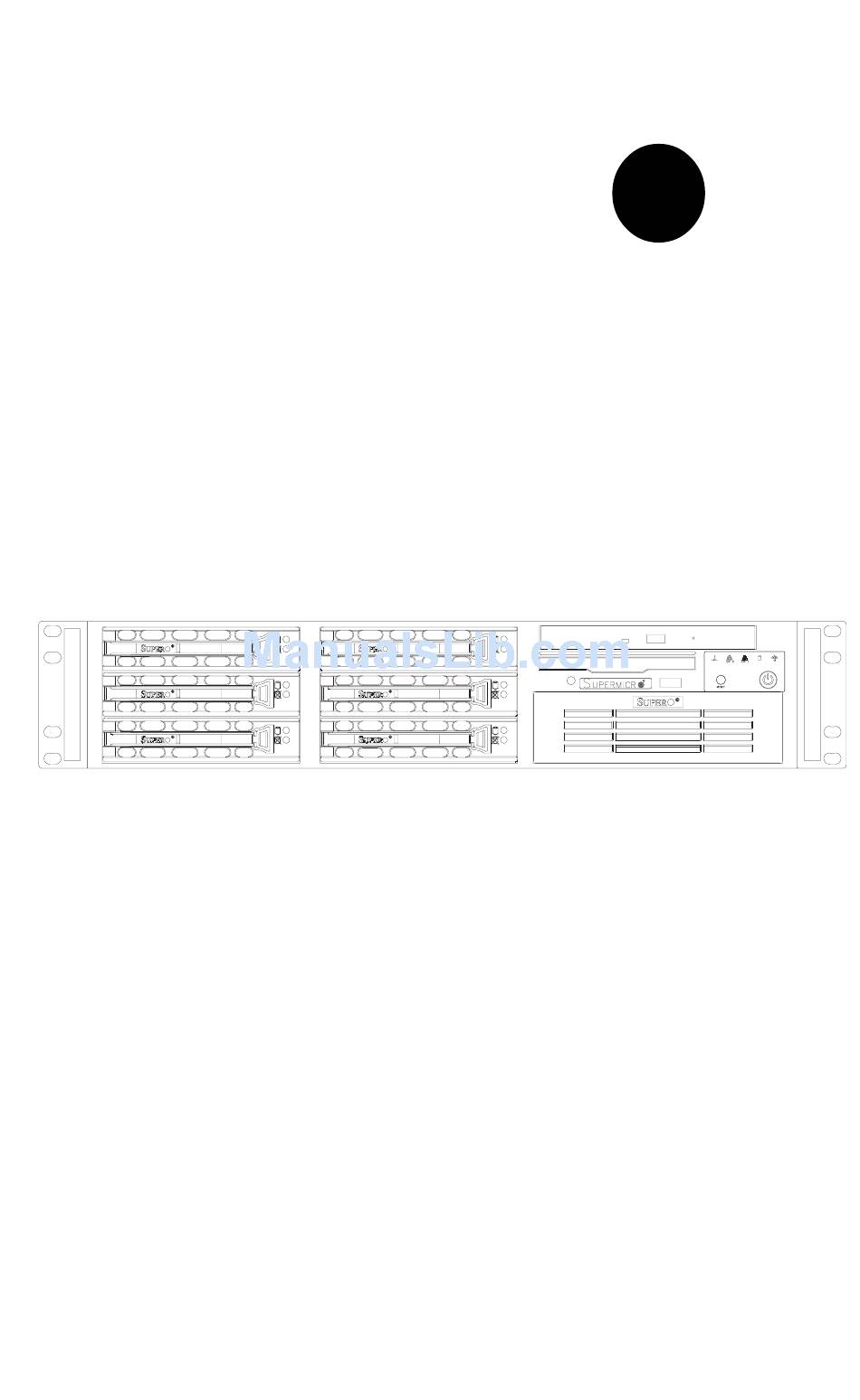

  • Page 1 ® UPER 6022P-6 UPER ERVER USER’S MANUAL 1.0a...
  • Page 2 The State of California, County of Santa Clara shall be the exclusive venue for the resolution of any such disputes. Supermicro's total liability for all claims will not exceed the price paid for the hardware product. Unless you request and receive written permission from SUPER MICRO COMPUTER, you may not copy any part of this document.

  • Page 3: About This Manual

    Chapter 2: Server Installation This chapter describes the steps necessary to install the SuperServer 6022P-6 into a rack and check out the server configuration prior to power- ing up the system. memory components, this chapter will refer you to the appropriate sections of the manual for their installation.
  • Page 4 You should thoroughly familiarize yourself with this chapter for a general overview of safety precautions that should be followed when installing and servicing the SuperServer 6022P-6. Chapter 5: Advanced Motherboard Setup Chapter 5 provides detailed information on the P4DP6 motherboard, includ- ing the locations and functions of connections, headers, jumpers and IRQs.
  • Page 5 Preface Notes...

  • Page 6: Table Of Contents

    Choosing a Setup Location ... 2-2 Rack Precautions ... 2-2 Server Precautions ... 2-2 Installing the SuperServer 6022P-6 into a Rack ... 2-3 Identifying the Sections of the Rack Rails ... 2-3 Installing the Chassis Rails ... 2-4 Installing the Rack Rails ... 2-4 Installing the Server into the Rack ...
  • Page 7 Power ... 3-3 SCSI Drive Carrier LEDs ... 3-3 Motherboard LEDs ... 3-3 Chapter 4: System Safety Electrical Safety Precautions ... 4-1 General Safety Precautions ... 4-2 ESD Precautions ... 4-3 Operating Precatutions ... 4-4 Chapter 5: Advanced Motherboard Setup Handling the P4DP6 Motherboard ...
  • Page 8 UPER ERVER 6022P-6 Manual Third Power Supply Fail Header ... 5-16 LAN1/2 Ethernet Ports ... 5-16 Wake-On-LAN ... 5-16 Wake-On-Ring ... 5-16 Jumper Settings ... 5-17 Explanation of Jumpers ... 5-17 CMOS Clear ... 5-17 LAN1 Enable/Disable ... 5-18 LAN2 Enable/Disable ... 5-18 VGA Enable/Disable ...
  • Page 9 Chapter 7: BIOS Introduction ... 7-1 BIOS Features ... 7-2 Main BIOS Setup ... 7-2 Advanced Setup ... 7-6 Security ... 7-13 Power ... 7-15 Boot ... 7-17 PIR ... 7-19 Exit ... 7-21 Appendices: Appendix A: BIOS POST Messages ... A - 1 Appendix B: BIOS POST Codes ...
  • Page 10 UPER ERVER 6022P-6 User's Manual Notes...

  • Page 11: Chapter 1: Introduction To The Superserver 6022P-6

    SuperServer 6022P-6. (www.supermicro.com) In addition to the mainboard and chassis, various hardware components may have been included with your SuperServer 6022P-6, as listed below: Up to two (2) 603-pin Xeon 512k L2 cache processors* Two (2) CPU heatsinks* (Fan-042) Up to 16 GB ECC registered PC1600 DDR SDRAM main memory* One (1) 1.44"...

  • Page 12: Server Chassis Features

    * Type and number depends upon the configuration ordered. Server Chassis Features The SuperServer 6022P-6 is a high-end, scaleable 2U rackmount server platform designed with today's most state-of-the-art features. ing is a general outline of the main features of the SC822S-400LP chassis.

  • Page 13: Cooling System

    I/O Backplane The SC822S-400LP is a 2U rackmount chassis. Its I/O backplane provides seven motherboard low profile expansion slots, one COM port (the other is internal), two USB ports, PS/2 mouse and keyboard ports and two Ethernet ports. (See Figure 1-1.) Mouse Port Keyboard Port USB Ports...

  • Page 14: Mainboard Features

    UPER ERVER 6022P-6 Manual Mainboard Features At the heart of the SuperServer 6022P-6 lies the P4DP6, a dual Xeon pro- cessor motherboard designed to provide maximum performance. Below are the main features of the P4DP6. Chipset The P4DP6 is based on Intel's E7500 ("Plumas") chipset, which is a high- performance core logic chipset designed for dual-processor servers.

  • Page 15: Onboard Scsi

    Memory The P4DP6 has 8 184-pin DIMM slots that can support up to 16 GB of registered ECC PC1600 DDR SDRAM. Module sizes of 128 MB, 256 MB, 512 MB, 1 GB and 2 GB may be used to populate the DIMM slots. (PC2100 is also supported, but only at a speed of 200 MHz.) Onboard SCSI Onboard SCSI is provided with an Adaptec AIC-7899W SCSI controller chip,...

  • Page 16: Contacting Supermicro

    UPER ERVER 6022P-6 Manual Contacting Supermicro Headquarters Address: SuperMicro Computer, Inc. 980 Rock Ave. San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 E-mail: marketing@supermicro.com (General Information) support@supermicro.com (Technical Support) Web site: www.supermicro.com European Office Address: SuperMicro Computer B.V.

  • Page 17: Chapter 2: Server Installation

    Decide on a suitable location for the rack unit that will hold the SuperServer 6022P-6. It should be situated in a clean, dust-free area that is well venti- lated. Avoid areas where heat, electrical noise and electromagnetic fields are generated.

  • Page 18: Choosing A Setup Location

    UPER ERVER 6022P-6 Manual Choosing a Setup Location: - Leave enough clearance in front of the rack to enable you to open the front door completely (~25 inches). - Leave approximately 30 inches of clearance in the back of the rack to allow for sufficient airflow and ease in servicing.

  • Page 19: Installing The Superserver 6022P-6 Into A Rack

    This section provides information on installing the SuperServer 6022P-6 into a rack unit. If the 6022P-6 has already been mounted into a rack, you can skip ahead to Sections 2-5 and 2-6. There are a variety of rack units on the market, which may mean the assembly procedure will differ slightly.

  • Page 20: Installing The Chassis Rails

    Position the fixed chassis rail sections you just removed along the side of the 6022P-6 making sure the screw holes line up. Note that these two rails are left/right specific. Screw the rail securely to the side of the chassis (see Figure 2-2).

  • Page 21: Installing The Server Into The Rack

    Chapter 2: Server Installation bly to the other side of the rack, making both are at the exact same height and with the rail guides facing inward. Installing the Server into the Rack: You should now have rails attached to both the chassis and the rack unit.

  • Page 22: Installing The Server Into A Telco Rack

    ERVER 6022P-6 Manual Installing the Server into a Telco Rack: If you are installing the SuperServer 6022P-6 into a Telco type rack, follow the directions given on the previous pages for rack installation. The only difference in the installation procedure will be the positioning of the rack brackets to the rack.

  • Page 23: Checking The Motherboard Setup

    Checking the Motherboard Setup After you install the 6022P-6 in the rack, you will need to open the unit to make sure the motherboard is properly installed and all the connections have been made. 1. Accessing the inside of the 6022P-6 (see Figure 2-5): First, release the retention screws that secure the unit to the rack.
  • Page 24 UPER ERVER 6022P-6 Manual Figure 2-5. Accessing the Inside of the SuperServer 6022P-6 (with one SCSI Drive removed) Figure 2-6. Removing the 5.25" drive bay rails and installing a new component (CD-ROM in example)

  • Page 25: Checking The Drive Bay Setup

    6. Check all cable connections and airflow: Make sure all power and data cables are properly connected and not blocking the chassis airflow. See Section 5-3 for details on cable con- nections. Also, check the air seals for damage. located under the blower fan and beneath the frame cross section that separates the drive bay area from the motherboard area of the chassis.
  • Page 26 UPER ERVER 6022P-6 Manual 5. Check the airflow: Airflow is provided by four 8-cm redundant cooling fans. component layout was carefully designed to promote sufficient airflow through the 2U rackmount space. cables have been routed in such a way that they do not block the airflow generated by the fans.

  • Page 27: Chapter 3: System Interface

    Overview There are several LEDs on the control panel as well as others on the SCSI drive carriers and the motherboard to keep you constantly informed of the overall status of the system as well as the activity and health of specific components.

  • Page 28: Control Panel Leds

    Indicates network activity on LAN2 when flashing. NIC1 NIC1: Indicates network activity on LAN1 when flashing. HDD: Indicates IDE channel activity. On the SuperServer 6022P-6, this LED indicates CD-ROM drive activity when flashing. You should also check to make sure...

  • Page 29: Power

    A SAF-TE compliant backplane is needed to activate the red LED, which indicates a drive failure. (A SAF-TE compliant SCSI backplane is standard on the 6022P-6.) If one of the SCSI drives fail, you should be notified by your system management software. Please refer to Section 6- 4 for instructions on replacing failed SCSI drives.
  • Page 30 SUPERSERVER 6022P-6 User's Manual Notes...

  • Page 31: Chapter 4: System Safety

    Electrical Safety Precautions Basic electrical safety precautions should be followed to protect yourself from harm and the SuperServer 6022P-6 from damage: Be aware of the locations of the power on/off switch on the chassis as well as the room's emergency power-off switch, disconnection switch or electrical outlet.

  • Page 32: General Safety Precautions

    General Safety Precautions Follow these rules to ensure general safety: Keep the area around the SuperServer 6022P-6 clean and free of clutter. The SuperServer 6022P-6 weighs approximately 54 lbs (24.2 kg) when fully loaded. When lifting the system, two people at either end should lift slowly with their feet spread out to distribute the weight.

  • Page 33: Esd Precautions

    ESD Precautions Electrostatic discharge (ESD) is generated by two objects with different electrical charges coming into contact with each other. An electrical discharge is created to neutralize this difference, which can damage electronic components and printed circuit boards. The following measures are generally sufficient to neutralize this difference before contact is made to protect your equipment from ESD: Use a grounded wrist strap designed to prevent static discharge.

  • Page 34: Operating Precautions

    Operating Precautions Care must be taken to assure that the chassis cover is in place when the 6022P-6 is operating to assure proper cooling. Out of warranty damage to the 6022P-6 system can occur if this practice is not strictly followed.

  • Page 35: Chapter 5: Advanced Motherboard Setup

    Advanced Motherboard Setup This chapter covers the steps required to install the P4DP6 motherboard into the SC822S-400LP chassis, add processors and heatsinks, connect the data and power cables and install add-on cards. All motherboard jumpers and connections are also described. are included on pages 5-11 and 5-12.

  • Page 36: Pga Processor And Heatsink Installation

    UPERSERVER 6022P-6 User’s Manual Unpacking The motherboard is shipped in antistatic packaging to avoid static damage. When unpacking the board, make sure the person handling it is static pro- tected. PGA Processor and Heatsink Installation When handling the processor package, avoid placing direct pressure on the label area of the fan.
  • Page 37 4. Apply the proper amount of thermal glue to the CPU die and place the heatsink/fan assembly on top of the CPU with the fan toward the rear of the chassis (note arrow on top of heatsink). 5. Secure the heatsink/fan assembly by locking the retention clips into their proper position.
  • Page 38 UPERSERVER 6022P-6 User’s Manual Figure 5-2. Heatsink/Fan Installation...

  • Page 39: Connecting Cables

    Connecting Cables Now that the motherboard and processors are installed, the next step is to connect the cables to the board. These include the data (ribbon) cables for the peripherals and control panel and the power cables. Connecting Data Cables The ribbon cables used to transfer data from the peripheral devices have been carefully routed in preconfigured systems to prevent them from block- ing the flow of cooling air that moves through the system from front to back.

  • Page 40: Connecting The Control Panel

    UPERSERVER 6022P-6 User’s Manual Connecting the Control Panel JF2 contains header pins for various front control panel connectors. See Figure 5-3 for the pin locations of the various front control panel buttons and LED indicators. Please note that even and odd numbered pins are on opposite sides of each header.

  • Page 41: I/O Ports

    USB Ports (Purple) Figure 5-4. P4DP6 Rear Panel I/O Ports Installing Memory Note: Check the Supermicro web site for recommended memory modules: http://www.supermicro.com/TECHSUPPORT/FAQs/Memory_vendors.htm Exercise extreme care when installing or removing DIMM modules to prevent any possible damage. Also note that the memory is interleaved to improve performance (see step 1).
  • Page 42 UPERSERVER 6022P-6 User’s Manual module incorrectly. 3. Gently press down on the DIMM module until it snaps into place in the slot. Repeat for all modules (see step 1 above). Memory Support The P4DP6 only supports ECC registered PC1600 (200 MHz DDR-RAM) memory.

  • Page 43: Adding Pci Cards

    The P4DP6 system board has two 64-bit 133 MHz, one 64-bit 100 MHz and three 64-bit, 66 MHz PCI-X slots that require low profile PCI cards to fit inside the Supermicro SC822 chassis (see Figures 5-6a and 5-6b). 64-bit PCI card installation:...

  • Page 44: Motherboard Layout

    UPERSERVER 6022P-6 User’s Manual Motherboard Layout Figure 5-7. SUPER P4DP6 Layout Keyboard Mouse DIMM #4A USB 0/1 DIMM #4B DIMM #3A COM1 DIMM #3B DIMM #2A DIMM #2B DIMM #1A DIMM #1B Battery LAN1 Rage LAN2 Overheat Fan JOH1 133 MHz PCI-X #6...
  • Page 45 P4DP6 Quick Reference Jumper Description JBT1 CMOS Clear Speaker Enable (page 2-11) JPA1/JPA2 SCSI CH A/B Termination JP3/JP27 LAN1/LAN2 Enable/Disable VGA Enable/Disable Power Fail Alarm En/Disable JP10-JP21 PCI-X Bus Speed Setting JP22 SCSI Enable/Disable JP33 CPU Chassis/CPU Fan Select JP38 Thermal Fan Enable/Disable Connector Description...

  • Page 46: Connector Definitions

    UPERSERVER 6022P-6 User’s Manual Connector Definitions ATX Power Connection power supply meets the SSI (Superset ATX) 24- pin specification, however it also supports a 20-pin power supply connector. Make sure that the ori- entation of the connector is cor- rect. See the table on the right for pin definitions.

  • Page 47: Nic2 Led

    NIC2 LED The NIC2 (Network Interface Con- troller) LED connection is located on pins 9 and 10 of JF2. the NIC2 LED cable to display net- work activity. Refer to the table on the right for pin definitions. NIC1 LED The NIC1 (Network Interface Con- troller) LED connection is located on pins 11 and 12 of JF2.

  • Page 48: Power Button

    UPERSERVER 6022P-6 User’s Manual Power Button The Power Button connection is located on pins 1 and 2 of JF2. Momentarily contacting both pins will power on/off the system. This button can also be configured to function as a suspend button (see the Power Button Mode setting in BIOS).

  • Page 49: Serial Ports

    Serial Ports The COM1 serial port is located under the parallel port (see Figure 2-3). See the table on the right for pin definitions. The COM2 connec- tor is a header located near the PCI-X #1 slot on the motherboard. ATX PS/2 Keyboard and PS/2 Mouse Ports The ATX PS/2 keyboard and the...

  • Page 50: Third Power Supply Fail Header

    UPERSERVER 6022P-6 User’s Manual Third Power Supply Fail Header Connect a cable from your power supply to the JP8 header to pro- vide warning of power supply fail- ure. This warning signal is passed through the PWR_LED pin on JF2 to provide indication of a power failure on the chassis.

  • Page 51: Jumper Settings

    Jumper Settings Explanation of Jumpers To modify the operation of the motherboard, jumpers can be used choose optional settings. create shorts between two pins to change the function of the connector. Pin 1 is identified with a square solder pad on the printed circuit board.

  • Page 52: Lan1 Enable/Disable

    UPERSERVER 6022P-6 User’s Manual LAN1 Enable/Disable Change the setting of jumper JP3 to enable or disable the onboard LAN1 or NIC (Network Interface Card) on the motherboard. the table on the right for jumper settings. The default setting is pins 1-2.

  • Page 53: Scsi Enable/Disable

    CPU fan or the Chassis fan. The default position is open to select the CPU fan. The CPU Chas- sis fan is intended for use with Supermicro chassis. See the table on the right for jumper settings. Chapter 5: Advanced Motherboard Setup Jumper...

  • Page 54: Thermal Fan Enable/Disable

    UPERSERVER 6022P-6 User’s Manual Thermal Fan Enable/Disable JP38 allows you to enable or disable the thermal fan. When enabled, the fan will operate continuously. When disabled, it will operate only when a predefined temperature threshold has been exceeded. on the right for jumper settings.

  • Page 55: Pci-X Bus Speed Settings

    PCI-X Bus Speed Settings Jumpers JP10 through JP21 are used to set the speed for the PCI-X buses. The P4DP6/P4DPR has two P64DH2 PCI Bridge chips, each of which has two buses. Each of the following settings corresponds to a single bus. A maximum of two slots can be used for PCI-X 133 MHz operation.
  • Page 56 UPERSERVER 6022P-6 User’s Manual Slot #4 Refer to the table on the right to set the speed of slot #4 with jumpers JP16, JP17 and JP18. Note: Slot 4 shares its bus with the onboard SCSI, which pulls the slot speed down to 66 MHz.

  • Page 57: Parallel Port Connector

    5-10 Parallel Port, Floppy/Hard Disk Drive and SCSI Connections Note the following when connecting the floppy and hard disk drive cables: • The floppy disk drive cable has seven twisted wires. • A red mark on a wire typically designates the location of pin 1. •...

  • Page 58: Floppy Connector

    UPERSERVER 6022P-6 User’s Manual Floppy Connector The floppy connector is located on JP7. See the table below for pin definitions. IDE Connectors There are no jumpers to configure the onboard IDE#1 and #2 connectors (J2A and J2B, respectively). See the table on the right for pin definitions.

  • Page 59: Ultra160 Scsi Connectors

    Ultra160 SCSI Connector Refer to the table below for the pin definitions of the Ul- tra160 SCSI connectors lo- cated at JA1, JA2 and JA4. 6 8 -p in U ltra 1 6 0 S C S I C o n n e c to rs (J A 1 , J A 2 , J A 4 ) C onnec tor C ontact N umber...

  • Page 60: Installing Software Drivers

    5-11 Installing Software Drivers After all the hardware has been installed you must install the software drivers. The necessary drivers are all included on the Supermicro CD that came packaged with your motherboard. CD-ROM drive, the display shown in Figure 5-8 should appear.

  • Page 61: Chapter 6: Advanced Chassis Setup

    Advanced Chassis Setup This chapter covers the steps required to install components and perform maintenance on the SC822S-400LP chassis. follow the steps in the order given to eliminate the most common problems encountered. If some steps are unnecessary, skip ahead to the step that follows.

  • Page 62: Control Panel

    UPER ERVER 6022P-6 Manual SCSI Drives (6) Figure 6-1. Control Panel The control panel (located on the front of the chassis) must be connected to the JF2 connector on the motherboard to provide you with system status indications. A ribbon cable has bundled these wires together to simplify the connection.

  • Page 63: System Fans

    Replace the failed fan with an identical 8-cm, 12 volt fan (available from Supermicro, p/n Fan-044). Position the new fan at its proper place in the chassis by fitting the fan with its housing onto the fan mounts in the chassis.

  • Page 64: Drive Bay Installation/Removal

    SuperServer 6022P-6. CD-ROM/Floppy Disk Drive: For installing/removing the CD-ROM or floppy disk drive, you will need to gain access to the inside of the 6022P-6 by removing the top cover of the chassis. Proceed to the "CD-ROM and Floppy Drive Installation" section later in this chapter for instructions.

  • Page 65: Scsi Drive Installation

    SCSI Drive Installation Mounting a SCSI drive in a drive carrier: The SCSI drives are mounted in drive carriers to simplify their installation and removal from the chassis. These carriers also help promote proper airflow for the SCSI drive bays. For this reason, even empty carriers without SCSI drives installed must remain in the chassis to cool each drive evenly.
  • Page 66 UPER ERVER 6022P-6 Manual Installing/removing hot-swap SCSI drives: The SCSI drive bays are located in the front of the chassis, making them easily accessible for installation and removal. The SCSI drives are hot- swap units, meaning that they can be installed and removed while the system is running.

  • Page 67: Installing A Component In The 5 1/4" Drive Bay

    Chapter 6: Advanced Chassis Setup SCA Backplane The SCSI drives plug into a SAF-TE compliant SCA backplane that provides power, SCSI ID and bus termination. A RAID controller can be used with the SCA backplane to provide data security. The operating system you use must have RAID support to enable the hot-swap capability of the SCSI drive.

  • Page 68: Cd-Rom And Floppy Drive Installation

    CD-ROM and Floppy Drive Installation The top cover of the chassis must be opened to gain full access to the CD- ROM and floppy drive bays. The 6022P-6 accomodates only slim-line 5 1/4" CD-ROM drives. Side mounting brakets are typically needed to mount a slim-line CD-ROM drive in the 6022P-6 server.

  • Page 69: Power Supply

    Supermicro (see contact information in the Preface). The replacement part is p/n PWS-027, model SP402-2C. As there is only one power supply unit in the 6022P-6, the server must be powered down before removing and/or replacing the power supply for whatever reason.
  • Page 70 UPER ERVER 6022P-6 Manual Notes 6-10...

  • Page 71: Chapter 7: Bios

    Please refer Manual Download <http://www.supermicro.com> for any changes to BIOS that may not be reflected in this manual. System BIOS The BIOS is the Basic Input Output System used in all IBM and PS/2 ®...

  • Page 72: Main Bios Setup

    UPER ERVER 6022P-6 Manual Running Setup *Default settings are in bold text unless otherwise noted. The BIOS setup options described in this section are selected by choos- ing the appropriate text from the main BIOS Setup screen. All displayed text is described in this section, although the screen display is often all you need to understand how to set the options (see on next page).

  • Page 73: Main Bios Setup Menu

    Main BIOS Setup Menu Main Advanced System Time System Date Legacy Diskette A: Legacy Diskette B: Primary Master Primary Slave Secondary Master Secondary Slave System Memory Extended Memory F1 Help Select Item Esc Exit Select Menu Main Setup Features System Time To set the system date and time, key in the correct information in the appropriate fields.

  • Page 74: Legacy Diskette A

    UPER ERVER 6022P-6 Manual Legacy Diskette A This setting allows the user to set the type of floppy disk drive installed as diskette A. The options are Disabled, 360Kb 5.25 in, 1.2MB 5.25 in, 720Kb 3.5 in, 1.44/1.25MB, 3.5 in and 2.88MB 3.5 in.
  • Page 75 Type Selects the type of IDE hard drive. The options are Auto (allows BIOS automatically determine the hard drive's capacity, number of heads, etc.), a number from 1-39 to select a predetermined type of hard drive, CD-ROM and ATAPI Removable. Multi-Sector Transfers Select the number of transfer sectors.

  • Page 76: Advanced Setup

    UPER ERVER 6022P-6 Manual Advanced Setup Choose Advanced from the Phoenix BIOS Setup Utility main menu with the arrow keys. You should see the following display. The items with a triangle beside them have sub menus that can be accessed by highlighting the item and pressing <Enter>.
  • Page 77 Quiet Boot This setting allows you to Enable or Disable the diagnostic screen during boot-up. Legacy USB Support This setting allows you to enable support for Legacy USB devices. The settings are Enabled and Disabled. Reset Configuration Data Options are Yes and No. Choosing Yes will clear the Extended System Configuration Data (ECSD).
  • Page 78 UPER ERVER 6022P-6 Manual Interrupt Select the IRQ (interrupt request) for serial port A. Options are IRQ3 and IRQ4. Serial Port B This setting allows you to assign control of serial port B. The options are Enabled (user defined), Disabled, Auto (BIOS controlled) and OS Controlled.
  • Page 79 Mode Specify the parallel port mode. Options are Output Only, Bi-directional, EPP and ECP. DMA Channel Specify the DMA channel. Options are DMA1 and DMA3. Floppy Disk Controller This setting allows you to assign control of the floppy disk controller. The options are Enabled (user defined), Disabled and Auto (BIOS controlled).
  • Page 80 UPER ERVER 6022P-6 Manual ECC Configuration This setting lets you enable or disable ECC (Error Correction and Checking). The options are ECC and Disabled. ECC Error Type This setting lets you select which type of interrupt will be activated as a result of an ECC error.
  • Page 81 Chapter 7: BIOS Split Lock Operations This setting allows you to Enable or Disable split lock operations. Hyper-threading This setting allows you to Enable or Disable hyper-threading. Enabling hyper-threading results in increased CPU performance. L3 Cache This setting allows you to Enable or Disable the L3 cache. DMI Event Logging Access the submenu to make changes to the following settings.
  • Page 82 UPER ERVER 6022P-6 Manual Clear All DMI Event Logs Highlight this item and press <Enter> to clear all DMI event logs. Console Redirection Access the submenu to make changes to the following settings. COM Port Address Specifies to redirect the console to On-board COMA or On-board COMB.

  • Page 83: Security

    Security Choose Security from the Phoenix BIOS Setup Utility main menu with the arrow keys. You should see the following display. displayed by highlighting the setting using the arrow keys and pressing <Enter>. All Security BIOS settings are described in this section. Main Advanced Supervisor Password Is:...
  • Page 84 UPER ERVER 6022P-6 Manual Set Supervisor Password When the item "Set Supervisor Password" is highlighted, hit the <Enter> key. When prompted, type the Supervisor's password in the dialogue box to set or to change supervisor's password, which allows access to BIOS.

  • Page 85: Power

    Power Choose Power from the Phoenix BIOS Setup Utility main menu with the arrow keys. You should see the following display. Power setting options are displayed by highlighting the setting using the arrow keys and pressing <Enter>. All Power BIOS settings are described in this section. Main Advanced ACPI Mode:...
  • Page 86 UPER ERVER 6022P-6 Manual Standby Timeout Use this setting to specify the period of system inactivity to transpire before entering the standby state. Options are Off, 16 sec, 32 sec, 48 sec, 1 min, 2 min, 4 min and 8 min.

  • Page 87: Boot

    Boot Choose Boot from the Phoenix BIOS Setup Utility main menu with the arrow keys. You should see the following display. Highlighting a setting with a + or - will expand or collapse that entry. See details on how to change the order and specs of boot devices in the Item Specific Help window.
  • Page 88 UPER ERVER 6022P-6 Manual +Hard Drive Highlight and press <Enter> to expand the field. See details on how to change the order and specs of hard drives in the Item Specific Help w i n d o w . Network Boot See details on how to change the order and specs of network boot devices in the Item Specific Help window.

  • Page 89: Pir

    Choose PIR from the Phoenix BIOS Setup Utility main menu with the arrow keys. You should see the following display. The items with a triangle beside them have sub menus that can be accessed by highlighting the item and pressing <Enter>. PIR stands for "Processor Info ROM", which allows BIOS to read certain information from the processors.
  • Page 90 UPER ERVER 6022P-6 Manual Processor Info ROM Data Highlight this and hit <Enter> to see PIR data on the following items: Header Info Processor Data Processor Core Data L3 Cache Data Package Data Part Number Data Thermal Reference Data Feature Data...

  • Page 91: Exit

    Chassis Fan 2 Processor Vcore 3.3V Standby 3.3V Vcc 5V Vcc 12V Vcc 1.8V Vcc -12V Vcc Exit Choose Exit from the Phoenix BIOS Setup Utility main menu with the arrow keys. You should see the following display. All Exit BIOS settings are described in this section.
  • Page 92 UPER ERVER 6022P-6 Manual Exit Saving Changes Highlight this item and hit <Enter> to save any changes you made and to exit the BIOS Setup utility. Exit Discarding Changes Highlight this item and hit <Enter> to exit the BIOS Setup utility without saving any changes you may have made.

  • Page 93: Appendix A: Bios Post Messages

    Appendix A: BIOS POST Messages Appendix A BIOS POST Messages During the Power-On Self-Test (POST), the BIOS will check for problems. If a problem is found, the BIOS will activate an alarm or display a message. The following is a list of such BIOS messages.
  • Page 94 UPER ERVER 6022P-6 Manual System CMOS checksum bad - Default configuration used System CMOS has been corrupted or modified incorrectly, perhaps by an application program that changes data stored in CMOS. The BIOS installed Default Setup Values. If you do not want these values, enter Setup and enter your own values.
  • Page 95 Appendix A: BIOS POST Messages System cache error - Cache disabled RAM cache failed and BIOS disabled the cache. On older boards, check the cache jumpers. You may have to replace the cache. See your dealer. A disabled cache slows system performance considerably. CPU ID: CPU socket number for Multi-Processor error.
  • Page 96 UPER ERVER 6022P-6 Manual Fixed Disk n Fixed disk n (0-3) identified. Invalid System Configuration Data Problem with NVRAM (CMOS) data. I/O device IRQ conflict I/O device IRQ conflict error. PS/2 Mouse Boot Summary Screen: PS/2 Mouse installed. nnnn kB Extended RAM Passed Where nnnn is the amount of RAM in kilobytes successfully tested.
  • Page 97 Appendix A: BIOS POST Messages Parity Check 2 nnnn Parity error found in the I/O bus. BIOS attempts to locate the address and display it on the screen. If it cannot locate the address, it displays ????. Press <F1> to resume, <F2> to Setup, <F3> for previous Displayed after any recoverable error message.
  • Page 98 UPER ERVER 6022P-6 Manual Notes...

  • Page 99: Appendix B: Bios Post Codes

    This section lists the POST (Power On Self Test) codes for the PhoenixBIOS. POST codes are divided into two categories: recoverable and terminal. Recoverable POST Errors When a recoverable type of error occurs during POST, the BIOS will display an POST code that describes the problem. following beep codes: 1 long and two short beeps - video configuration error 1 continuous long beep - no memory detected...
  • Page 100 UPER ERVER 6022P-6 Manual POST Code Description Initialize keyboard controller 1-2-2-3 BIOS ROM checksum Initialize cache before memory Auto size 8254 timer initialization 8237 DMA controller initialization Reset Programmable Interrupt Controller 1-3-1-1 Test DRAM refresh 1-3-1-3 Test 8742 Keyboard Controller...
  • Page 101 POST Code Description Initialize POST display service Display prompt “Press F2 to enter SETUP” Disable CPU cache Test RAM between 512 and 640 kB Test extended memory Test extended memory address lines Jump to UserPatch1 Configure advanced cache registers Initialize Multi Processor APIC Enable external and CPU caches Setup System Management Mode (SMM) area Display external L2 cache size...
  • Page 102 UPER ERVER 6022P-6 Manual POST Code Description Fix up Multi Processor table 1-2 Search for option ROMs. One long, two short beeps on checksum failure Check for SMART Drive (optional) Shadow option ROMs Set up Power Management Initialize security engine (optional)
  • Page 103 POST Code Description Redirect Int 13h to Memory Technologies Devices such as ROM, RAM, PCMCIA, and serial disk Redirect Int 10h to enable remote serial video Re-map I/O and memory for PCMCIA Initialize digitizer and display message Unknown interrupt The following are for boot block in Flash ROM POST Code Description Initialize the chipset...
  • Page 104 UPER ERVER 6022P-6 Manual Notes...

  • Page 105: Appendix C: System Specifications

    ® Single or dual Intel Xeon (system) bus speed of 400 MHz. Note: Please refer to the support section of our web site for a complete listing of supported processors. (http://www.supermicro.com/TechSupport.htm) Chipset Intel E7500 (Plumas) chipset BIOS ® 4 Mb Phoenix...
  • Page 106 UPER ERVER 6022P-6 User's Manual Expansion Slots Two (2) 64-bit 133 MHz, one (1) 64-bit 100 MHz and three (3) 64-bit 66 MHz PCI-X slots Power Supply Type: 1 x 400W with +3.3V, +5V, +12V, -5V and -12V main DC outputs and a 5V standby output Input Voltage: 100-240VAC (w/ ±...
