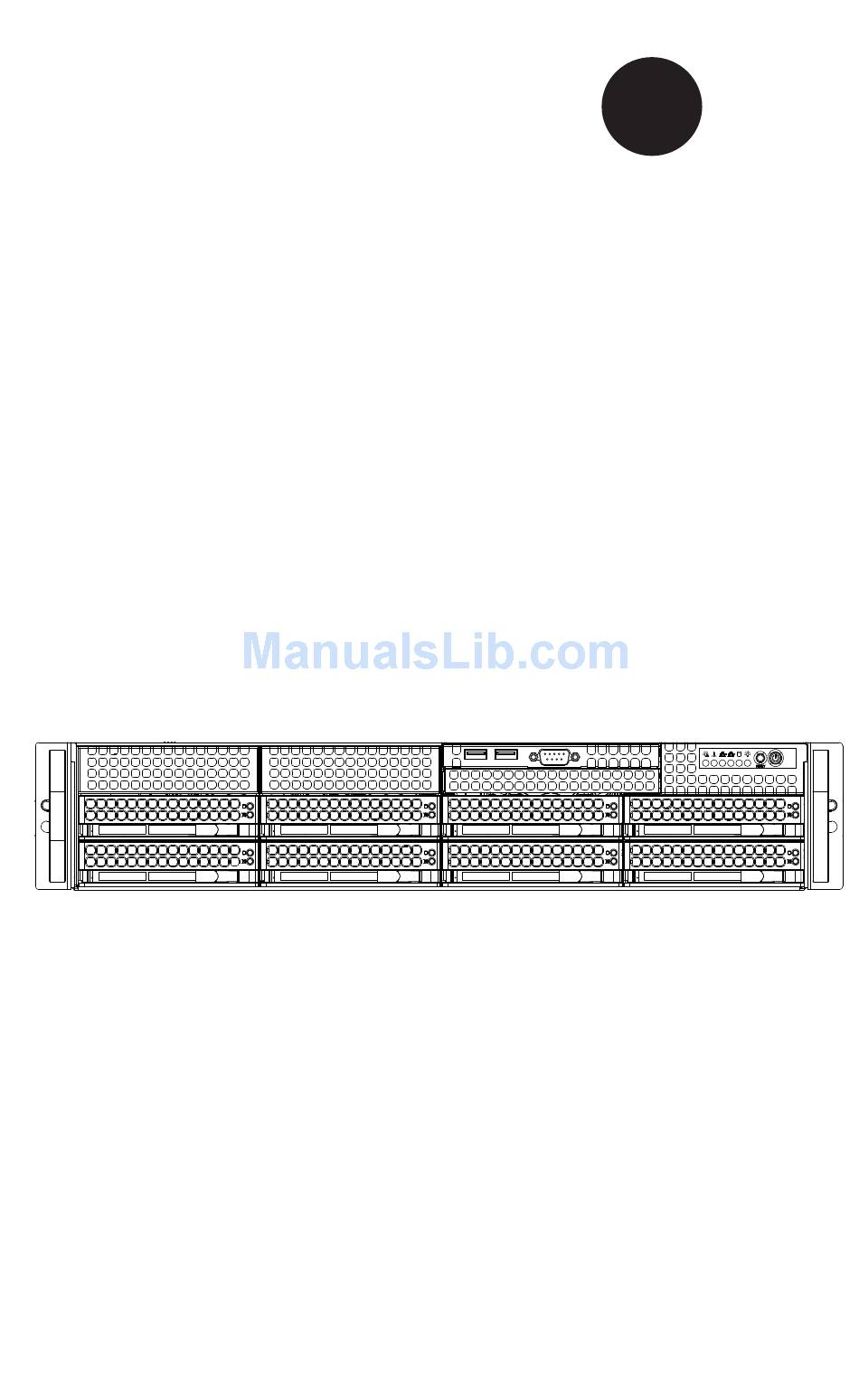

  • Page 1 UPER ® SUPERSERVER 6027R-TRF USER'S MANUAL Revision 1.0d...
  • Page 2 This product, including software and documentation, is the property of Supermicro and/or its licensors, and is supplied only under a license. Any use or reproduction of this product is not allowed, except as expressly permitted by the terms of said license.

  • Page 3: About This Manual

    About This Manual This manual is written for professional system integrators and PC technicians. It provides information for the installation and use of the SuperServer 6027R-TRF Installation and maintainance should be performed by experienced technicians only. The SuperServer 6027R-TRF is a high-end server based on the SC825TQ-R740LP 2U rackmount chassis and the X9DRi-F dual processor serverboard.
  • Page 4 SUPERSERVER 6027R-TRF USER'S MANUAL Chapter 7: BIOS The BIOS chapter includes an introduction to BIOS and provides detailed information on running the CMOS Setup Utility for the X9DRi-F serverboard. Appendix A: BIOS Error Beep Codes Appendix B: Installing Windows Appendix C: System Specifi cations...
  • Page 5 Preface Notes...

  • Page 6: Table Of Contents

    SUPERSERVER 6027R-TRF USER'S MANUAL Table of Contents Chapter 1 Introduction Overview ......................1-1 Serverboard Features ..................1-2 Processors ...................... 1-2 Memory ......................1-2 Serial ATA ....................... 1-2 PCI Expansion Slots ..................1-2 Onboard Controllers/Ports ................1-3 Graphics Controller ..................1-3 Other Features ....................
  • Page 7 Table of Contents Chapter 3 System Interface Overview ......................3-1 Control Panel Buttons ..................3-1 Reset ....................... 3-1 Power ......................3-1 Control Panel LEDs ..................3-2 Power Fail ....................... 3-2 Information LED ....................3-2 NIC1 ........................ 3-2 NIC2 ........................ 3-2 HDD .........................
  • Page 8 SUPERSERVER 6027R-TRF USER'S MANUAL Removing the Heatsink ................... 5-9 Installing Memory ..................5-10 Memory Support .................... 5-10 DIMM Module Population Confi guration ...........5-11 Adding PCI Add-On Cards ................5-12 Serverboard Details ..................5-13 Connector Defi nitions ................... 5-15 Jumper Settings .................... 5-23 Explanation of Jumpers ................
  • Page 9 Table of Contents IPMI ....................... 7-24 Boot ....................... 7-26 Security ......................7-26 Save & Exit ....................7-27 Appendix A BIOS Error Beep Codes Appendix B System Specifi cations...
  • Page 10 SUPERSERVER 6027R-TRF USER'S MANUAL Notes...

  • Page 11: Chapter 1 Introduction

    Chapter 1 Introduction Overview The SuperServer 6027R-TRF is a high-end server comprised of two main subsystems: the SC825TQ-R740LP 2U server chassis and the X9DRi-F dual processor serverboard. Please refer to our web site for information on operating systems that have been certifi ed for use with the system (www.supermicro.com).

  • Page 12: Serverboard Features

    SUPERSERVER 6027R-TRF USER'S MANUAL Serverboard Features At the heart of the SuperServer 6027R-TRF lies the X9DRi-F, a dual processor serverboard based on the Intel PCH C602/C606 chipset. Below are the main features of the X9DRi-F. (See Figure 1-1 for a block diagram of the chipset).

  • Page 13: Onboard Controllers/Ports

    Hard Drive Subsystem The SC825TQ-R740LP chassis was designed to support up to eight hot-swap SATA or SAS hard drives, though the SuperServer 6027R-TRF can only support six SATA drives. Front Control Panel The control panel on the SuperServer 6027R-TRF provides you with system monitoring and control.

  • Page 14: Cooling System

    SUPERSERVER 6027R-TRF USER'S MANUAL Cooling System The SC825TQ-R740LP chassis has an innovative cooling design that includes three 8-cm hot-plug system cooling fans located in the middle section of the chassis. An air shroud channels the airfl ow from the system fans to effi ciently cool the processor area of the system.
  • Page 15 Chapter 1: Introduction Figure 1-1. Intel PCH C602/C606 Chipset: System Block Diagram Note: This is a general block diagram. Please see Chapter 5 for details. #0-6 #0-5 #1-6 #0-4 #1-5 #0-3 #1-4 #0-2 #1-3 #0-1 #1-2 E5-2600 Series E5-2600 Series #1-1 Processor Processor...

  • Page 16: Contacting Supermicro

    SUPERSERVER 6027R-TRF USER'S MANUAL Contacting Supermicro Headquarters Address: Super Micro Computer, Inc. 980 Rock Ave. San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 Email: marketing@supermicro.com (General Information) support@supermicro.com (Technical Support) Web Site: www.supermicro.com Europe Address: Super Micro Computer B.V.

  • Page 17: Chapter 2 Server Installation

    Decide on a suitable location for the rack unit that will hold the SuperServer 6027R-TRF. It should be situated in a clean, dust-free area that is well ventilated. Avoid areas where heat, electrical noise and electromagnetic fi elds are generated.

  • Page 18: Warnings And Precautions

    SUPERSERVER 6027R-TRF USER'S MANUAL • This product is for installation only in a Restricted Access Location (dedicated equipment rooms, service closets and the like). • This product is not suitable for use with visual display work place devices acccording to §2 of the the German Ordinance for Work with Visual Display Units.

  • Page 19: Rack Mounting Considerations

    Chapter 2: Server Installation Rack Mounting Considerations Warning! To prevent bodily injury when mounting or servicing this unit in a rack, you must take special precautions to ensure that the system remains stable. The following guidelines are provided to ensure your safety: •...

  • Page 20: Reliable Ground

    SUPERSERVER 6027R-TRF USER'S MANUAL Reliable Ground A reliable ground must be maintained at all times. To ensure this, the rack itself should be grounded. Particular attention should be given to power supply connections other than the direct connections to the branch circuit (i.e. the use of power strips, etc.).
  • Page 21 Chapter 2: Server Installation Figure 2-1: Separating the Rack Rails Separating the Inner and Outer Rails Rail Assembly 1. Locate the rail assembly in the chassis packaging. 2. Extend the rail assembly by pulling it outward. Extending the Rails 3. Press the quick-release tab. 4.

  • Page 22: Outer Rack Rails

    SUPERSERVER 6027R-TRF USER'S MANUAL Figure 2-2. Assembling the Outer Rails Outer Rack Rails Outer rails attach to the rack and hold the chassis in place. The outer rails for the SC825 chassis extend between 30 inches and 33 inches. Installing the Outer Rails to the Rack 1.
  • Page 23 Chapter 2: Server Installation Figure 2-3. Installing the Rack Rails Installing the Chassis into a Rack 1. Extend the outer rails as illustrated above. 2. Align the inner rails of the chassis with the outer rails on the rack. 3. Slide the inner rails into the outer rails, keeping the pressure even on both sides.
  • Page 24 SUPERSERVER 6027R-TRF USER'S MANUAL Notes...

  • Page 25: Chapter 3 System Interface

    System Interface Overview There are several LEDs on the control panel of the SuperServer 6027R-TRF server as well as others on the drive carriers to keep you constantly informed of the overall status of the system as well as the activity and health of specifi c components. There are also two buttons on the chassis control panel.

  • Page 26: Control Panel Leds

    SUPERSERVER 6027R-TRF USER'S MANUAL Control Panel LEDs The control panel located on the front of the chassis has several LEDs. These LEDs provide you with critical information related to different parts of the system. This section explains what each LED indicates when illuminated and any corrective action you may need to take.

  • Page 27: Hdd

    Chapter 3: System Interface On the SuperServer 6027R-TRF, this LED indicates hard drive and/or DVD-ROM drive activity when fl ashing. Power Indicates power is being supplied to the system's power supply units. This LED should normally be illuminated when the system is operating.
  • Page 28 SUPERSERVER 6027R-TRF USER'S MANUAL Notes...

  • Page 29: Chapter 4 Standardized Warning Statements For Ac Systems

    Only certifi ed technicians should attempt to install or confi gure components. Read this appendix in its entirety before installing or confi guring components in the Supermicro chassis. These warnings may also be found on our web site at http://www.supermicro.com/ about/policies/safety_information.cfm. Warning Defi nition Warning! This warning symbol means danger.
  • Page 30 SUPERSERVER 6027R-TRF USER'S MANUAL Warnung WICHTIGE SICHERHEITSHINWEISE Dieses Warnsymbol bedeutet Gefahr. Sie befi nden sich in einer Situation, die zu Verletzungen führen kann. Machen Sie sich vor der Arbeit mit Geräten mit den Gefahren elektrischer Schaltungen und den üblichen Verfahren zur Vorbeugung vor Unfällen vertraut.
  • Page 31 Warning Statements for AC Systems ‫ﺟﺴﺪﻳﺔ‬ ‫ﺍﺻﺎﺑﺔ‬ ‫ﺗﺘﺴﺒﺐ ﻓﻲ‬ ‫ﺣﺎﻟﺔ ﻳﻤﻜﻦ ﺃﻥ‬ ‫ﺍﻧﻚ ﻓﻲ‬ ‫ﺧﻄﺮ‬ ‫ﻳﻌﻨﻲ‬ ‫ﻫﺬﺍ ﺍﻟﺮﻣﺰ‬ !‫ﺗﺤﺬﻳﺮ‬ ‫ﺍﻟﺪﻭﺍﺋﺮ‬ ‫ﺑﺎﻟﻤﺨﺎﻁﺮ ﺍﻟﻨﺎﺟﻤﺔ ﻋﻦ‬ ‫ﻦ ﻋﻠﻰ ﻋﻠﻢ‬ ، ‫ﻛ‬ ‫ﻣﻌﺪﺍﺕ‬ ‫ﺗﻌﻤﻞ ﻋﻠﻰ ﺃﻱ‬ ‫ﻗﺒﻞ ﺃﻥ‬ ‫ﺍﻟﻜﻬﺮﺑﺎﺋﻴﺔ‬ ‫ﺣﻮﺍﺩﺙ‬ ‫ﺃﻱ‬ ‫ﻭﻗﻮﻉ‬ ‫ﻤﻨﻊ‬ ‫ﻟ‬ ‫ﺍﻟﻮﻗﺎﺋﻴﺔ‬...

  • Page 32: Installation Instructions

    SUPERSERVER 6027R-TRF USER'S MANUAL Installation Instructions Warning! Read the installation instructions before connecting the system to the power source. 警告 将此系统连接电源前,请先阅读安装说明。 警告 將系統與電源連接前，請先閱讀安裝說明。 Warnung Vor dem Anschließen des Systems an die Stromquelle die Installationsanweisungen lesen. ¡Advertencia! Lea las instrucciones de instalación antes de conectar el sistema a la red de alimentación.

  • Page 33: Circuit Breaker

    Chapter 4: Warning Statements for AC Systems Circuit Breaker Warning! This product relies on the building's installation for short-circuit (overcurrent) protection. Ensure that the protective device is rated not greater than: 250 V, 20 A. 警告 此产品的短路(过载电流)保护由建筑物的供电系统提供,确保短路保护设备的额定电 流不大于250V,20A。 警告 此產品的短路(過載電流)保護由建築物的供電系統提供,確保短路保護設備的額定電 流不大於250V,20A。...

  • Page 34: Power Disconnection Warning

    SUPERSERVER 6027R-TRF USER'S MANUAL ‫ﻓﻲ‬ ‫ﺍﻟﺘﻲ ﺗﻢ ﺗﺜﺒﻴﺘﻬﺎ‬ ‫ﻣﻦ ﺍﻟﺪﻭﺍﺋﺮﺍﻟﻘﺼﻴﺮﺓ‬ ‫ﺍﻟﺤﻤﺎﻳﺔ‬ ‫ﻣﻌﺪﺍﺕ‬ ‫ﻳﻌﺘﻤﺪ ﻋﻠﻰ‬ ‫ﻫﺬﺍ ﺍﻟﻤﻨﺘﺞ‬ ‫ﺍﻟﻤﺒﻨﻰ‬ ‫ﺃﻛﺜﺮ ﻣﻦ‬ ‫ﻟﻴﺲ‬ ‫ﻮﻗﺎﺋﻲ‬ ‫ﺍﻟ‬ ‫ﺍﻟﺠﻬﺎﺯ‬ ‫ﺗﻘﻴﻴﻢ‬ ‫ﺃﻥ‬ ‫ﺗﺄﻛﺪ ﻣﻦ‬ 20A, 250V Waarschuwing Dit product is afhankelijk van de kortsluitbeveiliging (overspanning) van uw electrische installatie.
  • Page 35 Chapter 4: Warning Statements for AC Systems Warnung Das System muss von allen Quellen der Energie und vom Netzanschlusskabel getrennt sein, das von den Spg.Versorgungsteilmodulen entfernt wird, bevor es auf den Chassisinnenraum zurückgreift, um Systemsbestandteile anzubringen oder zu entfernen. ¡Advertencia! El sistema debe ser disconnected de todas las fuentes de energía y del cable eléctrico quitado de los módulos de fuente de alimentación antes de tener acceso el interior del chasis para instalar o para quitar componentes de sistema.

  • Page 36: Equipment Installation

    SUPERSERVER 6027R-TRF USER'S MANUAL Equipment Installation Warning! Only trained and qualifi ed personnel should be allowed to install, replace, or service this equipment. 警告 只有经过培训且具有资格的人员才能进行此设备的安装、更换和维修。 警告 只有經過受訓且具資格人員才可安裝、更換與維修此設備。 Warnung Das Installieren, Ersetzen oder Bedienen dieser Ausrüstung sollte nur geschultem, qualifi ziertem Personal gestattet werden.

  • Page 37: Restricted Area

    Chapter 4: Warning Statements for AC Systems Waarschuwing Deze apparatuur mag alleen worden geïnstalleerd, vervangen of hersteld door geschoold en gekwalifi ceerd personeel. Restricted Area Warning! This unit is intended for installation in restricted access areas. A restricted access area can be accessed only through the use of a special tool, lock and key, or other means of security.

  • Page 38: Battery Handling

    SUPERSERVER 6027R-TRF USER'S MANUAL ‫אזור עם גישה מוגבלת‬ !‫אזהרה‬ ‫יש להתקין את היחידה באזורים שיש בהם הגבלת גישה. הגישה ניתנת בעזרת‬ .('‫כלי אבטחה בלבד )מפתח, מנעול וכד‬ ‫ﻣﺤﻈﻮﺭﺓ‬ ‫ﻣﻨﺎﻁﻖ‬ ‫ﻟﺘﺮﻛﻴﺒﻬﺎ ﻓﻲ‬ ‫ﻫﺬﻩ ﺍﻟﻮﺣﺪﺓ‬ ‫ﺗﺨﺼﻴﺺ‬ ‫ﺗﻢ‬ ،‫ﺃﺩﺍﺓ ﺧﺎﺻﺔ‬ ‫ﻣﻦ ﺧﻼﻝ ﺍﺳﺘﺨﺪﺍﻡ‬...
  • Page 39 Chapter 4: Warning Statements for AC Systems Warnung Bei Einsetzen einer falschen Batterie besteht Explosionsgefahr. Ersetzen Sie die Batterie nur durch den gleichen oder vom Hersteller empfohlenen Batterietyp. Entsorgen Sie die benutzten Batterien nach den Anweisungen des Herstellers. Attention Danger d'explosion si la pile n'est pas remplacée correctement. Ne la remplacer que par une pile de type semblable ou équivalent, recommandée par le fabricant.

  • Page 40: Redundant Power Supplies

    SUPERSERVER 6027R-TRF USER'S MANUAL Redundant Power Supplies Warning! This unit might have more than one power supply connection. All connections must be removed to de-energize the unit. 警告 此部件连接的电源可能不止一个，必须将所有电源断开才能停止给该部件供电。 警告 此裝置連接的電源可能不只一個，必須切斷所有電源才能停止對該裝置的供電。 Warnung Dieses Gerät kann mehr als eine Stromzufuhr haben. Um sicherzustellen, dass der Einheit kein trom zugeführt wird, müssen alle Verbindungen entfernt werden.

  • Page 41: Backplane Voltage

    Chapter 4: Warning Statements for AC Systems ‫ﺍﻣﺪﺍﺩ ﺍﻟﻄﺎﻗﺔ‬ ‫ﺑﻮﺣﺪﺍﺕ‬ ‫ﻋﺪﺓ ﺍﺗﺼﺎﻻﺕ‬ ‫ﺠﻬﺎﺯ‬ ‫ﺍﻟ‬ ‫ﻳﻜﻮﻥ ﻟﻬﺬﺍ‬ ‫ﻗﺪ‬ ‫ﺍﻟﻜﻬﺮﺑﺎء‬ ‫ﻋﻦ‬ ‫ﻮﺣﺪﺓ‬ ‫ﺍﻟ‬ ‫ﻟﻌﺰﻝ‬ ‫ﻛﺎﻓﺔ ﺍﻻﺗﺼﺎﻻﺕ‬ ‫ﻳﺠﺐ ﺇﺯﺍﻟﺔ‬ Waarschuwing Deze eenheid kan meer dan één stroomtoevoeraansluiting bevatten. Alle aansluitingen dienen verwijderd te worden om het apparaat stroomloos te maken. Backplane Voltage Warning! Hazardous voltage or energy is present on the backplane when the system is...

  • Page 42: Comply With Local And National Electrical Codes

    SUPERSERVER 6027R-TRF USER'S MANUAL Attention Lorsque le système est en fonctionnement, des tensions électriques circulent sur le fond de panier. Prendre des précautions lors de la maintenance. ‫מתח בפנל האחורי‬ !‫הרה‬ ‫אז‬ ‫קיימת סכנת מתח בפנל האחורי בזמן תפעול המערכת. יש להיזהר במהלך‬...

  • Page 43: Product Disposal

    Chapter 4: Warning Statements for AC Systems ¡Advertencia! La instalacion del equipo debe cumplir con las normas de electricidad locales y nacionales.Attention L'équipement doit être installé conformément aux normes électriques nationales et locales. ‫תיאום חוקי החשמל הארצי‬ !‫אזהרה‬ ‫הציוד חייבת להיות תואמת לחוקי החשמל המקומיים והארציים‬ ‫התקנת‬...

  • Page 44: Hot Swap Fan Warning

    SUPERSERVER 6027R-TRF USER'S MANUAL Warnung Die Entsorgung dieses Produkts sollte gemäß allen Bestimmungen und Gesetzen des Landes erfolgen. ¡Advertencia! Al deshacerse por completo de este producto debe seguir todas las leyes y reglamentos nacionales. Attention La mise au rebut ou le recyclage de ce produit sont généralement soumis à des lois et/ou directives de respect de l'environnement.
  • Page 45 Chapter 4: Warning Statements for AC Systems 当您从机架移除风扇装置，风扇可能仍在转动。小心不要将手指、螺丝起子和其他 物品太靠近风扇 警告 當您從機架移除風扇裝置，風扇可能仍在轉動。小心不要將手指、螺絲起子和其他 物品太靠近風扇。 Warnung Die Lüfter drehen sich u. U. noch, wenn die Lüfterbaugruppe aus dem Chassis genommen wird. Halten Sie Finger, Schraubendreher und andere Gegenstände von den Öffnungen des Lüftergehäuses entfernt. ¡Advertencia! Los ventiladores podran dar vuelta cuando usted quite ell montaje del ventilador del chasis.

  • Page 46: Power Cable And Ac Adapter

    fi re. Electrical Appliance and Material Safety Law prohibits the use of UL or CSA -certifi ed cables (that have UL/CSA shown on the code) for any other electrical devices than products designated by Supermicro only. 警告...
  • Page 47 Appareils électroménagers et de loi sur la sécurité Matériel interdit l'utilisation de UL ou CSA câbles certifi és qui ont UL ou CSA indiqué sur le code pour tous les autres appareils électriques que les produits désignés par Supermicro seulement.
  • Page 48 Elektrisch apparaat en veiligheidsinformatiebladen wet verbiedt het gebruik van UL of CSA gecertifi ceerde kabels die UL of CSA die op de code voor andere elektrische apparaten dan de producten die door Supermicro alleen.

  • Page 49: Chapter 5 Advanced Serverboard Setup

    Chapter 5: Advanced Serverboard Setup Chapter 5 Advanced Serverboard Setup This chapter covers the steps required to install processors and heatsinks to the X9DRi-F serverboard, connect the data and power cables and install add-on cards. All serverboard jumpers and connections are described and a layout and quick reference chart are included in this chapter.

  • Page 50: Connecting Cables

    SUPERSERVER 6027R-TRF USER'S MANUAL Connecting Cables Now that the processors are installed, the next step is to connect the cables to the serverboard. These include the data (ribbon) cables for the peripherals and control panel and the power cables. Connecting Data Cables The cables used to transfer data from the peripheral devices have been carefully routed in preconfi...

  • Page 51: I/O Ports

    Chapter 5: Advanced Serverboard Setup Figure 5-1. Front Control Panel Header Pins (JF1) Ground x (key) x (key) Power LED HDD LED NIC1 NIC2 OH/Fan Fail LED Power Fail LED Ground Reset Ground Power I/O Ports The I/O ports are color coded in conformance with the PC 99 specifi cation. See Figure 5-2 below for the colors and locations of the various I/O ports.

  • Page 52: Processor And Heatsink Installation

    CPU socket cap is in place and none of the socket pins are bent; otherwise, contact your retailer immediately. Refer to the Supermicro website for updates on CPU support and memory options. Installing the LGA2011 Processor 1.
  • Page 53 Chapter 5: Advanced Serverboard Setup 2. Press the second load lever labeled 'Close 1st' to release the load plate that covers the CPU socket from its locking position. Press down on Load the Lever Pull lever away labeled 'Close 1st' from the socket 3.
  • Page 54 SUPERSERVER 6027R-TRF USER'S MANUAL 5. Use your thumb and index fi nger to hold the CPU on its edges. Align the CPU keys, which are semi-circle cutouts, against the socket keys. Socket Keys CPU Keys 6. Once they are aligned, carefully lower the CPU straight down into the socket.
  • Page 55 Chapter 5: Advanced Serverboard Setup 7. With the CPU inside the socket, inspect the four corners of the CPU to make sure that the CPU is properly installed. 8. Close the load plate with the CPU inside the socket. Lock the lever labeled 'Close 1st' fi...

  • Page 56: Installing A Passive Cpu Heatsink

    SUPERSERVER 6027R-TRF USER'S MANUAL Installing a Passive CPU Heatsink 1. Do not apply any thermal grease to the heatsink or the CPU die -- the required amount has already been applied. 2. Place the heatsink on top of the CPU so that the four mounting holes are aligned with those on the Motherboard's and the Heatsink Bracket underneath.

  • Page 57: Removing The Heatsink

    Chapter 5: Advanced Serverboard Setup Removing the Heatsink Warning: We do not recommend that the CPU or the heatsink be removed. However, if you do need to uninstall the heatsink, please follow the instructions below to uninstall the heatsink to prevent damage done to the CPU or the CPU socket. 1.

  • Page 58: Installing Memory

    SUPERSERVER 6027R-TRF USER'S MANUAL Installing Memory Caution! Exercise extreme care when installing or removing DIMM modules to prevent any possible damage. Memory Support The X9DRi-F supports up to 512 GB of DDR3 1866/1600/1333/1066/800 MHz speed registered ECC 1GB, 2GB, 4GB, 8GB, 16GB and 32GB size SDRAM in sixteen (16) DIMM slots.

  • Page 59: Dimm Module Population Confi Guration

    Chapter 5: Advanced Serverboard Setup For memory to work properly, populate according to the tables below. Processors and their Corresponding Memory Modules CPU# Corresponding DIMM Modules CPU1 P1-A1 P1-B1 P1-C1 P1-D1 P1-A2 P1-B2 P1-C2 P1-D2 CPU2 P2-E1 P2-F1 P2-G1 P2-H1 P2-E2 P2-F2 P2-G2...

  • Page 60: Adding Pci Add-On Cards

    SUPERSERVER 6027R-TRF USER'S MANUAL Note: For the memory modules to work properly, please install DIMM modules in pairs (with an even number of DIMMs installed). Note: All channels in a system will run at the fastest common frequency. Adding PCI Add-On Cards The 6027R-TRFcan accommodate six low-profi...

  • Page 61: Serverboard Details

    Chapter 5: Advanced Serverboard Setup Serverboard Details Figure 5-4. X9DRi-F Serverboard Layout (not drawn to scale) COM1 LAN2 LAN1 USB 2/3 USB 0/1 CTRL KB/Mouse CTRL IPMI_LAN FAN6 FAN5 CPU2 JITP0 C602/ CPU1 C606 FANB JSTBY1 SAS0~3 SAS4~7 FAN3 FAN2 Notes: •...
  • Page 62 SUPERSERVER 6027R-TRF USER'S MANUAL X9DRi-F Quick Reference Jumper Description Default Setting JBT1 CMOS Clear (See Section 5-9) JPB1 BMC Enabled Pins 1-2 (Enabled) JPG1 VGA Enabled Pins 1-2 (Enabled) JPL1 GLAN1/GLAN2 Enable Pins 1-2 (Enabled) JPME1 Manufacture Mode Pins 1-2 (Normal)

  • Page 63: Connector Defi Nitions

    Chapter 5: Advanced Serverboard Setup Connector Defi nitions Power Connectors ATX Power 24-pin Connector Pin Defi nitions (JPWR3) A 2 4 - p i n m a i n p o w e r s u p p l y Pin# Defi...
  • Page 64 SUPERSERVER 6027R-TRF USER'S MANUAL Reset Connector Reset Button Pin Defi nitions The reset connector is located on pins (JF1) 3 and 4 of JF1 and attaches to the Pin# Defi nition reset switch on the computer chassis. Reset See the table on the right for pin Ground defi...
  • Page 65 Chapter 5: Advanced Serverboard Setup HDD LED HDD LED Pin Defi nitions The HDD LED connection is located (JF1) on pins 13 and 14 of JF1. Attach the Pin# Defi nition hard drive LED cable here to display disk activity (for any hard drives on the HD Active system, including SAS, Serial ATA and IDE).
  • Page 66 SUPERSERVER 6027R-TRF USER'S MANUAL Universal Serial Bus (USB) FP USB (4/5, 8/9, 10/11, USB 6) Pin Defi nitions Four Universal Serial Bus ports (USB USB 4, 8,10, 6, 7 USB 5, 9, 11 0/1, USB 2/3) are located on the Pin # Defi...
  • Page 67 Chapter 5: Advanced Serverboard Setup Fan Headers Fan Header Pin Defi nitions This motherboard has eight system/ Pin# Defi nition CPU fan headers (Fan 1~Fan 6, Fan Ground A, Fan B) on the motherboard. All +12V these 4-pin fans headers are backward Tachometer compatible with the traditional 3-pin PWR Modulation...
  • Page 68 SUPERSERVER 6027R-TRF USER'S MANUAL TPM Header/Port 80 TPM/Port 80 Header Pin Defi nitions (JTPM1) A Trusted Platform Module/Port 80 Pin # Defi nition Pin # Defi nition header is located at JTPM1 to provide LCLK TPM support and Port 80 connection.
  • Page 69 Chapter 5: Advanced Serverboard Setup IPMB IPMB Header Pin Defi nitions A System Management Bus header for (JIPMB1) IPMI 2.0 is located at JIPMB1. Connect Pin# Defi nition the appropriate cable here to use the Data IPMB I C connection on your system. Ground Clock No Connection...
  • Page 70 SUPERSERVER 6027R-TRF USER'S MANUAL Legacy Wake-On-LAN Header Legacy Wake- (JSTBY) On-LAN Header Pin Defi nitions The onboard LAN ports do not need (JSTBY) a WOL header to support their Wake- Pin# Defi nition On-LAN function. Instead, the legacy +5V Standby...

  • Page 71: Jumper Settings

    Chapter 5: Advanced Serverboard Setup Jumper Settings Connector Pins Explanation of Jumpers To modify the operation of the Jumper motherboard, jumpers can be used to choose between optional settings. Jumpers create shorts between two Setting pins to change the function of the connector.
  • Page 72 SUPERSERVER 6027R-TRF USER'S MANUAL Watch Dog Enable/Disable Watch Dog Enable/Disable Jumper Settings (JWD) Watch Dog (JWD) is a system monitor Jumper Setting Defi nition that will reboot the system when a Pins 1-2 Reset software application hangs. Close Pins Pins 2-3...

  • Page 73: 5-10 Onboard Indicators

    Chapter 5: Advanced Serverboard Setup Write_Protect Enable Write_Protect Enable/Disable Jumper Settings (JWP1) Close pins 1/2 of Jumper JWP1 to Jumper Setting Defi nition enable Write_Protect support for Pins 1-2 Normal (Default) system security and data integrity. Pins 2-3 Write_Protect Enabled See the table on the right for jumper settings.

  • Page 74: 5-11 Sata Drive Connections

    SUPERSERVER 6027R-TRF USER'S MANUAL Onboard Power LED Onboard PWR LED Indicator LED Settings (LE1) An Onboard Power LED is located LED Color Defi nition at LE1 on the motherboard. When System Off (PWR cable not this LED is on, the system is on. Be...

  • Page 75: 5-12 Installing Software

    Chapter 5: Advanced Serverboard Setup 5-12 Installing Software The Supermicro ftp site contains drivers and utilities for your system at ftp://ftp. supermicro.com. Some of these must be installed, such as the chipset driver. After accessing the ftp site, go into the CDR_Images directory and locate the ISO fi...
  • Page 76 SUPERSERVER 6027R-TRF USER'S MANUAL Note: Click the icons showing a hand writing on paper to view the readme fi les for each item. Click the computer icons to the right of these items to install each item (from top to the bottom) one at a time. After installing each item, you must re-boot the system before moving on to the next item on the list.

  • Page 77: Superdoctor Iii

    Chapter 5: Advanced Serverboard Setup Figure 5-7. Supero Doctor III Interface Display Screen (Remote Control) Note: The SuperDoctor III program and User’s Manual can be downloaded from the Supermicro web site at http://www.supermicro.com/products/accessories/software/ SuperDoctorIII.cfm. For Linux, we recommend that you use the SuperDoctor II application instead.

  • Page 78: 5-13 Serverboard Battery

    SUPERSERVER 6027R-TRF USER'S MANUAL 5-13 Serverboard Battery Caution: There is a danger of explosion if the onboard battery is installed upside down, which will reverse its polarites (see Figure 5-8). This battery must be replaced only with the same or an equivalent type recommended by the manufacturer (CR2032).

  • Page 79: Chapter 6 Advanced Chassis Setup

    Chapter 6: Advanced Chassis Setup Chapter 6 Advanced Chassis Setup This chapter covers the steps required to install components and perform maintenance on the SC825TQ-R740LP chassis. For component installation, follow the steps in the order given to eliminate the most common problems encountered. If some steps are unnecessary, skip ahead to the step that follows.

  • Page 80: Control Panel

    SUPERSERVER 6027R-TRF USER'S MANUAL Figure 6-1. Front and Rear Chassis Views Fixed 3.5" Slim DVD-ROM Drive USB Ports (2) COM Port Drive Bays (2) (Optional) Control Panel SATA Drive Bays System Reset Main Power (6 Available) Hotswap IPMI LAN PCI-E Expansion Slots...

  • Page 81: Chassis Cover

    Chapter 6: Advanced Chassis Setup Chassis Cover Before operating the SC825 chassis for the fi rst time, it is important to remove the protective fi lm covering the top of the chassis, in order to allow for proper ventilation and cooling. Removing the Chassis Cover and Protective Film (Figure 6-2) 1.

  • Page 82: System Fans

    SUPERSERVER 6027R-TRF USER'S MANUAL System Fans Three 8-cm hot-swap fans provide the cooling for the system. It is very important that the chassis top cover is properly installed and making a good seal in order for the cooling air to circulate properly through the chassis and cool the components.

  • Page 83: Replacing System Fans

    <ftp://ftp.supermicro. com/driver/SAS/LSI/LSI_SAS_EmbMRAID_SWUG.pdf> and Supermicro's web site for additional inmformation < http://www.supermicro.com/support/manuals/> Warning: Enterprise level hard disk drives are recommended for use in Supermicro chassis and servers. For information on recommended HDDs, visit the Supermicro Web site at http://www.supermicro.com/products/nfo/fi les/ storage/SAS-CompList.pdf...

  • Page 84: Sata Drive Installation

    SUPERSERVER 6027R-TRF USER'S MANUAL SATA Drive Installation These drives are mounted in carriers to simplify their installation and removal from the chassis. The carriers also help promote proper airfl ow for the drives. For this reason, even empty carriers without hard drives installed must remain in the chassis.

  • Page 85: Hard Drive Backplane

    Chapter 6: Advanced Chassis Setup Figure 6-5. Removing a SATA Drive Carrier Handle Release Button Important: All of the drive carriers must remain in the drive bays to maintain proper cooling airfl ow. Hard Drive Backplane The hard drives plug into a backplane that provides power, drive ID and bus termination.

  • Page 86: Dvd-Rom Installation (Optional)

    The top cover of the chassis must be opened to gain full access to the DVD-ROM drive bay. The SuperServer 6027R-TRF accomodates only slim type DVD-ROM drives. Side mounting brackets are typically needed to mount a slim DVD-ROM drive in the server.

  • Page 87: Power Supply

    Chapter 6: Advanced Chassis Setup Power Supply The SuperServer 6027R-TRF has a 740 Watt redundant power supply consisting of two power modules. Each power supply module has an auto-switching capability, which enables it to automatically sense and operate at a 100V - 240V input voltage.
  • Page 88 SUPERSERVER 6027R-TRF USER'S MANUAL Notes 6-10...

  • Page 89: Chapter 7 Bios

    BIOS Introduction This chapter describes the AMI BIOS Setup Utility for the SuperServer 6027R-TRF. The AMI ROM BIOS is stored in a Flash EEPROM and can be easily updated. This chapter describes the basic navigation of the AMI BIOS Setup Utility setup screens.

  • Page 90: System Time/System Date

    SUPERSERVER 6027R-TRF USER'S MANUAL System Time/System Date You can edit this fi eld to change the system time and date. Highlight System Time or System Date using the <Arrow> keys. Enter new values through the keyboard. Press the <Tab> key or the <Arrow> keys to move between fi elds. The date must be entered in DAY/MM/DD/YYYY format.
  • Page 91 Chapter 7: BIOS Interrupt 19 Capture Interrupt 19 is the software interrupt that handles the boot disk function. When this item is set to Enabled, the ROM BIOS of the host adaptors will "capture" Interrupt 19 at boot and allow the drives that are attached to these host adaptors to function as bootable disks.
  • Page 92 SUPERSERVER 6027R-TRF USER'S MANUAL Socket 0 CPU Information This submenu displays the following information regarding the CPU installed in Socket 0. • Type of CPU • CPU Signature • Microcode Patch • CPU Stepping • Maximum CPU Speed • Minimum CPU Speed •...
  • Page 93 Chapter 7: BIOS Limit CPUID Maximum This feature allows the user to set the maximum CPU ID value. Enable this function to boot the legacy operating systems that cannot support processors with extended CPUID functions. The options are Enabled and Disabled (for the Windows OS).
  • Page 94 SUPERSERVER 6027R-TRF USER'S MANUAL Clock Spread Spectrum Select Enabled to enable Clock Spectrum support, which will allow the BIOS to monitor and attempt to reduce the level of Electromagnetic Interference caused by the components whenever needed. The options are Disabled and Enabled.
  • Page 95 Chapter 7: BIOS Energy Performance The options are Performance, Balanced Performance, Balanced Energy, and Energy Effi cient. Factory Long Duration Power Limit This item displays the power limit set by the manufacturer during which long duration power is maintained. Long Duration Power Limit This item displays the power limit set by the manufacturer during which long duration power is maintained.

  • Page 96: North Bridge

    SUPERSERVER 6027R-TRF USER'S MANUAL Chipset Confi guration North Bridge This feature allows the user to confi gure the settings for the Intel North Bridge. IOH (IO Hub) Confi guration Intel VT-d Select Enabled to enable Intel Virtualization Technology support for Direct I/O VT-d by reporting the I/O device assignments to the VMM (Virtual Working Memory) through the DMAR ACPI Tables.
  • Page 97 Chapter 7: BIOS enable PCI-Exp Generation 3 support for Port 1A. The options are GEN1, GEN2, and GEN3. Port 1B Link Speed Select GEN1 to enable PCI-Exp Generation 1 support for Port 1B. Select GEN2 to enable PCI-Exp Generation 2 support for Port 1B. Select GEN3 to enable PCI-Exp Generation 3 support for Port 1B.
  • Page 98 SUPERSERVER 6027R-TRF USER'S MANUAL IOU1-PCIe Port This feature allows the user to set the PCI-Exp bus speed between IOU1 and PCI-e port. The options are x4x4 and x8. Port 1A Link Speed Select GEN1 to enable PCI-Exp Generation 1 support for Port 1A. Select GEN2 to enable PCI-Exp Generation 2 support for Port 1A.
  • Page 99 Chapter 7: BIOS QPI (Quick Path Interconnect) Link Speed Mode Use this feature to select data transfer speed for QPI Link connections. The options are Fast and Slow. QPI Link Frequency Select Use this feature to select the desired QPI frequency. The options are Auto, 6.4 GT/s, 7.2 GT/s, and 8.0 GT/s.
  • Page 100 SUPERSERVER 6027R-TRF USER'S MANUAL Perfmon and DFX Devices A PerfMon device monitors the activities of a remote system such as disk usage, memory consumption, and CPU load which will allow an IT administrator to maximize the performance of each computer within the network.
  • Page 101 Chapter 7: BIOS Demand Scrub Demand Scrubbing is a process that allows the CPU to correct correctable memory errors found on a memory module. When the CPU or I/O issues a demand-read command, and the read data from memory turns out to be a correctable error, the error is corrected and sent to the requestor (the original source).

  • Page 102: South Bridge

    SUPERSERVER 6027R-TRF USER'S MANUAL South Bridge This feature allows the user to confi gure the settings for the Intel PCH chip. PCH Information This feature displays the following PCH information. • Name: This item displays the name of the PCH chip.
  • Page 103 Chapter 7: BIOS SATA Confi guration When this submenu is slected, the AMI BIOS automatically detects the presence of IDE or SATA devices and displays the following items. SATA Port0~SATA Port5 The AMI BIOS displays the status of each SATA port as detected by the BIOS. SATA Mode Use this feature to confi...
  • Page 104 SUPERSERVER 6027R-TRF USER'S MANUAL RAID Mode The following items are displayed when RAID Mode is selected: PCH RAID CodeBase Set this item to Intel or LSI to specify the codebase to be used for RAID support. The options are Intel and LSI.
  • Page 105 Chapter 7: BIOS PCI Latency Timer Use this feature to set the latency timer of each PCI device installed on a PCI bus. Select 64 to set the PCI latency to 64 PCI clock cycles. The options are 32, 64, 96, 128, 160, 192, 224, and 248.
  • Page 106 SUPERSERVER 6027R-TRF USER'S MANUAL VGA Priority Use this feature to specify which graphics controller to be used as the primary boot device. The options are Onboard and Offboard (VGA). Network Stack Select Enabled to enabel PXE (Preboot Execution Environment) or UEFI (Unifi ed Extensible Firmware Interface) for network stack support.

  • Page 107: Serial Port Console Redirection

    Chapter 7: BIOS Serial Port Console Redirection These submenus allow the user to confi gure the following Console Redirection settings for a COM Port 0 or COM Port 1 as specifi ed by the user. COM 0/COM 1 Console Redirection Select Enabled to use a COM Port selected by the user for Console Redirection.
  • Page 108 SUPERSERVER 6027R-TRF USER'S MANUAL Stop Bits A stop bit indicates the end of a serial data packet. Select 1 Stob Bit for standard serial data communication. Select 2 Stop Bits if slower devices are used. The options are 1 and 2.

  • Page 109: Acpi Settings

    Chapter 7: BIOS ACPI Settings Use this feature to confi gure Advanced Confi guration and Power Interface (ACPI) power management settings for your system. ACPI Sleep State Use this feature to select the ACPI State when the system is in sleep mode. Select S1 (CPU Stop Clock) to erase all CPU caches and stop executing instructions.

  • Page 110: Event Logs

    SUPERSERVER 6027R-TRF USER'S MANUAL TPM Active Status This item displays the status of TPM Support to indicate if TPM is currently active or deactivated. TPM Owner Status This item displays the status of TPM Ownership. Intel TXT(LT-SX) Confi guration Intel TXT (Trusted Execution Technology) helps protect against software-based attacks and ensures protection, confi...

  • Page 111: View Smbios Event Log

    Chapter 7: BIOS Change this item to enable or disable all features of the Smbios Event Logging during boot. The options are Enabled and Disabled. Erasing Settings Erase Event Log This option erases all logged events. The options are No, Yes, Next reset, and Yes, Every reset.

  • Page 112: Ipmi

    SUPERSERVER 6027R-TRF USER'S MANUAL IPMI System Event Log Enabling/Disabling Options SEL Components Select Enabled for all system event logging at bootup. The options are Enabled and Disabled. Erasing Settings Erase SEL Select 'Yes, On next reset' to erase all system event logs upon next system reboot.
  • Page 113 Chapter 7: BIOS BMC Network Confi guration LAN Channel 1: This feature allows the user to confi gure the settings for LAN Channel 1. Update IPMI LAN Confi guration This feature allows the user to decide if the BIOS should confi gure the IPMI setting at next system boot.

  • Page 114: Boot

    SUPERSERVER 6027R-TRF USER'S MANUAL Boot Boot Option Priorities Boot Option #1/ Boot Option #2/ Boot Option #3 Use this feature to specify the sequence of boot device priority. Network Device BBS Priorities, Hard Drive BBS Priorities This option sets the order of the legacy network devices and Hard Disks detected by the motherboard.

  • Page 115: Save & Exit

    Chapter 7: BIOS Save & Exit This menu allows the user to confi gure the Save and Exit settings for the system. Discard Changes and Exit Select this option to quit the BIOS Setup without making any permanent changes to the system confi guration, and reboot the computer. Select Discard Changes and Exit, and press <Enter>.
  • Page 116 SUPERSERVER 6027R-TRF USER'S MANUAL Restore User Defaults Select this feature and press <Enter> to load the user's defaults previously saved in the system. When the dialog box appears, asking you if you want to restore user's defaults, click Yes to restore the user's defaults previously saved in the system, or click No to abandon the user's defaults that were previously saved.

  • Page 117: Appendix A Bios Error Beep Codes

    Appendix A: BIOS Error Beep Codes Appendix A BIOS Error Beep Codes During the POST (Power-On Self-Test) routines, which are performed each time the system is powered on, errors may occur. Non-fatal errors are those which, in most cases, allow the system to continue the boot-up process.
  • Page 118 SUPERSERVER 6027R-TRF USER'S MANUAL Notes...

  • Page 119: Appendix B System Specifi Cations

    Appendix B: System Specifi cations Appendix B System Specifi cations Processors Dual Intel E5-2600 V2 series (Socket R LGA2011 type) processors Note: You must install at least two processors for full functions to be supported. Note: Please refer to our web site for a complete listing of supported processors. Chipset One Intel PCH C602 chipset and one Intel PCH C606 Southbridge chipset BIOS...
  • Page 120 SUPERSERVER 6027R-TRF USER'S MANUAL Serverboard X9DRi-F (ATX form factor) Dimensions: 12.00" (L) x 13.00" (W) (304.80 mm x 330.20 mm) Chassis SC825TQ-R740LP (2U rackmount) Dimensions: (WxHxD) 16.8 x 3.5 x 25.5 in. (427 x 89 x 648 mm) Weight Gross (Bare Bone): 57 lbs. (25.9 kg.)
  • Page 121 Appendix B: System Specifi cations Regulatory Compliance Electromagnetic Emissions: FCC Class A, EN 55022 Class A, EN 61000-3-2/-3- 3, CISPR 22 Class A Electromagnetic Immunity: EN 55024/CISPR 24, (EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11) Safety: CSA/EN/IEC/UL 60950-1 Compliant, UL or CSA Listed (USA and Canada), CE Marking (Europe) California Best Management Practices Regulations for Perchlorate Materials:...
  • Page 122 SUPERSERVER 6027R-TRF USER'S MANUAL (continued from front) The products sold by Supermicro are not intended for and will not be used in life support systems, medical equipment, nuclear facilities or systems, aircraft, aircraft devices, aircraft/emergency communication devices or other critical systems whose failure to perform be reasonably expected to result in signifi...

Table of Contents
