Evaluation Board User Guide
UG-383

EVALUATION BOARD SCHEMATICS

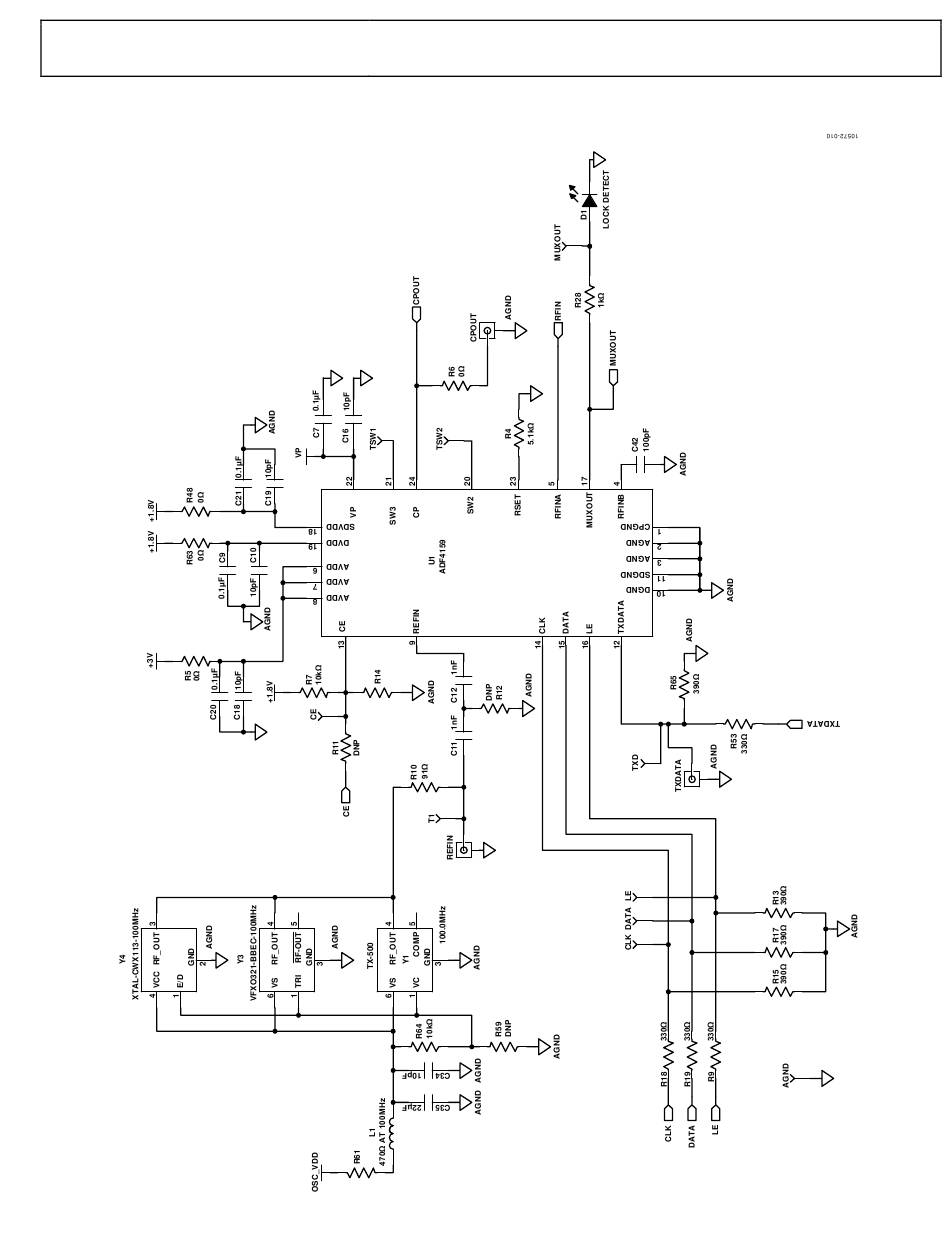

Figure 10. Evaluation Board Schematic (Page 1)
Rev. A | Page 11 of 16
