Technical Manual
X'PRESS Medical Beds
TM_XPRESS_EN
11/04/2025
WINNCARE France
- 1 -

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the X'PRESS and is the answer not in the manual?

Questions and answers

Related Manuals for Winncare X'PRESS

Summary of Contents for Winncare X'PRESS

  • Page 1 WINNCARE France Technical Manual X’PRESS Medical Beds TM_XPRESS_EN 11/04/2025 - 1 -...

  • Page 2: Table Of Contents

    WINNCARE France TABLE OF CONTENTS PREREQUISITES ..........................- 3 - TRANSPORT AND STORAGE....................... - 3 - ELECTRICAL CHARACTERISTICS ....................... - 3 - Electrical data ........................... - 3 - Electromagnetic compatibility ......................- 4 - Equipotentiality ..........................- 6 - TECHNICAL CHARACTERISTICS ......................- 6 - Noise ..............................

  • Page 3: Prerequisites

    Specific to the X'PRESS XXL bed: The support leg and transport kit can only be removed if the bed is resting on its wheels on the floor. The support leg must be refitted to the transport kit when the bed is being transported.

  • Page 4: Electromagnetic Compatibility

    WINNCARE France Precaution: When use of an adaptor, extension lead or connection plug proves necessary, you must check that its characteristics are suitable for the bed. Connection to the supply box must be done using a main complying with the standards in force and corresponding to a voltage of use indicated on the device.
  • Page 5 WINNCARE France EN 61000-4-2 3 V/m 3 V/m Radiated RF 80Mhz – 2,7Ghz 80Mhz – 2,7Ghz EN 61000-4-3 80% AM at 1kHz 80% AM at 1kHz Proximity fields from RF wireless communication See table below See table below equipment EN 610004-3 ...

  • Page 6: Equipotentiality

    3746 is 49 dB(A). – U RECAUTION SE OF A PATIENT LIFT DINING TABLE WINNCARE France recommends the use of a patient lift, or a dining table bases with less than 12,5 cm high. LECTRICAL COMPONENTS • X’PRESS 90 Protection...
  • Page 7 WINNCARE France LINAK actuator LA27 IP66 24 VDC Wired control HB7x IP66 24 VDC Lockable and blacklist wired control HB02 IP66 24 VDC Lockable wired control HL7x IP54 24 VDC Infrared control HB23 IP21* 3 VDC *IP21 = keep dry •...

  • Page 8: Compatible Mattresses

    WINNCARE France Protection against water intrusion: Protected against strong water jets from all directions at the lance (6.3 mm nozzle, distance 2.5 m to 3 m, flow 12.5 L/min ± 5%). IP21: Protection against solids: Protected against solid bodies greater than 12.5 mm, Protection against water intrusion: Protected against vertical drops of water drops.

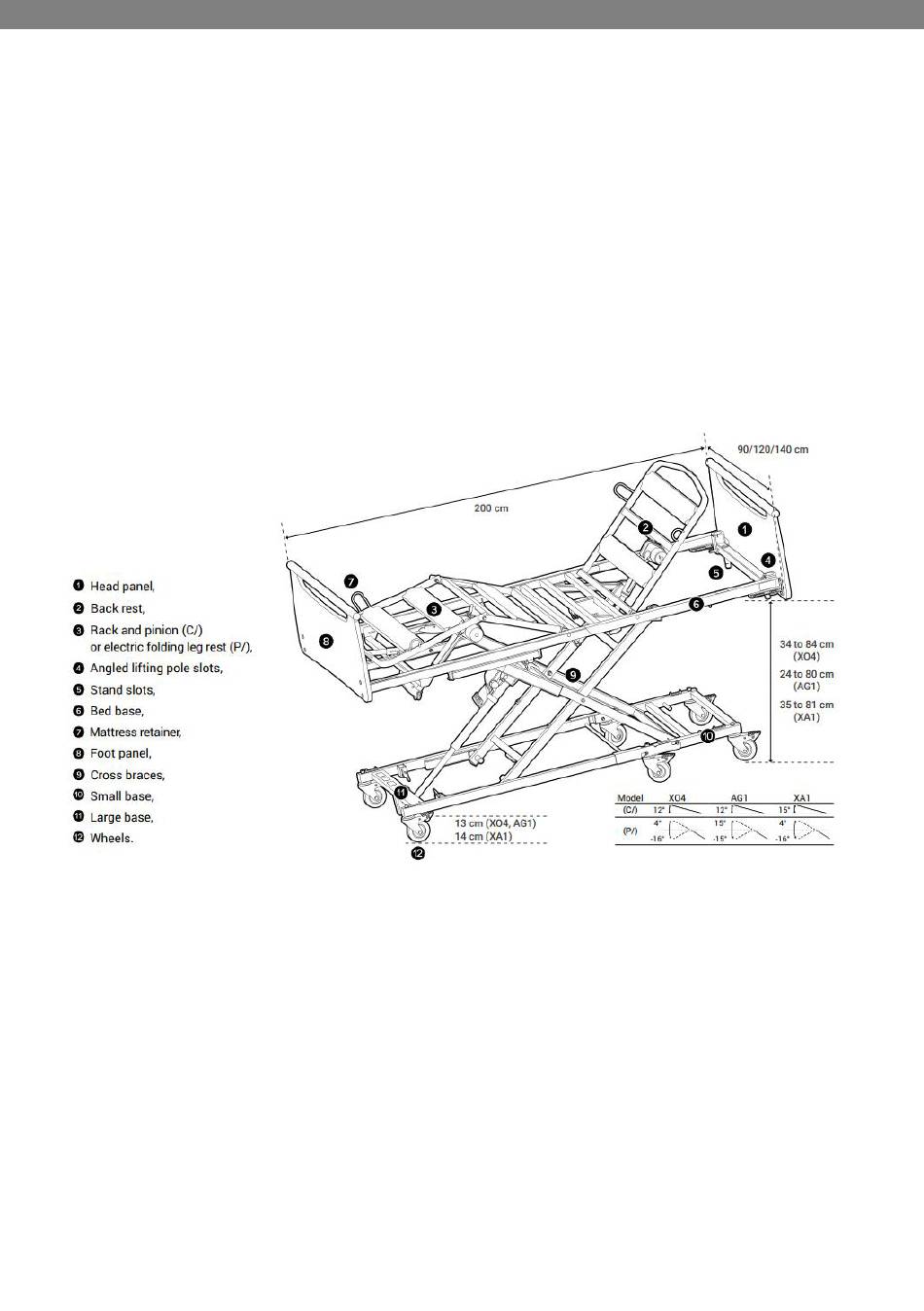

  • Page 9: X'press 90 Or X'press Low Or Xxl X'press

    WINNCARE France X’PRESS 90 X’PRESS LOW XXL X’PRESS XXL X’PRESS - 9 -...

  • Page 10: Remote Control X'press

    PTION NFRARED REMOTE CONTROL When using infrared remote control(s), WINNCARE France authorizes the installation of only one bed in the same room (or in a close environment) or a second bed only if the infrared options of the 2 beds concerned are different.

  • Page 11: Assembly And Dismantling

    WINNCARE France ASSEMBLY AND DISMANTLING - X’PRESS 90 SSEMBLY Loosen the grip (2), remove the screw (3), the boards (4) and the lifting pole (5). - 11 -...
  • Page 12 WINNCARE France Remove the side rails (depending on storage mode). Side rails stored sideways Side rails stored frontally - 12 -...
  • Page 13 WINNCARE France X’PRESS 90 medical bed assembly - 13 -...
  • Page 14 WINNCARE France - 14 -...
  • Page 15 WINNCARE France - 15 -...
  • Page 16 WINNCARE France - 16 -...
  • Page 17 WINNCARE France - 17 -...

  • Page 18: Dismantling - X'press 90

    A692-00 – X’PRESS 90 SSEMBLY DISMANTLING OF BARRIERS WITH KIT Refer to the instructions for use (reference 580325) of the barrier fixing kit to ensure correct positioning of the barriers on the X'PRESS bed. The kit reference is: A692-00. - 18 -...

  • Page 19: Assembly - X'press Low

    WINNCARE France – X’PRESS LOW SSEMBLY Remove the side rails - 19 -...
  • Page 20 WINNCARE France - 20 -...
  • Page 21 WINNCARE France - 21 -...
  • Page 22 WINNCARE France - 22 -...
  • Page 23 WINNCARE France - 23 -...
  • Page 24 WINNCARE France - 24 -...
  • Page 25 WINNCARE France - 25 -...
  • Page 26 WINNCARE France - 26 -...

  • Page 27: Dismantling - X'press Low

    WINNCARE France – X’PRESS LOW ISMANTLING Repeat the operations in the reverse order 10; 9; 8; 7; 6 et 5. - 27 -...
  • Page 28 WINNCARE France - 28 -...
  • Page 29 WINNCARE France Finish by repeating operations 2 and 1 in the reverse. - 29 -...

  • Page 30: Dismantling The Lifting System (Scissors) - X'press Low

    WINNCARE France ) – X’PRESS LOW ISMANTLING THE LIFTING SYSTEM SCISSORS - 30 -...
  • Page 31 WINNCARE France - 31 -...
  • Page 32 WINNCARE France - 32 -...

  • Page 33: Reassembly The Lifting System (Scissors) - X'press Low

    WINNCARE France ) – X’PRESS LOW EASSEMBLY THE LIFTING SYSTEM SCISSORS To reassemble, proceed in the reverse order. – XXL X’PRESS SSEMBLY - 33 -...
  • Page 34 WINNCARE France - 34 -...
  • Page 35 WINNCARE France - 35 -...
  • Page 36 WINNCARE France - 36 -...
  • Page 37 WINNCARE France - 37 -...
  • Page 38 WINNCARE France - 38 -...
  • Page 39 WINNCARE France - 39 -...

  • Page 40: Dismantling - Xxl X'press

    WINNCARE France – XXL X’PRESS ISMANTLING Repeat the operations in the reverse order 10; 9; 8; 7; 6 and 5. - 40 -...
  • Page 41 WINNCARE France - 41 -...

  • Page 42: Installing Accessories And Special Features

    WINNCARE France INSTALLING ACCESSORIES AND SPECIAL FEATURES , SAM, ARRIERS AND ACCESSORIES Please refer to the instruction for use for these products. NGLE LIFTING POLE AND STAND If an angled lifting pole is used, ensure there is sufficient headroom. In case of psycho-behavioural problems of the patient, it is necessary to fix the stem to the bed with the screw and the washer provided.

  • Page 43: Power Supply Unit Initialization

    WINNCARE France ➢ Maintenance The recommended lifetime of the stem handle is influenced by many factors, such as temperature, humidity, UV radiation, contact with chemical substances, stress, etc. Careless handling can also cause premature wear and ageing of the plastics and/or the textile strap, without the manufacturer having any direct influence on this.

  • Page 44: Troubleshooting Guide

    WINNCARE France TROUBLESHOOTING GUIDE DEFAULT POSSIBLE CASE HELP The bed is not electrically Check the electrical connection powered (Green power LED on control box) The remote control is fully Unlock the remote control locked Remove the rear cover The infrared remote control...
  • Page 45 WINNCARE France is pressed on the remote control A long and discontinuous beep The bed is no longer braked is emitted when the Press down on the variable height to remove (position on wheels, normal bed is in the high...

  • Page 46: Maintenance

    WINNCARE France MAINTENANCE Warning: No maintenance should be done in the presence of a patient on the bed. DENTIFICATION The bed is a medical device, and as such we inform you that it must not be modified under any circumstances. We recommend that you ensure its traceability, including that of the bed panels and its accessories.

  • Page 47: Instructions For Dismantling The Motors

    WINNCARE France Range name Color code Commercial reference Serial number UDI-DI Data matrix Date of manufacture In order to guarantee the traceability of our medical beds, the removable sub-assemblies are marked with the product name and manufacturer's address, the bed reference and any other means of traceability.

  • Page 48: Maintenance

    WINNCARE France AINTENANCE Quality control of medical beds and its accessories will be made by technical staff or trained biomedical and taking into account the normal conditions of use specified in the user guide. The bed must be available to perform all quality control at least once a year, but also on special request and corrective maintenance on the performance that could be affected by the intervention.

  • Page 49: Medical Beds Control Sheet

    WINNCARE France EDICAL BEDS CONTROL SHEET - 49 -...

  • Page 50: Cleaning And Disinfection

    Cleaning in a washing tunnel is permitted provided that all electrical connections are plugged. To allow the water to drain away, return the bed to the ergonomic assembly position (see step 6 of assembling the X'PRESS 90 bed in this technical manual). The medical bed is a non-critical appliance requiring “Low Level” disinfection.

  • Page 51: Scrapping

    WINNCARE France at n ° +33 (0)4.66.02.15.15. WINNCARE France also encourages you to limit the possible effects of waste on the environment and public health in all other countries, by complying with local selective sorting laws, separating waste from Electrical and Electronic Equipment (EEE), as well as batteries and accumulators.

  • Page 52: Spare Parts

    WINNCARE France SPARE PARTS A list of spare parts is available from WINNCARE France after-sales service: Mail: sav@winncare.fr WARRANTY All of our products carry a warranty against any manufacturing defect, provided the normal conditions for use and maintenance are complied with.
  • Page 53 WINNCARE France 4, Le Pas du Château 85670 SAINT-PAUL-MONT-PENIT FRANCE WINNCARE France 4, Le Pas du Château 85670 SAINT-PAUL-MONT-PENIT FRANCE Tél. : +33 (0)4.66.02.15.15 Fax. : +33 (0)4.66.02.15.00 Email: contact@winncare.fr www.winncare.com...
