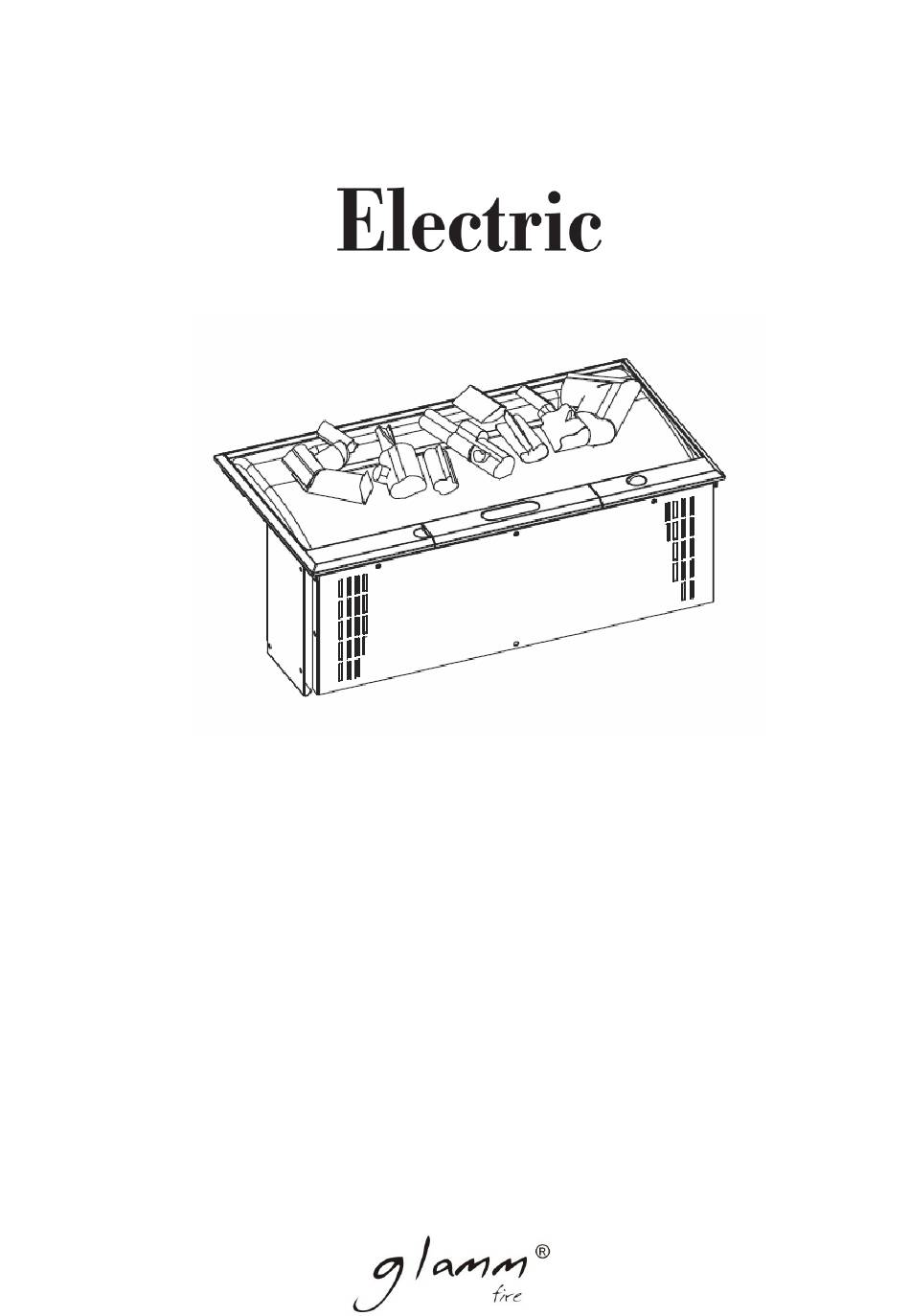

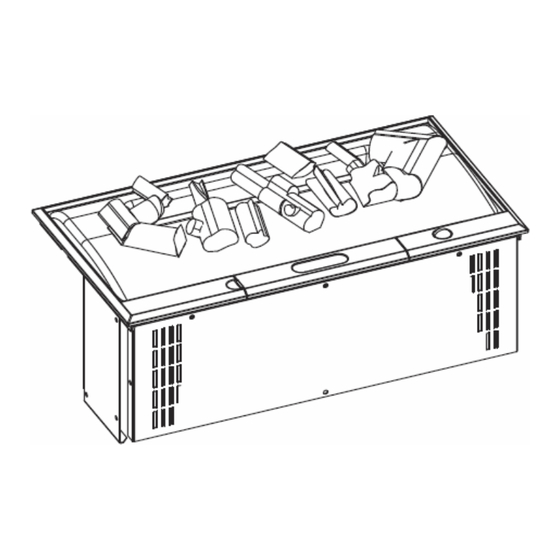

KIT Glamm 3D / 3D S / 3D II
Capacity
1,1 litters ( filtered water )
Autonomy
8 hours
Voltage
220/240 V
Frequency
50 Hz
Lamps
4 x 50W Xenon Amber
The product complies with the European Safety Standards EN60335-2-30 and the European Standard Electromagnetic
Compatibility (EMC) EN55014, EN60555-2 and EN60555-3 These cover the essential requirements of EEC Directives
2006/95/EC and 2004/108/EC
Advertisement
Table of Contents
Related Manuals for GlammFire KIT Glamm 3D
Summary of Contents for GlammFire KIT Glamm 3D
- Page 1 KIT Glamm 3D / 3D S / 3D II Capacity 1,1 litters ( filtered water ) Autonomy 8 hours Voltage 220/240 V Frequency 50 Hz Lamps 4 x 50W Xenon Amber The product complies with the European Safety Standards EN60335-2-30 and the European Standard Electromagnetic...
-
Page 3: Table Of Contents
GlammFire. PAG./3 INDEX 1—Components 2—Important Safety Advice 2.1—Warning 2.2—Damage 2.3—Location 2.4— Plug Position 2.5— Unplugging 2.6— Owner/User 2.7— Electricity 3—General Information 4—Installation Instructions 4.1—Before You Start 4.2—Installation 5—Operating the Fire 5.1—Manual Controls 5.2—Remote Control 6—Maintenance 6.1—General Tips 6.2—Filling The Water Tank 6.3—Changing Lamps... - Page 5 GlammFire. PAG./5...
- Page 7 GlammFire. PAG./7...
-
Page 8: 1-Components
Congratulations on purchasing your GlammFire Electric appliance. This quality product has been designed with preci- sion and rigour that characterizes us to offer you pleasant and soothing moments. Please read the instructions for use carefully and effective before using the appliance. -
Page 9: 2-Important Safety Advice
GlammFire. PAG./9 2—Important Safety Advice When using electrical appliances, basic precautions should always be followed to reduce the risk of fi re, electrical shock and injury to persons, including the following: 2.1—Warning Do not place material or garments on, or obstruct the air circulation around the appliance. The appliance carries the Warning symbol indicating that it must not be covered. -
Page 10: 3-General Information
3—General Information Only use filtered water in this appliance. This model is designed to be free standing and is normally positioned near a wall. Always ensure that the appliance is sitting on a level surface. Please note: Used in an environment where background noise is very low, it may be possible to hear a sound which is related to the operation of the flame effect. - Page 11 Plug the power cable into a 13amp/240volt outlet. The appliance is now ready for use. 14. Installation dimensions. Model Kit Glamm 3D 209 mm 171 mm 396 mm Kit Glamm 3D S 209 mm 171 mm 396 mm Kit Glamm 3D II 209 mm 171 mm 555 mm...
-
Page 12: 5-Operating The Fire
5—Operating the Fire 5.1—Manual Controls The manual controls are located beneath the hinged flap. (See Fig. 2 for Manual Control lay out). Controls the power supply to the Fire. Note: This switch must be in the “ON” (I) position for the Fire to operate. Press once to turn on the flame effect. -
Page 13: Remote Control
GlammFire. PAG./ 5.2—Remote Control The remote sensor. Fig. 17 Fig. 12 On the control panel, Switch “A” (see Fig. 2) must be in the “ON” (I) position in order for the remote control to oper- ate. There are 3 buttons on the remote control. (See Fig. 2). -
Page 14: 6-Maintenance
6—Maintenance 6.1—General Tips Only use filtered tap water in this appliance. Always ensure that the appliance is sitting on a level surface. If you intend not using the appliance for longer than 2 weeks, remove and empty the sump and water tank. Once installed, never move this appliance or lay on its back, without draining the water from sump and water tank. -
Page 15: Cleaning
GlammFire. PAG./ 6. Remove the defective lamp, by gently lifting vertically and disengaging the pins from the lamp holder, (See Fig.4 and 4a). Replace with a Xenon Amber, 12V, 45W, Gu5.3 base, 8º beam angle, coloured lamp. 7. Carefully insert the two pins of the new lamp into the two holes in the lamp holder. Push firmly in place. (See Fig.4 and 4a). -
Page 16: 3-Air Filter
12. Reverse the above steps to reassemble. 6.4.3—Air Filter 1. Gently lift out the fuelbed and place carefully on the ground. 2. Gently slide the air filter upwards out of its plastic holder. (See Fig.16) 3. Gently rinse with water in the sink and dry with fabric towel before returning. 4. -
Page 17: 7-Troubleshooting
GlammFire. PAG./ 7—Troubleshooting Symptom Cause Corrective Action The flame effect will not Mains plug is not plugged in. Check plug is connected to wall socket correctly start. Low water level. Check that the water tank is full and there is water in the sump. -
Page 18: 8-Overall Dimensions
8—Overall Dimensions Model Weight Kit Glamm 3D 405 mm 350 mm 216 mm 4 kg Kit Glamm 3D S 405 mm 179 mm 216 mm 4 kg Kit Glamm 3D II 564 mm 340 mm 216 mm 6 kg... - Page 19 GlammFire. PAG./ Equipment Guarantee beneficiary Version Address Controller Tel. Availability date Local…………………………………………..Date…………………….. Signature Series and Guarantee numbers Distributor code Name and Address of the Distributor Guarantee This Electric Appliance carries a guarantee against defects of manufacture and faulty workmanship for a period of 2 years from the date of purchase.
- Page 20 Recuperadores Pachinha Lda. Zona Industrial da Lagoa, Lote G1 4950-850 CORTES - MONÇÃO PORTUGAL Tel(+351) 251 654 800 Fax(+351) 251 654 801 info@glammfire.com www.glammfire.com PT04253-F...
