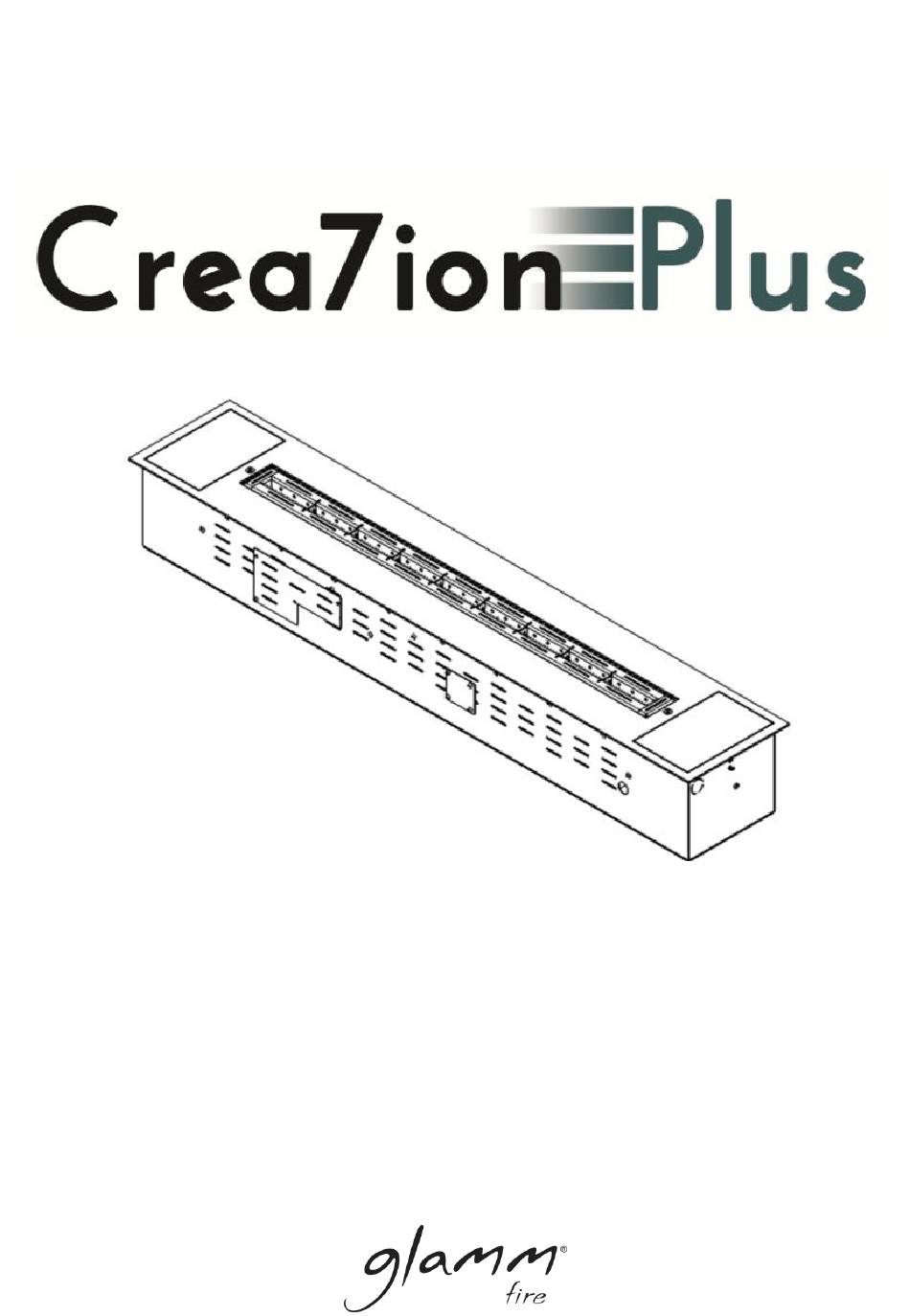

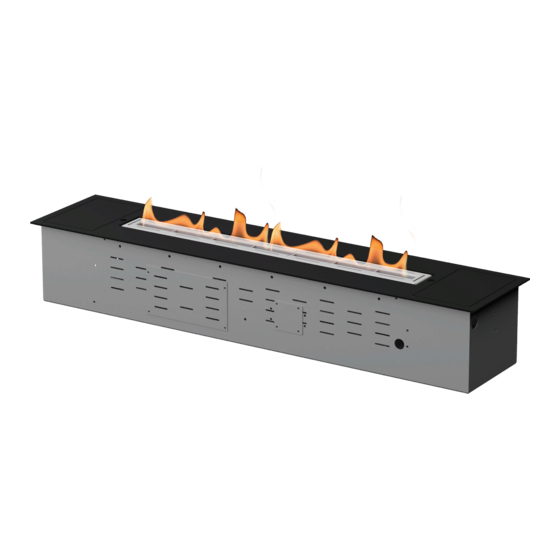

  • Page 1 INSTRUCTIONS MANUAL Crea7ionEVO PLUS...
  • Page 2 GlammFire. PAG./2 Thank you for purchasing a GlammFire product. In order to activate your 2-year GlammFire warranty, please register your GlammFire product at www.glammfire.com/pt/sobre/garantia or complete your warranty card and send it to us along with a purchase copy, to our address, within 30 days after the purchase.

  • Page 3: Table Of Contents

    GlammFire. PAG./3 ÍNDEX 1—Material Supplied 2—Components 3—Safety Instructions 3.1—Ventilation 3.2—Cautions 4—Fuel 4.1—Bioetanol – The adequate fuel 5—Installation 5.1—Flammable material 5.2—Materials: stone/metal/ceramics 5.3—Dimensions 5.4—Installation Procedures 5.5—Levelling of combustion fire line 5.6—Filling system 5.6.1—Local filling system 5.6.2—Displaced filling system (Option) 5.7—Home Automation (Option) 5.8—Burner support with protection glasses (Option)

  • Page 4: 1-Material Supplied

    GlammFire. PAG./4 Please read this Instruction Manual carefully before using your decorative fireplace. It contains important operating and maintenance instructions, that should be followed correctly, in order to ensure a durable use of your decorative fireplace. All presented cautions and warnings must be respected.

  • Page 5: 3-Safety Instructions

    3.2—Cautions: GlammFire is concerned about your safety, therefore we have taken all necessary consideration for conception, fabri- cation, assembly and transport, to ensure perfect functioning. We therefore ask you to thoroughly follow our instructions for assembly, use and maintenance.
  • Page 6 GlammFire. PAG./6 Do not use water to extinguish the fire;  Do not use chemical products to clean the fireplace, as they may damage the materials. When in doubt contact an  authorized dealer; After flame cutting may remain small residual flames at the point of fuel inlet for approximately 2 to 10 minutes. At ...

  • Page 7: 4-Fuel

    4—Fuel 4.1—Bioethanol – The adequate fuel GlammFire fireplaces are designed to work with quality bioethanol liquid with a minimum of 96% suitable for  fireplaces, fully tested. Only this fuel ensures a clean and efficient combustion. Fuel with less or inappropriate quality may lead to: Higher probability of malfunction;...

  • Page 8: 5-Installation

    GlammFire. PAG./8 5—Installation 5.1—Flammable materials Do not place flammable materials near the fireplace, within 1m;  Racks or shelves should be distant 1m from the combustion fire line;  5.2—Materials: stone/metal/ceramics A - 100 mm;  B - 100 mm;...

  • Page 9: Dimensions

    GlammFire. PAG./9 5.3—Dimensions: The surface which you want to install the combustion fire must be as level as possible;  Necessary dimensions for the built-in hole: Crea7ionEVO PLUS Length (D) Width (E) Height (F) 746mm 190mm >170mm 935mm 190mm >170mm...
  • Page 10 GlammFire. PAG./10 If you want to put the Crea7ionEVO PLUS faced on the surface, in which it will be built-in, use the following dimen- sions: Crea7ionEVO PLUS Length (D) Width (E) Height (F) 770mm 214mm 160mm 959mm 214mm 160mm 1170mm...

  • Page 11: Installation Procedures

    GlammFire. PAG./11 5.4—Installation Procedures Very Important: We recommend extreme caution when unpacking your fireplace. The Crea7ionEVO PLUS is supplied with two metallic handles which facilitate handling during installation. To proceed with the installation of handles, disconnect the system from the power supply sources, open the doors and fit the handles in the indicated areas.

  • Page 12: Levelling Of Combustion Fire Line

    GlammFire. PAG./12 5.5—Levelling of combustion fire line If after having the burner working for more than 20 minutes in order to stabilize the flame, it still does not fill the combustion line as a whole, it must be leveled. When installing the Crea7ionEVO PLUS, level the combustion fire line, using the supplied Hex Key Nº4 (G) and the screws (H).
  • Page 13 GlammFire. PAG./13 In case of installation of Crea7ion Evo Plus, please note the details below. f there is an air / chimney extraction it must be closed Figure 3—Installation with superior extraction of air Ventilation must be performed from the bottom up in the Crea7ion Evo Plus (Figure 4) as the air must enter the burner's safety box and exit by the combustion zone, thus allowing perfect combustion and operation.
  • Page 14 GlammFire. PAG./14 If this situation is not foreseen and there is a higher air extraction at the place of installation, it must be closed otherwise this will cause an abnormal return of the flame as the air flow is performing the reverse course to the correct and normal operation of the burner, as previously mentioned.
  • Page 15 GlammFire. PAG./15 In order to avoid this problem a physical barrier must be created to prevent extraction. (Figure 7) Physical barrier for perfect functioning Figure 7-Physical barrier for perfect functioning...
  • Page 16 GlammFire. PAG./16 A correct installation when there is an extraction has to be carried out with a physical barrier in order to verify the air flows of Figure 8. Figure 8—Correct installation The installation should be preferably carried out according to Figure 9.

  • Page 17: Filling System

    GlammFire. PAG./17 5.6—Filling system (Option) 5.6.1—Local filling system If your Crea7ionEVO PLUS has a local filling system, please follow the following steps to install it correctly: Attach the hose provided (Figura 4) in the quick coupler, located next to the tank(Figura 11).

  • Page 18: 2-Displaced Filling System (Option)

    PAG./18 5.6.2—Displaced filling system If your Crea7ionEVO PLUS has a displaced filling system, please follow the following steps to install it correctly: Note: GlammFire recommends the utilization of 20 litres deposit. Material provided: -Technical box with displaced filling pump; -Pipe 10m (hose, electronic cable);...
  • Page 19 GlammFire. PAG./19 Pass the hose and the electronic cable through the hole in the box and connect them in the respective orifices, located near the tank(Figura 13). Figura 13—Hose (ou pipe) and Cable Connection Attach the hose to the available connection in the pump displaced filling system, using the serrated clamp provided (Figura 8).
  • Page 20 GlammFire. PAG./20 Attach the 1,50m hose provided to the filter, using the serrated clamps(Figura 16). Figura 16—Connecting the filter to the hose Connect the hose to the quick coupling of the tank stopper, which can be placed in the tank(Figura 17).

  • Page 21: Home Automation (Option)

    GlammFire. PAG./21 5.7—Home Automation (Option) The Crea7ionEVO PLUS is equipped with a plug intended for the home automation connection (Figure 19) which must be carried out by a qualified technician. This option allows the burner to be switched on or off through the system installed in the room.
  • Page 22 GlammFire. PAG./22 To connect to the home automation system, unscrew the four screws from the technical box and remove the existing protective cover (Figure 14). Figura 14—Box opening to access home automation...
  • Page 23 GlammFire. PAG./23 To connect the electric wires slide easy connection of the burner plug, insert the electric wire and release the connec- tion (Figure 21). Electric wire insertion holes Figura 21—Identification of connectors Easy connection for electrical wiring...
  • Page 24 The device will only be able to receive the proper pulses to switch it on / off this way. Note: This functionality must be used with responsibility and supervision. GlammFire is not responsible for incidents inherent to the connection to home automation.

  • Page 25: Burner Support With Protection Glasses (Option)

    GlammFire. PAG./25 5.8-Burner support with protection glasses (Option) In order to make an easy and convenient installation, the option "Burner support with safety glasses" is available for all dimensions of the Evo Plus burner (Figure 23). Figure 23—Burner support with protection glasses (Option) Note: Due to the dimensions of the burner frames from the Evo Plus 800, they will be shipped disassembled.
  • Page 26 GlammFire. PAG./26 Crea7ionEvo Plus Length (DD) Width (EE) Height (FF) 903mm 1091,5mm 1303mm 1200 1703,5mm 337mm >170mm 1600 2104mm 2000 2509mm 2400 2907mm Place the support on the hole (Figure 26). — Figure 26 Burner support placed...
  • Page 27 GlammFire. PAG./27 Then insert the burner (Figure 20). Figure 27—Placing the burner To finish the installation place the supplied protection glasses (Figure 28). Unscrew the glass supports, insert the glasses and screw again. Figure 28—Installation protection glasses...
  • Page 28 GlammFire. PAG./28 Installation complete (Figure 29). Figure 29—Installation protection glasses...

  • Page 29: Verre Frontal (Option)

    GlammFire. PAG./29 5.9—Frontal Glass (Option) NOTE: This option is only available for burners purchased with the frontal glass option at the time of purchase. Installation of the frontal glass To install the protection glass on the Crea7ionEvo Plus burner, it is necessary to unscrew the screws of the glass sup- port.
  • Page 30 GlammFire. PAG./30 Figure 32 - Final stage of installation of the frontal glass (tighten the supports) Figure 33 - Frontal glass placed...
  • Page 31 GlammFire. PAG./31 Frontal glass option on each model Each Crea7ion EVOPlus burner has one or more assigned glasses as well as two or more glass supports. Refer to the following table for quantities and dimensions. Crea7ion Frontal Glass Glass dimension...
  • Page 32 GlammFire. PAG./32 Crea7ion EVOPlus 1200 | 1600 Crea7ion EVOPlus 2000| 2400...

  • Page 33: 6-Operation Instructions

    GlammFire. PAG./33 6—Operation 6.1—Functions—Buttons I - Turn on O - Turn off + - Maximum - - Minimum Display I - Turn on O - Turn off I + O - (two bips) - from Min. Max. or vice versa...
  • Page 34 GlammFire. PAG./34 Before connecting the Crea7ionEVO PLUS, you should select the power supply source—battery or electric current. To do it, select desired option using the ON/OFF/ON button, as shown in Figure 30. I - Electric current O - OFF (without power supply) II - Battery Figura 34—ON/OFF/ON Button...
  • Page 35 GlammFire. PAG./35 If you use the Crea7ionEVO PLUS connected to the electric current, do not forget to connect the AC adapter we pro- vide you, along with your Crea7ionEVO PLUS, in the proper input plug (I), situated on the left side of the system.

  • Page 36: Language Selection

    GlammFire. PAG./36 6.2—Language Selection Language selection can only be achieved with the “ON/OFF/ ON” button in the "OFF" position. Pressing the ON and OFF buttons ("I" + "O") on the display, choose the power supply on the "ON/ OFF/ ON" button.

  • Page 37: Turn On

    GlammFire. PAG./37 6.4—Turn on After selecting the power supply source, the system turns on, appearing immediately the following information on the display: “Start” “Bt □” - battery charge status “Et □” - Bioethanol level Next, click on the "ON" button on the display / remote control for 2 seconds.

  • Page 38: Out Of Fuel

    GlammFire. PAG./38 6.5—Out of fuel When connecting the Crea7ionEVO PLUS, and it does not have bioethanol in the tank, the following information will appear on the display: “Start” “Bt □” - battery charge status “Et □” - Bioethanol level Next, click on the "ON" button on the display / remote control for 2 seconds.

  • Page 39: Turn Off

    GlammFire. PAG./39 6.6—Turn off The Crea7ionEVO PLUS can be turned off at any time. To do it, click on the "OFF" button on the display / remote con- trol. Then, the following information appears on the display: 1. “Ignition Stopped”...

  • Page 40: Battery Charging

    GlammFire. PAG./40 6.8—Battery charging When charging the battery, you should follow the following process: • Disconnect the system battery connector, located next to the “ON/OFF/ON” button (Figure 32). • Remove the battery. • Connect the battery connector to the charger, as shown in Figure 33.

  • Page 41: Leak Detection System

    GlammFire. PAG./41 7.1—Leak detection system The Crea7ionEVO PLUS has two leak detection sensors which are located on the combustion fire line safety box and system safety box. Thus, if there is some kind of leak or fuel/ liquid spill on top of Crea7ionEVO PLUS, the system turns off, visualizing immediately the error message "Ethanol Leaking"...

  • Page 42: Smothering The Combustion Fire Line

    GlammFire. PAG./42 7.4—Smothering the combustion fire line The system gives the error message "Error Fire Out" and turns off immediately if it is smothered by something. 7.5—Tank filter The Crea7ionEVO PLUS’s tank has a filter (Figure 21) that should be cleaned each month of use. This filter prevents the entry of unwanted waste into the system.
  • Page 43 GlammFire. PAG./43 8—Display messages All error messages that may appear on the display are listed in the table below. INFORMATION CAUSE PROCEDURE DISPLAYED Burner Is The combustion fire line is at a Wait about 5 – 10 minutes until temperature above the safety the combustion fire line has value.
  • Page 44 GlammFire. PAG./44 INFORMATION CAUSE PROCEDURE DISPLAYED Tank The bioethanol is below the mini- Filling the tank if you want to turn Empty mum level. the system on again. Otherwise, turn it off using the ON/OFF/ON button, in order to save energy.
  • Page 45 GlammFire. PAG./45 INFORMATION CAUSE PROCEDURE DISPLAYED Time Exc Lack of bioethanol in the combus- Tubing clogged with anomaly. Sens Max tion line; Fault in the ethanol supply pump. Maximum level probe with anom- Contact a specialist. aly; Ign. Time Exceeded the time of ignition.
  • Page 46 GlammFire. PAG./46 INFORMATION CAUSE PROCEDURE DISPLAYED Error Sens Maximum Short circuit of the low level Ensure that the probe is against probe. the combustion fire line. Please always contact a qualified technician. Err Sens Leakage Short circuit of the leakage probe. Ensure that the probe is against the combustion fire line.
  • Page 47 GlammFire. PAG./47 INFORMATION CAUSE PROCEDURE DISPLAYED High Voltage! Battery or charger with high volt- Check if the battery or charger are age. suitable for the Crea7ionEVO PLUS. Fire Stopped The ignition process has been in- The system returns to standby terrupted by the user.

  • Page 48: 8-Display Messages

    GlammFire. PAG./48 9—Maintenance The combustion fire line should be cleaned regularly using a damp cloth with bioethanol;  The more persistent marks can be removed using a soft cloth moistened in bioethanol;  Never use chemicals not suitable for cleaning stainless steel;...

  • Page 49: 11-Especifications

    GlammFire. PAG./49 11—Specifications Note: The "recommended minimum area" is considered for spaces with a height of 2.70m. 12—Dimensions of the option burner support with protection glasses...

  • Page 50: 13-After-Sales Service

    In case of doubt or any anomaly, do not use the fireplace and please contact a specialized technician. 14– Warranty In order to activate your GlammFire 2 year warranty, please register your new GlammFire product at www.glammfire.com/en/about/warranty complete your warranty card and return it to us, along with a copy of the proof of purchase, at our address within 30 days of purchase.
  • Page 51 Name and Address of the Distributor The GlammFire is always concerned with the environment. This is reflected when the projection of their products and their packaging. Focusing on the reduction of energy consumption, raw materials, natural resources and quantity of waste generated, GlammFire follows the policy of the 4R's (Reduce, Reuse, Recycle and Recover).
  • Page 52 Recuperadores Pachinha Lda. Zona Industrial da Lagoa, Lote G1 4950-850 CORTES - MONÇÃO PORTUGAL Tel(+351) 251 654 800 Fax(+351) 251 654 801 info@glammfire.com www.glammfire.com PT10323-I...
