Low Power Option (Xxl) With Embedded Battery Cable (Eb); Low Power Option (Xxl) With Power Ready Cable (No Eb Option); Figure 2: Xxl Option Cable Configurations; Table 3: Battery Specifications For Eb Cable - Encoder A36R Technical Reference Manual

Model A36R

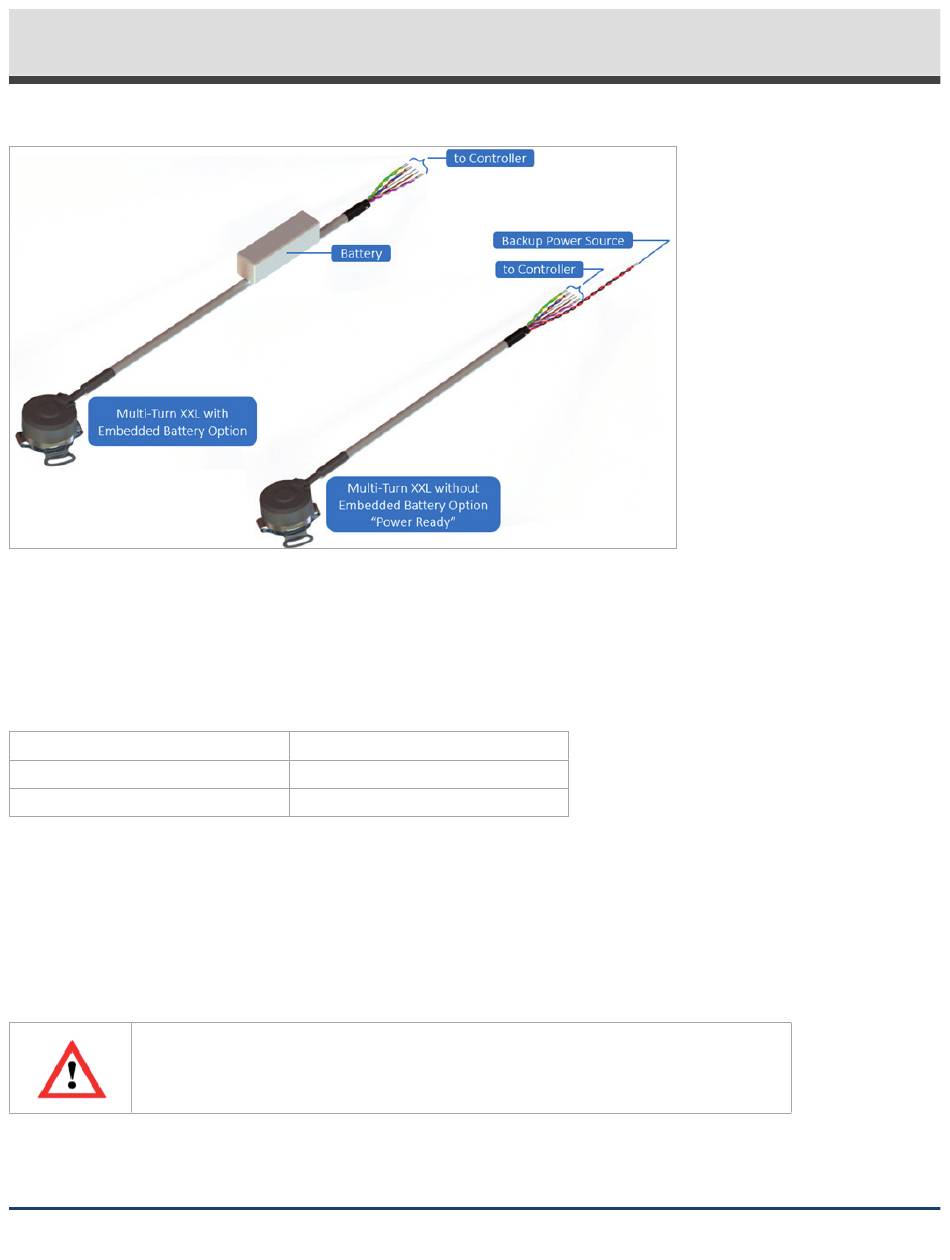

Figure 2: XXL option cable configurations

4.3.1 Low Power Option (XXL) with Embedded Battery Cable (EB)

The embedded battery cable option is ready to use upon receipt. This solution uses a Tadiran TL-5242/W battery with the
following specifications:
Nominal capacity @ 1mA, to 2V
Rated voltage
Operating temperature
WARNING: Min/max operating temperatures for the battery may differ from the encoder. Each component shall not exceed its
respective operating temperature.

Table 3: Battery specifications for EB cable

4.3.2 Low Power Option (XXL) with Power Ready Cable (no EB option)

Important: To avoid a battery error, the battery or external power source must be
connected BEFORE +VDC is applied. This applies during initial installation and backup
power source replacement. See Section 5 for detailed instructions on installation of
backup power source.
