GTD-1400 II PROFILE

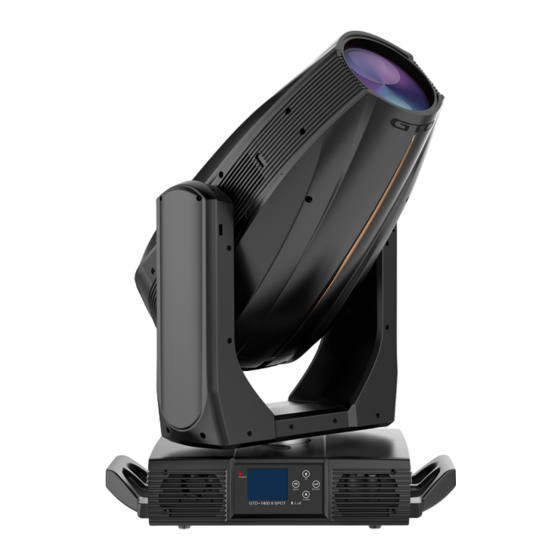

1400W II Moving Head
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GTD-1400 II PROFILE and is the answer not in the manual?

Questions and answers

Related Manuals for GTD GTD-1400 II PROFILE

Summary of Contents for GTD GTD-1400 II PROFILE

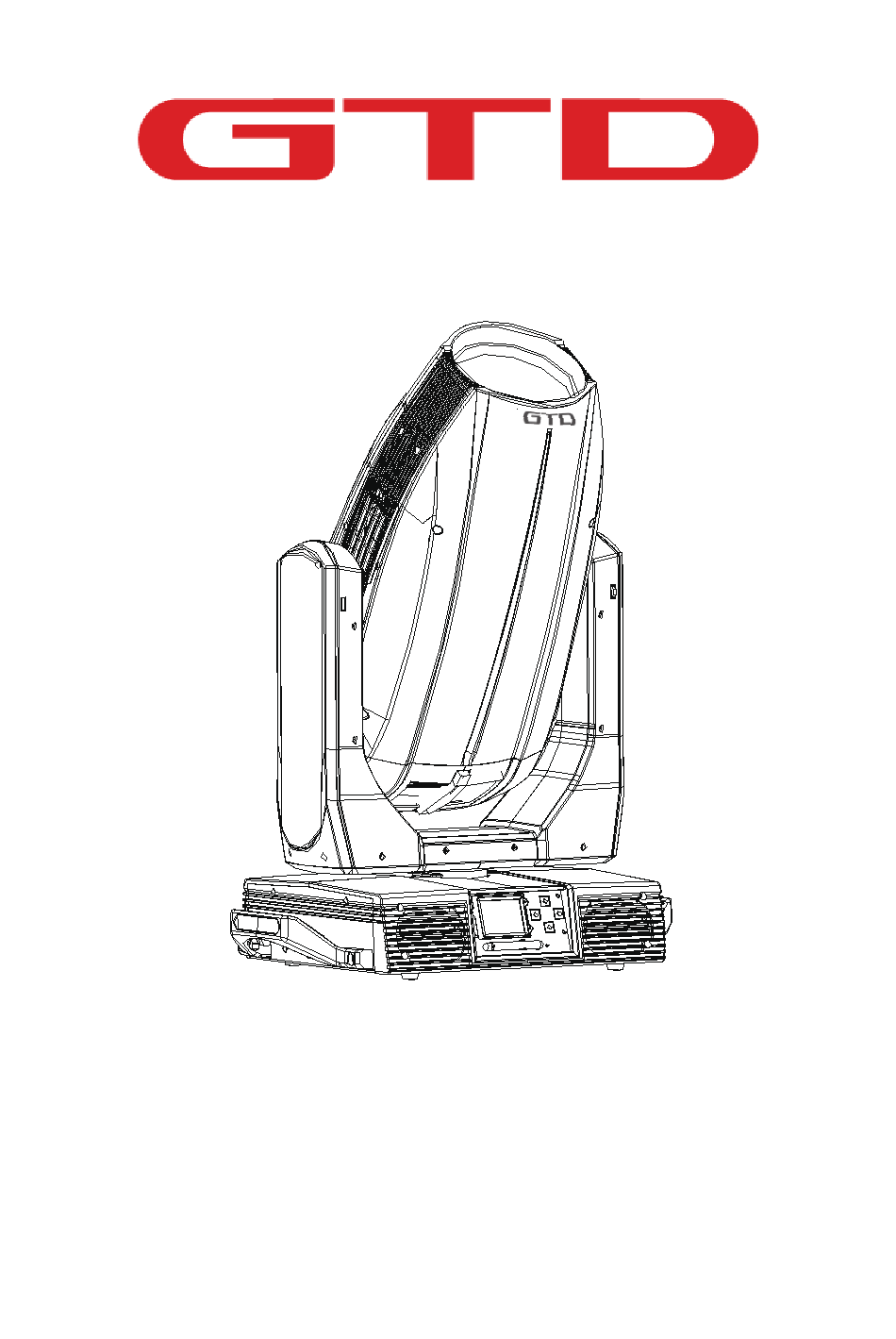

  • Page 1 GTD-1400 II PROFILE 1400W II Moving Head User Manual...
  • Page 2 GTD and all affiliated companies hereby disclaim any and all liabilities for property, equipment, building, and electrical damages, injuries to any persons, and direct or indirect economic loss associated with the use or reliance of any information contained within this document, and/or as a result of the improper, unsafe, insufficient and negligent assembly, installation, rigging, and operation of this product.

  • Page 3: Table Of Contents

    1.Table of contents 1.Contents..............................3 2.Safety instructions...........................4 3.Product introductions..........................6 3.1 Dimensions .............................6 3.2 Fixture overview ............................7 3.3 Accessories.............................7 4.Packing and shipping..........................8 4.1 Protection lock............................8 4.2 Unpacking..............................8 4.3 Packing after use.............................8 5.Installation..............................9 5.1 Clamps installation...........................9 5.2 Device installation............................9 5.3 Lamp fitting and adjustment........................10 6.Power / Control connection........................11 6.1 Power connection..........................11 6.2 Control connection..........................11...

  • Page 4: Safety Instructions

    2.Safety instructions Before using the fixture, read the latest version of the product user manual, paying particular attention to the safety instructions. Please check www.gtd-lighting.com for the latest revision/update of the user manual. The manufacture of this fixture, are not responsible for damages, resulting from misuse of this fixture, due to the disregard of the information printed in this user manual.
  • Page 5 GTD-1400 II PROFILE General guidelines  Never open this fixture while in use.  The fixture should be kept clean. DO NOT operate the fixture in extreme heat or dusty environments. Avoid contact with chemical liquid.  This fixture is a professional light effect designed for INDOOR / DRY LOCATIONS ONLY on stage, in nightclubs, theatres, etc.

  • Page 6: Product Introductions

    GTD-1400 II PROFILE 3.Production instructions 3.1 Diamension 297mm 446mm (11.7″) (17.6″) 634mm (25″) 818mm (32.2″) 546mm (21.5″) 358mm 421mm (14.1″) (16.6″) 570mm (22.4″) Lighting...

  • Page 7: Fixture Overview

    GTD-1400 II PROFILE 3.2 Fixture overview Item Head module Frost module Prism module Tilt lock Framing blade system Lamp-holder assembly Pan-tilt frame Pan lock Base module LCD display 3.3 Accessories Item Unit Remark User Manual 20-63mm Clamps Safety cable φ 5*60cm 7*19pc with hook Material：Steel...

  • Page 8: Packing And Shipping

    GTD-1400 II PROFILE 4.Packing and shipping 4.1 Protection lock Pan and tilt locks are equipped to ensure safe transportation. PAN: 4 lock positions are located evenly on the Pan. TILT: 5 lock positions are located on left and right side of the Tilt with the third one in the center.

  • Page 9: Installation

    GTD-1400 II PROFILE 5.Installation 5.1 Clamps installation The fixture can be placed on the stage or mounted on the truss facing any direction. Attach the clamps to the mounting position on the base of the fixture. Warning Use two clamps when mounting the fixture. Turn the screws attached to each clamp a 1/4 turn clockwise to lock.

  • Page 10: Lamp Fitting And Adjustment

    GTD-1400 II PROFILE 5.3 Lamp fitting and adjustment 1. Disconnect the fixture from AC power. Cool down the fixture. Set the Tilt lock in a horizontal position. 2. Use a flathead screwdriver to loosen the back cover. Remove the lamp by anticlockwise rotating and pull it out.

  • Page 11: Power/ Control Connection

    GTD-1400 II PROFILE 6.Power/ Control connection 6.1 Power connection Connection method:  L (Live) Brown wire  E (Earth) Yellow / Green bi-color wire  N (Neutral) Blue wire  The voltage and frequency of the power source must be in compliance with the ones marked on the fixture.

  • Page 12: Control Panel

    GTD-1400 II PROFILE 7.Control panel 7.1 Using the control panel GTD-1400 II PROFILE  The control panel features touch-sensitive buttons and LCD digital display for quick and easy setup of address code and functions menu.  Press UP or DOWN to view or select the function menu.

  • Page 13: Technical Specification

    GTD-1400 II PROFILE 8.Technical specification  Optical Light source: OSRAM 1400/PS Brilliant Expected average lifetime: 750 h Color temperature correction: 6000K~2700K Zoom: 5º-55º Spot uniformity：≥80% CRI：Ra≥96 Total Luminous: 33595 lumen Focus: High-precision glass lenses, electronic linear HD focus Prism: 1-facet prism，CW/CCW rotation, variable speed Frost: 1-independent frost effect ...
  • Page 14 GTD-1400 II PROFILE  Dynamic effects Pan/Tilt movement: 540˚/270˚ Iris: Motorized adjustable iris, wide range of variable pulse effects Strobe: 1-25Hz, synchronized, pulse effects Dimmer: 0-100%, 16-bit, mechanical dimming  Thermal Operating range: 5˚F to 113˚F (-15˚C to +45˚C) Startup range: -13˚F to 113˚F (-25˚C to +45˚C) Storage range: -40˚F to 140˚F (-40˚C to +60˚C)

  • Page 15: Gobos And Colors

    GTD-1400 II PROFILE 9.Gobos and colors 9.1 Gobo specification All patterns are made onto the metal or glass gobos, and can be customized according to user’s requirement. The customized size is as below: Gobo material Outer dimension Effective dimension Thickness 2.6mm...

  • Page 16: Menu Structure

    GTD-1400 II PROFILE 10.Menu structure 1400 II Profile – Menu Structure Revision: A Valid from firmware version: 1.0 Level 1 Level 2 Level 3 Level 4 Info Setting the DMX address Run setting Address Setting Address: 001~ XXX Value Display Pan ……，All，Off...
  • Page 17 GTD-1400 II PROFILE Level 1 Level 2 Level 3 Level 4 Info Every channel test Channel Test Mode Pan…… Adjust Manual Mode Pan =XXX Manual control Adjust Mode The password of adjust mode Input Password Password=XXX(168) Pan=XXX Fixed all begin position...

  • Page 18: Dmx Protocol

    GTD-1400 II PROFILE 11.DMX protocol 1400 II PROFILE DMX Protocol Revision: A Valid from firmware version: 1.0 DMX protocol - Standard [37 channels] Standard Default DMX Name DMX value DMX percentage Function (37ch) Value 0.0% 12.2% Closed 12.5% 24.7% Open Synchronous strobe from slow to 25.1%...
  • Page 19 GTD-1400 II PROFILE Standard Default DMX Name DMX value DMX percentage Function (37ch) Value 0.0% 5.9% Open 6.3% 9.0% Gobo 1 9.4% 12.2% Gobo 2 12.5% 15.3% Gobo 3 15.7% 18.4% Gobo 4 18.8% 21.6% Gobo 5 22.0% 24.7% Gobo 6 25.1%...
  • Page 20 GTD-1400 II PROFILE Standard Default DMX Name DMX value DMX percentage Function (37ch) Value 0.0% 49.8% Gobo rotation/positioning Gobo continous rotation CCW 50.2% 73.3% from slow to fast Gobo rotating/positioning 73.7% 76.5% Stop 0(0%) gobo wheel 1 Gobo continous rotation CW 76.9% 100.0%...
  • Page 21 GTD-1400 II PROFILE Standard Default DMX Name DMX value DMX percentage Function (37ch) Value 0.0% 100.0% Near Focus1 0(0%) 65535 0.0% 100.0% Focus1, fine (LSB) 0.0% 100.0% Near Focus2 0(0%) 65535 0.0% 100.0% Focus2, fine (LSB) 0.0% 100.0% Narrow Wide...
  • Page 22 GTD-1400 II PROFILE Standard Default DMX Name DMX value DMX percentage Function (37ch) Value 15.7% 19.2% Color wheel random positioning 19.6% 23.1% Reserved 23.5% 27.1% Reset all motor after 5 seconds 27.5% 31.0% Scan motor reset after 5 seconds All color motor reset after 5 31.4%...
  • Page 23 GTD-1400 II PROFILE DMX protocol - Basic[34 channels] Basic Default DMX Name DMX value DMX percentage Function (34ch) Value 0.0% 12.2% Closed 12.5% 24.7% Open Synchronous strobe from slow to 25.1% 49.8% fast Strobe/Shutter 0(0%) 50.2% 62.4% Open 62.7% 87.5% Random strobe from slow to fast 87.8% 100.0% Open...

  • Page 24: System Wiring Diagram

    GTD-1400 II PROFILE Basic Default DMX Name DMX value DMX percentage Function (34ch) Value 15.7% 18.4% Gobo 4 18.8% 21.6% Gobo 5 22.0% 24.7% Gobo 6 25.1% 27.8% Gobo 7 28.2% 31.0% Gobo 1 shake Gobo wheel (static) 0(0%) 31.4% 34.1% Gobo 2 shake...
  • Page 25 GTD-1400 II PROFILE Basic Default DMX Name DMX value DMX percentage Function (34ch) Value Gobo Gobo rotation/positioning, fine 0(0%) rotating/positioning 65535 0.0% 100.0% (LSB) gobo wheel 1 0.0% 100.0% White Full Blade up 1  Blade up 1 0(0%) 65535 0.0%...
  • Page 26 GTD-1400 II PROFILE Basic Default DMX Name DMX value DMX percentage Function Value (34ch) 0.0% 100.0% Near Focus2 0(0%) 65535 0.0% 100.0% Focus2, fine (LSB) 0.0% 100.0% Narrow Wide Zoom 0(0%) 65535 0.0% 100.0% Zoom, fine (LSB) 0.0% 12.2% Off...
  • Page 27 GTD-1400 II PROFILE Default DMX Basic Name DMX value DMX percentage Function Value (34ch) 23.5% 27.1% Reset all motor after 5 seconds 27.5% 31.0% Scan motor reset after 5 seconds All color motor reset after 5 31.4% 34.9% seconds All gobo motor reset after 5 35.3%...
  • Page 28 GTD-1400 II PROFILE DMX protocol - Extended [54 channels] Extended Default DMX Name DMX value DMX percentage Function (54ch) Value 0.0% 12.2% Closed 12.5% 24.7% Open Synchronous strobe from slow to 25.1% 49.8% fast Strobe/Shutter 0(0%) 50.2% 62.4% Open 62.7% 87.5% Random strobe from slow to fast...
  • Page 29 GTD-1400 II PROFILE Extended Default DMX Name DMX value DMX percentage Function (54ch) Value 15.7% 18.4% Gobo 4 18.8% 21.6% Gobo 5 22.0% 24.7% Gobo 6 25.1% 27.8% Gobo 7 28.2% 31.0% Gobo 1 shake Gobo wheel (static) 0(0%) 31.4% 34.1% Gobo 2 shake...
  • Page 30 GTD-1400 II PROFILE Extended Default DMX Name DMX value DMX percentage Function (54ch) Value Gobo Gobo rotation/positioning, fine 0(0%) rotating/positioning 65535 0.0% 100.0% (LSB) gobo wheel 1 0.0% 100.0% White Full Blade up 1  Blade up 1 0(0%) 65535 0.0%...
  • Page 31 GTD-1400 II PROFILE Default DMX Extended Name DMX value DMX percentage Function Value (54ch) 0.0% 100.0% Near Focus2 0(0%) 65535 0.0% 100.0% Focus2, fine (LSB) 0.0% 100.0% Narrow Wide Zoom 0(0%) 65535 0.0% 100.0% Zoom, fine (LSB) 0.0% 12.2% Off...
  • Page 32 GTD-1400 II PROFILE Extended Default DMX Name DMX value DMX percentage Function Value (54ch) 23.5% 27.1% Reset all motor after 5 seconds 27.5% 31.0% Scan motor reset after 5 seconds All color motor reset after 5 31.4% 34.9% seconds All gobo motor reset after 5 35.3%...
  • Page 33 GTD-1400 II PROFILE 12.System wiring diagram Iris Gobo rotation1 Dynamic Gobo Wheel Dynamic rotation Color Wheel Framing rotation Fixed Wheel Dimming Yellow Strobe1 Magenta Strobe2 Cyan Lighting...

  • Page 34: Maintenance And Troubleshooting

    It is required that the fixture should be kept clean and well maintained to ensure its reliability. Its lifespan mainly depends on the working environment and proper operation. Should you have any questions, please consult a technical engineer of GTD Lighting. Notes Damage resulted from dust, smoke, oil or improper use is not covered by warranty.

  • Page 35: System Wiring Diagram

    GTD-1400 II PROFILE Problem Possible Cause Suggested Correction Test the lamp in an adjacent fixture which is known to be Normal end of lamp life. operating properly and then replace as necessary. Whether the function of the relay board is Repair or replace.

  • Page 36: Spare Parts List

    GTD-1400 II PROFILE 14.Spare parts list Name Notes 5801082028B Adapter plate0212B-1 SCB0212B Hall speed 0802C-1 5801914002B SLS0802C 1400 II PROFILE-101J10 5809010291B 1400 II PROFILEDisplay board 0107D-2 / 0803F-1 1400 II PROFILE-201O10 5809010292C 1400 II PROFILEScanning board SCR0238A / 0238A-1 1400 II PROFILE-301O10...
  • Page 37 广州市明道灯光科技股份有限公司 电话：86-20-61808288 传真：86-20-61812282 网址：www.gtd-china.com...
