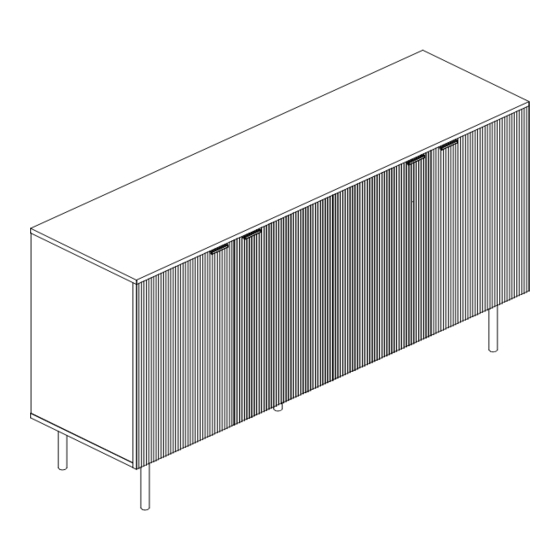

- Page 1 HULALA ITEM NO.SCBSD0808 NOTE: This brochure contains IMPORTANT safty info. Please read and keep for future reference. 01/27...
- Page 2 MAINTAINANCE AND WARNING 1.Keep furniture away from heat sources. 2.Do not clean furniture with harsh cleaner or polishes.Do not use detergents,solvents,abrasives,spray packs or leather cleaner. Use non-color mild soa with warm water to clean spills(Mix 1:10 soap to water). 3.Do not place furniture under direct sunlight,material will possibly fade over time.
-
Page 3: Explosive View
EXPLOSIVE VIEW 2People 03/27... -
Page 4: Parts List
PARTS LIST 04/27... -
Page 5: Hardware List
HARDWARE LIST M3.5*14mm M6*50mm M6*40mm M7*50mm M6*35mm M4*35mm M6*30mm HARDWARE SPARE LIST M3.5*14mm M6*50mm M6*40mm M7*50mm M6*35mm M4*35mm M6*30mm 05/27... -
Page 6: Tool List
HARDWARE LIST Ø8*30mm Ø15*11mm Ø20mm TOOL LIST 06/27... - Page 7 ASSEMBLY INSTRUCTIONS STEP-1 Insert wooden dowel #9 into the corresponding hole of top panel (A),screw bolt #6 into the corresponding hole of top panel (A),tighten bolt #6 with screwdriver #21. ∅ ∅ 6*35mm 8*30mm 07/27...
- Page 8 ASSEMBLY INSTRUCTIONS STEP-2 Use screw#1 to attach wine rack(I) to top panel (A),tighten screw#1 with screwdriver#21. ∅ 3.5*14mm 08/27...
- Page 9 ASSEMBLY INSTRUCTIONS STEP-3 Insert panel (C)&(D)&(E)&(F) into top panel (A) as picture show,and then insert cam bolt #10 into the corresponding hole of panel (C)&(D)&(E)&(F),tighten cam bolt #10 with screwdriver #21，finally，stick paster #12 on the corresponding hole of panel (C)&(D)&(E)&(F). E&F E&F E&F...
- Page 10 ASSEMBLY INSTRUCTIONS STEP-4 Carefully align and slide panel (H)&(G) into the groove along rear edge of pre-assemble unit at step 3,slide the panel (H)&(G) into the bottom,and then insert wooden dowel #9 into the corresponding hole of panel (C)&(D)&(E)&(F). ∅ 8*30mm 10/27...
- Page 11 ASSEMBLY INSTRUCTIONS STEP-5 Use bolt #5 to attach bottom panel (B) to the corresponding hole of panel (C)&(D)&(E)&(F),tighten bolt #5with allen key #20. M7*50 11/27...
- Page 12 ASSEMBLY INSTRUCTIONS STEP-6 6.1 Screw bolt #8 into leg(P) as picture show,pay attention to the direction of bolt. 6.2 Screw preassemble leg(P) into part(N). 6.3 Use bolt #3 to attach leg(O) to part(N),and then use allen key#20 to tighten it. M6*40 M6*30 12/27...
- Page 13 ASSEMBLY INSTRUCTIONS STEP-7 Use bolt #2 to attach preassemble leg (N)&(O) to the corresponding hole of bottom panel (B),tighten bolt #2 with allen key #20. M6*50 13/27...
- Page 14 ASSEMBLY INSTRUCTIONS STEP-8 Use screw #1 to attach part #11 to panel (A)&(B)&(C)&(D)&(E)&(F),tighten screw #1with screwdriver #21. #11x #11x #11x M3.5*14 14/27...
- Page 15 ASSEMBLY INSTRUCTIONS STEP-9 Attention: After installation, adjust the adjustable leveler to keep the cabinet balanced . Be sure to check all packing material carefully for small parts, which may have come loose inside the carton during shipment. Attention: Before the next step, adjust the feet of the locker to keep it level.
- Page 16 ASSEMBLY INSTRUCTIONS STEP-10 Insert shelf holder #17 into the corresponding hole of (C)&(D)&(E)&(F) panel and then attach adjustable shelf (J) &(K)to it. #17x 16/27...
- Page 17 ASSEMBLY INSTRUCTIONS STEP-11 (L)&(M),tighten screw #1 Use screw #1 to attach hinge #19 to door with screwdriver #21. #19x M3.5*14 17/27...
- Page 18 ASSEMBLY INSTRUCTIONS STEP-12 Insert part #13 into the corresponding position of door (L)&(M),and ,make sure all then use screw #4 to attach part #13 to door (L)&(M) holes aligned and tighten screw #4 with screwdriver #21. 18/27...
- Page 19 ASSEMBLY INSTRUCTIONS STEP-13 Use screw #1 to attach preassemble door(M)&(L) to panel ,tighten screw #1 with screwdriver #21. (D)&(C) M3.5*14 19/27...
- Page 20 ASSEMBLY INSTRUCTIONS STEP-14 (L)&(M),tighten screw #1 Use screw #1 to attach hinge #18 to door with screwdriver #21. M3.5*14 20/27...
- Page 21 ASSEMBLY INSTRUCTIONS STEP-15 Insert part #13 into the corresponding position of door (L)&(M),and ,make sure all then use screw #4 to attach part #13 to door (L)&(M) holes aligned and tighten screw #4 with screwdriver #21. 21/27...
- Page 22 ASSEMBLY INSTRUCTIONS STEP-16 ,tighten Use screw #1 to attach preassemble door(M) to panel (F) screw #1 with screwdriver #21. M3.5*14 22/27...
- Page 23 ASSEMBLY INSTRUCTIONS STEP-17 ,tighten Use screw #1 to attach preassemble door(L) to panel (F) screw #1 with screwdriver #21. M3.5*14 23/27...
- Page 24 ASSEMBLY INSTRUCTIONS STEP-18 Use screw #1 to attach plastic bracket #14 to panel (C)&(D),tighten screw #1 with screwdriver #21. #14x M3.5*14 24/27...
- Page 25 ASSEMBLY INSTRUCTIONS STEP-19 1. Mark the position on the wall, that corresponds to the location of bracket #14 on the side panel (C)&(D); Drill and insert the expandable screw #15 by hammer. 2. Assemble the bracket #14 to the wall. Align the hole in the bracket #14 with the expandable screw #15, use screw #7 to attach it tighten screw #7 with screwdriver #21.
- Page 26 ASSEMBLY INSTRUCTIONS STEP-20 3. Let the plastic belt #16 pass through bracket #14 and pull tightly. 26/27...
-
Page 27: Warranty
WARRANTY 1.We strive to offer high-quality products,and we also try our best to satisfy each and every customer that orders from us with product or service as needed. 2.We provide 30 days warranty starting from the time you receive the item.Each customer must provide a record of their order such as the order number,or item receipt for any items that are out of the warranty period you may also still receive.
