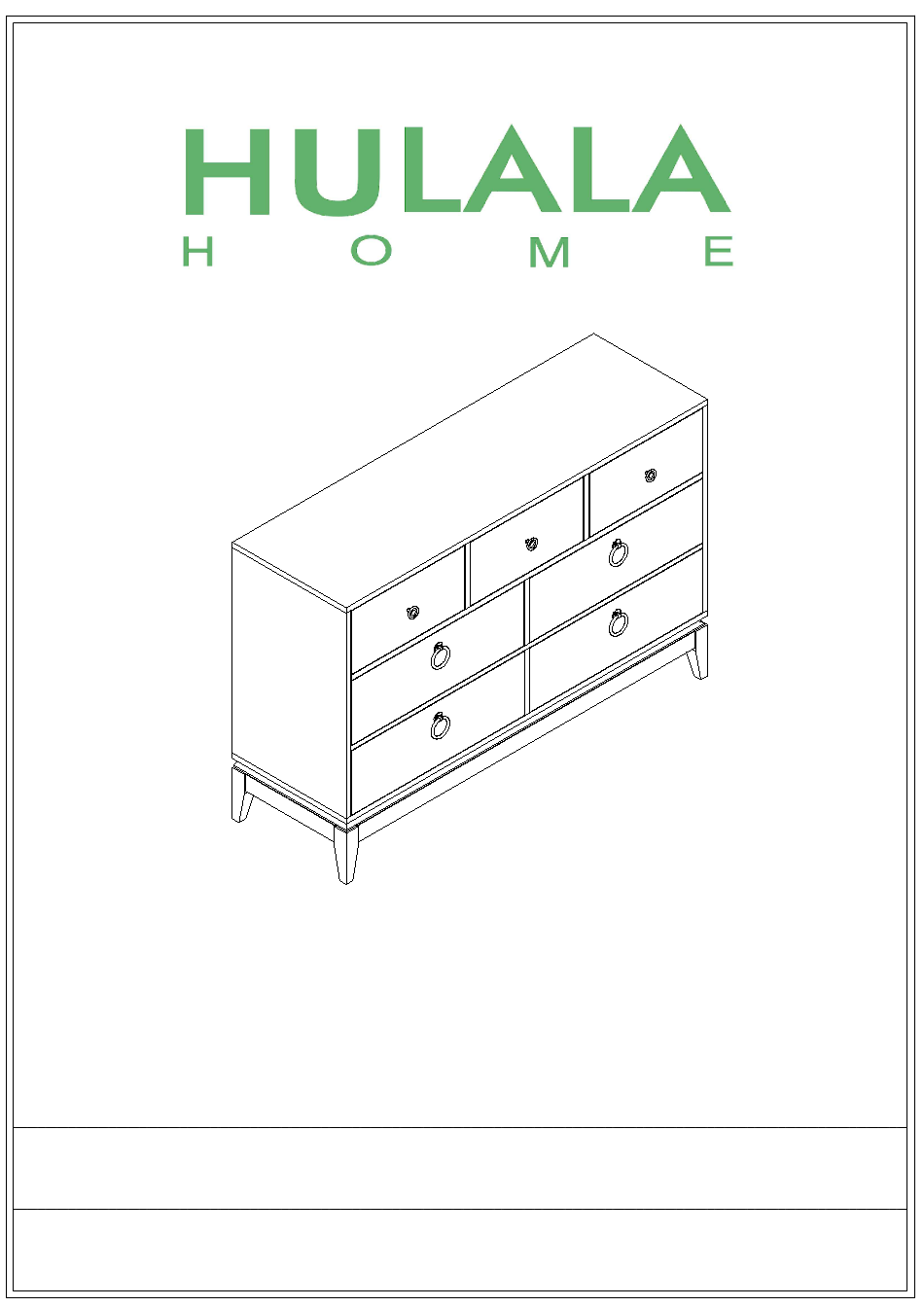

- Page 1 ITEM NO : SCSY0753 NOTE: This brochure contains IMPORTANT safty info. Please read and keep for future reference...
- Page 2 EDUARD 54'' WIDE 7 DRAWER DRESSER X1 Allen Key X3 Drawer Front X8 Allen Bolt X4 Leg X2 Center Panel 2 Panel 1 1/4" * 2-1/2" 28 Dowel Ø6 * 30mm X3 Drawer Bottom X28 Screw X1 Base Panel X1 Top Panel Panel 1 F3 * 15mm X64 Screw...
- Page 3 Step 1A. Attach the legs (A) to the base panel (B) using * Please remove the tape before assembling. Allen bolts (2), Flat washers (8), Spring washers (9) and Step 2.A.Attach the center panel 1 (F) to the beam panel (G) Allen key (1) by placing the plastic pieces in the slots and sliding the center panel 1 (F) forward.
- Page 4 * Please remove the tape before assembling. Step 4.Attach the right side panel (C), left side Step 3.Attach the right side panel (C) and left side panel (D) panel (D) and the center panel 1 (F) to the base to the beam (E,G) by placing the plastic pieces in the slots panel (B) by placing the plastic pieces in the slots and sliding the side panels (C, D) backwards.
- Page 5 * Please remove the tape before assembling. Step 6. Attach the top panel (I) to side panel (C,D) and Step 5. Attach the center panels 2 (H) to the beam panel center panels 2 (H) by placing the plastic pieces in the (G) by placing the plastic pieces in the slots and sliding slots and sliding the top panel (I) backwards.
- Page 6 Step 7. Attach the back panel (J,K) to cabinet using Step 8. Attach the drawer right side panel (M) and drawer left the screw (4) and Phillips screwdriver side panel (L) to the drawer back panel 1 (N) using the dowel (3) , screw (5) and Phillips screwdriver Page...
- Page 7 Step 9. Slide the drawer bottom panel 1 (P) into the Step 10. Attach the handle 1 (10) to the drawer front panel grooves of the side panels.Then attach the drawer front 1 (O) using the bolt (7) and Phillips screwdriver panel 1 (O) to the drawer sides (L,M) using the screw (5) Repeat steps 8-10 for three small drawers.
- Page 8 Step 11 . Attach the drawer right side panel (M) and drawer Step 13.Attach the drawer front panel 2 (R) to the drawer left side panel (L) to the drawer back panel 2 (Q) using the sides (L,M) using the screw (5) and Phillips screwdriver dowel (3) , screw (5) and Phillips screwdriver.
- Page 9 Step 14.Attach the drawer support (T) to the drawer Step 15. Attach the handle 2 (11) to the drawer front panel front panel 2 (R) using the screw (5) and Phillips 2 (R) using the bolt (6) and Phillips screwdriver screwdriver.
- Page 10 Step 16. Place the drawers into the dresser frame on the metal tracks and slowly work the drawers into place until fully closed. To remove the drawers, use the lever release. Pull the drawer out as far as possible, and you'll see a plastic lever on each side. Pull one lever up and push the other down Page...
- Page 11 Step 17. Attach a bracket securely to the back top rail of the dresser using the 5/8” screw provided, through the smaller hole. Locate the other bracket on the wall over a wall stud and 2 inches below the mounting bracket secured to the back of your unit.
-
Page 12: Warranty
WARRANTY We' re committed to designing beautiful modern furniture that complements a variety of décor styles and tastes using the highest quality materials and fabrics. Our Manufacturer' s warranty covers defects in materials and workmanship for 30days from the products date of delivery. Please email us your order No and contact information to located your order if you need any help.
