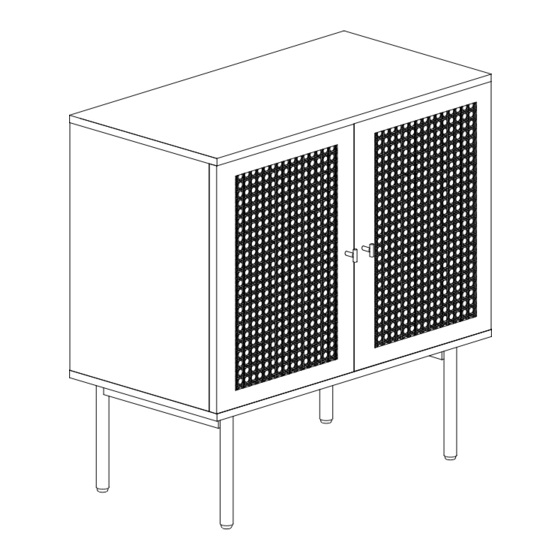

HULALA HOME SCBSD0809 Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
HULALA
H
O
M
E
ITEM NO.SCBSD0809
NOTE:
This brochure contains IMPORTANT safty info. Please read and keep for future
reference.
01/22

Advertisement

loading
Need help?

Need help?

Do you have a question about the SCBSD0809 and is the answer not in the manual?

Questions and answers

Related Manuals for HULALA HOME SCBSD0809

Summary of Contents for HULALA HOME SCBSD0809

  • Page 1 HULALA ITEM NO.SCBSD0809 NOTE: This brochure contains IMPORTANT safty info. Please read and keep for future reference. 01/22...
  • Page 2 MAINTAINANCE AND WARNING 1.Keep furniture away from heat sources. 2.Do not clean furniture with harsh cleaner or polishes.Do not use detergents,solvents,abrasives,spray packs or leather cleaner. Use non-color mild soa with warm water to clean spills(Mix 1:10 soap to water). 3.Do not place furniture under direct sunlight,material will possibly fade over time.

  • Page 3: Explosive View

    EXPLOSIVE VIEW 2PERSON 03/22...

  • Page 4: Parts List

    PARTS LIST 04/22...

  • Page 5: Hardware List

    HARDWARE LIST #2 x12 #1 x6 Ø Ø M6*50mm 6*35mm 8*30mm M7*50mm M6*40mm M3.5*14mm Ø15*11mm #9 x2 #14 x12 ∅ #16 x2 #18 x2 M4*35mm M4*30mm TOOL LIST HARDWARE SPARE LIST #18 x1 Ø 6*35mm M7*50mm M6*50mm M4*30mm M4*35mm M6*40mm M3.5*14mm 05/22...
  • Page 6 ASSEMBLY INSTRUCTIONS STEP-1 Insert wooden dowel #2 into the corresponding hole of top panel (A),and then screw bolt #1 into the corresponding hole of top panel (A) ， tighten bolt #1 with screwdriver #19 . Ø Ø 6*35mm 8*30mm 06/22...
  • Page 7 ASSEMBLY INSTRUCTIONS STEP-2 Insert side panel (D)&(C) 、 middle vertical panel(E) into the preassemble top panel (A),and then insert cam bolt #7 into the corresponding hole of side panel (D)&(C)&middle vertical panel(E),tighten cam bolt #7 with screwdriver #19,finally stick paster #13 to it for look nice.
  • Page 8 ASSEMBLY INSTRUCTIONS STEP-3 Carefully align and slide panel (G) into the groove along rear edge of pre-assemble step 2,and then insert wooden dowel #2 into the corresponding hole of panel(C)&(E)&(D) . Ø 8*30mm 08/22...
  • Page 9 ASSEMBLY INSTRUCTIONS STEP-4 Insert bottom panel (B) into preassemble step 3 ， make sure all hole aligned and then use bolt #3 to attach them ， tighten bolt #3 with allen key #20. M7*50mm 09/22...
  • Page 10 ASSEMBLY INSTRUCTIONS STEP-5 Use bolt #5 to attach part (J) to part (I), make sure all holes aligned and tighten all bolts with allen key #20 . M6*40mm 10/22...
  • Page 11 ASSEMBLY INSTRUCTIONS STEP-6 Use bolt #4 to attach preassemble step 5 to the corresponding hole of bottom panel(B), make sure all holes aligned and tighten all bolts 70 ％ with allen key #20 . M6*50mm 11/22...
  • Page 12 ASSEMBLY INSTRUCTIONS STEP-7 Attention: Before the next step, adjust the feet of the locker to keep it level. Attention: Before the next step, adjust the feet of the locker to keep it level. 12/22...
  • Page 13 ASSEMBLY INSTRUCTIONS STEP-8 Use screw #6 to attach part #14 to bottom panel (A)&(B)&(C)&(D)&(E)&(G),tighten screw #6 with screwdriver #19. M3.5*14mm 13/22...
  • Page 14 ASSEMBLY INSTRUCTIONS STEP-9 (C)&(D)&(E) Insert shelf holder #8 into the corresponding hole of panel and then attach adjustable shelf (F)to it. Shelf holder can be adjusted up or down & & 14/22...
  • Page 15 ASSEMBLY INSTRUCTIONS STEP-10 (H),tighten screw #6 with Use screw #6 to attach hinge #10 to door screwdriver #19. M3.5*14mm 15/22...
  • Page 16 ASSEMBLY INSTRUCTIONS STEP-11 Insert part #15 into the corresponding position of door (H),and then screwdriver M4*30mm ∅ 16/22...
  • Page 17 ASSEMBLY INSTRUCTIONS STEP-12 Use screw #6 to attach preassemble hinge #10 to panel ,tighten screw #6 with screwdriver #19. (C)&(D) C&D M3.5*14mm 17/22...
  • Page 18 ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS HINGE ADJUST Concealed hinges are three-way adjustable: Horizontal by screw adjustment! Concealed hinges are three-way adjustable: In-and-out by loosening the hinge arm mounting screw or via cam adjustment! Concealed hinges are three-way adjustable: Vertical via slots in the mounting plate or via cam adjustment! Hinge adjustment method...
  • Page 19 ASSEMBLY INSTRUCTIONS M3.5*14mm STEP-13 Use screw #6 to attach plastic bracket #11 to panel (A),tighten screw #6 with screwdriver #19. 19/22...
  • Page 20 ASSEMBLY INSTRUCTIONS M4*35mm STEP-14: 1. Mark the position on the wall, that corresponds to the location of bracket on the top panel (A); Drill and insert the expandable screw by hammer. 2. Assemble the bracket to the wall. Align the hole in the bracket with the expandable screw , use screw to attach...
  • Page 21 ASSEMBLY INSTRUCTIONS STEP-15 3. Let the plastic belt pass through bracket and pull tightly. If you encounter difficulties during the installation process, please watch the installation video! 21/22...

  • Page 22: Warranty

    WARRANTY 1.We strive to offer high-quality products,and we also try our best to satisfy each and every customer that orders from us with product or service as needed. 2.We provide 30 days warranty starting from the time you receive the item.Each customer must provide a record of their order such as the order number,or item receipt for any items that are out of the warranty period you may also still receive.
