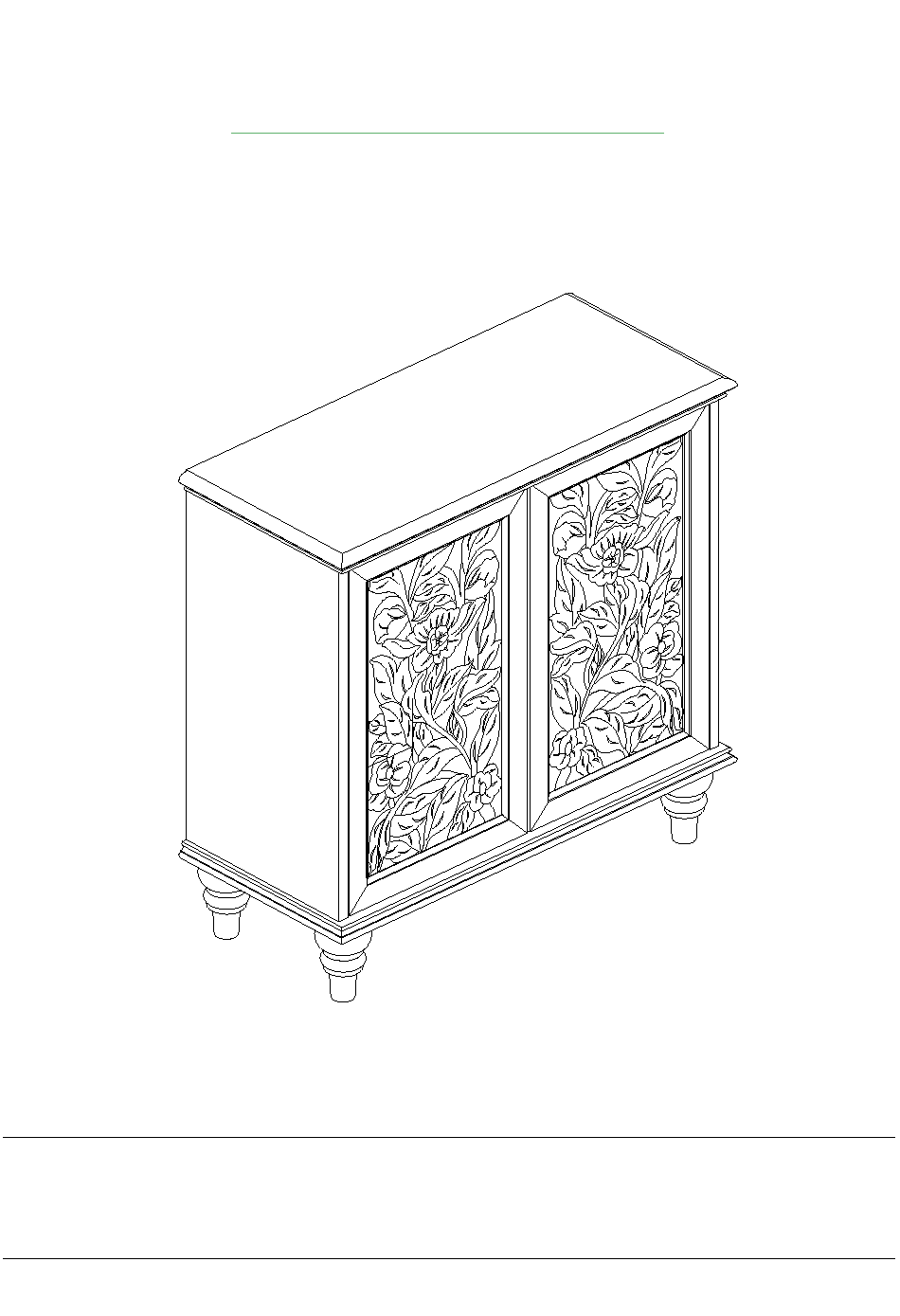

- Page 1 HULALA ITEM NO.SCLS0965 NOTE: This brochure contains IMPORTANT safty info. Please read and keep for future reference. 01/24...
- Page 2 MAINTAINANCE AND WARNING 1.Keep furniture away from heat sources. 2.Do not clean furniture with harsh cleaner or polishes.Do not use detergents,solvents,abrasives,spray packs or leather cleaner. Use non-color mild soa with warm water to clean spills(Mix 1:10 soap to water). 3.Do not place furniture under direct sunlight,material will possibly fade over time.
- Page 3 2PERSONENS 03/24...
-
Page 4: Parts List
PARTS LIST 1 04/24... -
Page 5: Hardware List
HARDWARE LIST φ15*11mm φ6*35mm φ21 M3*14mm φ8*30mm M6*50mm HARDWARE SPARE LIST φ15*11mm M3*14mm φ6*35mm φ21 M6*50mm φ8*30mm 05/24... - Page 6 ASSEMBLY INSTRUCTIONS STEP-1 Prepare for part A. Align the holes in part A, insert wooden dowel #9 by hand, tighten bolts #1 with screwdriver #16. φ6*35mm φ8*30mm 06/24...
- Page 7 ASSEMBLY INSTRUCTIONS STEP-2 Use screw #7 to attach rebound device #7 to top panel (A) ， tighten bolts with screwdriver#16. Use screw #14 to attach part #14 to top panel (A) ， tighten bolts with screwdriver#16. 07/24...
- Page 8 ASSEMBLY INSTRUCTIONS STEP-3 Connect the part A with part C&D. align the hole in the part C&D ,insert the bolt #1 and wooden dowel #9 in part A into part C&D. insert cam bolt #2 into the corresponding hole of side panel C&D, and tighten cam bolts #2 with a screwdriver #16.
- Page 9 ASSEMBLY INSTRUCTIONS STEP-4 Connect the part A with part E. align the hole in the part E,insert the bolt #1 in part A into part E. insert cam bolt #2 into the corresponding hole of back panel vertical blockl E ,and tighten cam bolts #2 with screwdriver #16.
- Page 10 ASSEMBLY INSTRUCTIONS STEP-5 Slide in the panel F into the groove in part D.&E and E&C , make sure they are also in groove in part A. The grooves must be The grooves must be align completely. align completely. 10/24...
- Page 11 ASSEMBLY INSTRUCTIONS STEP-6 Manually insert wooden dowels #9 into panel(C,D,E),which conect the part B with the pre-assembled unit in step 5. Then align the holes in part B,Insert screw #8 and push it down so that it connects to parts C&D&E. Next, tighten the screw #8 with Allen key #15.
- Page 12 ASSEMBLY INSTRUCTIONS STEP-7 Rotate leg G clockwise and install it on base plate B. 12/24...
- Page 13 ASSEMBLY INSTRUCTIONS STEP-8 Attention: Before the next step, adjust the feet of the locker to keep it level. 13/24...
- Page 14 ASSEMBLY INSTRUCTIONS STEP-9 Use screw #6 to attach Magnetic device #11 to bottom panel (B) ， tighten bolts #6 with screwdriver #16. M3*14mm 14/24...
- Page 15 ASSEMBLY INSTRUCTIONS STEP-10 Insert hardware #10 into part (F) as shown, screw in screw #6 using screwdriver #16 and tighten fully. M3*14mm 15/24...
- Page 16 ASSEMBLY INSTRUCTIONS STEP-11 1.Use screw #6 to attach hinge #5 to door (I&J) , tighten screw #6 with screwdriver #16. & M3*14mm 16/24...
- Page 17 ASSEMBLY INSTRUCTIONS STEP-12 Use screw #6 to attach iron sheets Magnetic device #12 to door (I&J) ， tighten screw #6 with screwdriver #16. Use screws #7 to install the rebound device iron piece #7 on the door (I&J), and use screwdriver #16 to tighten the screws M3*14mm 17/24...
- Page 18 ASSEMBLY INSTRUCTIONS STEP-13 Use screw #6 to attach left door (I) and right door (J) to pre-assemble unit at step 10 ,tighten screw #6 with screwdriver #16 . & & M3*14mm 18/24...
- Page 19 ASSEMBLY INSTRUCTIONS STEP-14 1.Use screw #14 to attach part #14 to panel (H) ， tighten bolts with screwdriver#16. 2.Insert shelf holder #3 into the corresponding hole of side panels (C)&(D) and then attach panel (H) to it. Shelf holder can be adjusted up or down 19/24...
- Page 20 ASSEMBLY INSTRUCTIONS STEP-15 Push the light strip #14 into the groove of fitting # 14 as picture show. 20/24...
- Page 21 ASSEMBLY INSTRUCTIONS STEP-16 1.Use the components ① in the package #13 to install on the pre-assembled unit 15 with screws ② , and tighten the screws ② with screwdriver #16. ① ② ① ② 21/24...
- Page 22 ASSEMBLY INSTRUCTIONS STEP-17 ① ③ ④ φ8*30mm M4*35mm 1.Install the anti-collapse device. 2.Mark the position on the wall, that corresponds to the location of part ① on the top of panel C&D; Drill and insert the expandable screw ③ by electric drill. 3.Assemble the part ①...
- Page 23 ASSEMBLY INSTRUCTIONS STEP-18 ⑤ 1.Let the plastic belt ⑤ pass through the both ① and pull tightly. ① ⑤ ① 23/24...
-
Page 24: Warranty
WARRANTY 1.We strive to offer high-quality products,and we also try our best to satisfy each and every customer that orders from us with product or service as needed. 2.We provide 30 days warranty starting from the time you receive the item.Each customer must provide a record of their order such as the order number,or item receipt for any items that are out of the warranty period you may also still receive.
