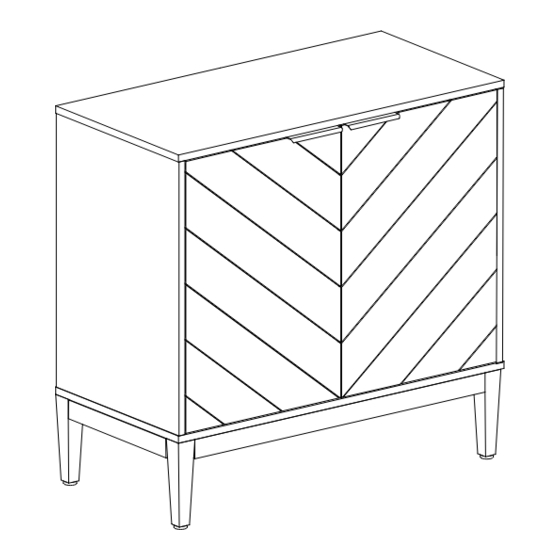

- Page 1 HULALA ITEM NO.SCSD0823 NOTE: This brochure contains IMPORTANT safty info. Please read and keep for future reference. 01/21...
- Page 2 MAINTAINANCE AND WARNING 1.Keep furniture away from heat sources. 2.Do not clean furniture with harsh cleaner or polishes.Do not use detergents,solvents,abrasives,spray packs or leather cleaner. Use non-color mild soa with warm water to clean spills(Mix 1:10 soap to water). 3.Do not place furniture under direct sunlight,material will possibly fade over time.
-
Page 3: Explosive View
EXPLOSIVE VIEW 2PEOPLE 03/21... -
Page 4: Parts List
PARTS LIST 04/21... -
Page 5: Hardware List
HARDWARE LIST M3.5*14mm M7*50mm Ø6x35mm Ø8x30mm Ø15*11mm M6*50mm M4*35mm TOOL LIST HARDWARE SPARE LIST M3.5*14mm M7*50mm Ø6x35mm M6*50mm M4*35mm 05/21... - Page 6 ASSEMBLY INSTRUCTIONS STEP-1 Insert wooden dowel #2 into the corresponding hole of top panel (A),and then screw bolt #1 into the corresponding hole of top panel (A) ， tighten bolt #1 with screwdriver #16 . Ø6x35mm Ø8x30mm 06/21...
- Page 7 ASSEMBLY INSTRUCTIONS STEP-2 Insert side panel (C)&(D) 、 middle vertical panel(E) into the preassemble top panel (A),and then insert cam bolt #3 into the corresponding hole of side panel (C)&(D)&middle vertical panel(E),tighten cam bolt #3 with screwdriver #16,finally stick paster #13 to it for look nice.
- Page 8 ASSEMBLY INSTRUCTIONS STEP-3 Carefully align and slide panel (F) into the groove along rear edge of pre-assemble step 2 and then insert wooden dowel #2 into the corresponding hole of panel(C)&(D)&(E) . Ø8x30mm 08/21...
- Page 9 ASSEMBLY INSTRUCTIONS STEP-4 Insert bottom panel (B) into preassemble step 3 ， make sure all hole aligned and then use bolt #4 to attach them ， tighten bolt #4 with allen key #17. M7*50mm 09/21...
- Page 10 ASSEMBLY INSTRUCTIONS Attention: Align all screws to the hole position before uniformly tightening the screws. M6*50mm 10/21...
- Page 11 ASSEMBLY INSTRUCTIONS STEP-6 Use bolt #8 to attach leg (K) to the corresponding hole of part (B) as picture show，tighten bolt #8 with allen key #17 M6*50mm 11/21...
- Page 12 ASSEMBLY INSTRUCTIONS STEP-7: Use screw #5 to attach part #12 to panel (A)&(B)&(C)&(D)&(E),tighten screw #5 with screwdriver #16. M3.5*14mm 12/21...
- Page 13 ASSEMBLY INSTRUCTIONS STEP-8 Insert shelf holder #6 into the corresponding hole of panel(C)&(D)&(E) and then attach adjustable shelf (G) to it. Shelf holder can be adjusted up or down C&E&D 13/21...
- Page 14 ASSEMBLY INSTRUCTIONS STEP-9 (I)&(H),tighten screw #5 with Use screw #5 to attach hinge #7 to door screwdriver #16. M3.5*14mm 14/21...
- Page 15 ASSEMBLY INSTRUCTIONS STEP-10 Insert part #11 into the corresponding position of door (I)&(H),and then (H)&(I),make sure all holes use screw #5 to attach part #11 to door aligned and tighten screw #5 with screwdriver #16. M3.5*14mm 15/21...
- Page 16 ASSEMBLY INSTRUCTIONS STEP-11 Use screw #5 to attach preassemble hinge #7 to panel (C)&(D) tighten screw #5 with screwdriver #16. M3.5*14mm 16/21...
- Page 17 ASSEMBLY INSTRUCTIONS STEP-12 Concealed hinges are three-way adjustable: Horizontal by screw adjustment! Concealed hinges are three-way adjustable: In-and-out by loosening the hinge arm mounting screw or via cam adjustment! Concealed hinges are three-way adjustable: Vertical via slots in the mounting plate or via cam adjustment! Hinge adjustment method 17/21...
- Page 18 ASSEMBLY INSTRUCTIONS M3.5*14mm STEP-13 Use screw #5 to attach plastic bracket #9 to panel (A),tighten screw #5 with screwdriver #16. 18/21...
- Page 19 ASSEMBLY INSTRUCTIONS STEP-14: 1. Mark the position on the wall, that corresponds to the location of bracket on the top panel (A); Drill and insert the expandable screw by hammer. 2. Assemble the bracket to the wall. Align the hole in the bracket with the expandable screw , use screw to attach it...
- Page 20 ASSEMBLY INSTRUCTIONS STEP-15 3. Let the plastic belt pass through bracket and pull tightly. If you encounter difficulties during the installation process, please watch the installation video! #9 #10 20/21...
-
Page 21: Warranty
WARRANTY 1.We strive to offer high-quality products,and we also try our best to satisfy each and every customer that orders from us with product or service as needed. 2.We provide 30 days warranty starting from the time you receive the item.Each customer must provide a record of their order such as the order number,or item receipt for any items that are out of the warranty period you may also still receive.
